Side 1/2

The optional Ethernet cradle allows you to transfer (download and upload) system data

and file data between the IT-600 and a computer over a USB or LAN connection. You

can also use the Ethernet cradle to charge the battery pack installed in the IT-600.

Ethernet Cradle (HA-D62IO) Instruction

After reading this instruction, keep it in a safe place for future reference.

• This instruction provides a basic guide to using the Ethernet cradle.

• For information on safety precautions, refer to the IT-600 User’s Guide.

Right

Top

Front

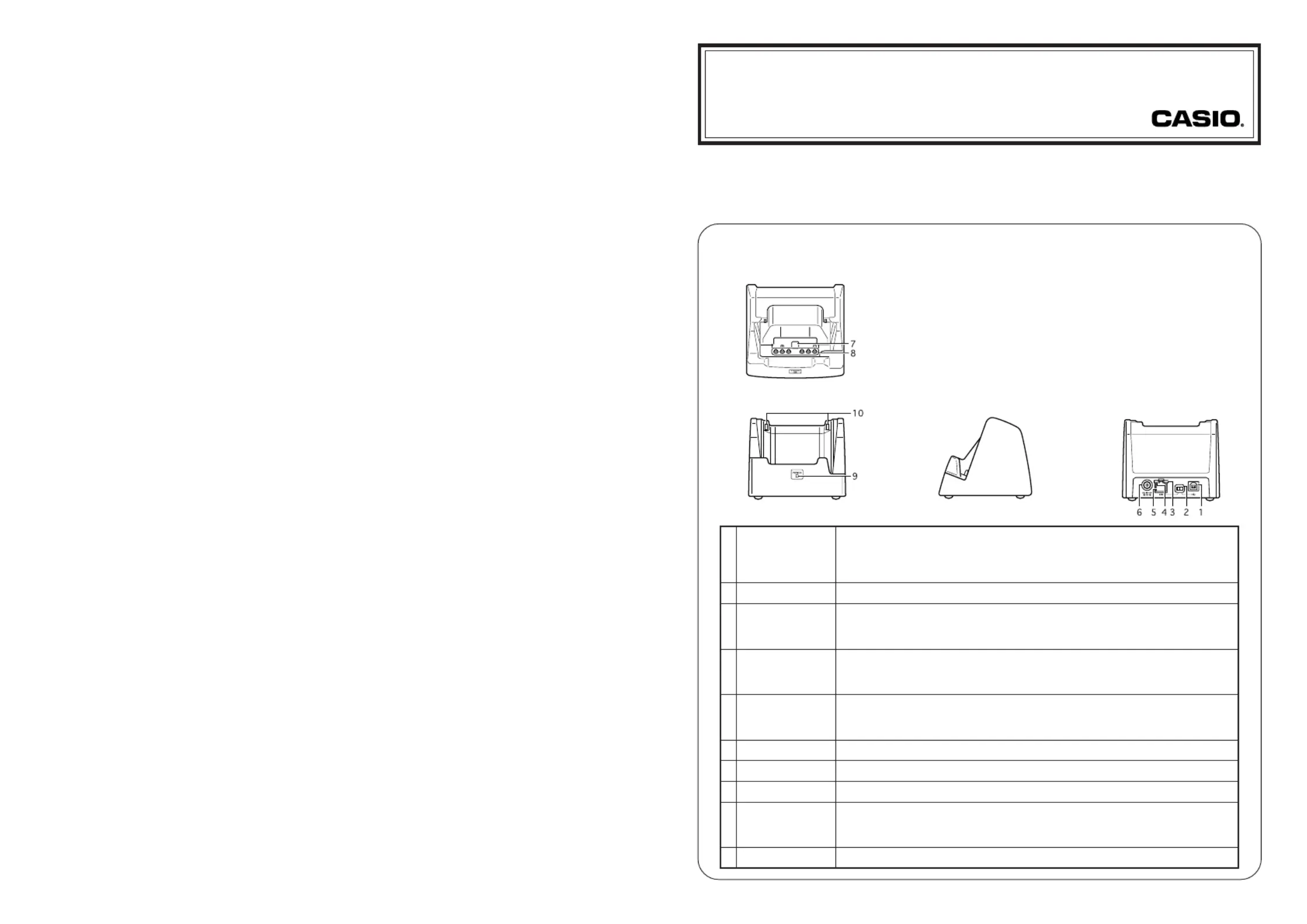

General Guide

Back

Ethernet Cradle (HA-D62IO) Specifications

1. LAN Specifications

Communications protocol: IEEE 802.3

Media type: 10base-T/100base-TX auto-switched

2. USB

Protocol: USB Ver1.1 Standard

Transfer Rate: 12Mbps (max.)

3. Charging

Charging System: Fixed-voltage (with current limiter)

Charge Period: Approximately 4 hours (battery pack)

Approximately 7 hours (large-capacity battery pack)

4. Power Supply

Power Requirement: AC adaptor (AD-S42120AE)

Power Consumption: 12V DC approximately 1.6A

Output to Handheld Terminal:

5V DC 2.5A (max.)

5. AC Adaptor

Model: AD-S42120AE

Input: 100V to 240V AC 50/60Hz 1.3-0.7A

Output: 12V DC 3.5A

6. Dimensions and Weight

Dimensions: Approximately 110(W) 106(D) 93(H) mm× ×

(45⁄16 "W × 43⁄16"D × 311⁄16"H)

Weight: Approximately 310g (10.9oz)

7. Operating Environment

Temperature: 0°C to 40°C (32°F to 104°F)

Humidity: 30% to 80% RH (non-condensation)

Printed on recycled paper.

PN410405-001 Printed in Malaysia

CASIO COMPUTER CO., LTD.

6-2, Hon-machi 1-chome

Shibuya-ku, Tokyo 151-8543, Japan

MO0606-A

This port is used to transfer system data and file data (download, upload) by

connecting the Ethernet cradle to a PC using a USB cable (DT-380USB). A

dedicated driver must be installed in the PC before connecting the Ethernet cradle to

the PC.

This switch is used to switch between a USB connection and a LAN connection.

This LED shows the status of the LAN connection.

Off: LAN cable not connected correctly.

Lit green: LAN cable connected correctly.

This LED shows the LAN operation status.

Off: No communication.

Blinking green: Communication in progress.

This port is used for connecting the cradle to a computer or hub over a LAN cable

so that system data and file data can be transferred (uploaded or downloaded).

Special driver software must be installed in the IT-600.

Use this jack to connect the AC adaptor (optional) to supply power to the Ethernet cradle.

This switch detects when the IT-600 is seated correctly in the Ethernet cradle.

Power is supplied to the IT-600 via these contacts.

This LED indicates the power status and the mounting status of the IT-600.

Off: IT-600 is not installed. Or, the AC adaptor is not connected.

Green: Ethernet cradle turned on, IT-600 correctly set in the cradle.

Use these hooks to lock the IT-600 into the Ethernet cradle.

1 USB Port

2 Selector Switch

3 LAN Connection

Status LED

4 LAN

Communication

Status LED

5 LAN Port

6 AC Adaptor Jack

Terminal Detect Switch

Ethernet Cradle Contacts

9 Power Indicator

LED

10 Mount Hooks

4. Before using the cradle ports, remove the

caps from the ports.

When using a LAN, connect one end of the

LAN cable to the LAN port and the other

end to the computer or hub.

When using a USB connection, connect one

end of the USB cable (DT-380USB) to the

USB port and the other end to the computer.

5. Align the contacts on the underside of the

IT-600 with the power supply contacts on

the Ethernet cradle and then set the IT-600

into the cradle so that mount holes in the

back of the IT-600 are aligned with the

mount hooks on the cradle.

Once the IT-600 is properly set in the cradle,

the power LED on the front of the Ethernet

cradle lights green.

Status of Indicator 1:

Orange: Charging

Red: Standby due to battery pack error or outside charging temperature range

(charging begins when the temperature is within the charging temperature range)

Green: Charging complete

Important!

•Always remove the IT-600 from the Ethernet cradle before changing the LAN/

USB selector switch setting.

•Never short out the power contacts of the Ethernet cradle. This can damage the

Ethernet cradle.

•Do not subject the IT-600 or Ethernet cradle to vibration or impact while LAN

or USB communication is in progress.

•When mounting the IT-600, securely attach to the mount hooks of the Ethernet

cradle and check that the power indicator LED on the front of the Ethernet

cradle lights green. Charging and communication will not proceed properly if

the IT-600 is not mounted properly.

•The LAN and USB connections cannot be used concurrently.

•Always cap ports that are not being used. Using the Ethernet cradle while the

ports are uncapped can cause damage.

Installing and Connecting the Ethernet Cradle Power Supply

Use the optional AC adaptor (AD-S42120A) to supply power to the Ethernet cradle.

Always connect the AC adaptor to the Ethernet cradle before transferring data between

the IT-600 and other devices.

Power to the IT-600 is supplied from the Ethernet cradle.

1. Plug the AC adaptor into the AC adaptor

jack on the back of the Ethernet cradle.

2. After connecting the AC adaptor to the

power cable, plug the plug of the power

cable into an electrical outlet.

3. Set the selector switch on the back of the

Ethernet cradle to the port that will be used.

Set the switch to LAN to use the LAN port

or to to use the USB port.

DC IN 12V

Computer or hub
