I N S T A L L A T I O N I N S T R U C T I O N S

SSB-354, SSM-354, SLB-354 and SLM-354 Interface Brackets

SSB-354, SSM-354, SLB-354 and SLM-354 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific

installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

Installation Instructions

WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.

1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.

2. Turn projector upside down on a flat surface.

3. Place four nylon spacers over threaded inserts in bottom of the projector.

4. Place the interface bracket onto the spacers and bottom of the projector, aligning the mounting holes in the bracket with the spacers and

threaded inserts and ensuring that triangle in bracket points towards front of projector.

5. Position M4 x 16mm mounting screws into the interface bracket, nylon spacers and the threaded inserts. Tighten all fasteners at this time,

securing the bracket to the projector.

NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation

instructions in the All-Points Security Kit.

(1) Interface Bracket (4) Screw, Phillips Flat Head, Machine, M4 x 16mm

(4) 10-24 Thumb Nuts ** (4) Spacer, Nylon, .500 x .194 x .375"

(1) All-Points Security Kit (1) 5/32" Security Hex Key

**Only used when installing SLB/SSB interface brackets.

NOTE: Specific to SSB-style and SSM-style interfac ews come pre-installed in the circled loe bracket installation: All appropriate scr cations above.

DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style interface bracket installation.

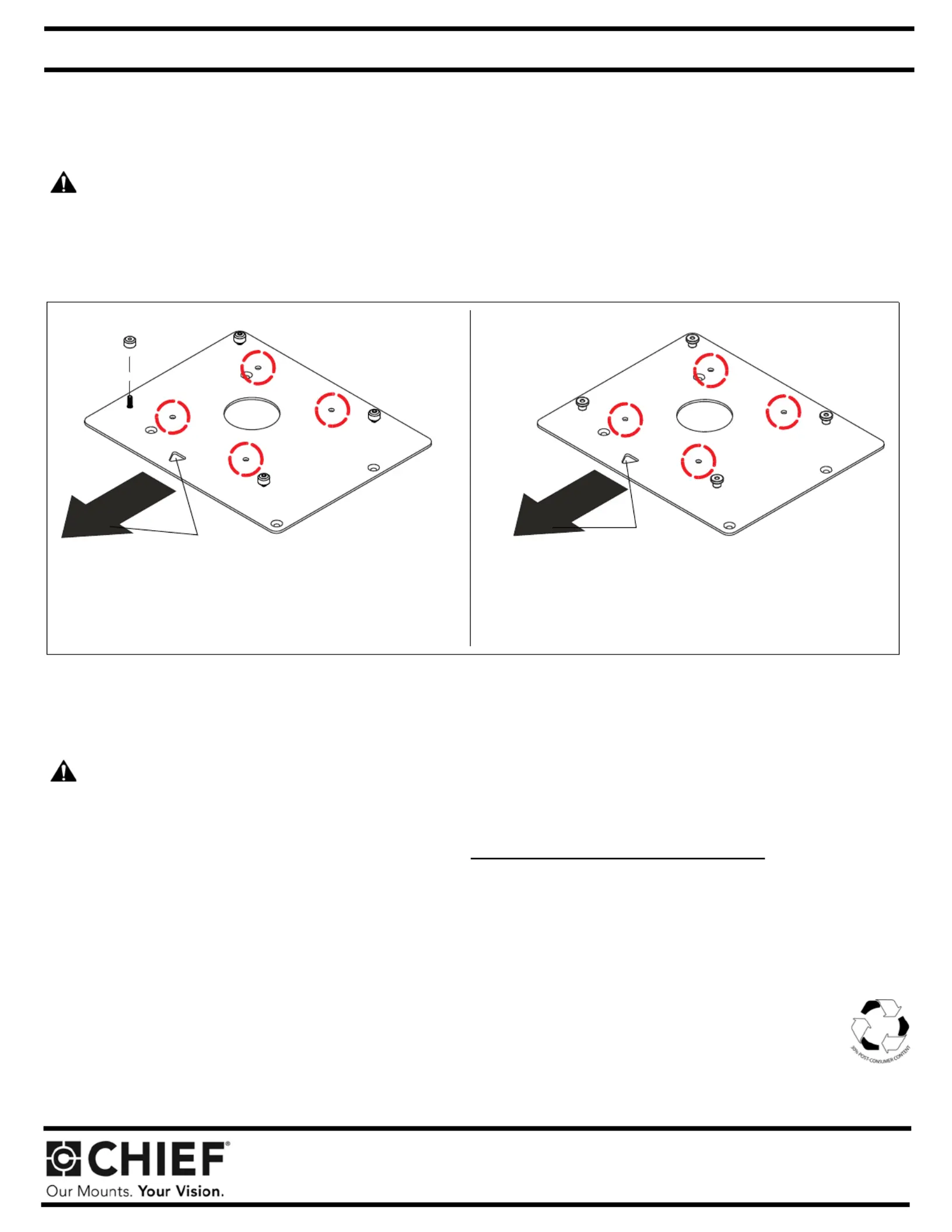

Note: SSB-style interface bracket connections are circled. Note: SSM-style interface bracket connections are circled.

SLB-354 SLM-354

Towards front

of projector

Towards front

of projector
