Side 1/19

I N S T A L L A T I O N I N S T R U C T I O N S

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

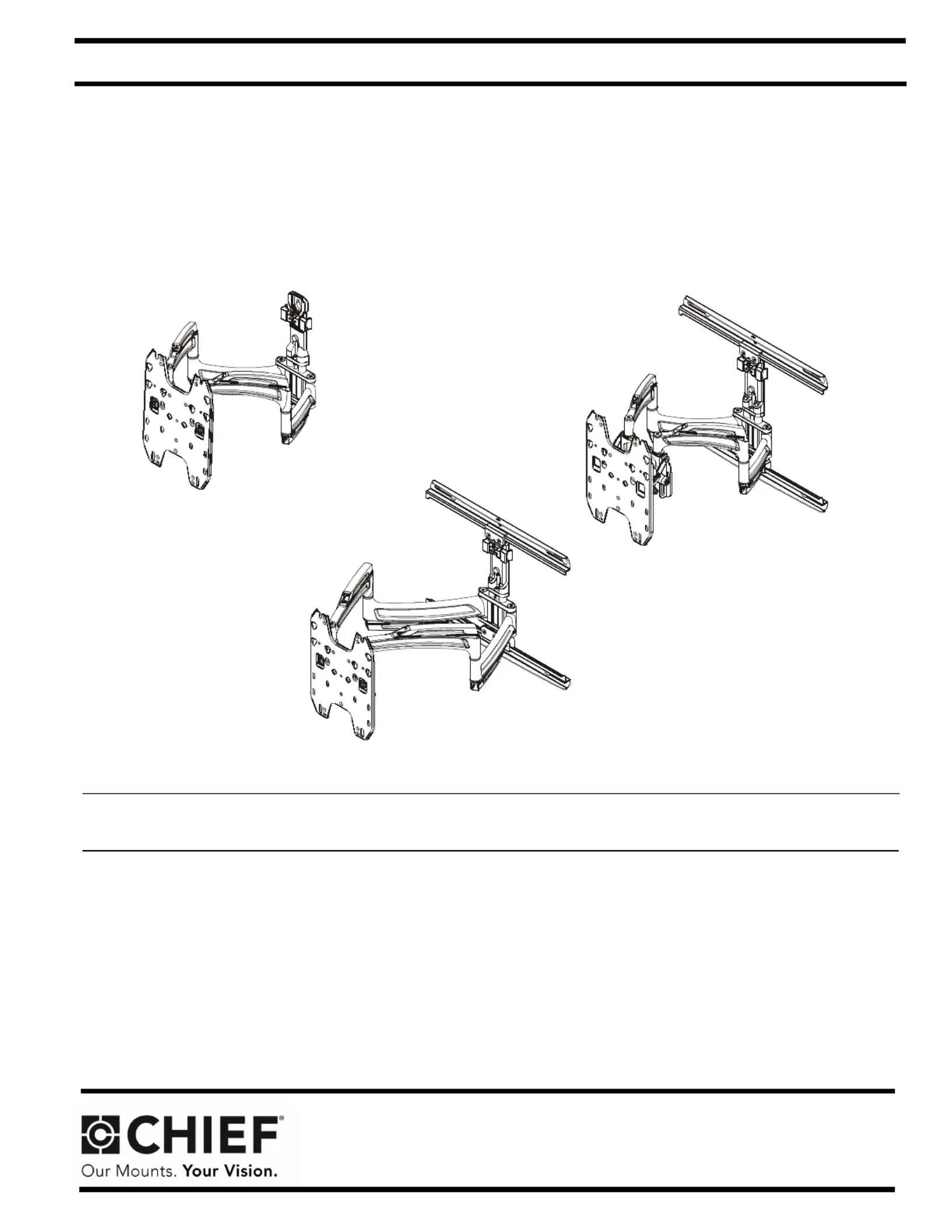

TS318SU (single stud)

TS318TU (dual stud)

TS325TU (dual stud)

Medium Swing Arm Mounts

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

TS318SU/TS318TU/TS325TU

TS318SU/TS318TU/TS325TU Installation Instructions

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING: The wall to which the mount is being attached

may have a maximum drywall thickness of 5/8" (1.6cm) when

installing any of the mounts to wood studs. If installing the

TS318SU mount to poured concrete or hollow concrete, the

wall CANNOT have ANY drywall covering! For the TS318TU

and TS325TU, the wall CANNOT have ANY drywall covering

if installing to poured concrete but may have a maximum

drywall thickness of 5/8" (1.6cm) if installing to hollow

concrete block. Do not install drywall anchors into the seam

between drywall pieces.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached does not exceed 75 lbs (34 kg).

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this product outdoors.

--SAVE THESE INSTRUCTIONS--

Produkt Specifikationer

Mærke:	Chief
Kategori:	Ikke kategoriseret
Model:	TS325TU
Bredde:	749 mm
Dybde:	33 mm
Højde:	437 mm
Produktfarve:	Sort
Husmateriale:	Metal
Certificering:	UL
Monteringstype:	Væg
Harmoniseret systemkode (HS):	85299097
Akse:	-90 - 90
Hældningsvinkelområde:	15 - -15 °
Maksimal vægtkapacitet:	34 kg
Maksimal skærmstørrelse kompatibilitet:	52 "
Minimal skærmstørrelse kompatibilitet:	30 "
Montering interface kompatibilitet (min.):	100 x 100 mm
Montering interface kompatibilitet (maks.):	600 x 400 mm
