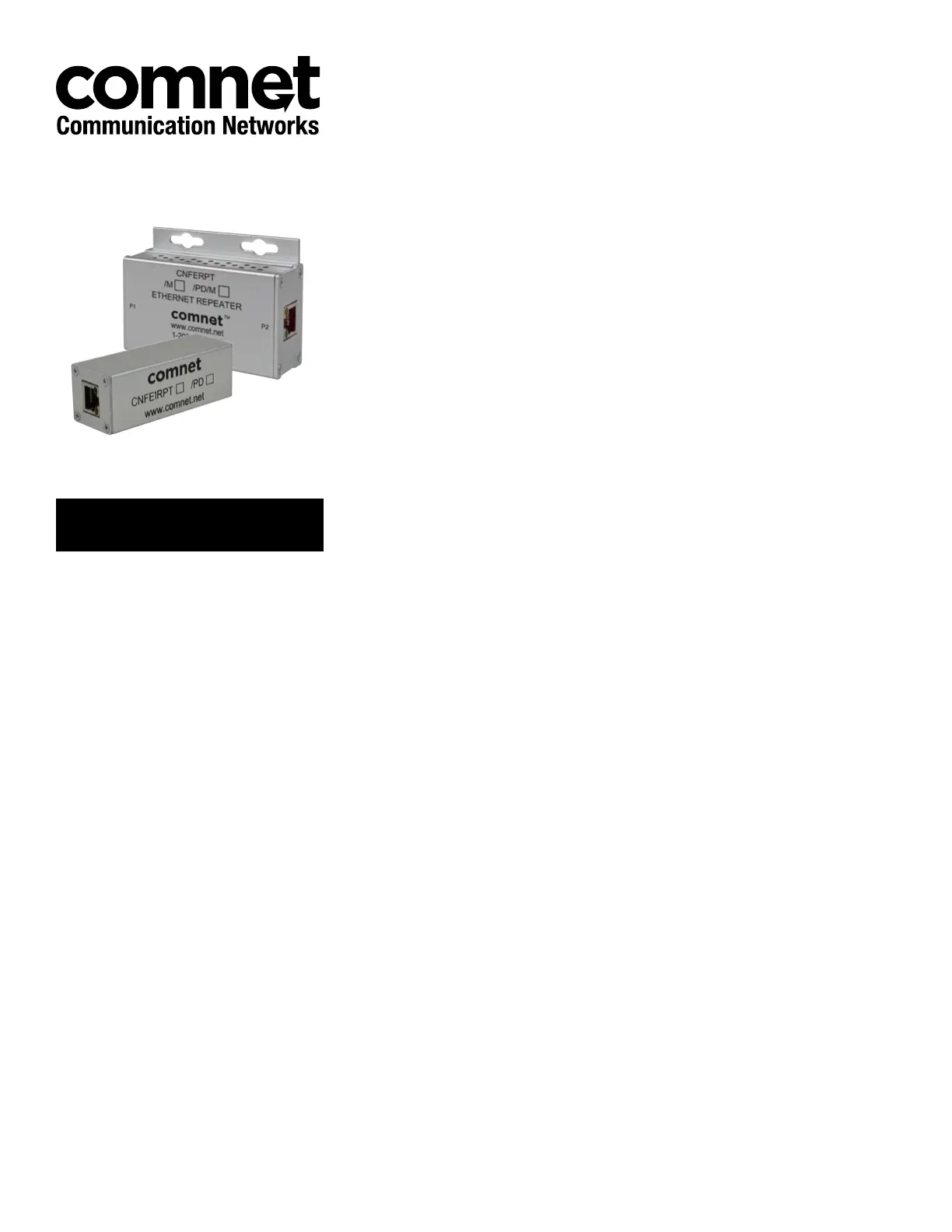

INS_CNFE1RPTX-REV- 12/23/14 PAGE 1TECH SUPPORT: 1.888.678.9427

INSTALLATION AND OPERATION MANUAL

CNFE1RPT[/PD][/M]

10/100 MBPS ETHERNET REPEATER WITH 60 W PASS-

THROUGH POE

The ComNet™ CNFE1RPT is an Ethernet repeater supporting up to 60 watts of

Pass-through PoE, providing a simple and cost-effective way to extend Ethernet

signals beyond the standard Ethernet 328 foot (100 meter) limit. The CNFE1RPT can

be used to double the distance to 656 feet (200 meters) or multiple units can be

combined in series with each unit providing an additional 328 feet (100 meters).

The CNFE1RPT is powered by pass-through PoE from a PoE switch or midspan

injector, requiring no local power. Low power consumption ensures that maximum

power is made available to the remote PD device.

The standard configuration passes through the PoE to the next device, or as a /PD

model, which acts as the final PoE unit in the chain and does not pass through the PoE.

Indicating LEDs are provided for rapidly ascertaining equipment operating status.

Figure 3 on Page 2 describes the LED indicators for each light on the unit.

The mini CNFE1RPT units are stand-alone with a small footprint for use where space

is extremely limited. They may optionally be DIN-rail mounted by the addition of

ComNet model DINBKT4 adaptor. The CNFE1RPT/M compact tube design allows for

direct installation within conduit or other small enclosures. See Figure A on Page 3

for mounting instructions.

This manual serves the following

ComNet Model Numbers:

CNFE1RPT

CNFE1RPT/PD

CNFE1RPT/M

CNFE1RPT/PD/M

INS_CNFE1RPTX-REV- 12/23/14 PAGE 2

INSTALLATION AND OPERATION MANUAL CNFE1RPT[/PD][/M]

TECH SUPPORT: 1.888.678.9427

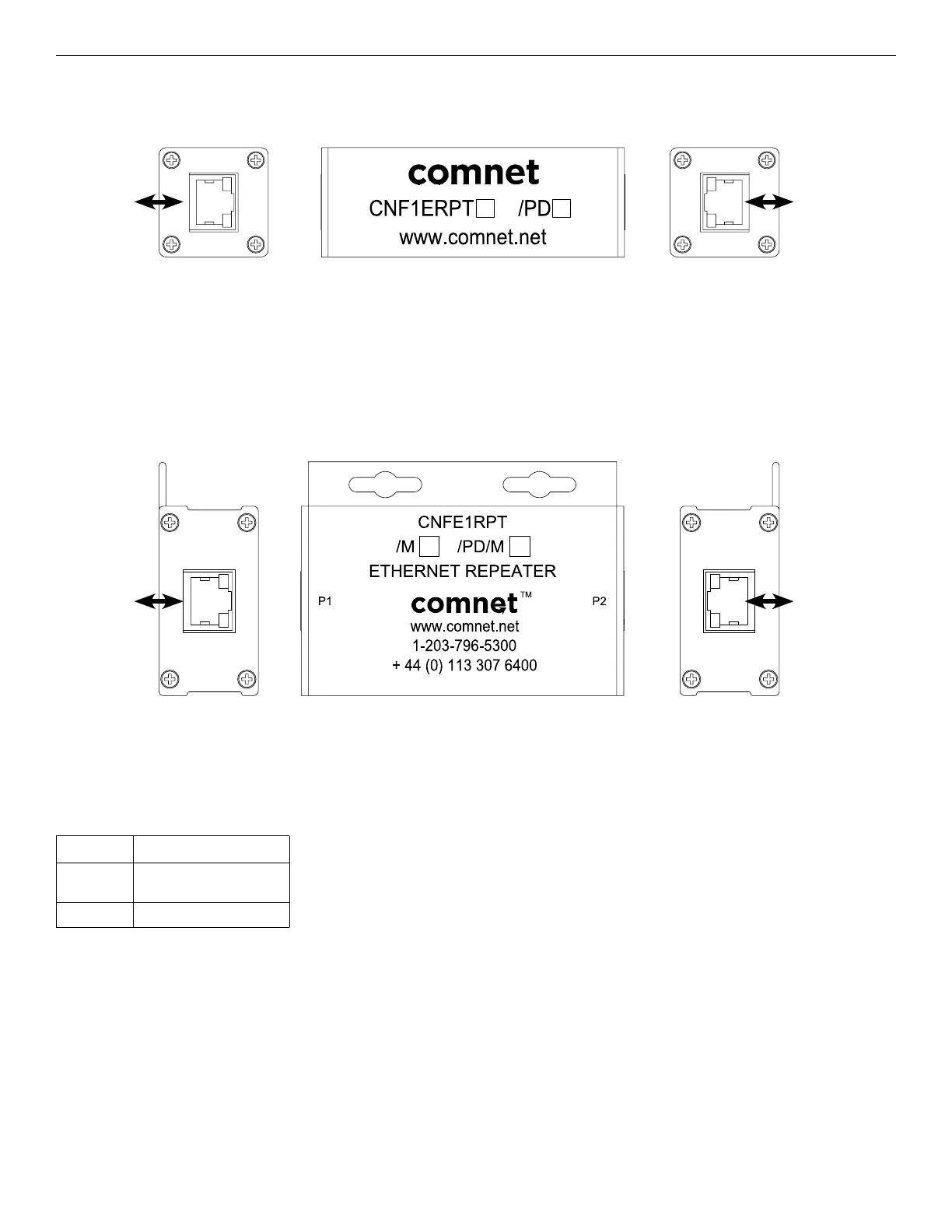

FIGURE 1 – CNFE1RPT[PD] EXTENDER

FIGURE 2 – CNFE1RPT[PD]/M EXTENDER

ETHERNET ETHERNET

Power: Supplied by PSE

Power Consumption: <1 W

FIGURE 3 – INDICATING LEDS

COPPER

GREEN

Solid – No Activity

Blinking – Activity

YELLOW

Highest Data Rate

ETHERNET ETHERNET

Power: Supplied by PSE

Power Consumption: <1 W
