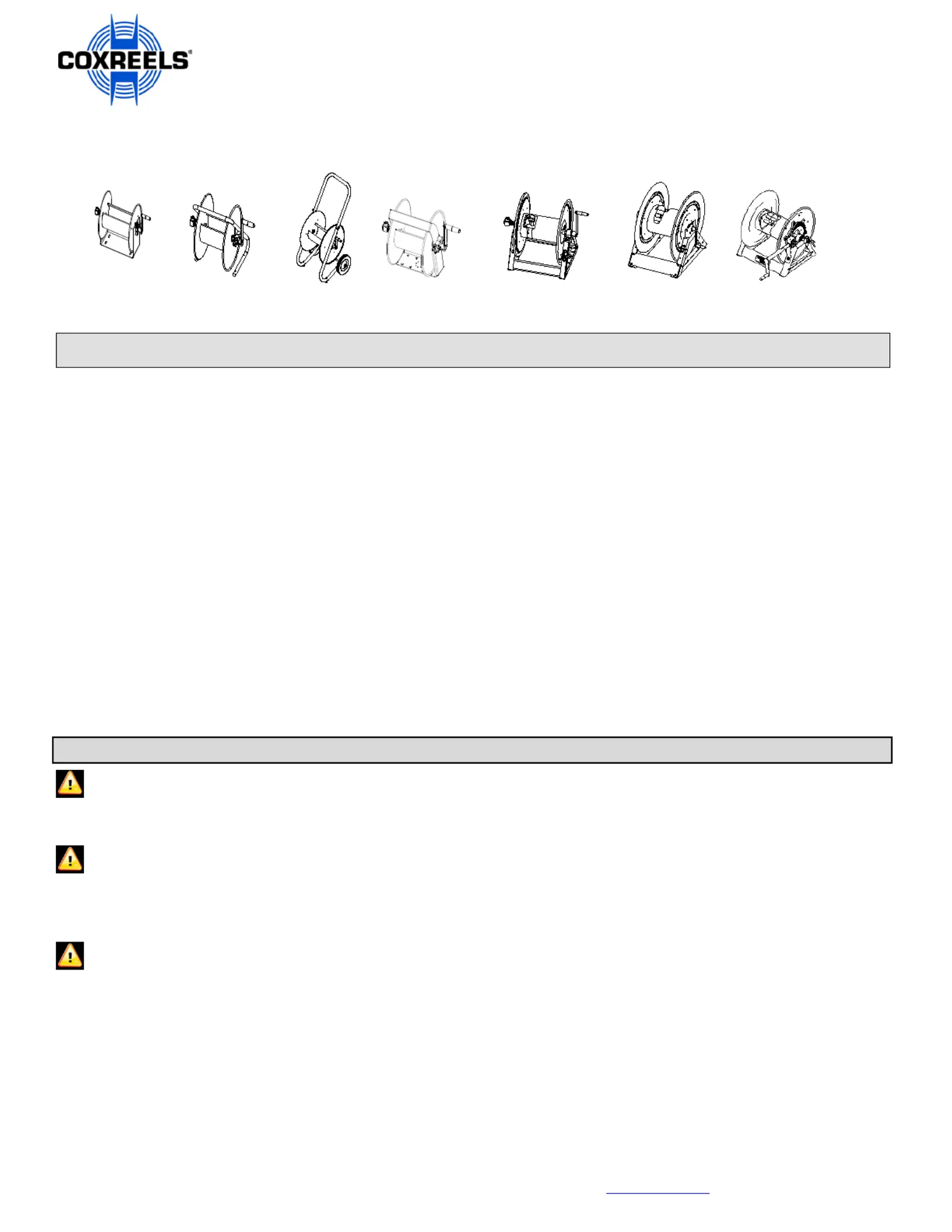

INSTALLATION AND MAINTENANCE MANUAL FORM #PM- E 003 REV 09/13

Page 1 4 of

For assembly drawings, parts lists, or specific repair instructions, refer to web site at www.coxreels.com or consult factory.

Coxreels, Inc., 5865 S. Ash Ave., Tempe, Arizona, USA, 85283 Tel: 1-800 269 7335- -

HAND CRANK HOSE/CABLE REELS:

SERIES: SDH, 112, 117, CM, DM, SM, 1125, 1125WC, 1275 C, 1275W- -C

V- - - 1175, VA 1175, 1175 6, 1185 & 1195

SERIES: 112,117 SERIES: CM SERIES: DM SERIES: SM SERIES: 1125, 1125WC 1175 SERIES: V SERIES: 1275-C

1175 1275W-6, 1185, 1195 1175 VA- -C

COXREELS

The technical data and images which appear in this manual are for informational purposes only. NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, ARE CREATED BY THE DESCRIPTIONS AND DEPICTIONS OF THE PRODUCTS SHOWN IN THIS MANUAL. COXREELS makes no warranty (and

assumes no liability) as to function of equipment or operation of systems built according to customer design or of the ability of any of its products to interface, operate or function with any portions of

customer systems not provided by COXREELS.

COXREELS agrees to repair or exchange the goods sold hereunder necessitated by reason of defective workmanship and material discovered and reported COXREELS within two years after shipment of

such goods to Buyer.

Except where the nature of the defect is such that it is appropriate, in COXREELS’ judgment, to effect repairs on site, COXREELS’ obligation hereunder to remedy defects shall be limited to repairing or

replacing (at COXREELS’ option) FOB point of original shipment, any part returned to COXREELS at the risk and cost of Buyer. Defective parts replaced shall become the property of COXREELS.

COXREELS shall only be obligated to make such repair or replacement if the goods have been used by Buyer only in service recommended. COXREELS is not responsible for defects which arise from

improper installation, neglect, improper use of or from normal wear and tear.

COXREELS obligation shall be limited by the manufacturer’s warranty (and is not further warranted by COXREELS) for all parts procured from others according to published data, specifications or

performance information not designed by COXREELS.

COXREELS further agrees to replace or at COXREELS’ option to provide a refund of the sales price of any goods that do not conform to applicable specifications or which differ from that agreed to be

supplied which non conformity is discovered and forthwith reported to COXREELS within 30 days after shipment to the Buyer. COXREELS’ obligation to replace or refund the purchase price for non- -

conforming goods shall arise once Buyer returns such goods FOB point of original shipment by COXREELS at the risk and cost of Buyer. Goods replaced by COXREELS shall become property of

COXREELS.

COXREELS liability on any claim, whether in contract, tort (including negligence), or otherwise, for any loss or damage arising out of, connected with, or resulting from the manufacture, sale, delivery,

resale, repair, replacement or use of any products or services shall in no case exceed the price paid for the product or services or any part thereof which give rise to the claim. In no event shall

COXREELS be liable for consequential, special, incidental or other damages, nor shall COXREELS be liable in respect of personal injury or damage to property not the subject matter hereof unless

attributable to gross misconduct of COXREELS, which shall mean an act or omission by COXREELS demonstrating reckless disregard of the foreseeable consequences thereof.

COXREELS is not responsible for incorrect choice of models or where products are used in excess of their rated and recommended capacities and design functions or under abnormal conditions.

COXREELS assumes no liability for loss of time, damage or injuries to property or persons resulting from the use of COXREELS products. Buyer shall hold COXREELS harmless from all liability, claims,

suits and expenses in connection with loss or damage resulting from operation of products or utilization of services, respectively, of COXREELS and shall defend any suit or action which might arise there

from in Buyer’s name provided that COXREELS shall have the right to elect to defend any such suit or action for the account of Buyer. The foregoing shall be the exclusive remedies of the Buyer and all –

persons and entitles claiming through the Buyer.

WARNING – APPLICATION

 THE PRODUCTS IN THIS INSTALLATION AND MAINTENANCE MANUAL HAVE BEEN TESTED UNDER CONTROLLED LABORAROTY CONDITIONS TO MEET SPECIFIC

TEST CRITERIA. THESE TESTS ARE NOT INTENDED TO REFLECT THE PERFORMANCE OF THE PRODUCTS OR ANY OTHER MATERIAL IN ANY SPECIFIC APPLICATION, BUT

ARE INTENDED TO PROVIDE THE USER WITHY APPLICATION GUIDELINES. THE PRODUCTS ARE INTENDED FOR USE BY KNOWLEDGEABLE PERSONS HAVING THE

TECHNICAL SKILL NECESSARY TO EVALUATE THEIR SUITABILITY FOR SPECIFIC APPLICATIONS.

WARNING – USER RESPONSIBILITY

 THE USER, THROUGH ITS OWN ANALYSIS AND TESTING, IS SOLELY RESPONSIBLE FOR MAKING THE FINAL SELECTION OF THE SYSTEM AND COMPONENTS AND

ASSURING THAT ALL PERFORMANCE, ENDURANCE, MAINTENANCE, SAFETY AND WARNING REQUIREMENTS OF THE APPLICATION ARE MET.

 TO THE EXTENT THAT COXREELS PROVIDE COMPONENT OR SYSTEM OPTIONS BASED UPON DATA OR SPECIFICATIONS PROVIDED BY THE USER, THE USER IS

RESPONSIBLE FOR DETERMINING THAT SUCH DATA AND SPECIFICATIONS ARE SUITABLE AND SUFFICIENT FOR ALL APPLICATIONS AND REASONABLY FORESEEABLE

USES OF THE COMPONENTS OR SYSTEM.

WARNING – SAFETY

 READ ALL SAFETY INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE, OR MAINTAIN THIS PRODUCT. ONLY QUALIFIED PERSONNEL

SHOULD UNDERTAKE THE INSTALLATION AND COMMISSIONING OF THIS PRODUCT. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY

AND/OR PROPERTY DAMAGE.

 FAILURE TO FOLLOW RECOMMENDED APPLICATION INFORMATION AND RECOMMENDED PROCEDURES FOR SELECTION, INSTALLATION, CARE, MAINTENANCE AND

STORAGE OF REEL ASSEMBLY, SWIVEL, HOSE, COUPLINGS OR HOSE ASSEMBLIES MAY RESULT IN FAILURE TO PERFORM PROPERLY AND MAY RESULT IN DAMAGE TO

PROPERTY AND SERIOUS BODILY INJURY.

 – FOLLOW GOOD MAINTENANCE PRACTICES ESTABLISH A PROGRAM OF INSPECTION, TESTING AND REPLACEMENT OF REEL COMPONENTS FROM FACTORS INCLUDING:

o SEVERITY OF APPLICATION , AND PAST PERFORMANCE OF REEL COMPONENTS, FREQUENCY OF EQUIPMENT USE

 ONLY PROPERLY TRAINED PERSONS SHOULD INSPECT, TEST OR SERVICE REEL AND HOSE/CABLE ASSEMBLIES. PERIODIC UPDATING OF TRAINING IS RECOMMENDED.

DOCUMENT MAINTENANCE, INSPECTIONS AND TESTING.

 PROP 65 WARNING: Handling of brass material on this product exposes you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.

“ ” WASH HANDS AFTER USE

NOTE: All designs, specifications, and dimensional data contained in this publication are subject to change without notice.

INSTALLATION AND MAINTENANCE MANUAL FORM #PM- E 003 REV 09/13

Page 2 4 of

For assembly drawings, parts lists, or specific repair instructions, refer to web site at www.coxreels.com or consult factory.

Coxreels, Inc., 5865 S. Ash Ave., Tempe, Arizona, USA, 85283 Tel: 1-800 269 7335- -

SAFETY

PRESSURE WARNINGS

• This equipment should be properly installed before use in accordance

with local codes and ordinances.

• The pressure from the hose reel should be disconnected from the

hose reel before any service functions are performed.

• This hose reel must not be used for pressure greater that the rating

listed in the COXREELS catalog / website www.coxreels.com .

OPERATIONAL WARNINGS

• Exercise care when handling the hose reel during normal operation.

• Do not use hose different from that for which the reel is intended.

Changes in diameter, weight per foot, length of hose or flexibility

(Minimum Bend Radius) will affect the operation of the reel.

• Mounting hardware and fasteners should be installed to maintain

tightness under vibration and checked periodically to ensure

tightness.

• Overhead installation mountings should be such that the reel is not

supported by bolts in tension. A safety chain, cable, enclosure or

netting is strongly recommended to minimize damage and/or possible

injury in the event of a mounting failure.

MAINTENANCE WARNINGS

• Modification of the equipment may cause excessive wear and will

void the warranty. Contact COXREELS regarding changes or

modifications of equipment which could affect reliability or safety.

SPECIFICATIONS & LISTINGS

• The identified Series of Hose Reel products within this manual are

not certified or listed by any independent certifying or regulatory body.

• This series of hose reels is intended for industrial use and are

provided with permanent mounting means.

PRESSURE & TEMPERATURE RATING

• All reels covered in this manual with or without hose have specific

P.S.I. ratings. (Please refer to the COXREELS catalog, website or

contact Customer Service for Reel specific data). Reels should not

be used at pressures greater that the rating of the hose.

• Multipurpose hose is installed with tube compounded for maximum oil

resistance. Hose can be used for air, water, oil and many other

chemical applications.

• Operational temperature ranges vary across the wide range of hose

options. (Please refer to the COXREELS catalog, website or contact

Customer Service for hose specific data). Hose reels should not be

used at temperatures below or above the rating of the hose.

• The operational rating of a reel not equipped with hose is determined

by the capacity of the installed hose. The pressure rating of the reel

without hose must not be greater than the than the operational

capacity of a reel. (Please refer to the COXREELS catalog, website

or contact Customer Service for reel/hose specific data). Variations

in the OD of higher rated hose will affect the operational capacity of

the reel.

LABELS & MARKINGS

Hose Reels with and without hose

• The marking of the hose reel provide with or without hose includes

the following

o The label on the frame includes the COXREELS name and

Logo, the product catalog number, the individual product serial

number, PSI rating and what type and length of hose intended

for use on the reel.

o The maximum pressure rating for every hose reel supplied

without house is marked on the COXREELS Identification

Label. In absence of this information, refer to website, catalog,

or customer service. Actual rating is determined by the installed

hose and is not to exceed the indicated maximum operational

rating. The pressure rating of the hose installed on reels

provided without hose must be marked on the label upon

installation.

PERSONAL SAFETY

• Ensure reel has been properly installed before connecting supply line.

• Before connecting to reel, be certain supply line does not exceed

rated pressure of the hose reel or amperage rating on cable reel.

• Thoroughly review the “Hose Installation” instructions to properly

install hose.

• Perform “Operational Check” per instructions to ensure reel is

operating properly.

• If a leak should occur after applying pressure to the reel, immediately

discontinue supply line pressure.

WARNING: Prevent static sparking. When working around flammables, ensure

that the hose reel, hose, and equipment are properly grounded.

INSTALLATION

MOUNT REEL / FASTEN CRANK HANDLE

• To mount reel to a solid structure 7/16” or M12 bolts, washers, use

and nuts. Masonry bolts may be used depending on mounting

application. Mounting hardware is NOT provided. Mounting patterns

will vary depending on model. NOTE: If you choose to permanently

mount series CM, you will need four ¼” screws or nails.

• Fit mounting hardware to ceiling/wall/floor so reel can be fastened

into position. Fit reel and tighten all hardware securely.

• Reels are supplied with plastic crank handle uninstalled. Remove

handle and hardware from plastic bag and install onto crank arm.

Models 1275 and 600-900 will include detachable crank for bevel

gear design.

• -The series DM portable reels will include a U shaped handle. Position

handle over swaged posts and fasten using hardware provided.

INSTALLATION OF INLET HOSE

• Apply thread sealant to inlet hose and connect to the swivel joint on

reel.

CAUTION: IT IS IMPORTANT TO USE A “FLEXIBLE” INLET HOSE. DO

NOT USE SOLID PIPING OR RESTRAIN INLET HOSE AS TO CAUSE

ANY SIDE FORCE ON SWIVEL JOINT. THE WARRANTY IS VOID IF

NOT PROPERLY INSTALLED.

• Flush some product through the system before connecting inlet hose to

the source.

• Connect end to supply source.

• Install inlet hose into swivel assembly by hand tightening, followed by

½ turn with wrench. DO NOT over tighten as it may damage swivel.
