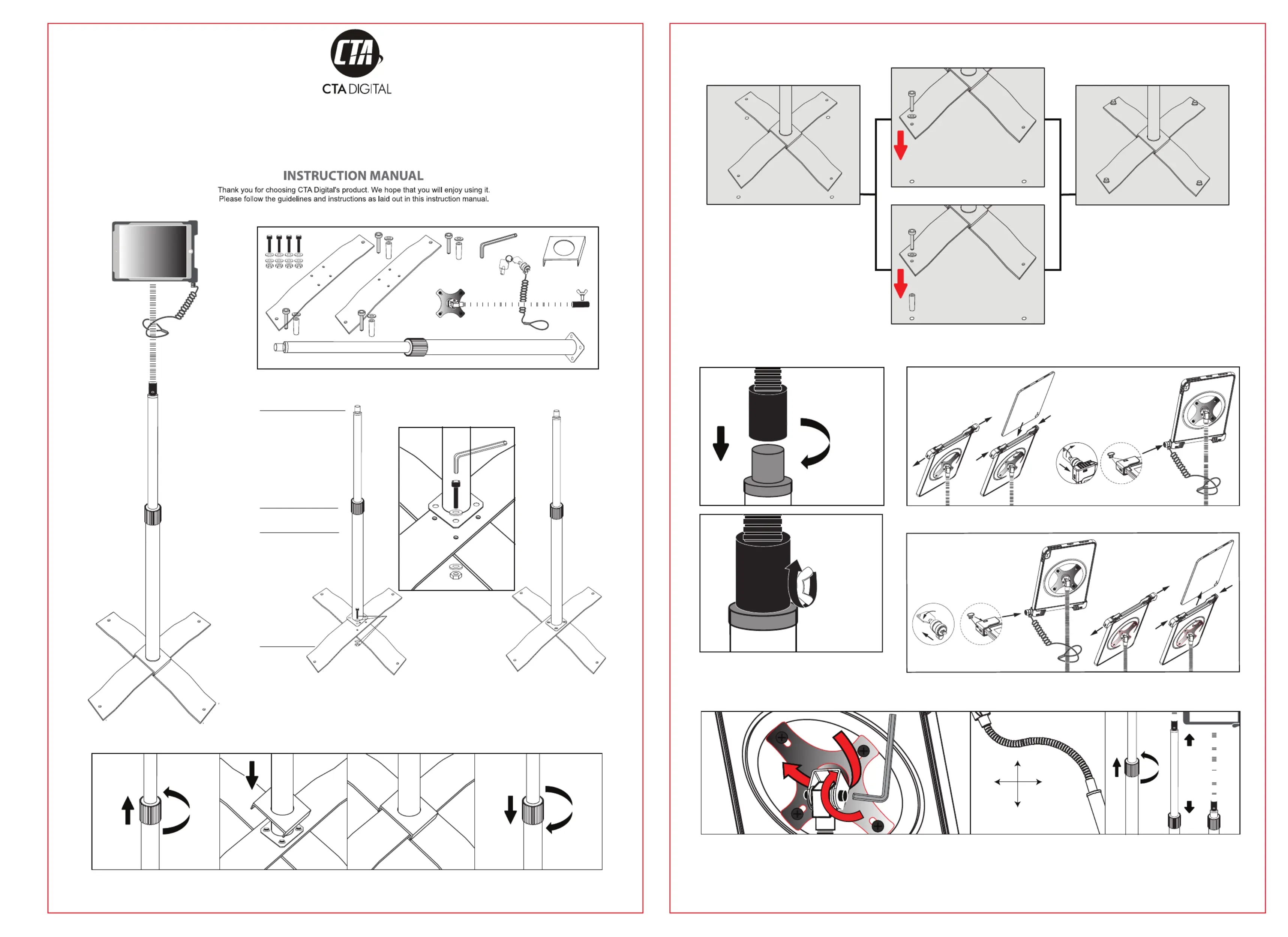

PAD-AFS10

Allen

Key

360

270

Gooseneck flexes by hand.To adjust the height of the pole,

turn plastic cover counter-clockwise and raise or lower the pole

to desired height. Turn clockwise again to lock it in place.

Multi

direction

flexing

Use the Allen key to tighten and loosen the

gooseneck connection screw, adjusting ease of

rotation in the tablet holder.

. Adjustment:

3. Connecting Gooseneck with Pole

Gooseneck

Metal Connection

Y Screw

Screw up the Y screw and turn

clockwise to tighten the connection.

Y Screw

2. Connecting the Stand to the Floor (Optional)

1. Use a pencil to mark holes on the

floor aligned with holes in the stand,

then drill. If using plastic inserts,hole

diameter should be around 8mm.

If not using plastic inserts,hole

diameter should be around 5.5mm.

Without plastic insert

Use the plastic insert

2. Put a floor screw through a

washer and align with hole,

then use the Allen key to screw

into the floor.

2. Put a plastic insert

into the floor hole. Put a screw

through a washer and align

with hole, then use Allen key

to screw into the floor.

3. Repeat step 2 for remaining holes.

Height-Adjustable Gooseneck Floor Stand

for iPad Gen.8, iPad Pro 10.5" & iPad Air 4

Package Contents:

1. Base Assembly and Connecting the Metal Cover:

METAL CONNECTION

HEIGHT

ADJUSTMENT

KNOB

POLE

METAL

CROSS BASE X 2

CONNECTION SCREW BOLT,

WASHERS AND NUT

Pole Assembly and Pole Nut

Cross Base Sections (2)

Allen Key

1) Place the metal base pieces with the higher piece on top of the cross base.

Align the holes at the bottom of the pole with the holes on the cross base.

2) Insert a screw bolt with a washer into each of 4 holes. Place another washer on

the underside of each screw bolts.

3) Grip the nut on the underside with one hand,and use the other to tighten each

screw with Allen key. Repeat to tighten all four screw bolts.

SUPPORT@CTADIGITAL.COM

4. Rotate the grip counter clockwise to

loosen completely and remove from top

of pole.

5. Place the square metal cover over

the top of the pole and slide down to

stand base.

6. Place grip back over stand pole

and tighten.

3.Remove your tablet

and push back the

case corner

holders.

1.Insert the key , turn 90 degree

clockwise to unlock the case

then remove the lock.

90°

2.Pull out the case corner

holders.

1.Pull out the case corner

holders.

4.Installing your Tablet and Locking the Case

2.Slide your tablet inside

and then push back the

case corner

holders.

3.Loop the lock cable around

the gooseneck system, insert

the lock into the security

slot,turn the key 90 degree

counter-clockwise and pull

out it to lock the case.

90°

5.Unlocking the Case and Uninstalling your Tablet
