Use this table to determine the appropriate

foam pad to use with your tablet.

Note: sizes refer to total tablet size with

or without a case.

Foam Pad

Thickness

Tablet

Thickness:

1mm 0.67-1.06in

5mm 0.51-0.91in

10mm 0.31-0.71in

17-27mm

13-23mm

8-18mm

1. Select the suitable foam pad according

to your tablet thickness ,then stick it correctly

to the middle circle of the tablet holder.

5mm

Foam

Pad

10mm

Foam

Pad

PAD-GFS

•

Easily-

Removable tablet

holder for convenience

Compatible with all 7-13

inch tablets

4 removable wheels

for mobility

5 inch Gooseneck for

orientation and position

Specifications:

•15-inch Gooseneck for orientation,

position and angle adjustment

•Adjustable height bar

•Four wheels for mobility

•Weighted bottom for stability

•Solid steel construction for durability

•

Compatible with 7-13 inch tablets,

including iPad (2017), iPad mini, iPad

Air, iPad Pro 12.9, Surface Pro 4, and

Features Include:

Package Includes:

(1) Weighted Base and Metal Plate

(1) Adjustable Pole

(1) Gooseneck Extender

(1) Plastic Tablet Holder

(1) Set of hardware

(4) Wheels (with nuts & gaskets)

•Tablet holder range: 8.625 – 15.5 inches

•Height(Max): Approximately 57 inches

Adjustable Height of 15 inches

Weight:

12.9 pounds

•Flexible 15-inch steel gooseneck

•Assembly required

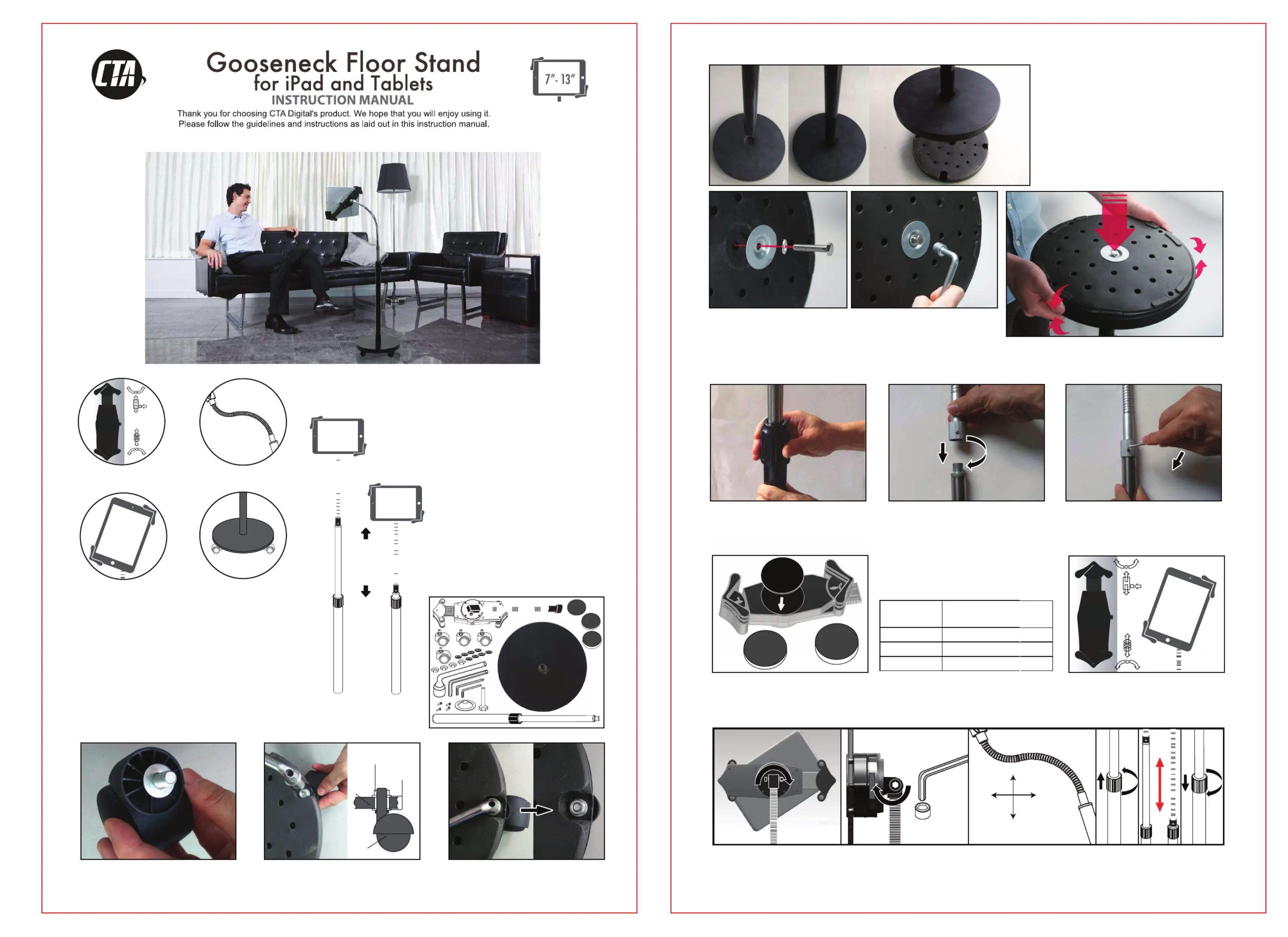

Instructions:

1. Installing the Wheels

Wheel

Place a gasket over the screw bolt on

each wheel

Place the screw bolt from each wheel through the weight base, then place a gasket

and nut over the top of each and tighten. Hold the wheel by one hand, use another

hand with the socket spanner to tighten further.

Screw Nut

Gaskets

Weight

Base

Adjust the inner pole to the desired height,

twist the plastic cover to tighten it into place

Screw the gooseneck extender onto the inner pole by turning clockwise.

Once tightly in place, tighten the small screw at the base of the

gooseneck extender using the smaller Allen key.

Bring the plastic cover to the head

of the outer pole, make sure it is

upright, then fasten by turning

clockwise.

To flex the gooseneck for multi direction adjustion.To adjust

the height of the pole, turn plastic cover counter-clockwise

and raise or lower the pole then turn clockwise again to lock

it.

4. Attaching Foam Pad to Tablet Holder and Installing your Device

5.Adjusting the Floor Stand:

Adjustable

Height of

15 inches

2.Press button on side of tablet holder to slide open.

Insert your tablet against spring arm,then slide other

end back down.

To rotate the tablet holder or use the bigger Allen key to

tighten and loosen the gooseneck connection screw,

adjusting ease of rotation.

Bigger

AllenKey

360 rotation

180 rotation

Multi

direction

flexing

Note: if meter screws are already in,

unscrew before attaching gooseneck.

1mm Foam Pad

2. Connecting the Pole and Metal Cover to the Weight Base

1. Insert pole into top of stand base.

Press firmly down until pole is fully in.

3. Flip the stand around and continue pressing and

wiggling pole into the stand base. Flip again and

tighten with socket wrench. Repeat as necessary.

2. Put spring washer over bolt, than pass bolt through

the gasket into the bottom of the stand base. Use

socket wrench to tighten.

Note: be sure the bolt is perpendicular to the pole and

weight base, and not at an angle.

Connecting the Gooseneck Extender

Produkt Specifikationer

Mærke:	CTA Digital
Kategori:	Ikke kategoriseret
Model:	PAD-GFS
Type:	Passiv holder
Højde:	1447.8 mm
Vægt:	2517.4 g
Produktfarve:	Sort
Indbyggede højttaler(e):	Ingen
Materiale:	Stål
Strømkilde type:	Ikke understøttet
Normal brug:	Indendørs
Højdejustering:	381mm
Kapabilitet:	iPad Air 2, Galaxy Note Pro and Microsoft Surface Pro 4
Justerbar:	Ja
Mobil enhedstype:	Tablet/UMPC
