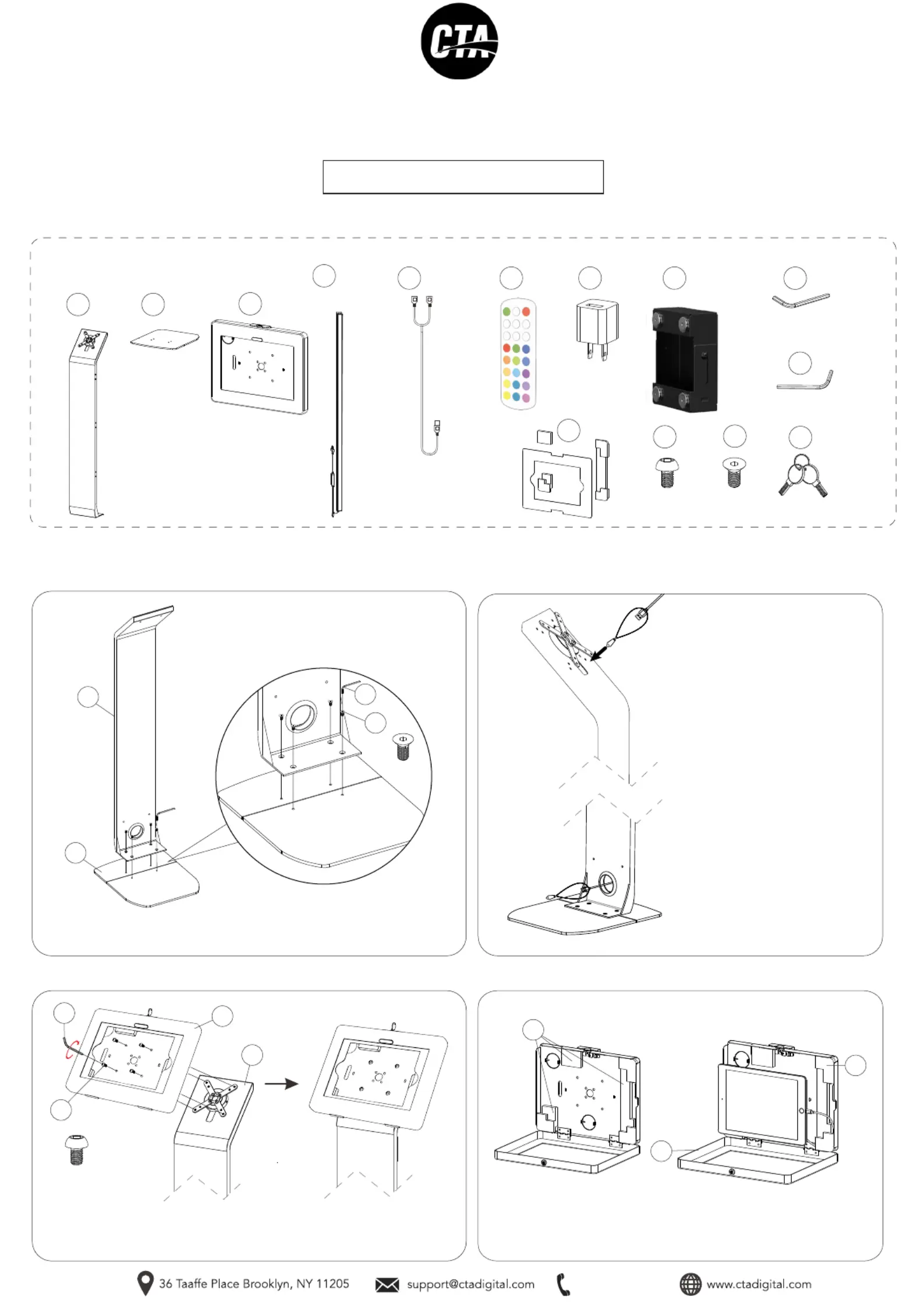

Premium Floorstand with LED Light Add-On
for 9-11" Tablets
PAD-LEDPARAF
INSTRUCTION - MANUAL
CONTENTS:
718-963-9845
INSTALLATION:
1. Assembling floorstand base:
3. Attaching enclosure to VESA plate: 4. Inserting tablet into enclosure:
1A. Allign the holes on the sntad (A) with holes on the base (B) and turn in
screws (M) with provided allen tool (J) until securely tightened. Shown above.
2B. When the cable reaches the
bottom of the stand, pull through the
hole at the stand back and remove
the weighted pendant as shown.
2A. To route a charge cable through
the stand, attach the weighted
pendant to your charge cable, then
pass through the cutout at the top of
the stand.
3A. Align enclosure (C) VESA holes to VESA plate holes in stand (A) and from the
front of enclosure turn in screws (L) into the threaded VESA holes with provided
allen tool (I) until securely thigtened. Shown above.
4A. Find the appropiate size foam padding (K) for the tablet you wish to use.
Make sure device is compatible for the enclosure. if having power/data cord
attached to tablet, slide it through the back of the foam as shown and out the
opening in the back.
**Tablet for illustration only,
NOT INCLUDED
M5 x 10
x4
M6 p1-x4
2. Cable routing:
K
K
C
C
A
I
A
B
M
J
L
x2
D
LED Bars
Ex1 Fx1 Gx1 Hx1 I
x1
M5 Allen Key
M5 x 10
L
x4 x1
N
J
x1
M6 Allen Key
M
x4
M6
Kx1
x1
C
x1
A B x1
D
8. Setting Up LED Bar: 9. Attaching Wire Storage Component:
1A. Peel off the 3M adhesive sticker on the back of the LED
light bar (D) as illustrated. Attach the LED bar onto the edge of
the CTA floor stand with the wire end on the bottom side.
Repeat same steps for the LED bar on the other side of the
floor stand.
2A. Take the cable storage (H) and magnetically affix onto the backside of
the floor stand as illustrated above. Be sure to have the openings at the
bottom side when orienting storage component .
H
718-963-9845
x1
**Tablet for illustration only,
NOT INCLUDED
C
K
5. Optional - Placing blank sheet insert into enclosure:
K
C
K
5B. Close and lock enclosure afterwards and you`re set
5A. Lay-in correct masking insert from bundle (K) as needed the correct
fitted look for your device.
6A. When installing device into enclosure (C), identify where the camera is.
Then simply remove and pop out the cover prior to mounting or setting up tablet
to properly expose camera.
**Tablet for illustration only,
NOT INCLUDED
**Tablet for illustration only,
NOT INCLUDED
C
6. Removing back covers: 7. Setting up security:
K
N
7A. Once the tablet device is set up,
close the front lid of the enclosure (C).
7B. Insert the key (N) in the keyhole on top
of enclosure, and turn clockwise to lock the
enclosure in place.
