Side 1/2

x12

Triple-Screen Adjustable Kiosk

with Universal Security Enclosure

PAD-PARAMULTI

INSTRUCTION - MANUAL

888-733-4448

CONTENTS:

INSTALLATION:

1A. Align base (B) to body (A) as shown. From below, rotate in (4)

screws (G) and washers (H) as shown using provided tool (D) until

securely tightened.

1. Setting up Base to Body

2. Adjusting Height

3. Setup Configuration

4. Setting up

Tablet Enclosures

2A. Loosen the side bolt using provided tool (D)

to raise or lower to height to your preference.

Rotate opposite direction to securely tighten and

set your height.

3A. Identify the top VESA plate, Tilt it down

for a 2-direction setup or keep it up for a

1-direction setup as required.

4A. Identify the (3) VESA

locations. Align enclosures VESA

holes (I) with the body VESA

holes (A). Then using the screw

and hex nuts (E & F),screw in

from the front using provided tool

from behind until securely

tightened. Repeat for all other

VESA locations with enclosures.

M5 Allen Key

M6 Allen Key

M5 Nut

M5 x 12

M6 x 12

M6 Washer

Foam Adapter &

Sheet Bundle

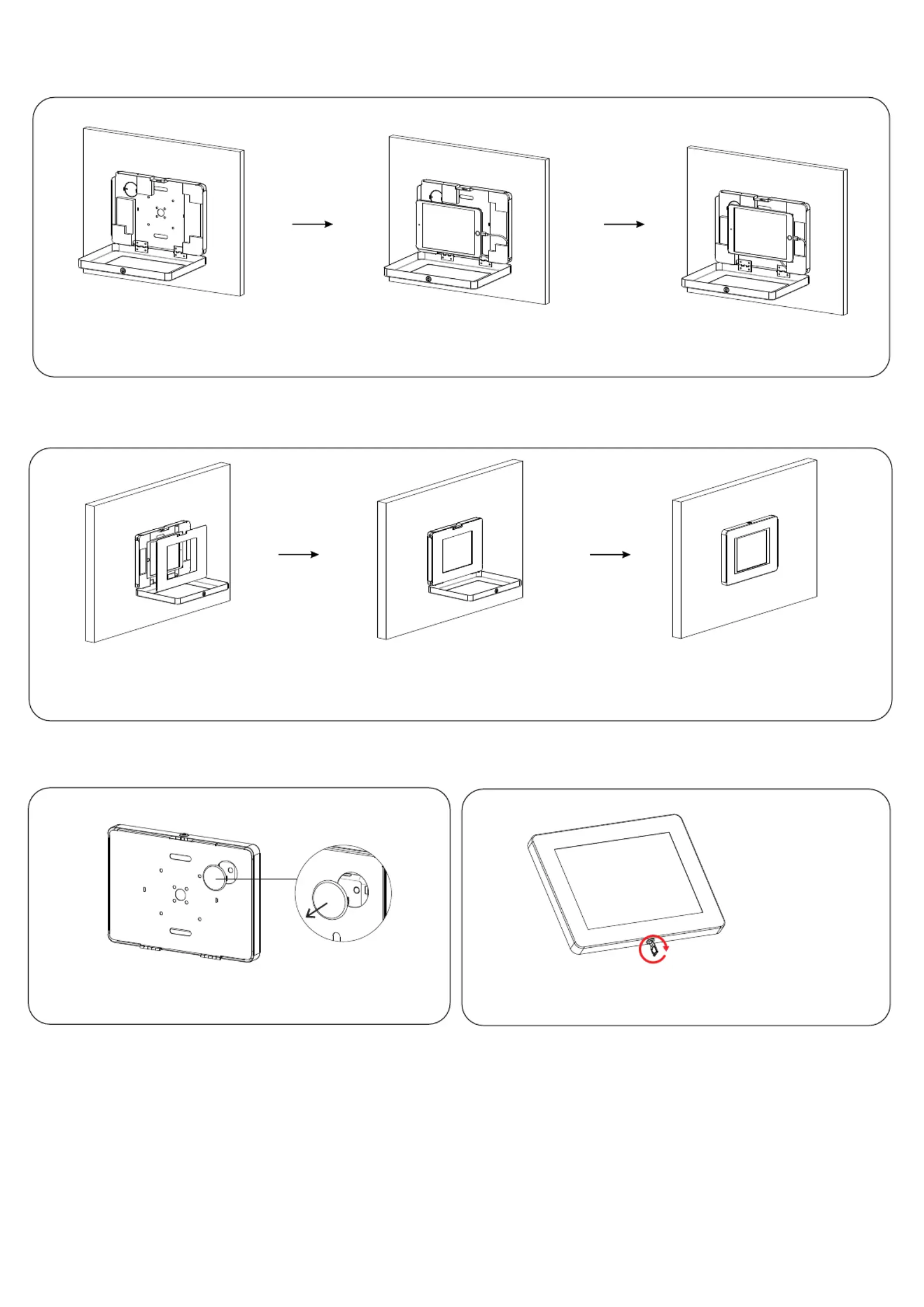

5. Setting Up Foam Adapters

5A. Identify the correct foam adapters

from the bundle that’ll fit for your device

inside the tablet enclosure. There should

be a sticker on the corner identifying

compatibility.

5B. Once correct foam set is found,

insert tablet and plug in cord as shown

above and route out the holes on the

back of the enclosure

6. Setting Up Sheet Adapter

6A. Identify the sheet bundle and find the

right sheet for your device if needed.

6B. You know you have the right sheet

adapter when you close the enclosure,

only the screen should be visible for a

more fitted look.

7. Setting Up Enclosure Openings

7A. When setting up enclosure for use,

make sure to remove any of the opening

covers for correct setup and usage.

8. Enclosure Security

8A. Using provided keys (K), rotate

clockwise or counterclockwise to lock or

unlock enclosure as needed.

Produkt Specifikationer

Mærke:	CTA Digital
Kategori:	Ikke kategoriseret
Model:	PAD-PARAMULTI
Bredde:	304 mm
Dybde:	304 mm
Højde:	787 mm
Produktfarve:	Sort
Panel montering grænseflade:	75 x 75, 100 x 100 mm
Stativ bredde:	254 mm
Kapabilitet:	iPad 10.2-inch (7th & 8th Generation), \n11-inch iPad Pro (2018/2020), iPad Air 3 (2019), iPad Gen. 5\n(2017), iPad Gen. 6 (2018), iPad Pro 9.7, iPad Pro 10.5, iPad\nAir Gen. 1-2, Galaxy Tab A 9.7”, Galaxy Tab S2 9.7”, Galaxy\nTab S3 9.7”, Galaxy Tab 3 10.1”, and Galaxy Tab 4 10.1”, \nGalaxy Tab A 10.1" (2019), Lenovo Tab 4, Surface Go, \nGalaxy Tab S5E
Stativ højde:	279 mm
