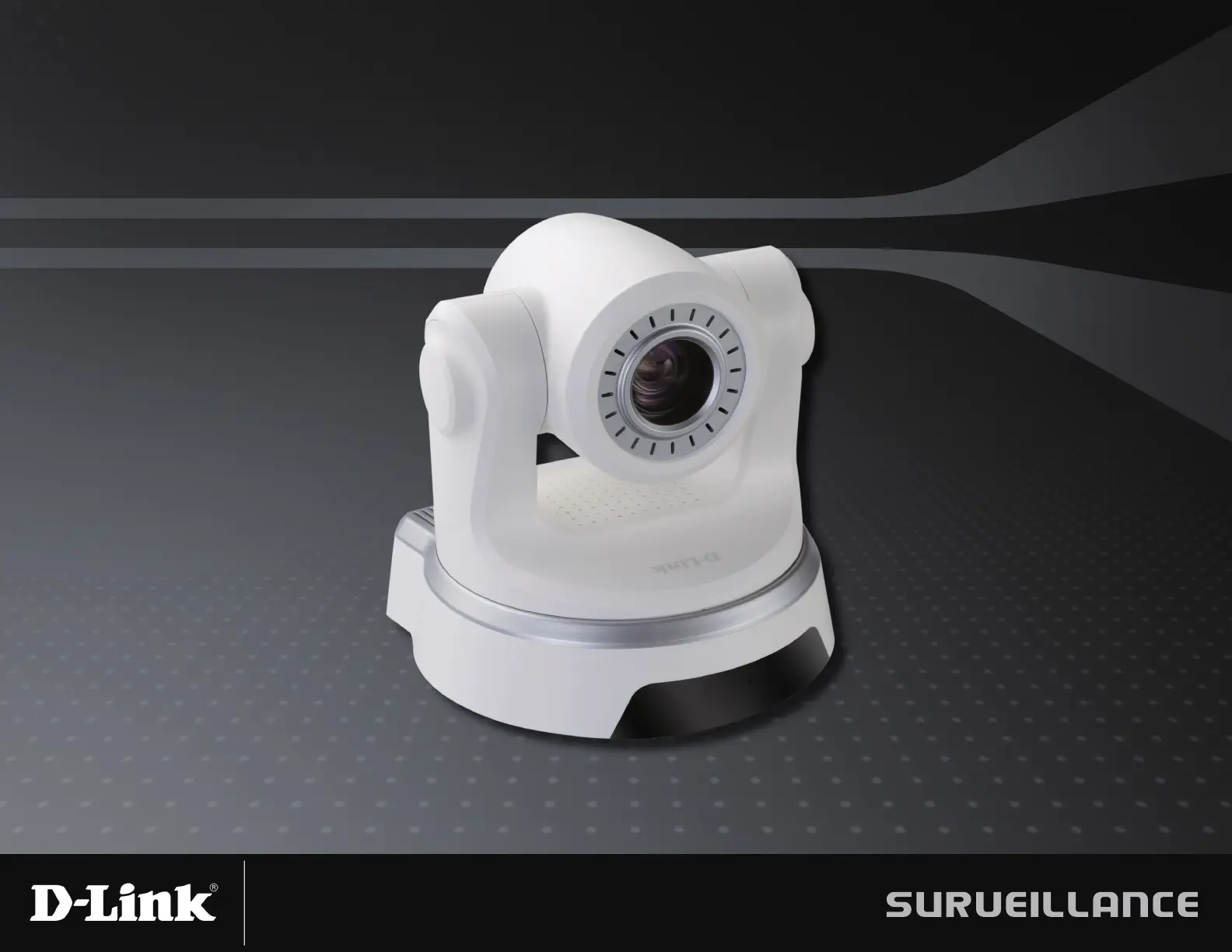

WIRELESS N H.264 PTZ NETWORK CAMERA
DCS-5605/DCS-5635
Wireless N H.264 PTZ NeTWork Camera
LIVE VIDEO MONITORING FROM ANYWHERE
VersaTile imaGiNG
Capture as much action as possible thanks
to pan/tilt and 10x optical zoom
maXimiZeD eFFiCieNCY
The H.264 codec uses significantly
less bandwidth relative to earlier video
compression technologies
CoNVeNieNT remoTe moNiToriNG
Multiple codecs allow you to configure a video stream
compatible with your computer or 3G mobile device
A HIGH-PERFORMANCE SURVEILLANCE SOLUTION
The DCS-5605/DCS-5635 is a high performance camera for professional surveillance and remote monitoring. This network camera features motorized pan, tilt,
and optical/digital zoom for ultimate versatility. The 10x optical zoom lens delivers the level of clarity necessary to identify faces, license plate numbers, and
other important details that are difficult to clearly distinguish using digital zoom alone.
ADVANCED VIDEO ENCODING
To maximize bandwidth efficiency and improve image quality, the DCS-5605/5635 offers real-time video compression in MJPEG, MPEG-4, and H.264 formats.
The H.264 codec can reduce the size of a video stream by up to 80% compared to Motion JPEG. Thus, less network bandwidth and storage space is required.
SURVEILLANCE ON THE GO
The DCS-5605/5635 supports 3GPP mobile surveillance. A live feed from the camera can be accessed on a 3G cellular network using a compatible phone, PDA
or mobile device capable of RTSP (Real Time Streaming Protocol) streaming. This enables you to monitor your home or office space in real time even when you
are on the go.
THE PERFECT MATCH FOR YOUR NETWORK
Two comparable models are available depending on your unique network requirements. The DCS-5605 includes an Ethernet port, while the DCS-5635 offers
both Ethernet and 802.11n wireless interfaces. The wireless model offers installation flexibility and freedom of wireless connectivity in difficult locations
without the hassle of running Ethernet cables. The wireless camera supports WEP and WPA-PSK/TKIP for establishing secure connections to your wireless
network.
EASY TO INSTALL AND SIMPLE TO MANAGE
The DCS-5605/DCS-5635 can be mounted on a flat surface or with a metal wall mount. Manage and monitor up to 32 cameras using D-Link’s D-ViewCam
software. You can also set up automated e-mail alerts to be instantly informed of unusual activities. In addition, this network camera supports the Universal
Plug-n-Play feature, which allows computers running on Windows XP/Vista to automatically recognize the camera and add it to the network. Sign up with one
of the free Dynamic DNS services available on the web, to assign a name and domain to the camera (for example, mycamera.dlinkddns.com). This way, you
may remotely access the camera without having to remember the IP address.
WIRELESS N H.264 PTZ NETWORK CAMERA
DCS-5605/DCS-5635
LIVE VIDEO MONITORING FROM ANYWHERE
WHAT THIS PRODUCT DOES
The DCS-5605/DCS-5635 is a professional
IP surveillance solution which connects
to your network to provide high-quality
live video over the Internet. The camera
apparatus supports precise high-speed
pan/tilt/zoom functionality for extensive
monitoring and object tracking.
KEY FEATURES
Multiple H.264 streams
Pan and tilt camera with 10x optical zoom
and auto focus
Micro SD card slot for local storage
3GPP mobile surveillance
802.11n wireless connectivity*
WPS support*
YOUR NETWORK SETUP
TECHNICAL SPECIFICATIONS
PACKAGE CONTENTS
Internet Camera
12V/2A External Power
Adapter
CAT5 Ethernet cable
Quick Installation Guide
Master CD
A/V Cable
Plate
Mounting Screws
CAMERA SPECIFICATIONS
Image Sensor: 1/4-inch Color
CCD Sensor, De-Interlace
Scan Mode
Lens Type: 10x Optical Zoom
Fixed Lens
Digital Zoom: 16x
3A Control: AGC, AWB, AES
Electronic Shutter Speed:
NTSC: 1/60sec~ 1/120,000
sec
PAL: 1/50sec~ 1/120,000 sec
Minimum Illumination:
Color: 0.7 Lux / F1.8
B/W: 0.02 Lux / F1.8
ICR Support
Pan angle: +/- 165 degrees
Tilt angle: -87 to +34 degrees
Field of View (approximate)
Horizontal: 51° (Wide) to
6° (Tele)
Vertical: 40° (Wide) to 4°
(Tele)
Diagonal: 63° (Wide) to 7°
(Tele)
Privacy Mask: 3 Zones
WIRELESS*
Security: WEP, WPA-PSK,
WPA2
Supports WPS
Transmit ion: 2TX, 2RX
Data Rate:
IEEE 802.11n: From MCS0 to
MCS15
IEEE 802.11g: 54, 48, 36, 24,
18, 12, 9, 6 Mbps
IEEE 802.11b: 11, 5.5,2, 1
Mbps
Auto-select or manual
Output Power
12 dBm@11n (Typical)
12 dBm@11g (Typical)
16 dBm@11b (Typical)
Sensitivity
802.11n: Packet Error Rate <
10%, MCS6 < -66 dBm
802.11g: Packet Error Rate <
10%, 54Mbps < -66 dBm
802.11b: Packet Error Rate <
8%, 11Mbps < -82 dBm
Antenna
Connector: MHF
Operating Frequency: 2.4Ghz
AUDIO
Two-way audio
External audio in
External audio out
GSM-AMR: 12.2kbps, PCM:
8Kbps
MICROPHONE
Omni-directional Frequency
20 to 20,000 Hz
S/N ratio: over 58dB
LEDS
Link/Power/WPS
PROTOCOLS
IPv4, ARP, TCP, UDP, ICMP,
DHCP Client, NTP Client
(D-Link), DNS Client, DDNS
Client (D-Link), SMTP Client,
FTP Client, HTTP Server,
Samba Client, PPPoE, UpnP
Port Forwarding, RTP, RTSP,
RTCP, 3GPP
RESOLUTION
NTSC: 704x480 / 352x240 /
176x120 : 30 fps
PAL: 704x576 / 352x288 /
176x144 : 25 fps
CODEC SUPPORT:
MPEG4/MJPEG/H.264
(simultaneous)
JPEG for still image
INTERFACES
LAN, Microphone, I/O, Line/
Video Out, MicroSD, WPS,
Reset
DATA RATES*
IEEE 802.11n:
From MCS0 to MCS15
IEEE 802.11g:
54, 48, 36, 24, 18, 12, 9, 6
Mbps
IEEE 802.11b: 11, 5.5,2, 1
Mbps
Auto-select or Manual
specified
POWER
12 VDC, 2 A
POWER CONSUMPTION
100-240 VAC, 50/60 Hz, 0.4 A
SYSTEM REQUIREMENTS
Operating System: Windows
XP, Vista, Windows 7
Browser: Internet Explorer,
Firefox, Mozilla or Opera
3GPP Mobile Phone
DIMENSIONS (L x W x H)
140.3 x 136.1 x 140.1 mm
WEIGHT
DCS-5650: 810 g
DCS-5635: 855 g
OPERATING TEMPERATURE
0° to 40° (32° to 104°)
STORAGE TEMPERATURE
-20° to 70° (-4° to 158°)
OPERATING HUMIDITY
20%-80% RH non-
condensing
CERTIFICATIONS
FCC
IC
CE
C-Tick
D-Link Corporation
No. 289 Xinhu 3rd Road, Neihu, Taipei 114, Taiwan
Specifications are subject to change without notice.
D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries.
All other trademarks belong to their respective owners.
©2010 D-Link Corporation. All rights reserved.
Release 03 (July 2010)
* Only available on DCS-5635
RESET SWITCH
Resets the camera
to default settings
POWER SOCKET
Connects to the DC adapter
MICROPHONE PORT
Connects to a microphone
LINE/VIDEO OUT PORT
Connects to the A/V cable
to use with a TV or DVR
DIGITAL I/O CONNECTOR
Connects to I/O devices
ETHERNET PORT
Connects to the network
WPS BUTTON
Allows you to connect
to a WPS router
