Packaged Air Conditioner Drain Pump Kit
BDU510B250VM
4P590204-1
Installation manual
Packaged Air Conditioner Drain Pump Kit - BDU510B250VM
1
Read these instructions carefully before installation. Keep this manual in a handy place for future reference.
The original documentation is written in English. All other languages are translations.

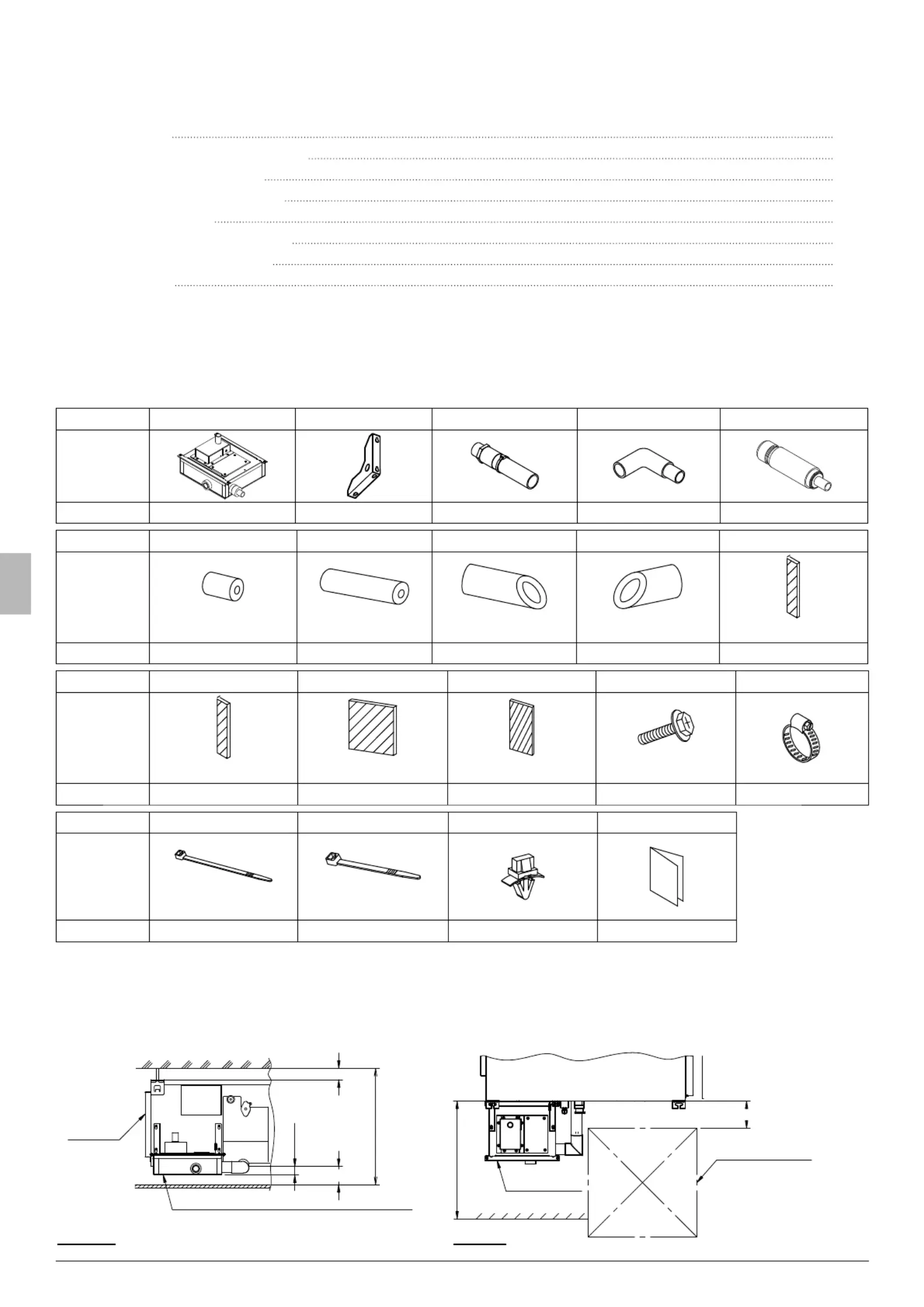

1. COMPONENTS 1
2. PREPARATION FOR INSTALLATION 1
3. INSTALLATION PROCEDURE 2
4. DRAINAGE PIPE INSTALLATION 4
5. ELECTRICAL WIRING 4
6. TRIAL OPERATION PROCEDURE 5
7. CHECK AFTER INSTALLATION 7
8. MAINTENANCE 7
1. COMPONENTS
Check that the following accessories are provided and that each accessory is correct in amount.
PRECAUTION
The accessories are required for the installation of the air conditioner. Be sure to keep them until the installation work is completed.
Name Drain Pump assembly Hanging bracket Drain connecting pipe 1 Drain connecting pipe 2 Drain connecting pipe 3
Shape
Quantity 1 2 1 1 1
Name Heat insulating tube 1 Heat insulating tube 2 Heat insulating tube 3 Heat insulating tube 4
Heat insulating material 1
Shape
ID38 x L35 ID38 x L125 ID38 x L114 ID38 x L94 60 x 290
Quantity 1 1 1 1 3
Name
Heat insulating material 2 Heat insulating material 3 Heat insulating material 4
Mounting screw Hose band
Shape
20 x 400 230 x 250 90 x 240 M5x12
Quantity 2 1 1 8 3
Name Cable tie 1 Cable tie 2 Plastic band Installation manual
Shape
L265 L150
Quantity 1 1 1 1
2. PREPARATION FOR INSTALLATION
2.1 Required Installation Space
To install an indoor unit with the drain pump kit, a clearance of 560mm or more is required between the ceiling slab and the ceiling surface
(Refer to fi gure below). Provide an inspection hatch in a position where you can readily service the indoor unit and the drain pump kit.
Ceiling slab
Indoor unit
min. 20mm
50mm
560mm or more
min. 70mm
Ceiling surface
Drain pump kit
Side View
The bottom surface of the drain pump kit will be
lower than the bottom surface of the indoor unit
Indoor unit
Approx. 150
Drain pump kit
Inspection hatch
(600mm X 600mm)
650 or more
(Service space)
Top View
