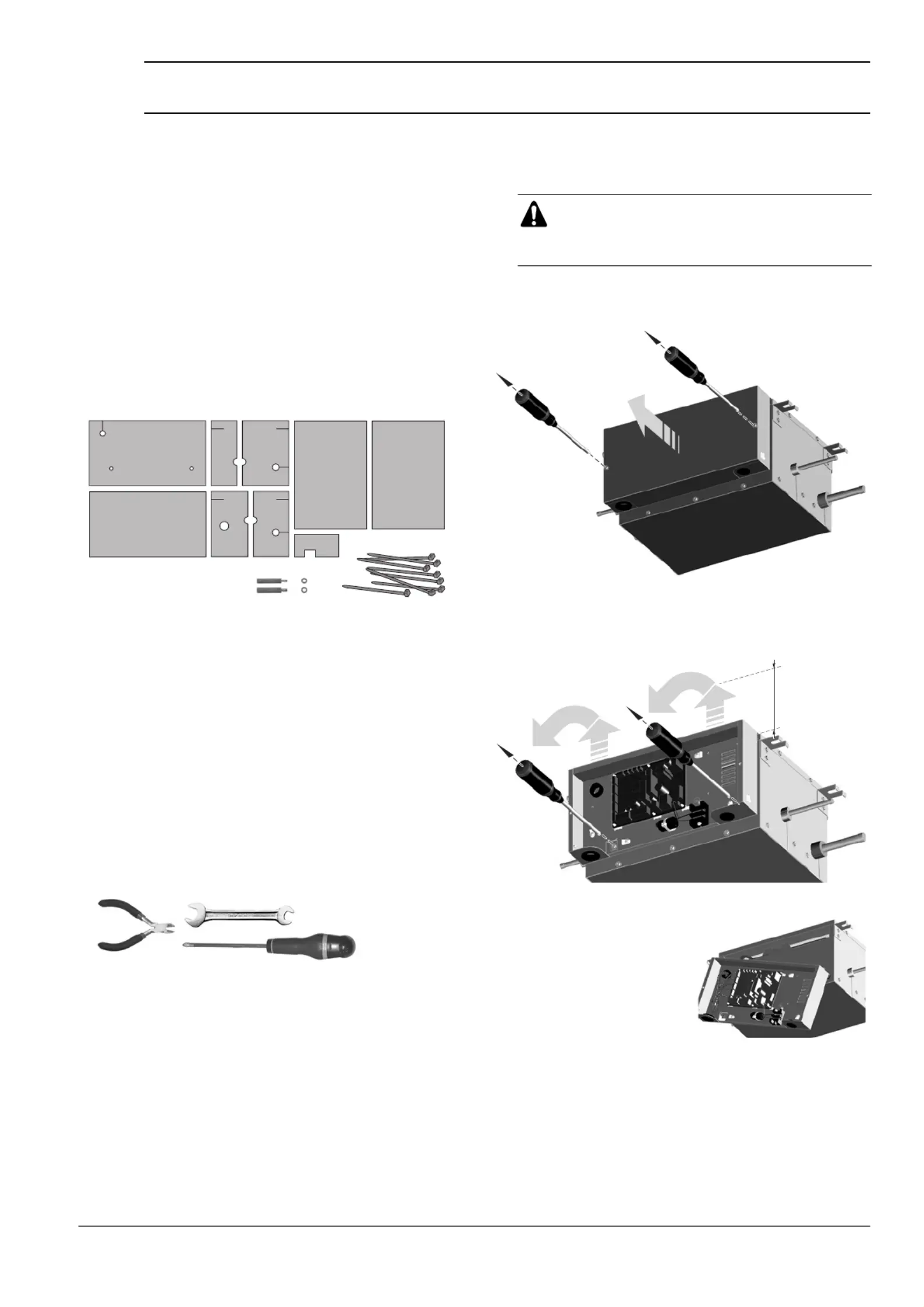

EKBSVQLNP

Noise insulation kit

4PW38434-1A

Instruction manual

NTRODUCTION

This kit includes all necessary parts and instructions for building the

noise insulation on and around your branch selector box.

ONVENTION

Further in this instruction "branch selector box" will consistently be

referred to as BSB and "branch selector box switch box" will be

referred to as SB.

ONTENT

THE

KIT

ECESSARY

TOOLS

FOR

PROCESSING

NSTALLATION

PROCEDURE

Remove the SB service cover (1) by unscrewing the 2 screws

(XX) as indicated in

picture 1

. Keep the 2 screws for later re-

installation.

Refer to

picture 2

for visualizing how to ﬁrst unscrew the 2

screws (XX) ﬁxing the SB to the BSB. Lift the SB vertically

upward for about 15 mm (1) until you can unhook it away from

the BSB (2).

Let the SB hang with great

care as indicated in

picture 3

Better solution of course is in

case cables power supply,

wiring to indoor and outdoor

units, and cool/heat selector

are long enough and you have

the service space, is to put the

SB as indicated in

picture 5

on top of the BSB top plate.

Keep the 2 screws for later re-

installation.

EKBSVQLNP

Noise insulation kit

Instruction manual

Insulation to stick in between the BSB and the SB

Left hand side insulation to stick on the 2-pipe side of the BSB

Right hand side insulation to stick on the 2-pipe side of the BSB

Left hand side insulation to stick on the 3-pipe side of the BSB

Right hand side insulation to stick on the 3-pipe side of the BSB

Insulation to stick on the top plate of the BSB

Insulation to stick on the bottom plate of the BSB

Insulation to stick on the rear plate of the BSB

Smaller insulation to stick on the back of the SB

2 x Spacer for distancing SB away from the BSB

2 x Lock washer to secure the spacers

8 x Tie-wrap to make 2 straps for securing the insulations

K L

A B

F G

D E

Make sure to switch off power supply to the complete

system before starting this procedure. Installation of

the kit must be executed by a licensed refrigeration

technician.

Picture 1

±15 mm

Picture 2

Picture 3

Instruction manual

4PW38434-1A

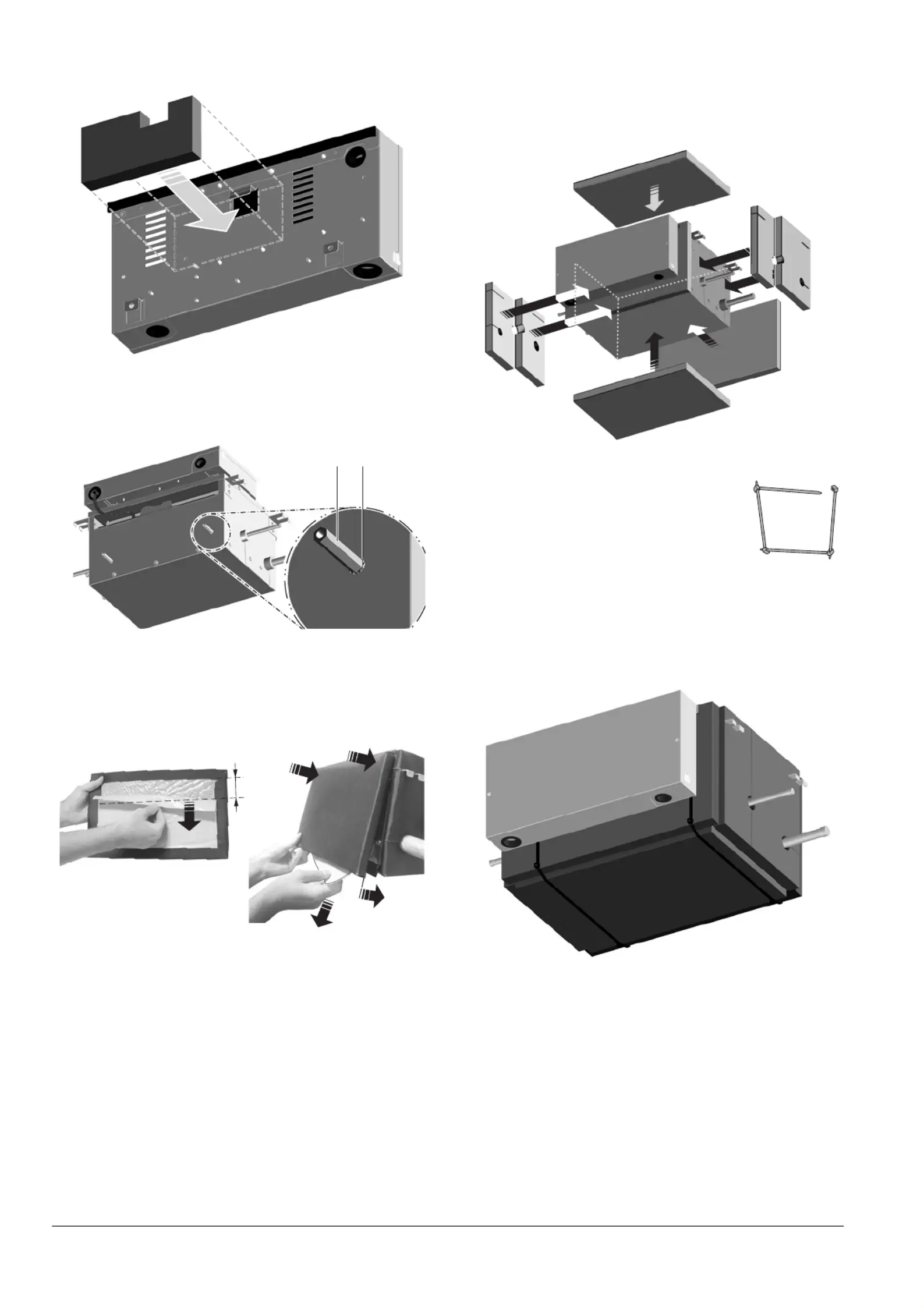

Stick the smaller insulation (part J) in the exact position on the

back of the SB as indicated in

picture 4

. Be sure not to stick

part J over the ventilation holes.

Firmly ﬁx the 2 supplied spacers (part K) into the holes that

secured the SB to the BSB. Do not forget to put the supplied

lock washers (part L) in between the spacers and the BSB.

Refer to

picture 5

For comfortably sticking larger parts of insulation on the BSB it is

advised to ﬁrst partially peel the protective cover off the

adhesive, to position the insulation in the correct place and only

then to peel the complete protective cover off. Refer to

picture 6

Stick insulation part A on the BSB plate in which you screwed

spacers before. All necessary holes are foreseen in the

insulation parts.

Install the SB back in place by ﬁxing it with 2 recuperated screws

on the spacers through the rear plate of the SB.

Install the SB service cover back in place by ﬁxing it with 2

recuperated screws.

Refer to

picture 7

for instructions on where to stick the

remaining insulation parts (part B~H).

First stick insulation parts B-C-D+E (on the 2-pipe and 3-pipe

sides of the BSB). These parts are designed to let you easily ﬁt

the remaining top-, bottom- and rear insulations consecutively

(parts F-G-H) on correct positions afterwards.

For securing position of noise insulation

throughout the rest of the installation lifetime,

you need to strap the adhered insulation.

Proceed by connecting 2 times 4 supplied

tie-wraps (part M) (4 tie-wraps = 1 strap) to

each other but keep one end open:

■

put the 2 straps over top of the BSB;

■

both straps must be positioned next to the spacers (outside);

■

close the straps and tear them until they are ﬁxed tight;

■

cut off all 8 superﬂuous ends.

If the result looks like in

picture 8

, you are successful.

This procedure is not ﬁnished until you remove all used tooling

and scraps from the ceiling. Eventually, close the ceiling panel

and power the complete system up again.

Picture 4

K L

Picture 5

Picture 6

Picture 7

Picture 8
