Side 1/4

User Instructions

Aerial Pak 4™ Introduction

Rev 5/03

Unpacking: Thank you for purchasing the Aerial Pak 4™ by Elation

Professional . Every Aerial Pak 4™ has been thoroughly tested and ®

has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping.

If the carton appears to be damaged, carefully inspect your unit for

any damage and be sure all accessories necessary to operate the unit

have arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for fur-

ther instructions. Please do not return this unit to your dealer without

ﬁrst contacting customer support.

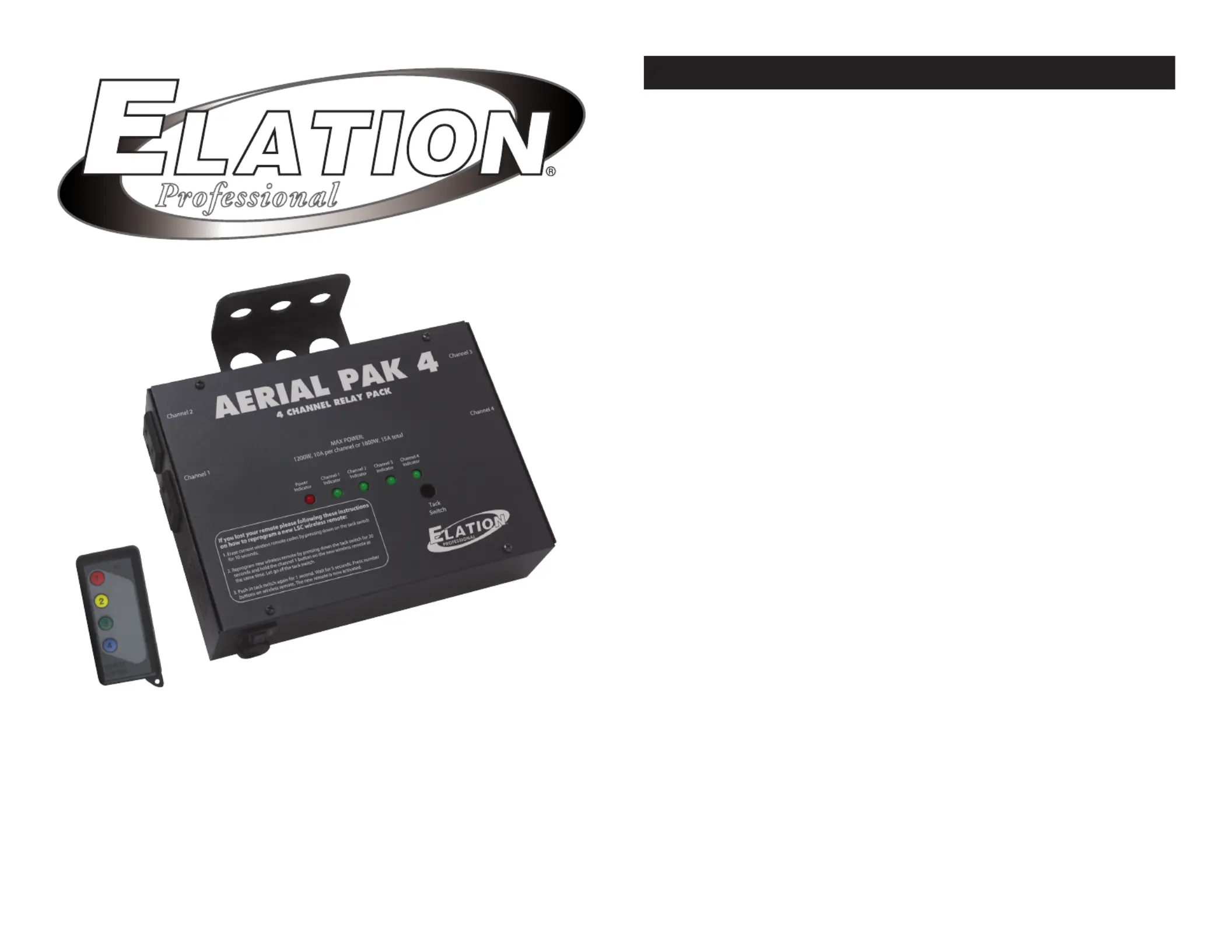

Introduction: The Aerial Pak 4™ is a unique wireless four channel

switching pack. This unit is designed to function as a remote control,

wireless on/off switcher with four independent outlets. Multiple Aerial

Pak 4’s™ can be used in a single room and be controlled by a single

remote control. The unit has a maximum power output of 1800 watts

or 15 amps, which should be more than enough power to handle most

special effect lighting fixtures.

Customer Support: Elation Professional provides a customer sup-®

port line, to provide set up help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.elationlighting.com for any comments

or suggestions. Service Hours are Monday through Friday 9:00 a.m. to

5:00 p.m. Paciﬁc Standard Time.

Voice: (323) 582-3322

Fax: (323) 582-2610

E-mail: support@elationlighting.com

Warning! To prevent or reduce the risk of electrical shock or ﬁre, do

not expose this unit to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war

ranty. In the unlikely event your unit may require service please contact

Elation Professional .®

At Elation Professional

® we are concerned about the environment, and

package all are units in recyclable material. Please do not dispose of

the shipping carton in the trash, recycle whenever possible.

©Elation Professional ®

4295 Charter Street

Los Angeles Ca. 90058

www.elationlighting.com

Aerial Pak 4™ Safety Precautions

• To reduce the risk of electrical shock or ﬁre, do not expose this unit

rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required volt-

age for your unit.

• Do not attempt to operate this unit if the power cord has been

frayed or broken.

• Do not attempt to remove or break off the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and ﬁre in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user

serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product out-

doors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to

be walked on or pinched by items placed upon or against them,

paying particular attention to cords at plugs, convenience recep-

tacles, and the point where they exit from the appliance.

• Cleaning -The ﬁxture should be cleaned only as recommended by

the manufacturer. See page 7 for cleaning details.

• Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances

(including ampliﬁers) that produce heat.

• The ﬁxture should be serviced by qualiﬁed service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a

marked change in performance.

Aerial Pak 4™ General Instructions

• Wireless Control

• Four Channel Output

• 100 Foot Remote Range

• Channel Activity Indicators

• Built-in Adjustable Mounting Bracket

• Replaceable Remote Control

• Compact Case Design

• Protective Reset Breaker (no more fuses)

• Maximum Channel Output 1200w/ 10A

• Maximum Unit Output 1800w/15A

Aerial Pak 4™ Features

The Aerial Pak 4™ carries a one year limited warranty. Please fill out

the enclosed warranty card to validate your purchase. All returned

service items whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. The R.A.

number must be clearly written on the outside of the return package.

A brief description of the problem as well as the R.A. number must

also be written down on a piece of paper included in the shipping

carton. If the unit is under warranty, you must provide a copy of your

proof of purchase invoice. You may obtain a R.A. number by contact

ing our customer support team on our customer support number. All

packages returned to the service department not displaying a R.A.

number on the outside of the package will be returned to the shipper.

Aerial Pak 4™ Product Registration

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

This unit uses a protective breaker to protect the unit in the event of

power surges or fluctuations. To reset the breaker, push the breaker

button in until you hear it pop back in to place. If the breaker contin

u to pop, stop using the unit and contact customer support the unit

may require service.

Aerial Pak 4™ Reset Breaker
