REMOTE CHASER

Caution! Always disconnect from main power before servicing. There may be high voltage run-

ning through console. Remember to always replace with same type fuses.

For service, contact Elation Professional®.

User Instructions

VISAGE

Technical Specifications:

Model - VISAGE

Dimensions: 7.75” x 6.5” x 2.75”

Weight:

4 lbs.

Output load: 5A per channel or 15 MAX.A

(600W per channel)

Power: 120V 50-60Hz

Thank you for purchasing the VISAGE by Elation®. For your convenience this product has been tested

and is ready to be used. There is no assembly required. Please read the following instructions before

installing or using your new unit.

The VISAGE Remote Chaser features 16 built-in chasing patterns with Auido/Chase modes and Four AC-120V, 3-prong

UL sockets for channel output. In AUDIO mode, the patterns are executed with the music rhythms detected by the inter

nal microphone. In CHASE mode, the chasing speed can be adjusted. A wireless remote controller is provided for full

control capabilities.

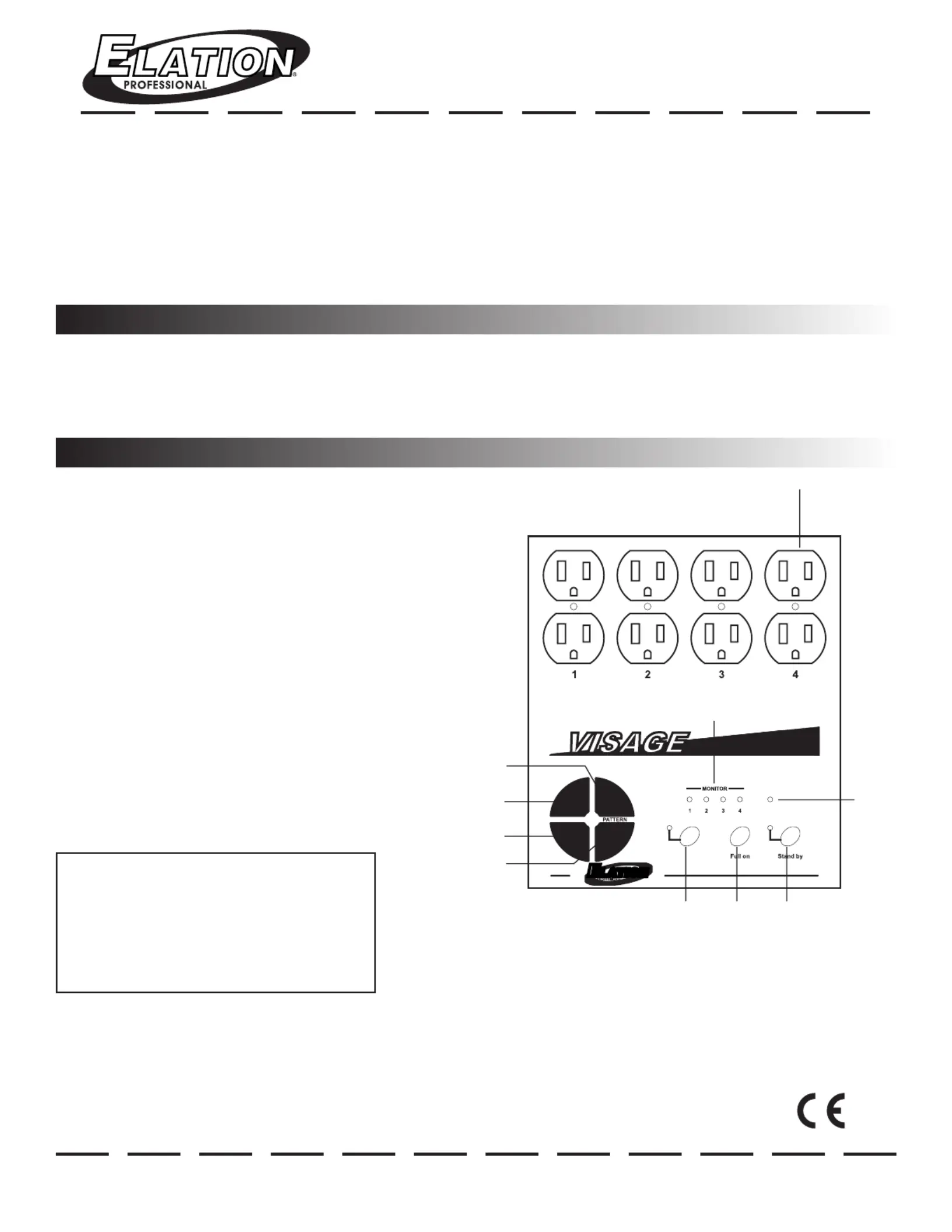

Product Description

1. POWER OUTPUT: Four 3-prong UL socket, 5A/CH.,

15A MAX.

2. SPEED UP BUTTON: Press to increase the chasing

speed.

3. SPEED DOWN BUTTON: Press to decrease the

chasing speed.

4. PATTERN UP SELECT: Select desired chasing pattern

by pressing to increase by one.

5. PATTERN DOWN SELECT: Select desired chasing

pattern by pressing to decrease by one.

6. AUDIO/CHASE SELECT & INDICATOR: Press to

select chasing mode from AUDIO/CHASE.

7. FULL ON BUTTON: Press to make all channels at full

intensity.

8. STAND BY: Press to pause all channels.

9. BUILT-IN MICROPHONE: Used to detect AUDIO signal.

10. CHANNEL INDICATOR: Lights when appropriate

channel is turned on.

General Functions (Front)

1. Press to increase or Speed / Buttons:

decrease the chasing patterns’ speed.

2. Press to engage chaseAudio/Chase Button:

to sound mode. The red LED will indicated sound

active mode.

3. This functions as a ‘Blackout’Stand By Button:

feature (All channel turn off

). A yellow LED will

indicate Stand By mode.

4. This will activate full on Full On Button:

mode ( ).All channels on full

5. Press to select Pattern / Buttons:

one (1) of 16 built in programs.

BATTERY WARNING!: Remove the batteries when the

remote will not be in use for a long period of time. Never mix

old and new batteries or batteries of different type. Always

load the batteries with the correct polarity.

CAUTION!: Direct sun light may impede the infrared operation of the remote.

11. POWER SWITCH: Press to turn the power ON or OFF.

12. CHANNEL FUSE: 6. 3A 250V

13. POWER INPUT: AC 120V - 50/60Hz

14. INFARED SENSOR

15. INFARED RECEIVING SENSOR SOCKET: Plug in

remote infared detector for remote control.

16. LINK IN: This will receive data from another units

‘LINK OUT’.

17. LINK OUT:

This will send data to another unit.

FUSES: F6.3A 250V 5x20mm

1 2 3 4

POWER INPUT

POWER

AC 120V~50-60Hz, 15A

LIN

EXT.

REMOTE

INFRARED

SENSOR

OUT

WARNING:

TH IS A PPAR AT US MUS T BE E AR THED .

N'OUVREZ PAS..RISQUE DE CHOCELECTRIQUE

RISK OF ELECTRIC SHOCK,

DO NOT OPEN.

CAUTION:

23-020-0071

MADE IN CHINA

OUTPUT: 5A/CH, TOTAL 15A Max.

12 13

14 15 16 17

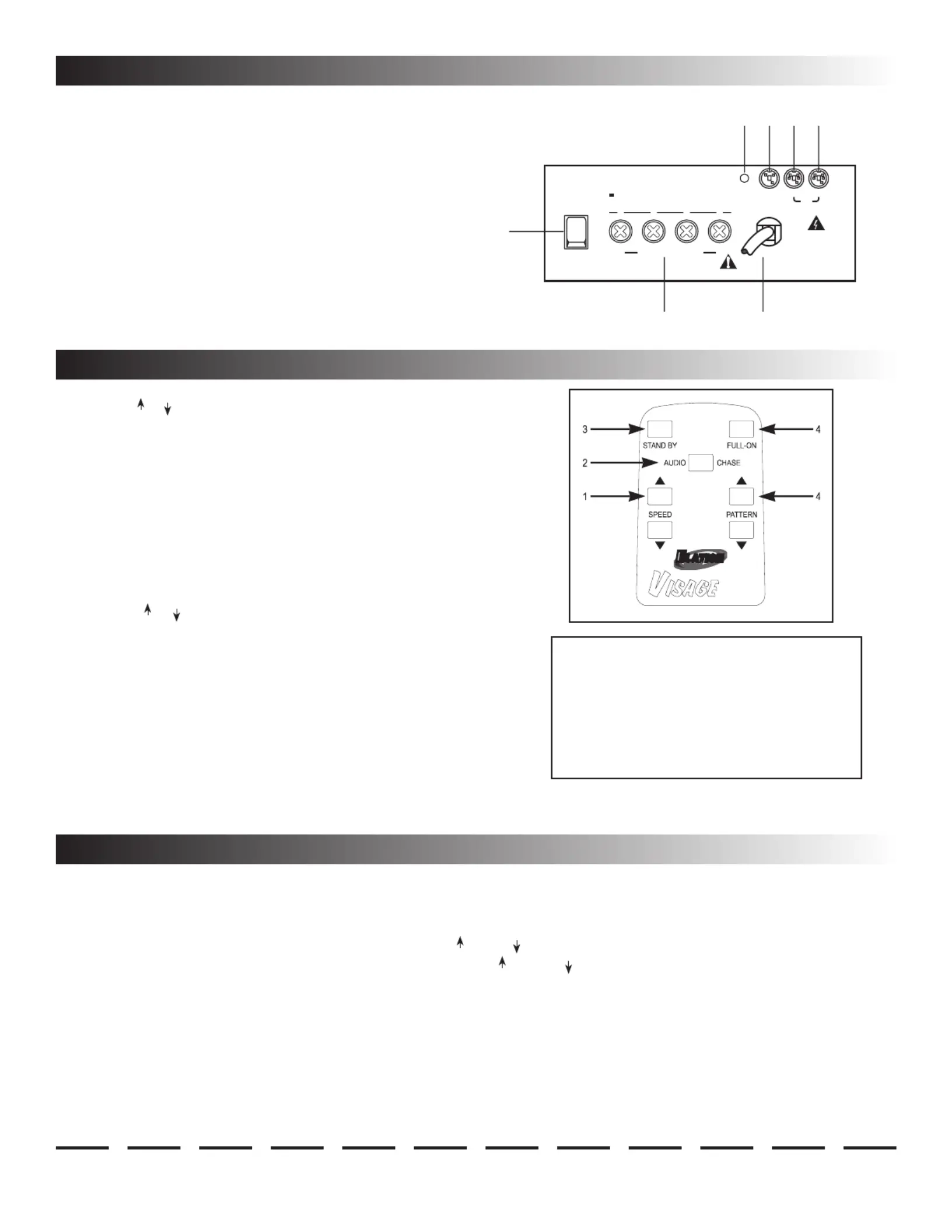

General Functions (Rear)

Remote Controller Controls & Functions

1. Connect lamps or groups of lamps to any or all the UL 3-prong sockets on the unit. Each outlet can

handle a maximum of 5 amps. The pack can handle 15 amps maximum.

2. Turn the units’ power on.

3. Adjust the chase speed by selecting the andSPEED .

4. Select your chase pattern by selecting the PATTERN

and .

5. All adjustments can also be made by the remote control.

6. To chase to sound, press the AUDIO/CHASE BUTTON.

7. When mounting this chaser in an area that may obstruct the remote controls infrared path an optional

external remote infrared detector can be used and mounted in an area that will give the user a clean

shot from the remote control.

Operating Instructions

Technical Specifications:

Model - Visage Remote

Voltage: 2 AA 1.5v Alkaline Battery

Fuse: None

Dimensions: 5” x 1.75” x .75”

Weight: 1 lbs.

Range: Approx. 30ft.

Produkt Specifikationer

Mærke:	Elation
Kategori:	Lys
Model:	Visage
