SERVICE DATA SHEET

240389641

ICE & WATER - AUTOMATIC DEFROST

SIDE BY SIDE - R134a

IMPORTANT SAFETY NOTE

The information provided herein is designed to assist qualiﬁed

repair personnel only. Untrained persons should not attempt to

make repairs due to the possibility of electrical shock. Disconnect

power cord before servicing this appliance.

IMPORTANT

If any green grounding wires are removed during servicing,

they must be returned to their original position and properly

secured.

CAUTION

All electrical parts and wiring must be shielded from torch

ﬂame. DO NOT allow torch to touch insulation; it will char

at 200°F and ﬂash ignite (burn) at 500°F. Excessive heat will

distort the plastic liner.

NOTE

This product comes equipped with an Adaptive Defrost Control

(ADC). To activate manual defrost, simultaneously press and

hold the Fresh Food up (+) and Fresh Food down (-) keys for 5

seconds. A “d” in the freezer temperature window and “F” in the

refrigerator temperature window will display when the heater is

activated. To deactivate manual defrost, simultaneously press

and hold the Fresh Food up (+) and Fresh Food down (-) keys

for 5 seconds. A “d” and “F” will be displayed until the defrost

cycle is complete.

ICE MAKER INFORMATION

Test Cycling

Press the momemtary contact on the ON/OFF switch

for approximately 15 seconds. Ice maker will continue to

complete the cycle.

Water Fill Volume

Remove cover by inserting screwdriver in notch at bottom and

prying cover from housing. The water ﬁll adjustment screw

will change the ﬁll time. One turn is equal to 20cc (.68 oz.).

The correct ﬁll is 102 to 110cc (3.25 to 3.5 oz.). When a water

valve is replaced, the ﬁll volume must be checked.

Mounting

Plate

Screws

Mounting

Plate

Screw

Motor

Gear

Timing

Gear

Water Fill

Adjustment

Ice Maker

ON/OFF

Switch

PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS AT MID-POINT

CONTROL SETTING (2500 ++ V4)

Type A with Run/Start

Capacitor

65°F (18°C) Ambient 90°F (32°C) Ambient

Variable Speed Standard Variable Speed Standard

Operating Time 74 to 84% 32 to 40% 100% 55 to 65%

Freezer Temperature -2° to 2° F

-19° to -17° C

0° to 4° F

-18° to -16° C

-1° to 3° F

-18° to -16° C

-1° to 3° F

-18° to -16° C

Refrigerator Temperature 34° to 39° F

1° to 4° C

34° to 39° F

1° to 4° C

34° to 39° F

1° to 4° C

34° to 39° F

1° to 4° C

Low Side Pressure

(cut-in)

5 to 12 psig

43 to 83 kPa

5 to 12 psig

43 to 83 kPa N/A 5 to 12 psig

43 to 83 kPa

Low Side Pressure

(cut-out)

-2 to 2 psig

-14 to 14 kPa

-2 to 2 psig

-14 to 14 kPa

-2 to 2 psig

-14 to 14 kPa

-2 to 2 psig

-14 to 14 kPa

High Side Pressure

(last 1/3 cycle)

90 to 105 psig

621 to 724 kPa

90 to 115 psig

621 to 793 kPa

120 to 135 psig

827 to 931 kPa

130 to 155 psig

896 to 1069 kPa

Wattage (last 1/3 cycle) 60 to 65 120 to 150 65 to 80 130 to 160

Amps (running) .7 to 1.1 1.0 to 1.4 .9 to 1.3 1.1 to 1.5

Base Voltage 115 vac (127 vac max)

DEFROST SPECIFICATIONS

Cabinet Size

Thermostat Heater

Cut-in Cut-out Watts Ohms

23’, 23’ CD, 26’ 25° F (-4° C) 47° F (8° C) 450 30

Elecrttonic Timer - (ADC) Defrost 24 minutes every 6-96 hours of compressor run time.

CONDENSER FAN MOTOR

Watts RPM Amps

3.1 1100 CW Opposite Shaft 0.03 Running

ICE MAKER SPECIFICATIONS

Electrical 115 vac (127 vac max)

Thermostat Opens at 48° F ( 9° C), Closes at 15° F ( -9° C)

Heater Voltage 85 vac

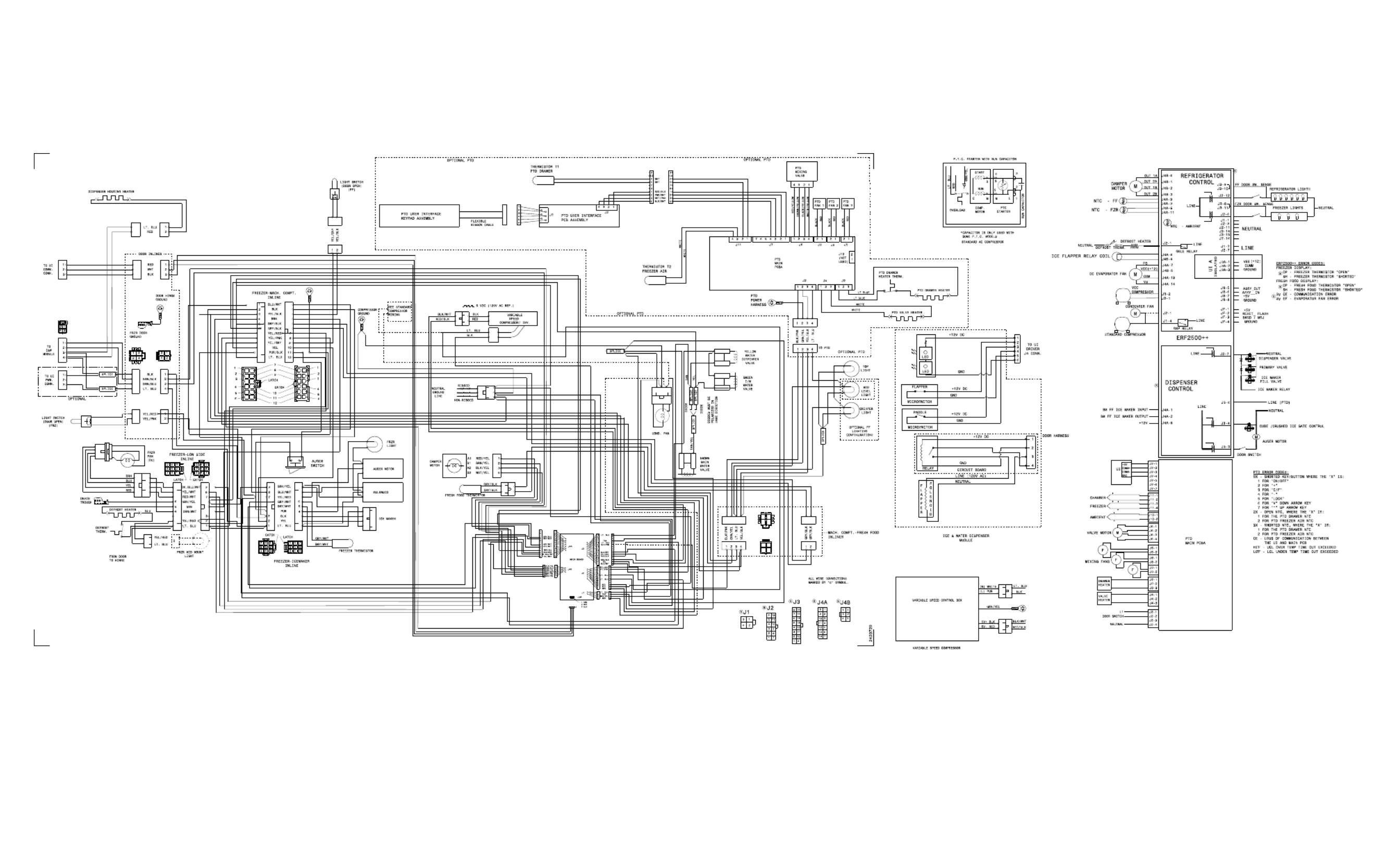

ICE MAKER CONNECTOR PLUG CONNECTIONS

Wire Number Wire Color Connects to:

1 Green/Yellow Ground

2 Yellow Water Valve

3 Black Line

4 Light Blue Neutral

IMPORTANT: PLEASE RETURN THIS SHEET TO

IT’S ORIGINAL LOCATION
