eXpressive 830L
Ⅰ
Instruction Book
Ⅰ


1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the
following:
This embroidery machine is designed and manufactured for household use only.
Read all instructions before using this embroidery machine.
DANGER
—
To reduce the risk of electric shock:
1. An appliance should never be left unattended when plugged in. Always unplug
this embroidery machine from the electric outlet immediately after using and
before cleaning.
WARNING
—
To reduce the risk of burns, re, electric shock, or injury to persons:
1. Do not allow to be used as a toy. Close attention is necessary when this embroidery machine is
used by or near children.
2. Use this appliance only for its intended use as described in this owner’s manual.
Use only attachments recommended by the manufacturer as contained in this owner’s manual.
3. Never operate this embroidery machine if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water.
Return this embroidery machine to the nearest authorized dealer or service center for
examination, repair, electrical or mechanical adjustment.
4. Never operate the appliance with any air opening blocked. Keep ventilation openings of this
embroidery machine and foot controller free from accumulation of lint, dust and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being
administered.
8. To disconnect, turn all controls to the off (“O”) position, then remove plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep ngers away from all moving parts. Special care is required around the embroidery machine
needle and/or cutting blade.
11. Always use the proper needle plate. The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Switch this embroidery machine off (“O”) when making any adjustment in the needle area, such as
threading the needle, changing the needle, threading the bobbin or changing the presser foot, and
the like.
14. Always unplug this embroidery machine from the electrical outlet when removing covers,
lubricating, or when making any other adjustments mentioned in this owner’s manual.
SAVE THESE INSTRUCTIONS
Please note that on disposal, this product must be safely recycled in accordance with relevant
National legislation relating to electrical/electronic products. If in doubt please contact your
retailer for guidance. (European Union only)
For Europe only:
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
For outside Europe (except U.S.A and Canada):
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

3
GETTING READY TO SEW

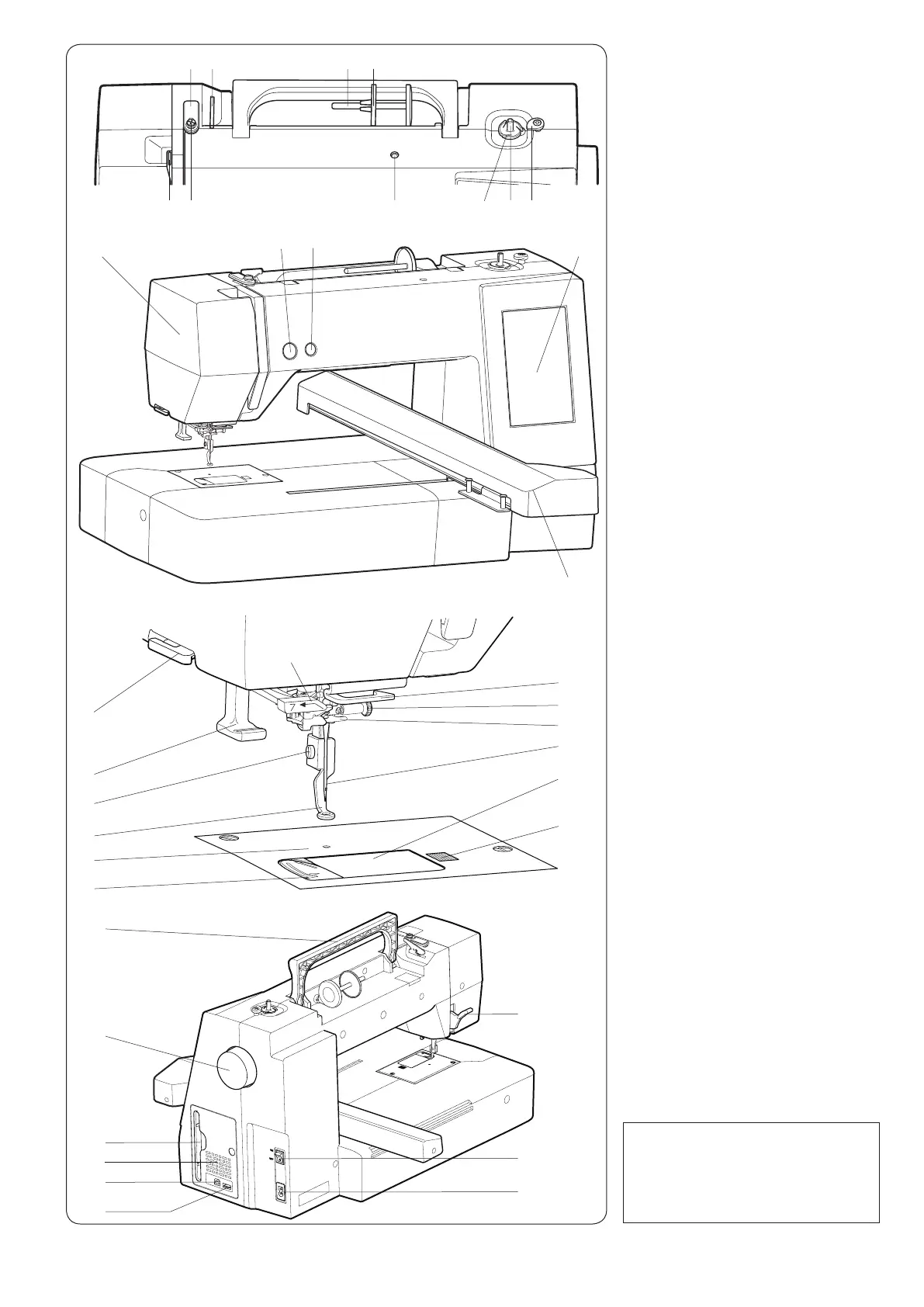

Names of Parts
Thread take-up lever
Upper thread guide
Pre-tension thread guide
Bobbin winder thread guide
Spool pin
Spool holder (large)
Hole for extra spool pin
Bobbin thread cutter
Bobbin winder spindle
Bobbin winder stopper
Face plate
Start/stop button
Thread cutter button
Visual touch screen
Carriage
Thread cutter/holder
Needle threader knob
Setscrew
Embroidery foot
Needle plate
Thread cutter
Lower thread guide
Needle clamp screw
Needle bar thread guide
Needle
Hook cover plate
Hook cover release button
Needle threader guide
Carrying handle
Handwheel
Touch panel stylus holder
Ventilation opening
USB port (type B)
USB port (type A)
Presser foot lifter
Power switch
Power inlet
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@4
@5
@6
@77
@8
@9
#0
#1
#2
#3
#4
#5
#6
#7
* Design and specications are subject to change without prior notice.
q
!1
#1
#3
#4
#0
t
y
u oi !0
w
e
!2
!3
!4
!5
!6
!7
!9
@1
@6
@7
@2
@3
!8
@5
@9
#6
#7
#5
r
@0
@4
@8
#2
NOTE:
To carry the sewing machine,
hold the carrying handle with your
hand, and support the sewing
machine with the other hand.

4
Standard Accessories
NOTE:
A presentation video with quick-start information is
available for this model and can be downloaded from
our website at www.elna.com/support
No. Part Name Part No.
q
Bobbin x 5 (1 set on the machine) 102261103
w
Screwdriver 820832005
e
Screwdriver key (for needle plate) 653802002
r
Lint brush 802424004
t
Scissors 803813203
y
Needle set 852802108
u
Spool holder (large) x 2
(1 set on the machine)
822020503
i
Spool holder (small) x 2 822019509
o
Spool holder (special) x 2 862408008
!0
Extra spool pin 809041004
!1
Bobbin holder (1 set on the machine)
846652504
!2
Special bobbin holder for
Embroidery (high tension)
846652607
!3
Touch panel stylus 860194002
!4
Bobbin holder cleaner 859858007
!5
Instruction book 864800859
!6
Quick reference guide 864818001
!7
Instructional DVD 864852007
!8
Embroidery Editor CD-ROM 864850005
!9
Embroidery Editor Installation guide 864849207
@0
Soft cover* 864807100
@1
USB cable 850403006
@2
Power cable**
Continental Europe 830335004
U.K. 830377008
Australia 830314018
U.S.A. and Canada 856519004
* Not applicable for some models.
** The power cable included may differ from the
illustration.
q w e r
t y u
i o !0 !1
!3 !4 !5
!6 !7 !9
@0 @1
@2
!8
!2

5

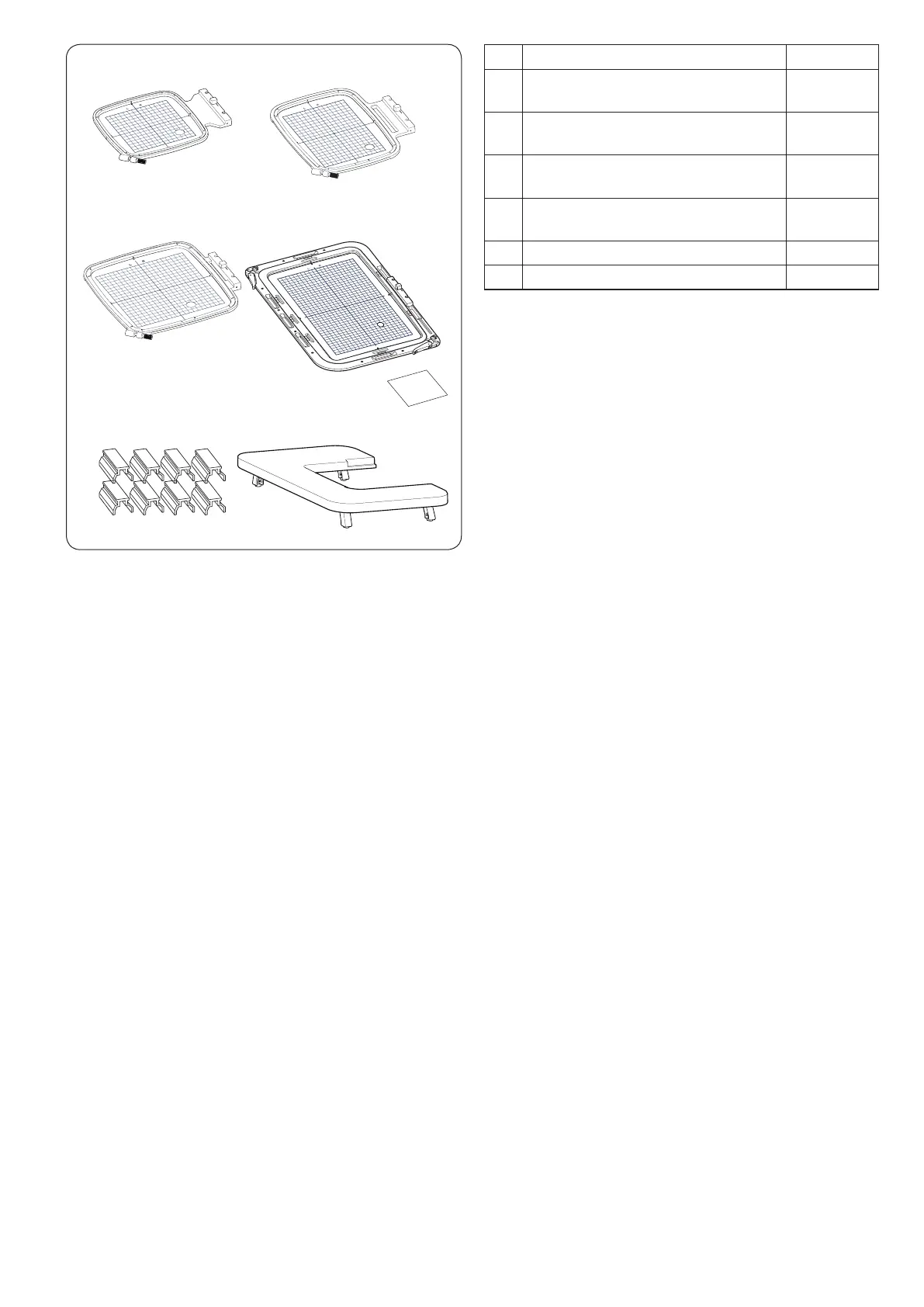

No. Part Name Part No.
@3
Embroidery hoop SQ14b (with
template)
864803003
@4
Embroidery hoop RE20b (with
template)
864802002
@5
Embroidery hoop SQ20b
(with template)
864801001
@6
Embroidery hoop RE36b (with
template) and anti-slipping sticker
864839008
@7
Clamp x 8 861805305
@8
Extra wide table 864805201
@3 @4
@5 @6
@7
@8

6

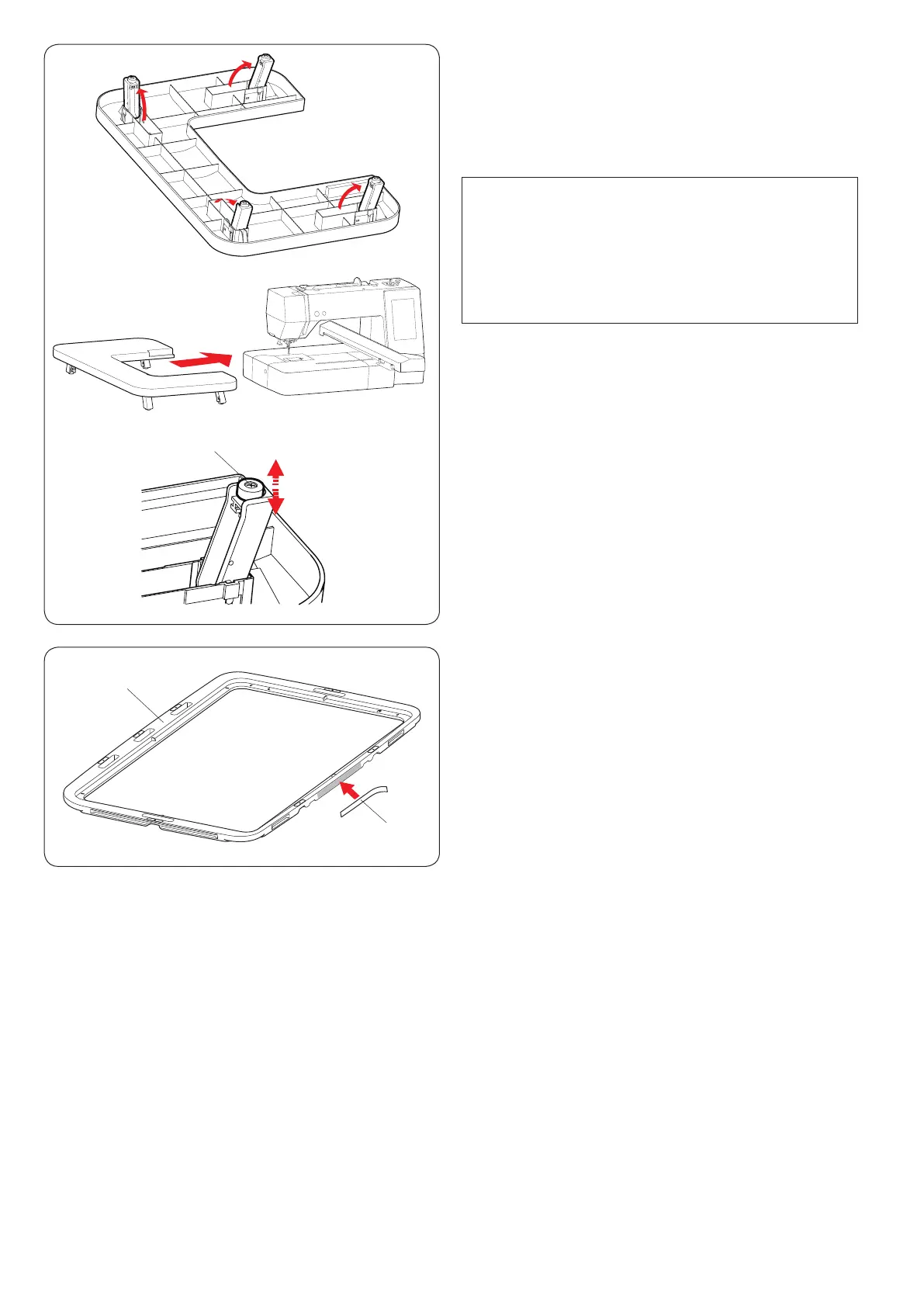

Extra Wide Table
Use the extra wide table when the Embroidery hoop
RE20b, SQ20b or RE36b is attached to the machine.
Extract the 4 legs located the underside of the table.
Place the extra wide table on the machine.
q
Anti-slipping sticker (for Embroidery hoop RE36b)
Embroidery hoop RE36b unit includes the anti-slipping
sticker.
Peel and paste the sticker on the inner hoop of the
Embroidery hoop RE36b as shown to prevent slipping of
the ne fabrics.
q Anti-slipping sticker
w Inner hoop
NOTE:
Adjust the height of the extra wide table to the height
of the machine table by turning the adjusting screws
of 4 legs. Otherwise the carriage may hit the extra
wide table when attached. Use a Phillips screwdriver*
to turn the adjusting screw.
q Adjusting screw
* Phillips screwdriver is not included with the machine.
w
q

14
t
e
w
q

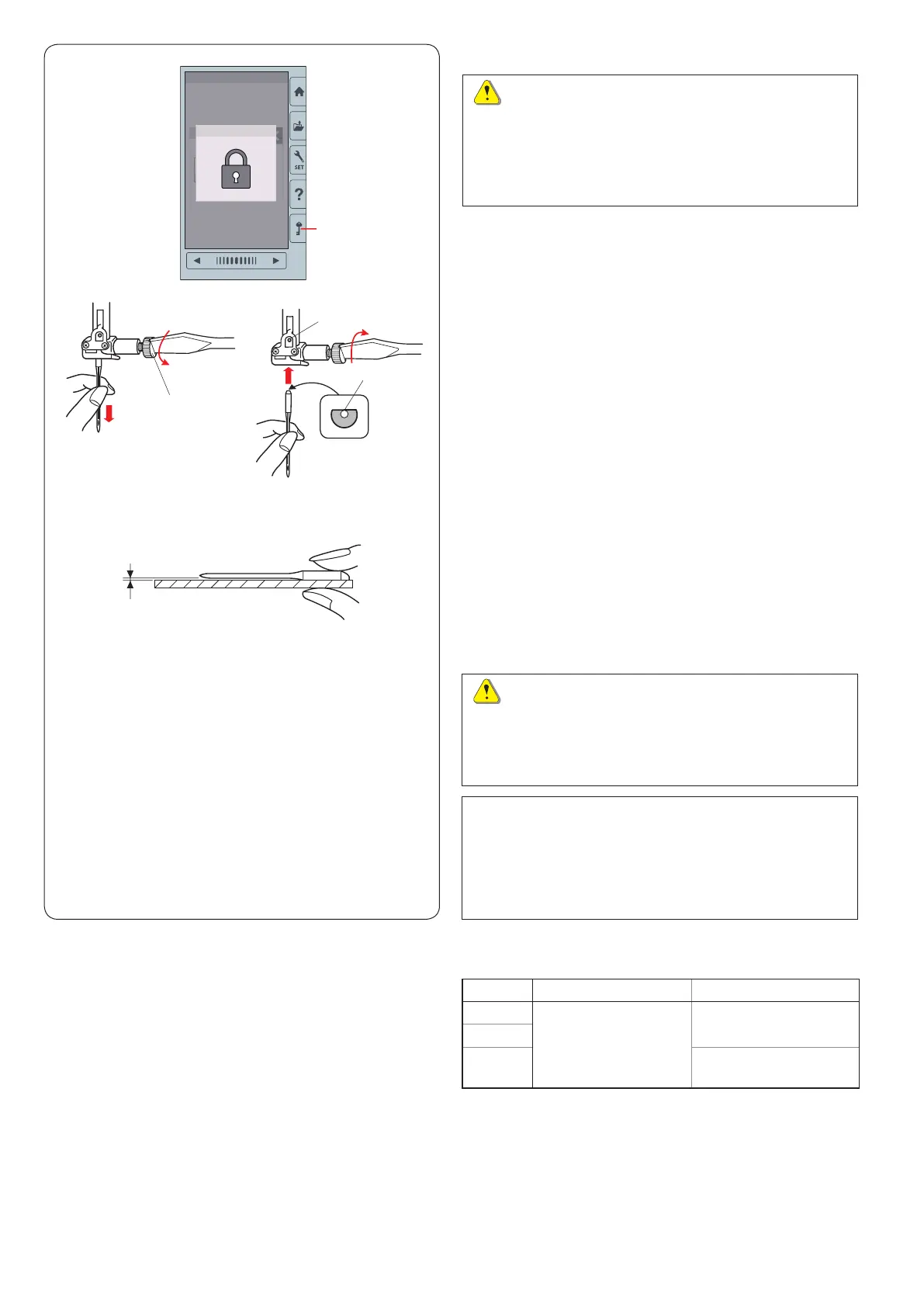

Replacing Needles
NOTE:
• Use the needles equipped with the machine or
supplied by an authorized dealer.
• Use size 11 blue tipped needle for ne fabrics.
• For medium to heavy weight fabrics, use size 14
needles or red tip needle*.
Fabric Thread Needle
Fine
Embroidery thread
Blue tip needle
Medium
Heavy
weight
Universal needle #14
Red tip needle*
Fabric and Needle Chart
* Red tip needle is an optional item.
CAUTION:
Be sure to tighten the needle clamp screw rmly
with a screwdriver when attaching a needle to the
machine, otherwise the needle may break or cause
malfunction.
CAUTION:
Always make sure to press the lockout key to lockout
the machine or turn the power switch off before
replacing the needle.
A loose needle or a loose screw may cause machine
malfunction or needle to break.
Raise the needle by turning the handwheel.
Turn the power switch off or press the lockout key.
q Lockout key
Loosen the needle clamp screw by turning it
counterclockwise.
Remove the needle from the clamp.
w Needle clamp screw
Insert a new needle into the needle clamp with the at
side of the needle to the rear.
When inserting the needle into the needle clamp, push it
up against the stopper pin and tighten the needle clamp
screw rmly with a screwdriver.
e Flat side
r Stopper pin
To check needle straightness, place the at side of the
needle onto something at (a needle plate, glasses, etc.).
The gap between the needle and the at surface should
be consistent.
t Gap
Never use a blunt needle.
r

18
Stabilizers
To create the best quality embroidery, it is important to
use stabilizers.
How to use:
Attach the stabilizer to the wrong side of the fabric.
You may need to use more than one layer.
For rm fabrics, you may place a thin sheet of paper
under the fabric.
The non-adhesive type should be used when
embroidering fabric which cannot be ironed or for
sections which are difcult to iron.
Cut the stabilizer larger than the embroidery hoop and
set it on the hoop so that the entire piece is fastened to
the hoop to prevent any looseness in the fabric.

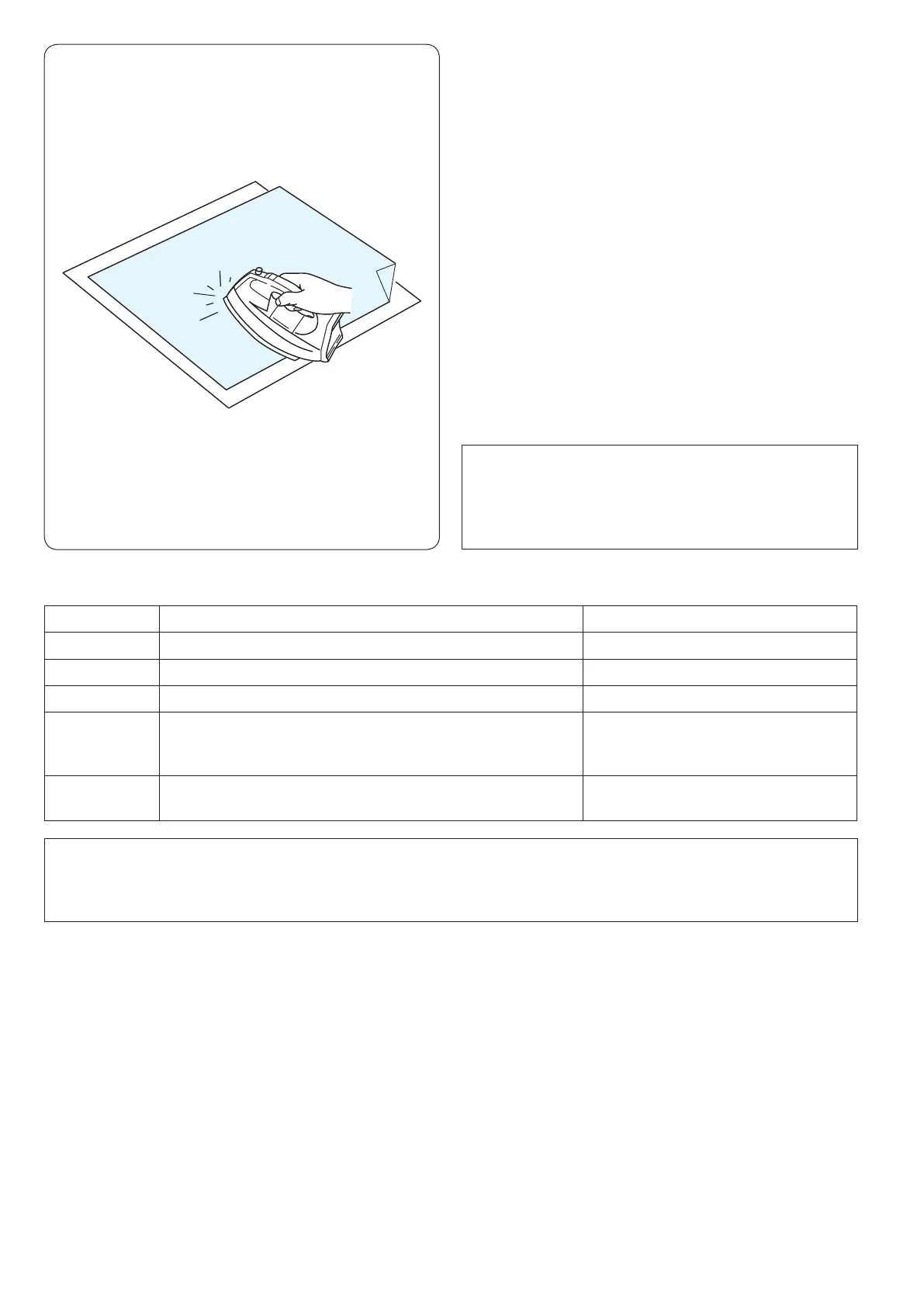

Attaching the stabilizer
Place the wrong side of fabric and the glossy side of the
stabilizer together. Fold up a corner of the stabilizer and
fuse it with an iron.
Types of the stabilizers
NOTE:
Sticky type stabilizers can be used only for securing a small piece of fabric or work that cannot be secured in the
hoop, or for securing velvet and other napped fabric that would be permanently marked by the hoop.
Clean the bobbin holder after stitching as glue can get stuck on it.
Type Usage Property
Tear-away Stable woven fabrics Made from a ber that will tear easily.
Iron-on Knits and all kinds of unstable fabrics Adhesive type fusible with an iron.
Cut-away Knits and all kinds of unstable fabrics Non-woven fabric that does not tear.
Water soluble Cutwork or lace embroidery
Right side of looped fabrics such as towels to avoid loops
coming through the embroidery
A thin lm that will dissolve in water.
Heat-away Cutwork or lace embroidery A thin lm that will melt away with
heat.
NOTE:
Fold up a corner of the stabilizer, to make it easier to
peel off the excess stabilizer after stitching.
Ironing temperatures vary depending on the kind of
adhesive stabilizer you are using.
