Side 1/8

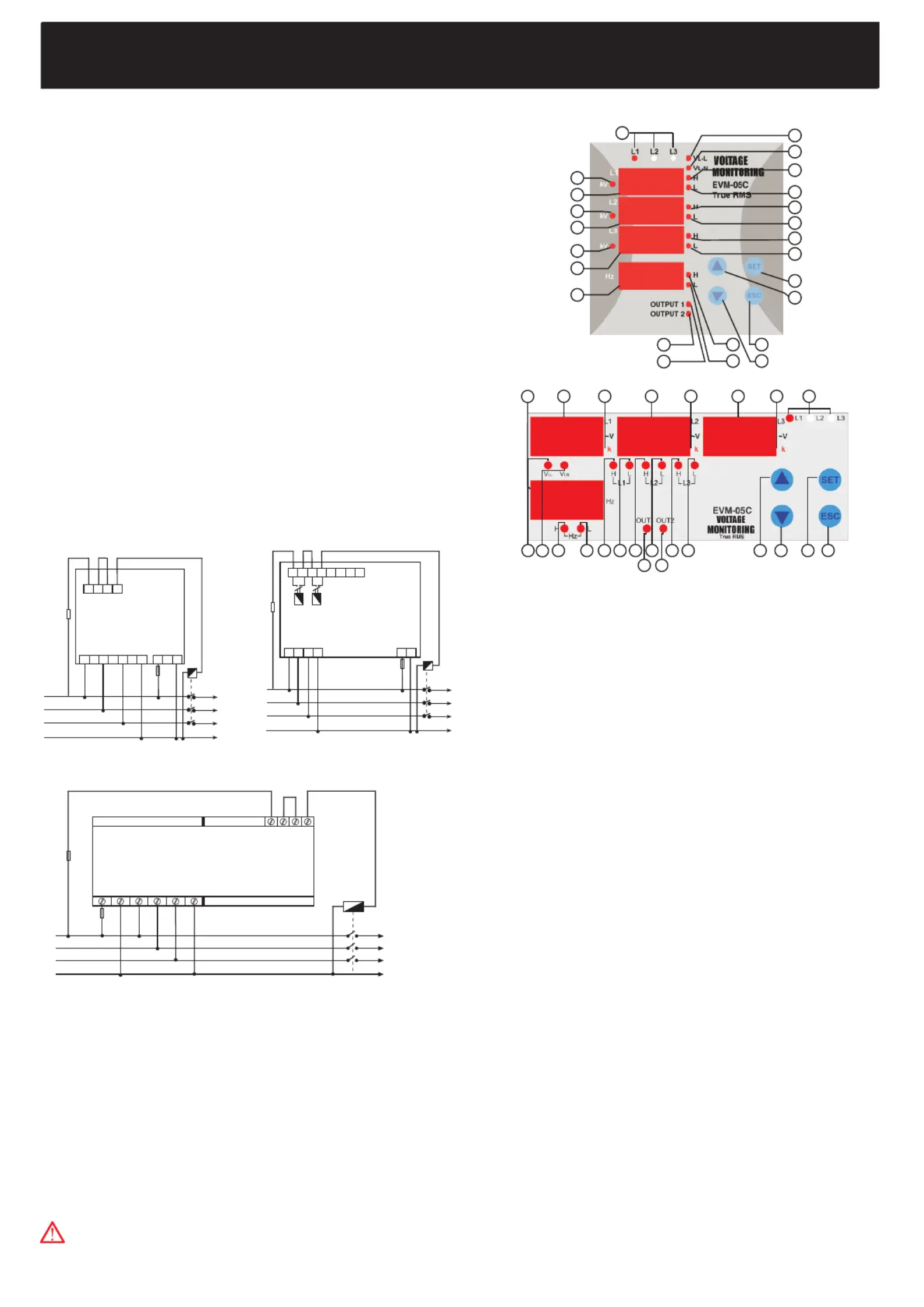

Connection Diagram

VOLTAGE MONITORING

EVM-05C

1... Phase LEDs:The LEDs turn on when all phases are connected to

the system and correct phase sequence.(If phase sequence warning

is activated and there is a false phase sequence,these LEDs blink.)

2... kV LEDs of 1.Display: If this LED turns on, the unit of voltage is kV

3... Display of L-1 Phase:It shows L-1 phase-neutral voltage and L1-L2

phase-phase voltage.

4... kV LEDs of 2.Display: If this LED turns on, the unit of voltage is kV

5... Display of L-2 Phase:It shows L-2 phase-neutral voltage and L2-L3

phase-phase voltage.

6... kV LEDs of 3.Display: If this LED turns on, the unit of voltage is kV

7... Display of L-3 Phase:It shows L-3 phase-neutral voltage and L3-L1

phase-phase voltage.

8... Frequency Display:The frequency is measured from L-1 phase

9... Output Relay 2 LED

10...Output Relay 1 LED

11...Low Frequency Warning LED

12...High Frequency Warning LED

13...ESC Button

14...DOWN Button

15...SET Button

16...UP Button

17...Low Voltage Warning LED of L-3 Phase (Low voltage warning of L3-

L1 when phase-phase measurement is selected)

18...High Voltage Warning LED of L-3 Phase (High voltage warning of L3-

L1 when phase-phase measurement is selected)

19...Low Voltage Warning LED of L-2 Phase (Low voltage warning of L2-

L3 when phase-phase measurementis selected)

20...High Voltage Warning LED of L-2 Phase (High voltage warning of L2-

L3 when phase-phase measurementis selected)

21...Low Voltage Warning LED of L-1 Phase(Low voltage warning of L1-

L2 when phase-phase measurement is selected)

22...High Voltage Warning LED of L-1 Phase(High voltage warning of L1-

L2 when phase-phase measurement is selected)

23...V L-N LED: Phase-Neutral Voltage

24...V L-L LED: Phase-Phase Voltage

Precautions For Installation And Safe Use

- Failure to follow those instructions will result in death or serious injury.

- Disconnect all power before working on equipment.

- When the device connected to the network, do not remove the front panel

- Do not try to clean the device with solvent or the like.Only clean the device

with dried cloth.

- Verity correct terminal connections when wiring.

- Electrical equipment should be serviced only by your component seller.

- Only for rack panel mounting.

- The fuse should be used F type and should be 1A

INDEX

Connection Diagram................................................................................

Precautions For Installation And Safe Use...................................................

Front Panel And Usage of Buttons............................................................

General Information...............................................................................

Properties..............................................................................................

Specific Functions of Buttons...............................................................

Setpoints (SP Menu) ................................................................................

High And Low Setpoints (SP Hi, SP Lo Menu) ..............................................

High And Low Setpoints For 1st Phase (Hi L-1, Lo L-1 Menus) .............................

High And Low Setpoints For 2nd Phase (Hi L-2, Lo L-2 Menus) ..........................

High And Low Setpoints For 3rd Phase (Hi L-3, Lo L-3 Menus).............................

Hysteresis Values For High And Low Setpoints (Hi Hys, Lo Hys Menus).......

Delay-On Time For High And Low Setpoints (Hi ond, Lo ond Menus)...........

Delay-Off Time For High And Low Setpoints(Hi ofd, Lo ofd Menus).....................

Frequency Setpoints Menu(SP Frq Menüsü) ..................................................

Phase Sequence Menu........................................................................

Latch Function Menu.............................................................................

Instant Tripping Menu............................................................................

Voltage Transformer Ratio Menu...........................................................

Connection Type Settings Menu...........................................................

Clearing Max And Min.Values Menu......................................................

User Password Menu............................................................................

Technical Specifications...........................................................................

Front Panel And Usage of Buttons

Out 1 Out 2

16 15

18 6742 53

2324 22 211112 20 19

10 9

18 17 1314

10 11

12 13

Out 1

Out 2

PR-16PR-19

PK-26

Out 1 Out 2

No responsibility is assured by the manufacturer or any of its

subsidiaries for any consequences arising out of the use of this

material.

Relay Output

Voltage Measuring

Input Auxiliary

Supply

L1 L2 L3 N

6 7 8

1 A

9 10

System

1 2 3 4

Choose according to

contactor current

Choose according to

contactor current

Relay Output

Voltage Measuring

Input

Auxiliary

Supply

L1 L2 L3 N

2 3 4

1 A

13 14

System

32 31 30 29 28 27 26 25

System

L1 L2 L3 N

Voltage Measuring

Input

Auxiliary

Supply

Relay Output

Choose according to

contactor current

1 A

VOLTAGE MONITORING

EVM-05C

SP Menu (Set points)

High can be adjusted for each phase-neutral orSetpoints

phase-phase voltages separately.

If the voltage of phase-neutral or phase-phase is under the high

set value (Hi),output 1 relay is not activated,output 1 LED is on

and Hi LEDs are off.

If any voltage of the phase-neutral or phase-phase exceeds the

high set value, Hi LED blinks, output 1 relay activates at the end

of adjusted time(Hi Ond), Output 1 LED turns off and Hi LED turns

on continously.

If all phase-neutral or phase-phase voltages are below the high

set value (Hi) as a hysteresis(Hi Hys), output 1 relay releases at

the end of the adjusted time (Hi Ofd), output 1 LED turns on and

Hi LED turns off.

Specific Functions of Buttons:

While the device shows the Instantaneous value, pressing:

:Displays max. Voltage value set .

:Displays min. Voltage value set.

SET +

If the Latch function is selected ON, relay activates when the

value exceeds the adjusted value.Even if the voltage is below

the set value, output relay remains activated until pressing

these buttons at the same time.

ESC

Provides transition between VL-L and VL-N voltages.

:Displays max. Phase-phase voltage, while VL-L

LED is on.

Displays max. Phase-neutral voltage, while VL-N

LED is on.

:Displays min. Phase-phase voltage, while VL-L LED

is on.

Displaying min. Phase-neutral voltage, while VL-N

LED is on.

General Information

Low Set points can be adjusted for each phase-neutral or phase-

phase voltages separately.

If the voltage of phase-neutral or phase-phase is over the low

set value (Lo),output 2 relay is not activated,output 2 LED is on

and low LEDs are off.

If any voltage of the phase-neutral or phase-phase is under the

Low set value, Low LED blinks,output 2 relay activates at the

end of adjusted time(Lo Ond),output 2 LED turns off and low

LEDs turn on continously.

If all phases-neutral and phase-phase voltages are over the low

set value (Lo) as a hysteresis(Lo Hys), output 2 relay releases

at the end of the adjusted time (Lo Ofd), output 2 LED turns on

and Low LEDs turn off.

Low Voltage values are adjusted for each phase and phase-

phase voltages separately.However Lo Hys(hysteresis), Lo

ond(delay time) and Lo ofd are same values for all phase-neutral

and phase-phase voltages.

When the connection type of system is entered, Lo L-1,Lo L-2

Lo L-3 and Lo Hys values change automatically according to the

new connection.

Lo Hys:10 V, Lo L-1:180 V, Lo L-2:175 V, Lo L-3:170 V is

adjusted in star connection.If the connection type is changed

to the delta connection, the device calculates these values as

phase-phase voltage.

Lo L-1: L1-L-2 phase phase voltage:311 V

Lo L-2: L2-L-3 phase phase voltage:303 V

Lo L-3: L3-L-1 phase phase voltage:294 V

Lo Hys :17 V

Hi Hys:10 V, Hi L-1:250 V, Hi L-2:255 V, Hi L-3:260 V in star

connection.If the connection type is changed to the delta

connection, the device calculates these values as phase-

phase voltage.

Hi L-1: L1-L-2 phase phase voltage:433 V

Hi L-2: L2-L-3 phase phase voltage:441 V

Hi L-3: L3-L-1 phase phase voltage:450 V

Hi Hys :17 V

High Voltage values are adjusted for each phase-neutral

and phase-phase voltages separately. However Hi Hys(hysteresis),

Hi ond(delay on time) and Hi ofd (delay o time) are same valueff s

for all phase and phase-phase voltages.

When the connection type is set, Hi L-1,Hi L-2, Hi L-3 and Hi Hys

values change automatically according to the new connection.

EVM - 05C is designed to measure the phase-phase voltage, phase-

neutral voltage and the frequency of system.

It contains 2 output relays to warn the user against under/over voltage

and frequency.

Out 1 relay changes position according to the max.voltage or

max.frequency value set.

Out 2 relay changes position according to the min.voltage or min.frequency

value set.

The device contains the features of Instantaneous trip, Latch function

and adjustable delay time.

Network connection can be used with neutral or without neutral by

selecting or in setup menu.star delta connection

Application of EVM-05C

1-) It can measure voltage for each phase and frequency in 3 phase

systems with neutral and without neutral.

2-) You can observe the existence of phases by following the L1-L2-L3

LEDs on the device.

3-) Min and max. values measured are recorded and displayed.

4-) It warns the user through Output 1 and Output 2 relays when the

measured voltage and frequency values exceed the set value.

5-) It warns the user through Output 2 relay and LED caution by turning

on and off when there is a false phase sequence,

6-) Voltage transformer ratio can be adjusted between 1  4000.

7-) A password can be arranged from pin menu in order to prevent

change of the setting by unauthorized person.

Note:

Example:

Note:

Example:

The voltage value for set points can be adjusted 0300 V in

star connection and 0...500V in delta connection

If the set point value is set to zero (0) for any phase, the

warning is cancelled for the related phase.

Note:

SP Hi Menu (High Setpoint)

SP Lo Menu (Low Setpoint)
