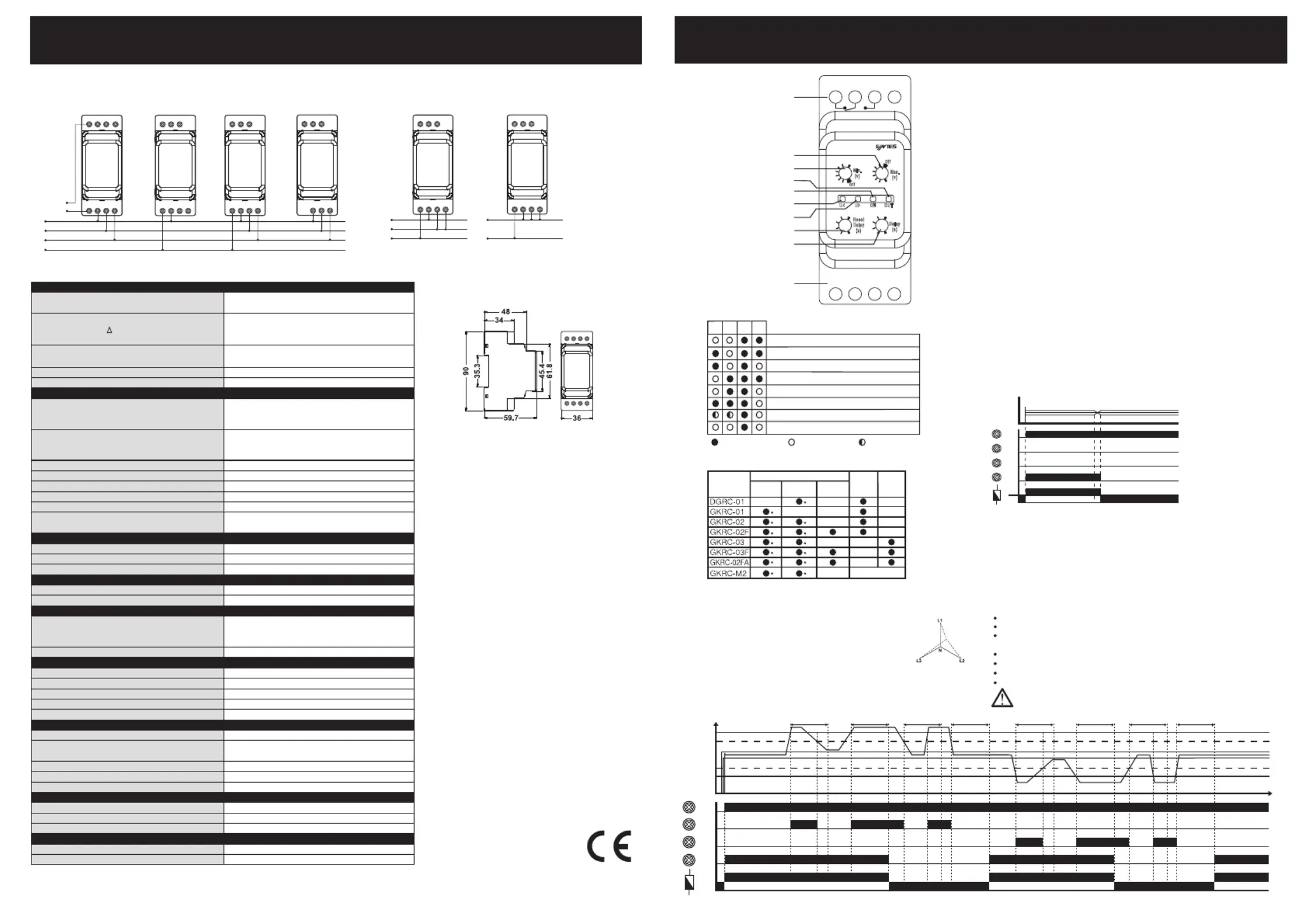

General:

DGRC-01, GKRC-01/02/02F/02FA/03/03F relays are delay-off and delay-on capable

voltage protection relays which have adjustable over and under voltage limits. They

are used in 1-phase and 3-phase Air Conditioning systems, in electronical command

and control systems, for protection of capacitors in compensation systems and for

protection of equipments like motors.

Utilization and Working Principle:

By using the Over Voltage(Max.) and Under Voltage(Min.) adjustment knobs on the

front side, the over and under voltage limits of the system that will be protected is

determined.

The Delay knob on the front is used commonly for both the adjusted over voltage faults

and adjusted under voltage faults.

The Reset Delay knob on the front is used commonly for all faults.

The over voltage and under voltage protection options can be deactivated separately(By

adjusting the Max. and Min. knobs to OFF position).

Protection Functions:

a) Over Voltage Protection: GKRC-01 / 02 / 02F / 02FA /03 / 03F / M2

If one or many of the measured voltage(Phase/Phase-Phase) values are over the limit

of the adjusted Over Voltage Value(Umax), the U> light turns on and the adjusted

Delay time starts to count. When the Delay time is up, the relay of the device breaks the

connection and the OUT light turns off. When all of the measured voltages fall under

the adjusted Over Voltage Value, U> light turns off and adjusted Reset Delay time

starts to count.When the Reset Delay time is up, the relay of the device makes contact

and OUT light turns on. If one or many of the measured voltage(Phase/Phase-Phase)

values go over the 1,5xUn limit, U> light turns on, the relay of the device breaks the

connection and OUT light turns off. When the Over Voltage adjustment(Max.) knob

is adjusted to the OFF position, the Over Voltage Protection function is disabled.

b) Under Voltage Protection: DGRC-01, GKRC-02 / 02F / 02FA/ 03 / 03F / M2

If one or many of the measured voltage(Phase/Phase-Phase) values are under the

limit of the adjusted Under Voltage Value(Umin), the U< light turns on and the

adjusted Delay time starts to count. When the Delay time is up, the relay of the device

breaks the connection and the OUT light turns off. When all of the measured voltages

rise over the adjusted Under Voltage Value, U< light turns off and adjusted Reset

Delay time starts to count.When the Reset Delay time is up, the relay of the device

makes contact and OUT light turns on. If one or many of the measured voltage

(Phase/Phase-Phase) values go under the 0,5xUn limit, U< light turns on, the relay

of the device breaks the connection and OUT light turns off.

When the Under Voltage adjustment (Min.) knob is adjusted to the OFF position, the

Over Voltage Protection function is disabled.

Phase Sequence Fault Diagram

PRECAUTIONS FOR INSTALLATION AND SAFE USE

Failure to follow those instructions will result in death or serious injury.

Disconnect all power before working on equipment.

When the device is connected to the network, do not remove the front panel.

Do not try to clean the device with solvent or the like.

Only clean the device with a dried cloth.

Verify correct terminal connections when wiring.

Electrical equipment should be serviced only by your compedent seller.

Mount device to the panel

No responsibility is assured by the manufacturer or any of its subsidiaries

for any consequences arising out of the use of this material.

OVER AND UNDER VOLTAGE PROTECTION RELAYS EN

DGRC-01, GKRC-01, GKRC-02, GKRC-02F, GKRC-02FA, GKRC-03, GKRC-03F, GKRC-M2

BREAK OF THE NEUTRAL CONNECTION FOR DEVICES WITH NEUTRAL

In devices with neutral, Phase-Neutral measurements are taken.

If the neutral cable breaks, the neutral point of the system shifts

because of the asymmetrical phase loading. The device continues

the take measurements according to the shifted neutral system

point.

Over and Under Voltage Function Diagram

Delay= 0sn2

Reset Delay= 0sn2

Hysteresis

Umax.

Umin.

Hysteresis

OUT

(V)

(t)

Delay Delay Reset Delay Reset Delay Delay Delay Reset Delay Reset Delay

c) Phase Sequence Protection: GKRC-02F / 02FA / 03F

If there is a change in the

p h a s e s e q u e n c e fo r

whatever the reason, only the

ON light turns on and the

relay of the device breaks

the connection without any

delay.

OUT

L1, L2, L3

L3, L2, L1

C NO

N L1 L2 L3

123

Relay Output

Supply/Measurement Inputs

Over Voltage Adjustment

Under Voltage Adjustment

Delay-ON Adjustment

Over Voltage Warning LED

Under Voltage Warning LED

Supply LED

Relay LED

Delay-OFF Adjustment

Off

OUT

OU>U<

Max .

(v)

Min .

(v)

Reset

Del ay

(s)

Del ay

(s)

Boyutlar (mm)

TÝP PK 28

Bu ürün, 30.05.2008 tarih ve 26891 sayýlý resmi gazetede yayýnlanan

EEE Yönetmeliðinin Madde 2 ve Ek-1A madde 9 kapsamýndadýr.

A4818 / Rev.6

AÞIRI ve DÜÞÜK GERÝLÝM KORUMA RÖLELERÝ TR

DGRC-01, GKRC-01, GKRC-02, GKRC-02F, GKRC-02FA, GKRC-03, GKRC-03F, GKRC-M2

Baðlantý Þemalarý

Ýki fazlý sistemlerde

kullanýmý

Tek fazlý sistemlerde

kullanýmý

DGRC-01

GKRC-01

GKRC-02

L1 L2 L3

DGRC-01

GKRC-01

GKRC-02

N L1 L2 L3

GKRC-M2

DGRC-01

GKRC-01

GKRC-02

GKRC-02F

GKRC-03

GKRC-03F

L N L1 L2 L3 L1 L2 L3A2 L1 L2 L3

GKRC-02FA

1 2 3

1 2 3 1 2 3 1 2 3

TEKNÝK ÖZELLÝKLER

: 48 ... 63 Hz.

: 50 / 60 Hz. (GKRC-02FA)

: 30 VA / 2 W (50 Hz.)

: True RMS

: 1,05...1,30 x Un (% Skala)

: 240 ... 300 V AC (DGRC-01, GKRC-01/02/02F/M2)

: 410 ... 510 V AC (GKRC-03/03F/02FA)

: 0,7...0,95 x Un (% Skala)

: 150 ... 210 V AC (DGRC-01, GKRC-01/02/02F/M2)

: 270 ... 370 V AC (GKRC-03/03F/02FA)

: Un x %3 (Sabit)

: 0.1 ... 20 sn. (Umax. ve Umin. için ortak)

: 0.1 ... 20 sn.

: ± %3

: ± %0.5

: ± %5 + 100 msn

: ± %3

: 1 Enversör, 8A, 250V, 2000VA (Cos =1)j

: 10

: -5°C ... +55°C

: <%90 (Yoðunlaþma olmadan)

: 4mm² (12AWG)

stranded/örgülü rijit kablo

: 6mm² (10AWG) solid/som iletken kablo

: 2x2.5mm² ( ) 14AWG solid/som iletken kablo

: 0.5 Nm (4.5in.lbs)

Ölçme ve Besleme Devresi

: 220, 230V AC DGRC-01, GKRC-01/02/02F/02FA/M2

: 400V AC GKRC-03/03F

: 150...300V AC DGRC-01, GKRC-01/02/02F/M2,

: 270...510V AC GKRC-03/03F

: 190...260V AC GKRC-02FA

Ýþletme Gerilimi (Un)

Ýþletme Gerilimi Aralýðý (

)

Ýþletme Frekansý

Güç Tüketimi (max.)

Ölçüm Yöntemi

Ayarlar

Aþýrý Gerilim Ayarý (Umax.)

Düþük Gerilim Ayarý (Umin.)

Histeresis (Umax. ve Umin. için)

Býrakma Gecikmesi (Delay)

Çekme Gecikmesi (Reset Delay)

Gerilim Ayar Doðruluðu

Tekrarlama Doðruluðu (Gerilim)

Ayarlanan Zamanlarýn Doðruluðu

Tekrarlama Doðruluðu (Zaman)

Çýkýþ

Çýkýþ Tipi

Elektriksel Ömür

Mekanik Ömür

Çevresel Þartlar

Çalýþma Sýcaklýðý

Baðýl Nem

Baðlantý

Klemens için Kablo Kesitleri

Vida Sýkma Kuvveti

: Pano içine dikey veya klemens rayýna.

: Plastik UL 94 V0 a uygun

: IP 20 (Terminaller), IP 40 (Ön panel)

: Tip PK 28

: 100 gr. (Sadece GKRC-02FA 200 gr. )

: 400 V

: Aþma Gerilimi Kategorisi III

Kirlilik Derecesi 3

: 4 kV 1.2 / 50 uS

: 2 kV AC 50 Hz. 1 dk.

: >500 MOHM / 500 V DC

: Ürün standardý

: Baðýþýklýk

: Emisyon

LVD

EMC

Gövde

Montaj

Malzeme Cinsi

Koruma Sýnýfý

Boyutlar

Aðýrlýk

Ýzolasyon

Yalýtým Gerilimi (EN 60255-5)

Yalýtým Koordinasyonu

(EN 60255-5)

Ani Darbe Gerilimi (EN 60255-5)

Dielektrik Dayanýmý (EN 60255-5)

Yalýtým Direnci (EN 60255-5)

Uyulan Standartlar

EN-60255-6

EN-61000-6-2

EN-61000-6-3, EN-61000-6-4

Uyumlandýrýlacak Direktif / Yönetmelikler

73/23/EEC

89/336/EEC

Function Table

* This option may be deactivated by making adjustments on the device

Type

Protection Function

Over

Voltage

Under

Voltage

Phase

Sequence

3-Phase

4 Cable

Star

3-Phase

3 Cable

Delta

Mono Phase

LED ON LED OFF

Meanings of the Device LEDs

OnU>U<

Out

Unsufficient Supply Warning

FLASHING

Voltage(s) are within the adjusted limits

Permanent Under Voltage Warning

Both Over and Under Voltage Warning

Temprorary Under Voltage Warning

Temprorary Over Voltage Warning

Permanenet Over Voltage Warning

Phase Sequence Fault

Insufficient Supply Voltage:

DGRC-01, GKRC-01 / 02 / 02F / 03 / 03F / M2

DGRC-01, GKRC-01 / 02 / 02F / 03 / 03F / M2 are supplied from a 3 Phase capacitive

source. The supply voltage on these devices equals to the mean value of voltages

from all three phases. If this mean value is less than half the supply voltage, the relay

gives an insufficient supply voltage warning (U< and U> LEDs flash in that order) and

the relay breaks contact without delay.

DGRC-01,GKRC-01

/ 02 / 02F With Neutral => (VL1+VL2+VL3)/3 < 115 VAC (F-N)

GKRC-03 / 03F Without Neutral => (VL12+VL23+VL31)/3 < 200 VAC (F-F)
