EVERFOCUS

1/3” Wide-Dynamic

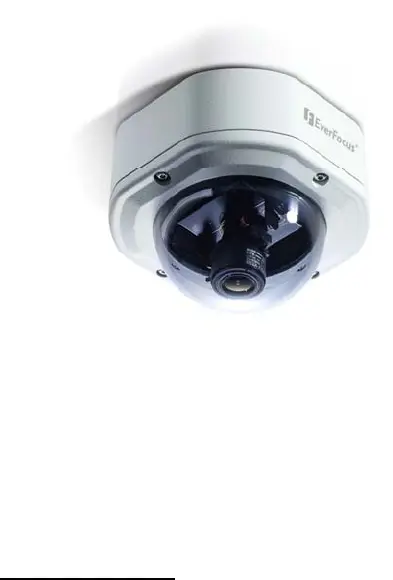

True D/N Rugged Dome Color Camera

Operation Instructions

Model No. EHD650

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

image.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from wet and never touch the power cord with wet hands.

Touching the wet power cord with hands or touching the power cord with wet hands may

result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or file.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor

and the camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or power source

ratings.

Use the camera at temperatures within -40℃ ~ 50℃ (-40℉~122℉) and humidity between

20%~80%. The input power source is 24VAC .

- 2 -

TABLE OF CONTENTS

1. PRODUCT OVERVIEW ........................................................................................................................... 3

1.1 MAIN FEATURES ........................................................................................................................................ 3

1.2 PACKAGE CONTENTS ................................................................................................................................. 4

1.3 SPECIFICATIONS ........................................................................................................................................ 5

1.4 DIMENSIONS ............................................................................................................................................... 6

1.5 HARDWARE OVERVIEW ............................................................................................................................. 7

2. INSTALLATION ........................................................................................................................................ 8

2.1 INSTRUCTION FOR ROTATING THE CAMERA MOUNTING .......................................................................... 9

2.2 MOUNTING CAMERAS ON THE CEILING/WALL ..................................................................................... 10

2.3 CONDUIT CABLE AND CONNECT POWER AND VIDEO ............................................................................. 11

2.4 ADJUST LENS ZOOM AND FOCUS AND VIEW ........................................................................................... 14

3. HOW TO CONTROL OSD MENU ........................................................................................................ 15

3.1 WHERE IS OSD CONTROLLER ............................................................................................................ 15

3.2 GENERAL OPERATION INSTRUCTION ..................................................................................................... 15

4. MAIN MENU ........................................................................................................................................... 17

4.1 SETUP ID .................................................................................................................................................. 17

4.2 LENS ......................................................................................................................................................... 18

4.3 WDR (WIDE DYNAMIC RANGE) ............................................................................................................. 19

4.4 WB CONTROL .......................................................................................................................................... 19

4. 5 AGC ........................................................................................................................................................ 20

4.6 LOW LIGHT .............................................................................................................................................. 21

4.7 SYNC ....................................................................................................................................................... 22

4.8 DAY/NIGHT .............................................................................................................................................. 23

4.9 EXIT MENU .............................................................................................................................................. 23

Produkt Specifikationer

Mærke:	EverFocus
Kategori:	Overvågningskamera
Model:	EHD650
Kode for international beskyttelse (IP):	IP66
Bredde:	130 mm
Dybde:	130 mm
Højde:	98.9 mm
Vægt:	1000 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Formfaktor:	Kuppel
Relativ luftfugtighed ved drift (H-H):	20 - 80 %
Format til analogt signal:	NTSC, PAL
Ethernet LAN:	Ingen
Strømforbrug (typisk):	4.5 W
Driftstemperatur (T-T):	-40 - 50 °C
Maksimal opløsning:	720 x 540 pixel
Kabler inkluderet:	BNC
Forbindelsesteknologi:	Ledningsført
IP-adresse filtrering:	Ja
Monteringstype:	Loft
Indbygget mikrofon:	Ingen
Mikrofonindgang:	Ingen
Hvidbalance:	Automatisk
Optisk zoom:	- x
Grænseflade:	BNC
Bredt dynamikområde (WDR):	Ja
Minimumsbelysning:	0.08 Lux
Optisk sensorstørrelse:	1/3 "
Nattesyn:	Ja
LED type:	IR
Bevægelsessensor (video):	Ingen
Brændviddeområde:	2.9 - 10 mm
Kameraets lukkerhastighed:	1/100000 sek./side
Signal/støjforhold:	48 dB
F-number (relativ aperture):	1.2
Kamera lukker type:	Elektronisk
Antal TV-linier:	480
Alarmindgang/-udgang:	Ja
