AMERICAN VINTAGE II 1975 TELECASTER® DLX (0110332XXX)
Page 1 of 6
Mar 13, 2023 - PR6068 - Rev. A
COPYRIGHT - 2023 - FENDER MUSICAL INSTRUMENTS CORPORATION

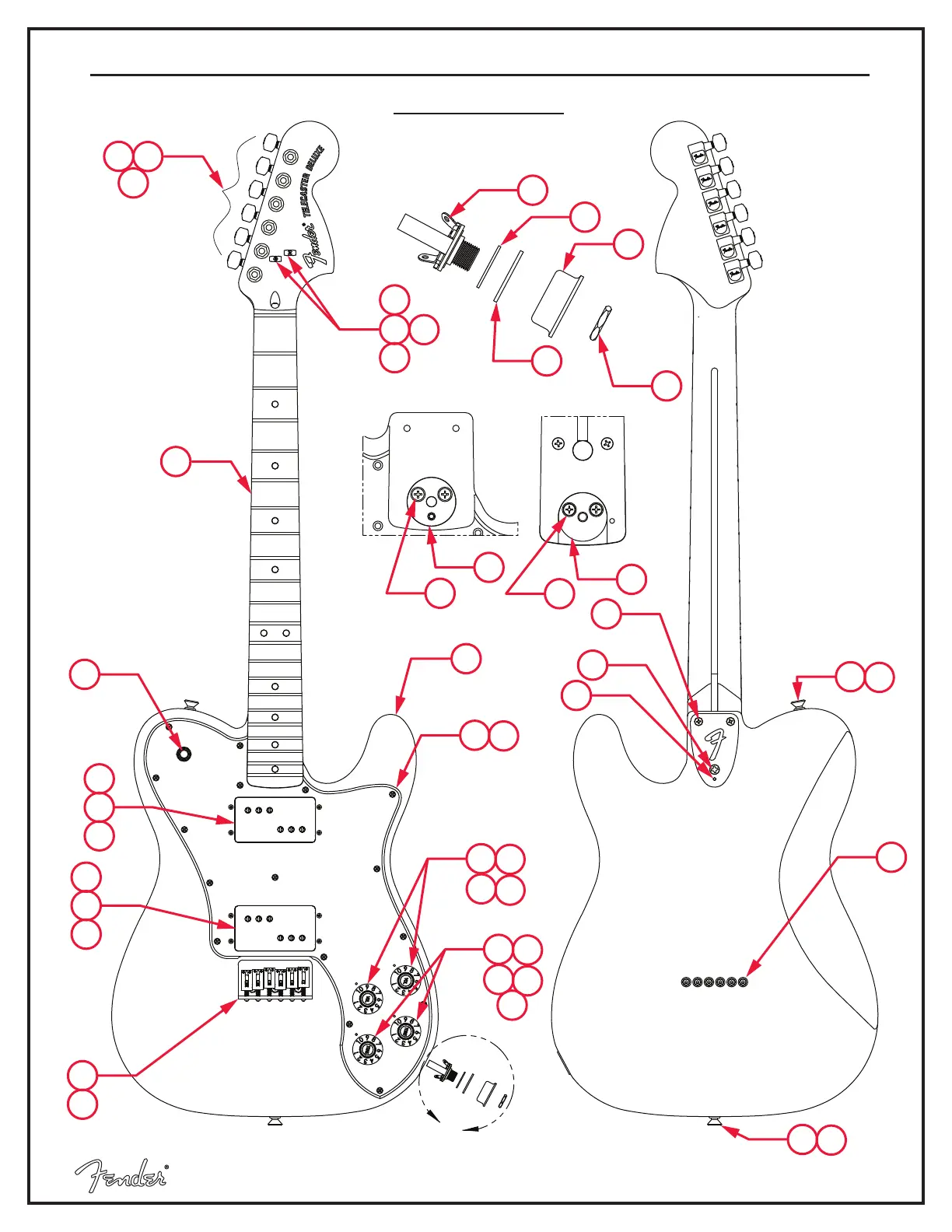

PARTS LAYOUT
A
10
14
18
27
15
11
13
12
13
31
23
33
32
22
16
36
2
4
7
1
28
34
35
34
35
21
22
23
24
21
22
23
25
26
17
19
19
18
20
29
30
3
5
9
6
8
AMERICAN VINTAGE II 1975 TELECASTER® DLX (0110332XXX)
Page 2 of 6
Mar 13, 2023 - PR6068 - Rev. A
COPYRIGHT - 2023 - FENDER MUSICAL INSTRUMENTS CORPORATION
PARTS LIST
REF# DESCRIPTION PART
NUMBER
1 BODY AM VINT II 75 TELE DLX 3TS 7721778500
1 BODY AM VINT II 75 TELE DLX BLK 7721779506
1 BODY AM VINT II 75 TELE DLX MOCHA 7721778529
2 NECK ASSY AM VINT II 75 TELE DLX MPL 7721780000
3 KEY GUITAR 2-PIN 70’S TELE DLX 7721783000
4 BUSHING KEY (6) 0058820049
5 WASHER KEY (6) 0053106049
6 STRING TREE VINTAGE W/HDWR 0992083000
7 SCREW SMA #3 X 5/8 RHP STL NI 0011358049
8 SPACER NYLON STRING TREE 0093999000
9 SCREW SMAB 3 X 3/8 RHP STL NI 0011357049
10 SCREW SMA 8 X 1-3/4 OHP NI 0015636049
11 TILT DISK UPPER NECK 0020220049
12 TILT DISK LOWER BODY 0020212049
13 SCREW SMA 8 X 3/4 FHP NI 0084699049
14 BOLT ADJ 1/4-28 X 1-9/16 0012156049
15 SET SCREW HEX OVPT 10-32 X 1/2 0020972049
16 PICKGUARD 72 TELE DLX B/W/B 7721785000
17 PICKUP ASSY WIDE RANGE REISSUE NECK 7724697000
18 SCREW MACH #3-48 X 7/8 RHP NI 0058404000
19 SPRING HUM MTG 3/4” 0050167049
20 PICKUP ASSY WIDE RANGE REISSUE BRIDGE 7724698000
21 CONTROL 1 MEG 10% AUDIO METAL 0019066049
22 NUT HEX 3/8-32 X 3//32 TK NI 0016352049
23 WASHER LOCK INTL 3/8 X .687 0016436049
24 KNOB VOLUME 72 TELE CUSTOM 0054521049
25 KNOB TONE 72 TELE CUSTOM 0054521049
26 CAPACITOR CERAMIC DISC .02μF 50V 0069010000
27 SWITCH 3-POS TOGGLE AGED KNOB W/HDWR 0053694049
28 SCREW SMAB 4 X 1/2 OHP NI 0015578049
29 BRIDGE ASSY AM VINT II 75 TELE DLX 7721787000
29A BRIDGE PLATE VINT NON TREM 0010322000
29B BRIDGE SADDLE AM VINT II TELE DLX POL SS 7721788000
NOT PICTURED IN DIAGRAM
*
=
