AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)

Page 1 of 6

Mar 13, 2023 - PR6069 - Rev. A

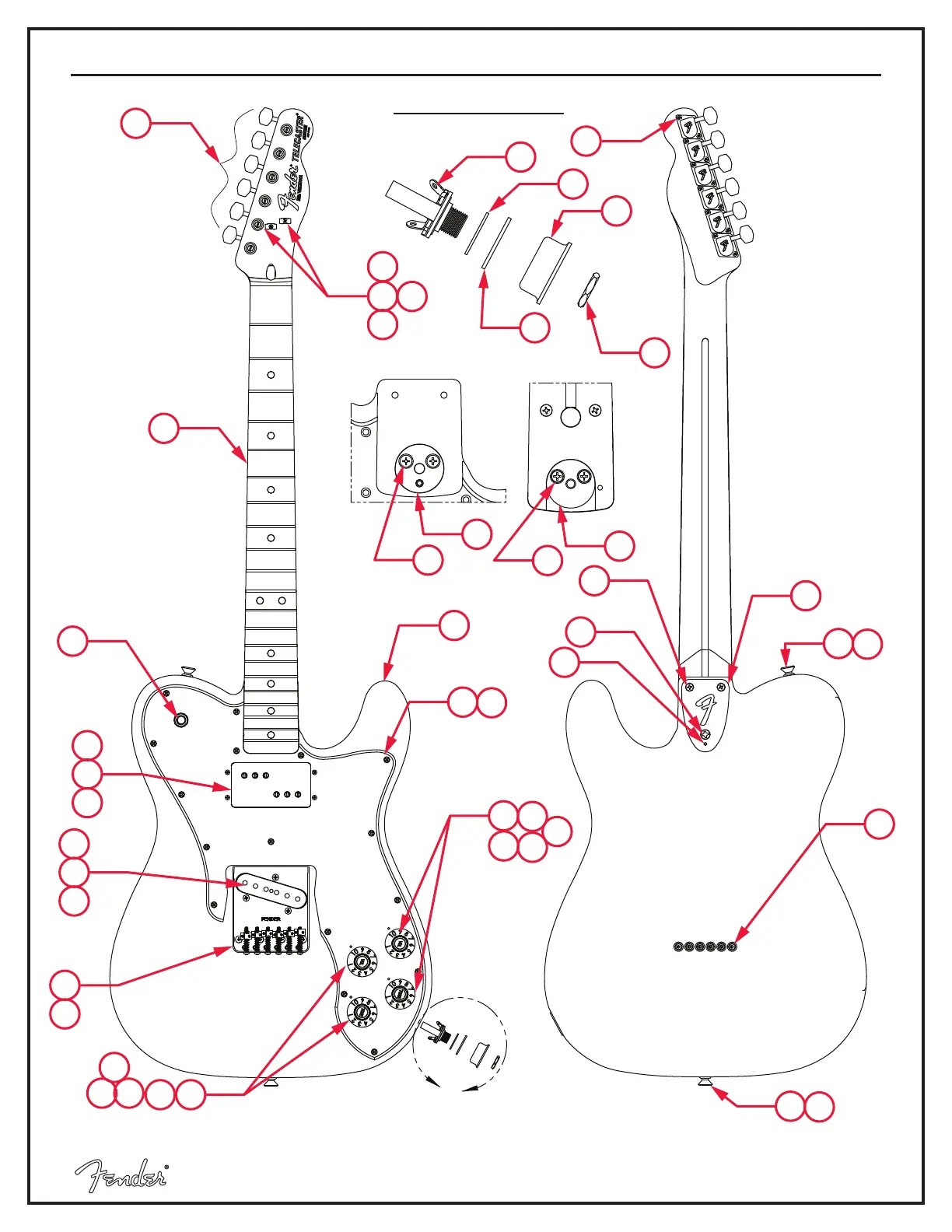

PARTS LAYOUT

AMERICAN VINTAGE II 77 TELECASTER® CUSTOM (011044XXXX)

Page 2 of 6

Mar 13, 2023 - PR6069 - Rev. A

PARTS LIST

REF# DESCRIPTION PART

NUMBER

1 BODY AM VINT II 77 TELE CUSTOM OWT 7726836505

1 BODY AM VINT II 77 TELE CUSTOM BLK 7726836506

1 BODY AM VINT II 77 TELE CUSTOM WINE 7726835515

2 NECK ASSY AM VINT II 77 TELE CUSTOM RW 7721797000

2 NECK ASSY AM VINT II 77 TELE CUSTOM MPL 7721798000

3 KEY GTR 70’S F SHORT RH SET W/HDWR 0990822100

4 SCREW SMAB 3 X 3/8 RHP STL NI 0011357049

5 STRING TREE VINTAGE W/HDWR 0992083000

6 SCREW SMA #3 X 5/8 RHP STL NI 0011358049

7 SPACER NYLON STRING TREE 0093999000

8 SCREW SMA 8 X 1-3/4 OHP NI 0015636049

9 TILT DISK UPPER NECK 0020220049

10 TILT DISK LOWER BODY 0020212049

11 SCREW SMA 8 X 3/4 FHP NI 0084699049

12 BOLT ADJ 1/4-28 X 1-9/16 0012156049

13 SET SCREW HEX OVPT 10-32 X 1/2 0020972049

14 PICKGUARD 72 TELE CUST B/W/B 55 DEG BEV 7721801000

15 SCREW SMAB 4 X 1/2 OHP NI 0015578049

16 PICKUP ASSY WIDE RANGE REISSUE NECK 7724697000

17 SCREW MACH #3-48 X 7/8 RHP NI 0058404000

18 SPRING HUM MTG 3/4” 0050167049

19 CONTROL 250K 10% AUDIO METAL 0990831000

20 NUT HEX 3/8-32 X 3/32 TK NI 0016352049

21 WASHER LOCK INTL 3/8 X .687 0016436049

22 KNOB VOLUME(2) TONE(2) 72 TELE CUSTOM SET 0054521049

23 CAPACITOR CERAMIC DISC .02μF 0069010000

24 CONTROL 1-MEG 10% AUDIO METAL 0019066049

25 SWITCH 3-POS TOGGLE AGED WHT KNOB W/HDWR 0053694049

26 BRIDGE ASSY TELE W/O PICKUP 0990810000

26A BRIDGE PLATE TELE CUSTOM 0012296000

26B BRIDGE SECTION TELE CUSTOM 0012297049

26C SCREW MACH 4-40 X 1 RHP NI 0012319049

26D SPRING BRIDGE TELE CUSTOM 0019242049

26E SET SCREW 4-40 X 5/16 HEX CUP NI 0040807049

26F SET SCREW 4-40 X 3/8 HEX CUP NI 0040806049

NOT PICTURED IN DIAGRAM
