LTD ED SUONA THINLINE STRATOCASTER 0170271830
Page 1 of 6
Jul 27, 2023 - PR6135 - Rev. A
COPYRIGHT - 2023 - FENDER MUSICAL INSTRUMENTS CORPORATION

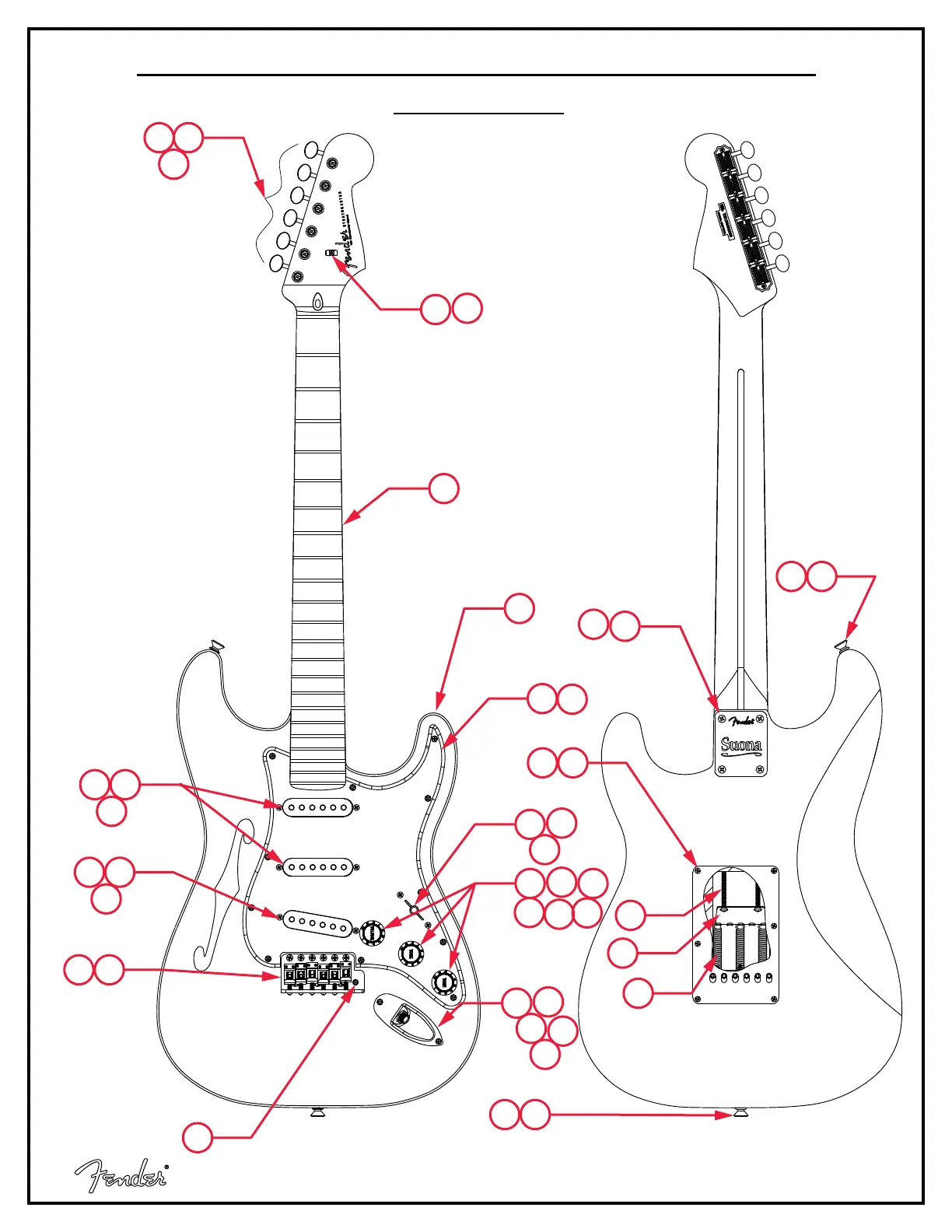

PARTS LAYOUT
10
8
5
1
2
7
32
32
9
6
4
3
11
12
13
11
31
30
25
29
24
12
11
14
15
17
18
22
16
17
19
20
21
23
9
18
9
26
27
28
4
31
30
LTD ED SUONA THINLINE STRATOCASTER 0170271830
Page 2 of 6
Jul 27, 2023 - PR6135 - Rev. A
COPYRIGHT - 2023 - FENDER MUSICAL INSTRUMENTS CORPORATION
PARTS LIST
REF# DESCRIPTION PART
NUMBER
1 BODY SUONA TL STRAT VIB 7722601530
2 NECK ASSY SUONA THINLINE STRAT EB 7722602000
3 PLATE NECK SUONA GUITAR/BASS 7722542000
4 SCREW SMA 8 X 1-3/4 OHP NI 0015636049
5 KEY SET GTR VINT FENDER DLX NI 0992074000
6 BUSHING STRING POST VINTAGE 0994946000
7 STRING TREE VINTAGE NI W/HDWR 0994910000
8 PICKGUARD AM STD STRAT B/W/B 0991359000
9 SCREW SMAB 4 X 1/2 OHP NI 0015578049
10 PICKUP ASSY 69 STRAT NOS AGED WHT CVR 0073056000
11 SCREW TF 6-32 X 3/4 RHP STL NI 0048631049
12 TUBING LATEX CUT .25OD X .125ID X .300L 0036481049
13 PICKUP ASSY SUONA STRAT BRIDGE 7724222000
14 SWITCH 5-WAY LEVER 0038929049
15 KNOB LEVER SWITCH AGED WHT 0994938000
16 CONTROL 250K %10 TPR SPLIT 0990830000
17 NUT HEX 3/8-32 X 3/32 TK NI 0016352049
18 WASHER LOCK INTL 3/8 X .687 X .035 NI 0016436049
19 KNOB STRAT AGED WHITE (1) VOL (2) TONE 0991369000
20 CAP WAX PAPER .10 MFD 150V 0096453049
21 PCB ASSY TREB BLEED AM PRO STRAT/TELE 7711092000
22 FERRULE JACK CHROME 0991940100
23 JACK PHONE OPEN CIRCUIT 11 0021956049
24 BRIDGE ASSY AM VINT STRAT CHR 0094247000
24A BRIDGE PLATE VINTAGE STRAT 0019470000
24B BRIDGE BLOCK VINTAGE STRAT 0019473000
24C BRIDGE SECTION ASSY AM VINT NI TALL 0093568102
24D BRIDGE SECTION ASSY AM VINT NI SHORT 0093568101
24E SCREW MACH 8-32 X 3/8 FHP NI 0094277049
24F SCREW MACH 4-40 X 5/8 RHP NI 0015693049
24G SPRING BRIDGE #1932 0019281049
24H SPRING BRIDGE 7/16L 9 COILS 0094278000
24I SPRING BRIDGE 3/8L 7 COILS 0094277000
25 SCREW WOOD RHP 6 x 1-1/8 NI 0016170049
NOT PICTURED IN DIAGRAM
*
=
