TA B L E O F C O N T E N T S
www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352
All about the
Use & Care
of your Built-In Range
Welcome & Congratulations ...................................2
Important Safety Instructions .................................3
Features at a Glance ..............................................6
Surface Cooking ....................................................9
Before Setting Surface Controls ............................ 11
Setting Surface Controls ...................................... 13
Before Setting Oven Controls ............................... 14
318205828 (January 2012) Rev. A
Setting Oven Controls - Model A ........................... 15
Setting Oven Controls - Models B & C ................... 17
Care & Cleaning (Cleaning Chart) .........................23
Care & Cleaning .................................................. 24
Before You Call .................................................. 29
Major Appliance Warranty ....................................32
2
WELCOME & CONGRATULATIONS
ÍNOTE
Please attach sales receipt here for future reference.
Please record your model and serial numbers
below for future reference.
Model Number:
Serial Number:
Purchase Date:
Congratulations on your purchase of a new appliance! At
Electrolux Home Products, we are very proud of our
product and are completely committed to providing you
with the best service possible. Your satisfaction is our
number one priority.
We know you’ll enjoy your new appliance and Thank You
for choosing our product. We hope you consider us for
future purchases.
PLEASE CAREFULLY READ AND SAVE THESE
INSTRUCTIONS
This Use & Care Manual contains general operating
instructions for your appliance and feature information
for several models. Your product may not have
all the described features. The graphics shown are
representative. The graphics on your appliance may not
look exactly like those shown. These instructions are not
meant to cover every possible condition and situation
that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance.
Product Registration
Register Your Product
Serial Plate Location
The PRODUCT
REGISTRATION CARD
should be fi lled in completely,
signed and returned to
Electrolux Home Products.
© 2012 Electrolux Canada Corp.
All rights reserved
Printed in Canada
3
IMPORTANT SAFETY INSTRUCTIONS
• Remove all tape and packaging wrap before using
the appliance. Destroy the carton and plastic
bags after unpacking the appliance. Never allow
children to play with packaging material. Do not remove
the wiring label and other literature attached to the
appliance. Do not remove model/serial number plate.
• Proper Installation. Be sure your appliance is
properly installed and grounded by a qualifi ed
technician in accordance in the United States
with the National Electrical Code ANSI/NFPA No.
70-latest edition, and local code requirements,
and in Canada with CSA C22.1 PART 1-latest
edition and local code requirements. Install only
per installation instructions provided in the literature
package for this range.
Ask your dealer to recommend a qualifi ed technician
and an authorized repair service. Know how to
disconnect the electrical power to the appliance at the
circuit breaker or fuse box in case of an emergency.
• User Servicing. Do not repair or replace any
part of the appliance unless specifi cally
recommended in the manuals. All other servicing
should be done only by a qualifi ed technician to
reduce the risk of personal injury and damage to the
appliance.
• Never modify or alter the construction of an
appliance by removing leveling legs, panels, wire
covers, anti-tip brackets/screws, or any other
part of the product.
WARNING
Stepping, leaning, sitting or pulling down on the
door or the drawer of this appliance can result
in serious injuries and also cause damage to the
appliance. Do not allow children to climb or play around
the appliance. The weight of a child on an open door may
cause the appliance to tip, resulting in serious burns or other
injury. An open drawer when hot may cause burns.
WARNING
Do not use the oven or warm & serve drawer (if
equipped) for storage.
• Storage in or on Appliance. Flammable materials
should not be stored in an oven, near surface
burners or in the warm & serve drawer (if
equipped). This includes paper, plastic and cloth
items, such as cookbooks, plastic ware and towels, as
well as fl ammable liquids. Do not store explosives, such
as aerosol cans, on or near the appliance. Flammable
materials may explode and result in fi re or property
damage.
Read all instructions before using this appliance.
Save these instructions for future reference.
WARNING
This symbol will help alert you to situations
that may cause serious bodily harm, death or
property damage.
IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
CAUTION
This symbol will help alert you to situations that
may cause bodily injury or property damage.
DEFINITIONS
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
WARNING

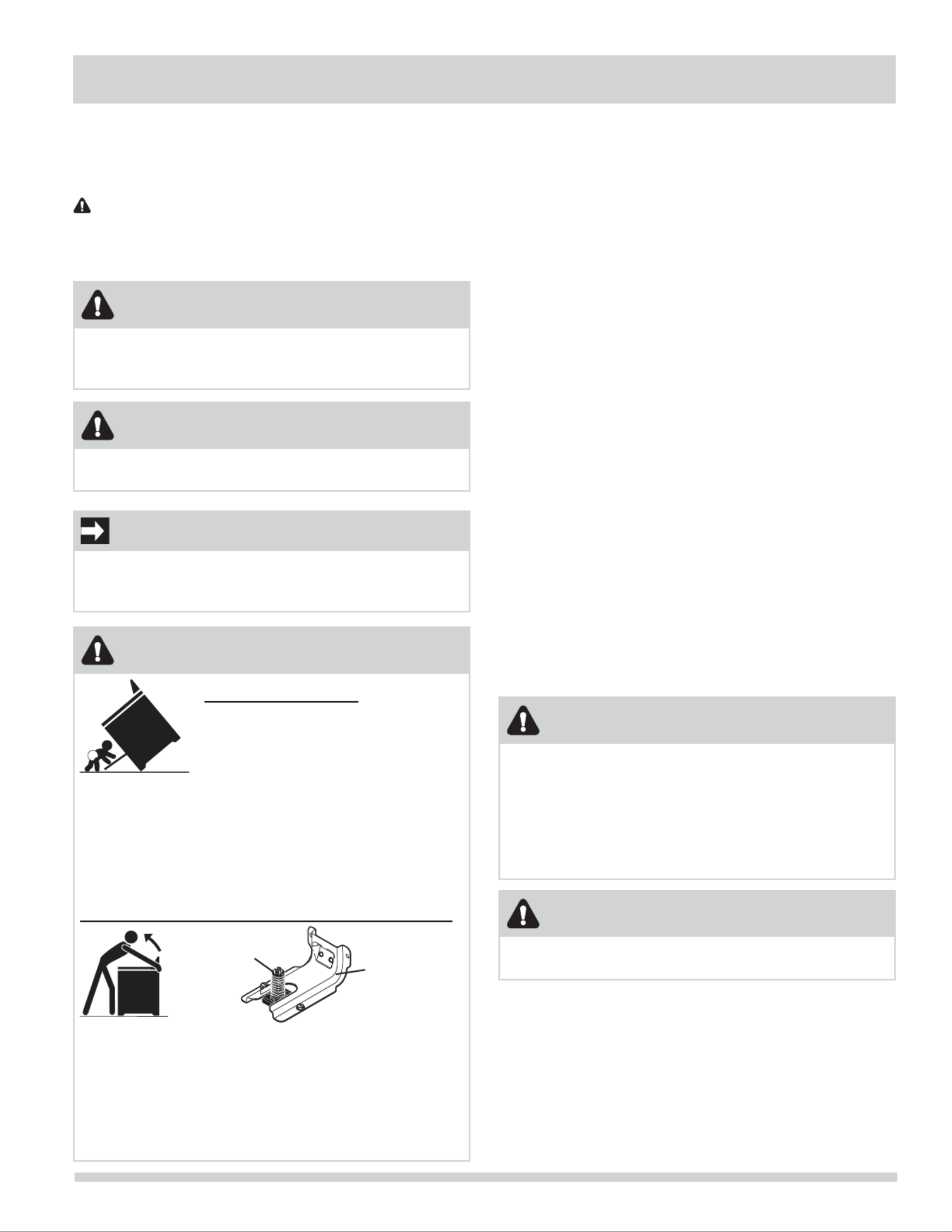

A child or adult can tip the range •
and be killed.
Verify the anti-tip device has been •
installed to fl oor or wall.
Tip Over Hazard
Ensure the anti-tip device is re-engaged to fl oor or •
wall when the range is moved.
Do not operate the range without the anti-tip device •
in place and engaged.
Failure to follow these instructions can result in •
death or serious burns to children and adults.
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation
instructions supplied with your range for proper
installation.
Range
Leveling
Leg Anti-Tip
Bracket
4
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Do not store items of interest to children in the
cabinets above the appliance. Children climbing on
the cooktop to reach items could be seriously injured.
• Do not leave children alone. Children should not
be left alone or unattended in the area where an
appliance is in use. They should never be allowed to
sit or stand on any part of the appliance.
• DO NOT TOUCH SURFACE UNITS, AREAS NEAR
THESE UNITS, OVEN HEATING ELEMENTS OR
INTERIOR SURFACES OF THE OVEN. Both surface
units and oven heating elements may be hot even
though they are dark in color. Areas near surface
units may become hot enough to cause burns. During
and after use, do not touch, or let clothing or other
fl ammable materials touch these areas until they have
had suffi cient time to cool. Among these areas are the
cooktop, surfaces facing the cooktop, the oven vent
openings and surfaces near these openings, oven door
and window.
• Wear Proper Apparel. Loose-fi tting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other fl ammable
materials contact hot surfaces.
WARNING
NEVER use your appliance as a space heater to
heat or warm the room.
• Do Not Use Water or Flour on Grease Fires.
Smother the fi re with a pan lid, or use baking
soda, a dry chemical or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat
or grease may catch fi re if allowed to become too hot.
• Use Only Dry Pot holders. Moist or damp pot
holders on hot surfaces may result in burns from
steam. Do not let the pot holders touch hot surface
units. Do not use a towel or other bulky cloth instead of
a pot holder.
• Do Not Heat Unopened Food Containers. Buildup
of pressure may cause the container to burst and
result in injury.
• Remove the oven door from any unused
appliance if it is to be stored or discarded.
IMPORTANT
Do not attempt to operate the appliance during a
power failure. If the power fails, always turn o
the unit. If the unit is not turned o and the power
resumes, the appliance will not operate and an error
message will be displayed. Once the power resumes,
reset the clock and the oven function.
CAUTION
Electronic controllers can be damaged by cold
temperatures. When you use your appliance for
the fi rst time, or if it has not been used for a long
period of time, make sure that it has been exposed
to a temperature above 0°C/32°F for at least 3
hours before connecting it to the power supply.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
• Know which knob controls each surface heating
unit. Place pan of food on the element before turning
it on, and turn the element off before removing the
pan.
•
Use Proper Pan Size—This appliance is equipped with
one or more surface burners of different sizes. Select
utensils having fl at bottoms large enough to cover the
surface unit. The use of undersized utensils will expose
a portion of surface heating unit to direct contact and
may result in ignition of clothing. Proper relationship of
utensil to the surface will also improve effi ciency.
• Utensil Handles Should Be Turned Inward
and Should Not Extend Over Adjacent Surface
Units—To reduce the risk of burns, ignition of
fl ammable materials, and spillage due to unintentional
contact with the utensil. The handle of the utensil
should be positioned so that it is turned inward, and
does not extend over adjacent surface unit.
• Never Leave Surface Units Unattended —Boilovers
cause smoking and greasy spillovers that may ignite, or
a pan that has boiled dry may melt.
• Protective Liners —Do not use aluminum foil to line
oven bottom or any other part of the appliance. Only
use aluminum as recommended for baking if used as a
cover placed on the food. Any other used of protective
liners or aluminum foil may result in a risk of electric
shock or fi re or a short circuit.
•
—Only certain types of glass, Glazed Cooking Utensils
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cooktop service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for cooktop use.
5
IMPORTANT SAFETY INSTRUCTIONS
• Do Not Use Decorative Surface Burner Covers.
If an element is accidentally turned on, the decorative
cover will become hot and possibly melt. Burns will
occur if the hot covers are touched. Damage may also
be done to the cooktop.
FOR COOKTOPS WITH COIL ELEMENTS ONLY
• Do Not Immerse or Soak Removable Surface Heating
Elements. Surface heating elements should never be
immerse in water. Heating elements clean themselves
during normal operation.
• Make Sure Drip Pans or Drip Bowls Are in Place.
Absence of these pans or bowls during cooking may
subject wiring or components underneath to damage.
FOR GLASS COOKTOP ONLY
• Do Not Clean or Operate a Broken Cooktop— If
cooktop should break, cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualifi ed technician
immediately.
• Clean Cooktop Glass with Caution— If a wet
sponge or cloth is used to wipe spills on a hot cooking
area, be careful to avoid a steam burn. Some cleaners
can produce harmful fumes if applied to a hot surface.
• Avoid Scratching the Cooktop Glass with Sharp
Objects.
IMPORTANT SAFETY INSTRUCTIONS FOR
USING YOUR OVEN
• Use Care When Opening Oven Door—Stand to the
side of the appliance when opening the door/drawer of
a hot appliance. Let hot air or steam escape before you
remove or replace food in the oven/drawer.
• Keep Oven Vent Ducts Unobstructed. The oven is
vented at the front above the oven door. Touching the
surfaces in this area when the oven is operating may
cause severe burns. Also, do not place plastic or heat-
sensitive items on or near the oven vent. These items
could melt or ignite.
WARNING
NEVER cover any slots, holes or passages in
the oven bottom or cover an entire rack with
materials such as aluminum foil. Doing so blocks
air fl ow through the oven and may cause carbon
monoxide poisoning. Aluminum foil linings may trap
heat, causing a fi re hazard.
• Placement of Oven Racks. Always place oven racks
in desired location while appliance is cool. Remove all
utensils from the rack before removing rack. If rack
must be moved while oven is hot, use extreme caution.
Use pot holders and grasp the rack with both hands to
reposition. Do not let pot holders contact the hot oven
element or interior of the oven.
• Do not use a broiler pan without its insert. Broiler
pan and grid allow dripping fat to drain and be kept
away from the high heat of the broiler.
• Do not cover the broiler grid or oven bottom
with aluminum foil. Exposed fat and grease could
ignite.
• Do not touch a hot oven light bulb with a damp
cloth. Doing so could cause the bulb to break.
Disconnect the appliance or shut o the power to the
appliance before removing and replacing the bulb.
IMPORTANT SAFETY INSTRUCTIONS FOR
CLEANING YOUR OVEN
• Clean the appliance regularly to keep all parts
free of grease that could catch fi re. Exhaust fan
ventilation hoods and grease fi lters should be kept
clean. Do not allow grease to accumulate. Greasy
deposits in the fan could catch fi re. Refer to the hood
manufacturer’s instructions for cleaning.
• Cleaners/Aerosols—Always follow the manufacturer’s
recommended directions for use. Be aware that excess
residue from cleaners and aerosols may ignite causing
damage and/or injury.
FOR SELF-CLEANING OVEN
• Clean in the self-cleaning cycle only the parts of
the appliance listed in this Owner’s Guide. Before
using the self-cleaning cycle of the appliance, remove
all utensils stored in the appliance.
• Do not clean the oven door gasket. The door
gasket is essential for a good seal. Care should be
taken not to rub, damage or move the gasket.
• Do not use oven cleaners. No oven cleaner or oven
liner protective coating of any kind should be used in or
around any part of the appliance.
• Remove oven racks. Oven racks color will change if
left in the oven during a self-cleaning cycle.
CAUTION
The health of some birds is extremely sensitive to the
fumes given off during the self-clean cycle of any wall
oven. Move birds to another well ventilated room.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California
to publish a list of substances known to the state to
cause cancer, birth defects or other reproductive harm,
and requires businesses to warn customers of potential
exposure to such substances.
6

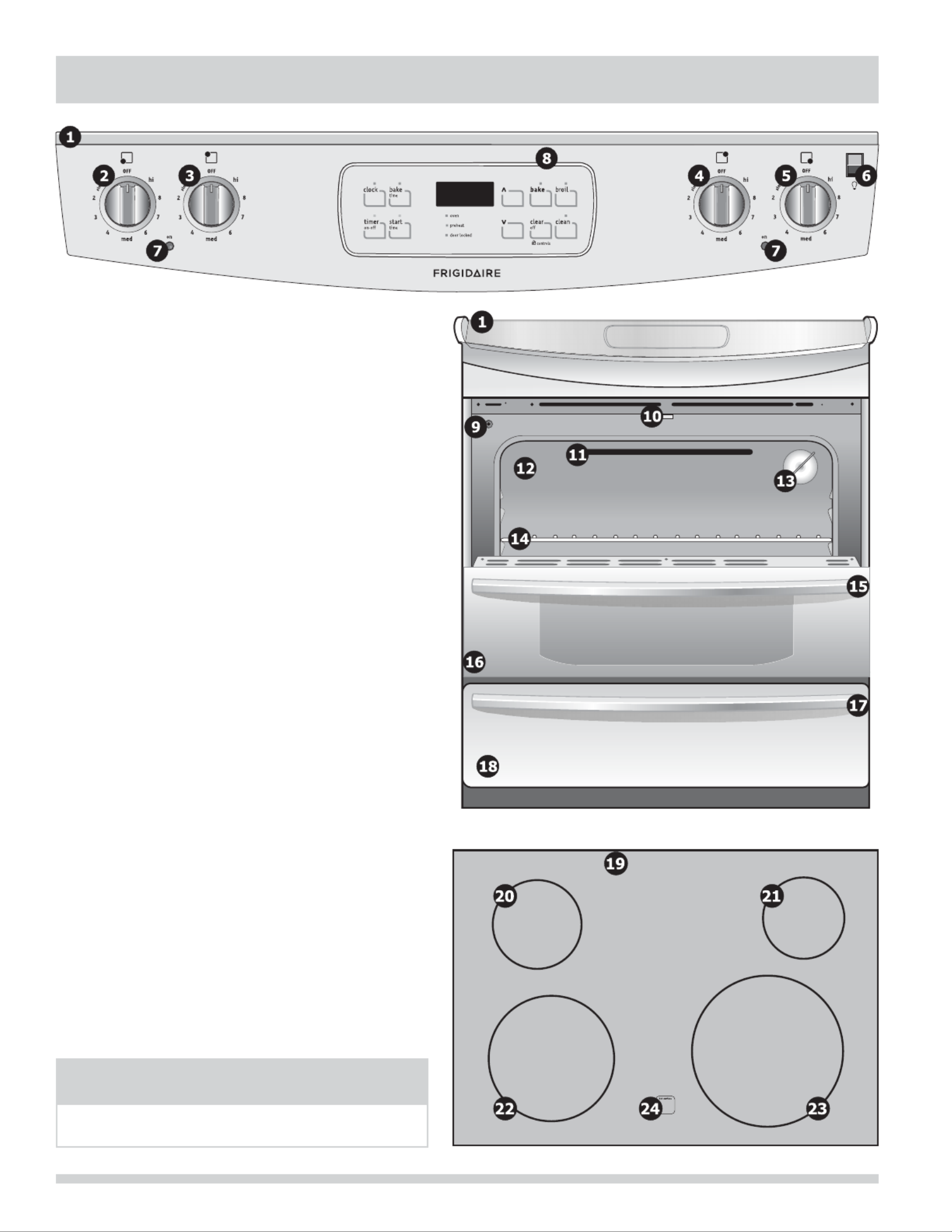

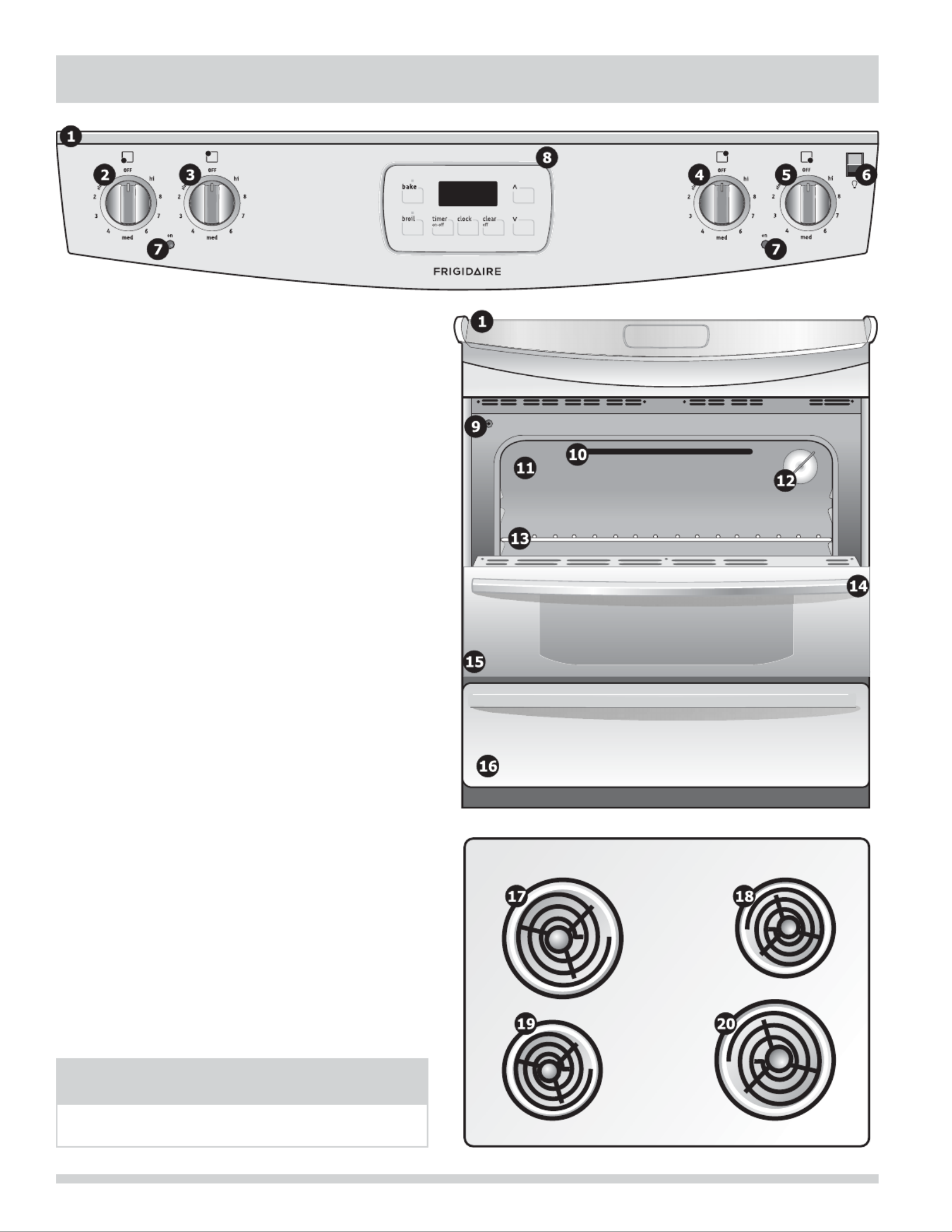

FEATURES AT A GLANCE - MODEL A
Your built-in range Features:
1. Control Panel.
2. Left front element control.
3. Left rear element control.
4. Right rear element control.
5. Right front element control.
6. Oven light switch.
7. Element on indicator lights.
8. Electronic oven control with kitchen timer.
9. Automatic oven door light switch.
10. Broil element.
11. Manual clean oven interior.
12. Oven interior light with removable cover.
13. Adjustable interior oven rack(s).
14. Large 1-piece oven door handle.
15. Oven door with window.
16. Storage drawer with integrated handle
(available with some models only).
17. 8” Coil element.
18. 6” Coil element.
19. 6” Coil element.
20. 8” Coil element.
ÍNOTE
The features shown for your appliance may vary
according to model type & color.
8
FEATURES AT A GLANCE - MODEL C
ÍNOTE
The features shown for your appliance may vary
according to model type & color.
Your built-in range Features:
1. Control Panel.
2. Left front element control.
3. Left rear element control.
4. Right rear element control.
5. Right front element control.
6. Oven light switch.
7. Element on indicator lights.
8. Electronic oven control with kitchen timer.
9. Automatic oven door light switch.
10. Self-clean door latch.
11. Broil element.
12. Self-cleaning oven interior.
13. Oven interior light with removable cover.
14. Adjustable interior oven rack(s).
15. Large 1-piece oven door handle.
16. Full width oven door with window.
17. Large 1-piece drawer handle
(Stainless steel models with drawer only).
18. Storage drawer with integrated handle
(Available with some models only).
19. Ceramic glass cooktop.
20. 7” single radiant element
21. 6” single radiant element.
22. 9” single radiant element.
23. 12” single radiant element.
24. Hot surface indicator light
9
Selecting Surface Cooking Cookware
Cookware should have fl at bottoms that make good
contact with the entire surface heating element. Check
for fl atness by rotating a ruler across the bottom of the
cookware (See Figure 1).
Cookware Material types
The cookware material determines how evenly and
quickly heat is transferred from the surface element to
the pan bottom. The most popular materials available
are:
ALUMINUM- Excellent heat conductor. Some types
of food will cause it to darken (Anodized aluminum
cookware resists staining & pitting). If aluminum pans
slide across the ceramic glass cooktop, they may leave
metal marks which will resemble scratches. Remove
these marks immediately.
COPPER- Excellent heat conductor but discolors easily.
May leave metal marks on ceramic glass (see Aluminum
above).
STAINLESS STEEL- Slow heat conductor with uneven
cooking results. Is durable, easy to clean and resists
staining.
CAST IRON- A poor heat conductor however will retain
heat very well. Cooks evenly once cooking temperature is
reached. Not recommended for use on ceramic cooktops.
PORCELAIN-ENAMEL on METAL- Heating
characteristics will vary depending on base material.
Porcelain-enamel coating must be smooth to avoid
scratching ceramic cooktops.
GLASS- Slow heat conductor. Not recommended for
ceramic cooktop surfaces because it may scratch the
glass.

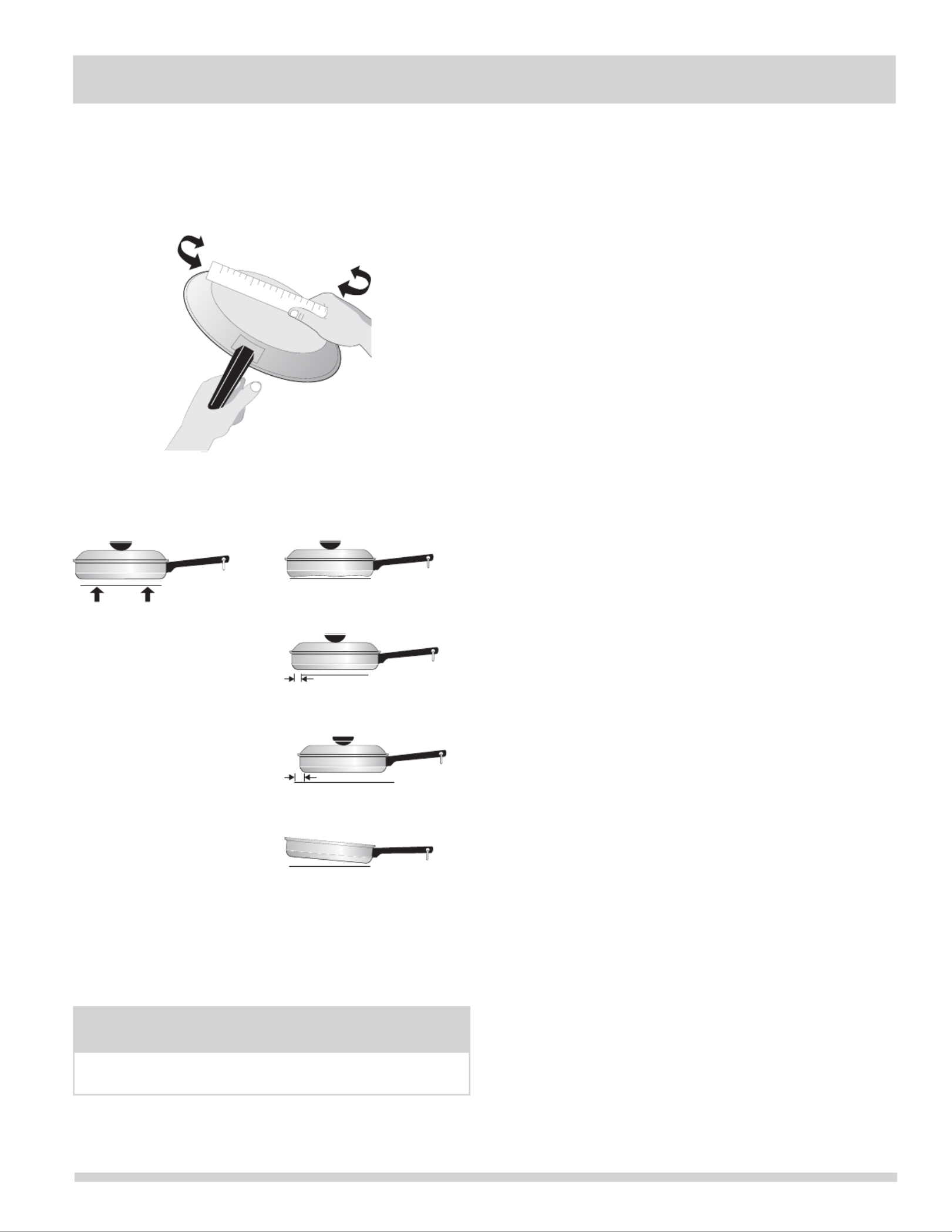

Figure 1
Figure 2
ÍNOTE
The size and type of cookware used will infl uence the
setting needed for best cooking results.
Be sure to follow the recommendations for using
cookware as shown in Figure 2.
CORRECT
• Flat bottom and straight
sides.
• Tight fi tting lids.
• Weight of handle does
not tilt pan. Pan is well
balanced.
• Pan sizes match the
amount of food to be
prepared and the size
of the surface element.
• Made of material that
conducts heat well.
• Easy to clean.
• Always match pot
diameter to element
surface diameter.
INCORRECT
• Curved and warped pan
bottoms.
• Pan overhangs unit by
more than one-half inch.
• Pan is smaller than the
element.
• Heavy handle tilts the
pan.
SURFACE COOKING
11
BEFORE SETTING SURFACE CONTROLS
Ceramic Glass Cooktop (some models)
The ceramic cooktop has radiant surface elements
located below the surface of the glass. The design of
the ceramic cooktop outlines the area of the surface
element underneath. the diameter of the Make sure
pan matches the diameter of the element outline on the
cooktop.
Heat is transferred up through the surface of the cooktop
to the cookware. Only fl at-bottom cookware should
be used. The type and size of cookware, the number
of surface elements in use and their settings are all
factors that will affect the amount of heat that will
spread to areas beyond the surface elements. The areas
surrounding the elements may become hot enough to
cause burns.
ÍNOTE
Please read detailed instructions for ceramic glass
cooktop cleaning in the General Care & Cleaning
section and checklist section of this Before You Call
Use and Care Guide.
About the Radiant Surface Elements
The element temperature rises gradually and evenly.
As the temperature rises, the element will glow red. To
maintain the selected setting, the element will cycle ON
and OFF. The heating element retains enough heat to
provide a uniform and consistent heat during the OFF
cycle. For effi cient cooking, turn OFF the element several
minutes before cooking is complete. This will allow
residual heat to complete the cooking process.
Types of the heating elements used
Your cooktop is equipped with radiant surface radiant
elements with different wattage ratings. The ability to
heat food quicker and in larger volumes increases as the
element wattage increases.
CAUTION
The cooktop should not be used as a cutting board or
work surface.
Dropping heavy or hard objects on the cooktop may crack it.
Pans with rough bottoms may scratch the cooktop surface.
Placing foods directly on the smoothtop surface
(without cooking utensil) is not recommended as
diffi cult cleaning will result and foods may smoke and
cause a potential fi re hazard.
Never use the griddle or similar cooking sheet on the
ceramic glass cooktop.
ÍNOTE
Due to the high intensity of heat generated by the
surface elements, the glass surface will turn green
when the element will be turned off. This phenomenon
is normal and the glass will come back to its original
white color after it has completely cooled down. (White
glass cooktops only).
ÍNOTE
Radiant elements have a limiter that allows the element
to cycle ON and OFF, even at the HI setting. This
helps to prevent damage to the ceramic smooth top.
Cycling at the HI setting is normal and can occur if the
cookware is too small for the radiant element or if the
cookware bottom is not fl at.
Be sure to read detailed instructions for ceramic glass
cooktop cleaning in the General Care & Cleaning
section and checklist section of this Before You Call
Use and Care Guide.
CAUTION
Do not allow aluminum foil, or ANY material that
can melt to make contact with the ceramic glass
cooktop. If these items melt on the cooktop they will
damage the ceramic cooktop.
12
Element ON (all models)
Your appliance is equipped with two dierent types of
radiant surface control indicator lights that will glow on
the backguard- the Element On indicator light and the
hot surface indicator lights.

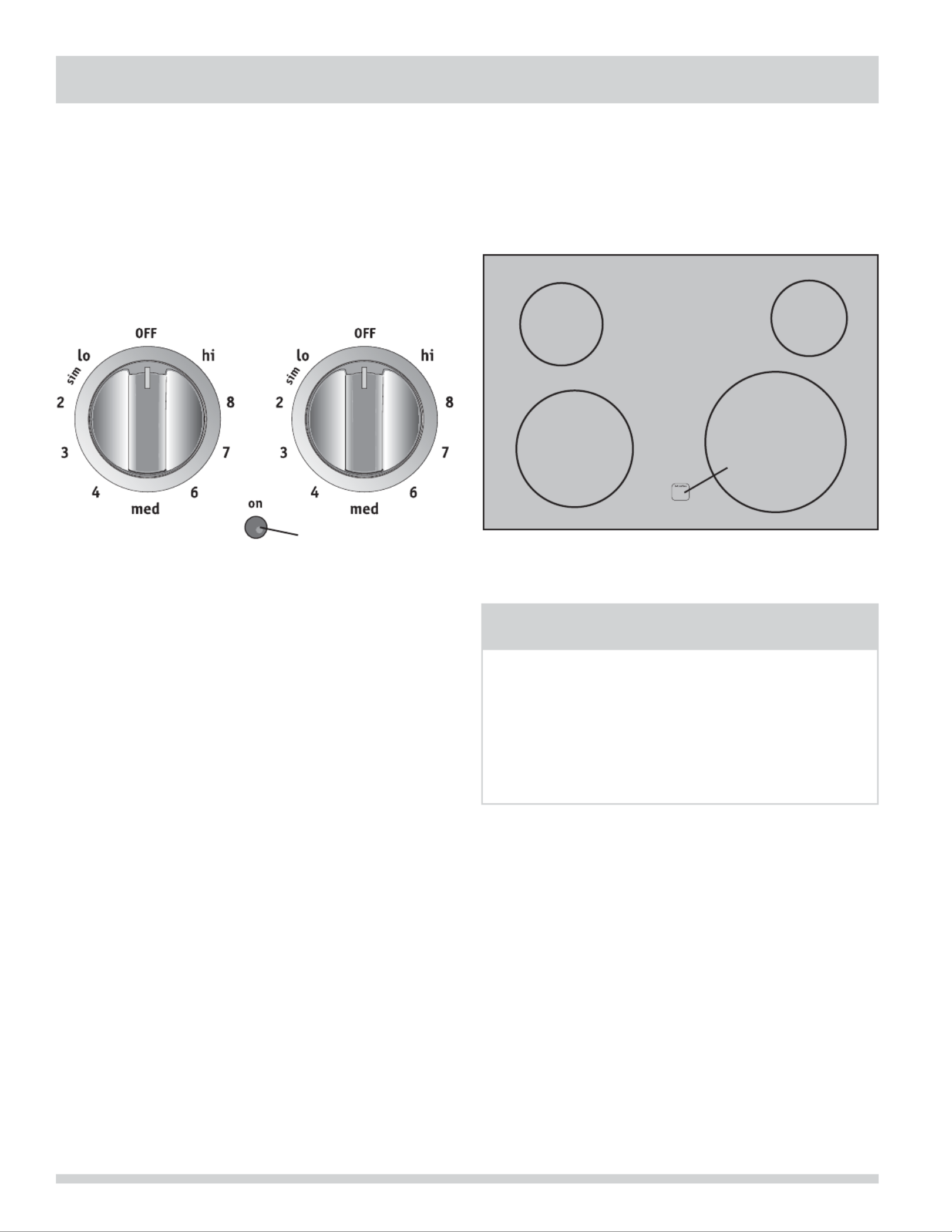

The element ON indicator lights are located on the
control panel (Figure 1) between the two radiant element
control knob and will glow when a surface element is
turned ON.
Figure 2 - Model C only
Hot surface indicator light location.
Figure 1
Element ON indicator light location.
Hot surface indicator light
(Model C only)
The indicator light located on the cooktop hot surface
(Figure 2) will glow when any surface cooking area heats
up and will remain on until the glass cooktop has cooled
to a MODERATE level.
BEFORE SETTING SURFACE CONTROLS
element ON
indicator
light
hot surface
indicator
light
ÍNOTE
The “Hot Surface” indicator lights will glow when the
element is turned on and will continue to glow after the
control knob is turned to the "OFF" position. It will glow
until the heating surface area has cooled suffi ciently.
The glass surface may still be hot and burns may
occur if the glass surface is touched before the indicator
light has turned OFF. The message may remain on even
though the controls are turned OFF.
13
SETTING SURFACE CONTROLS

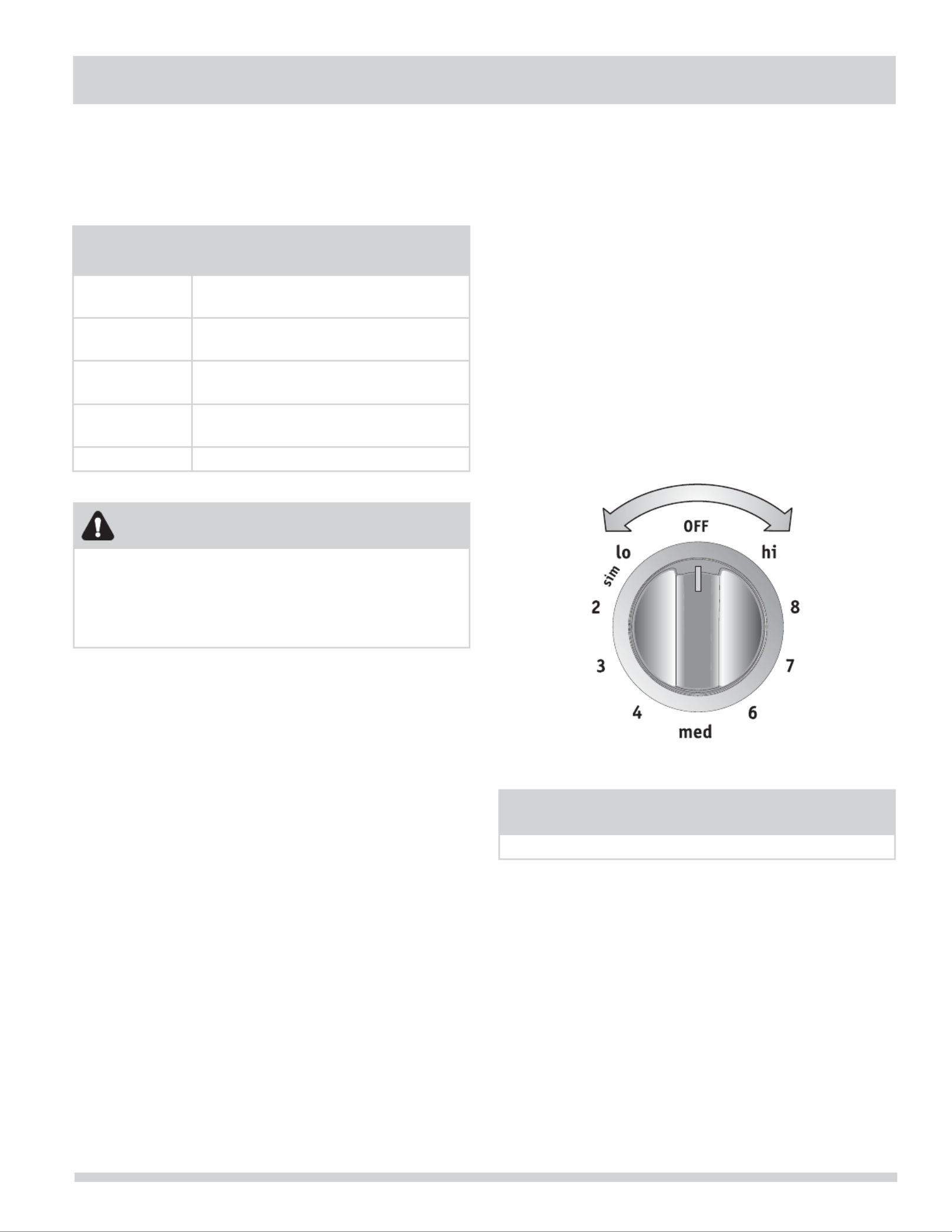

Surface cooking settings (All models)
Use the chart to determine the correct setting for the type
of food you are preparing.
Note: The size and type of cookware used will infl uence
the setting needed for best cooking results.
Recommended Setting for Surface Element
Setting Type of Cooking
HIGH (HI) Start most foods; bring water to a boil
and pan broiling.
MEDIUM HIGH
(7-8)
Continue a rapid boil; frying, deep fat
frying.
MEDIUM (4-6) Maintain a slow boil; thicken sauces
and gravies; steaming vegetables.
MEDIUM LOW
(2 - 3)
Keep foods cooking; poaching and
stewing.
LOW (LO) Keep warm, melting and simmering.
CAUTION
Do not place plastic items such as salt and pepper
shakers, spoon holders or plastic wrappings on
cooktop when it is in use. These items could melt or
ignite. Potholders, towels or wooden spoons could catch
fi re if placed too close to the surface elements.
ÍNOTE
See Recommended Setting for Surface Element table.
Operating the Surface Elements
(All models)
To Operate the Surface Elements
1. Place correctly sized cookware on the surface
element.
2. Push in and turn the surface control knob in either
direction to the desired setting (Figure 1).
3. Turn the knob to adjust the setting if desired. Start
most cooking operations on a higher setting and then
turn to a lower setting to fi nish cooking. Each surface
element provides a constant amount of heat at each
setting. : A glowing Ceramic Glass Cooktop Only
red surface heating area extending beyond the
bottom edge of the cookware indicates the cookware
is too small for the surface heating area.
4. When cooking has completed, turn the surface
control knob to OFF before removing the
cookware.
Figure 1 -Control knob shown is typical only.
14
Multiple Oven Racks
Single Oven Rack
BEFORE SETTING OVEN CONTROLS
CAUTION
Some models are equipped with a blower which runs
in baking and self-cleaning mode to keep all internal
components at a cool temperature. The blower may
keep running even if the oven has been turned o,
until the components have cooled down.

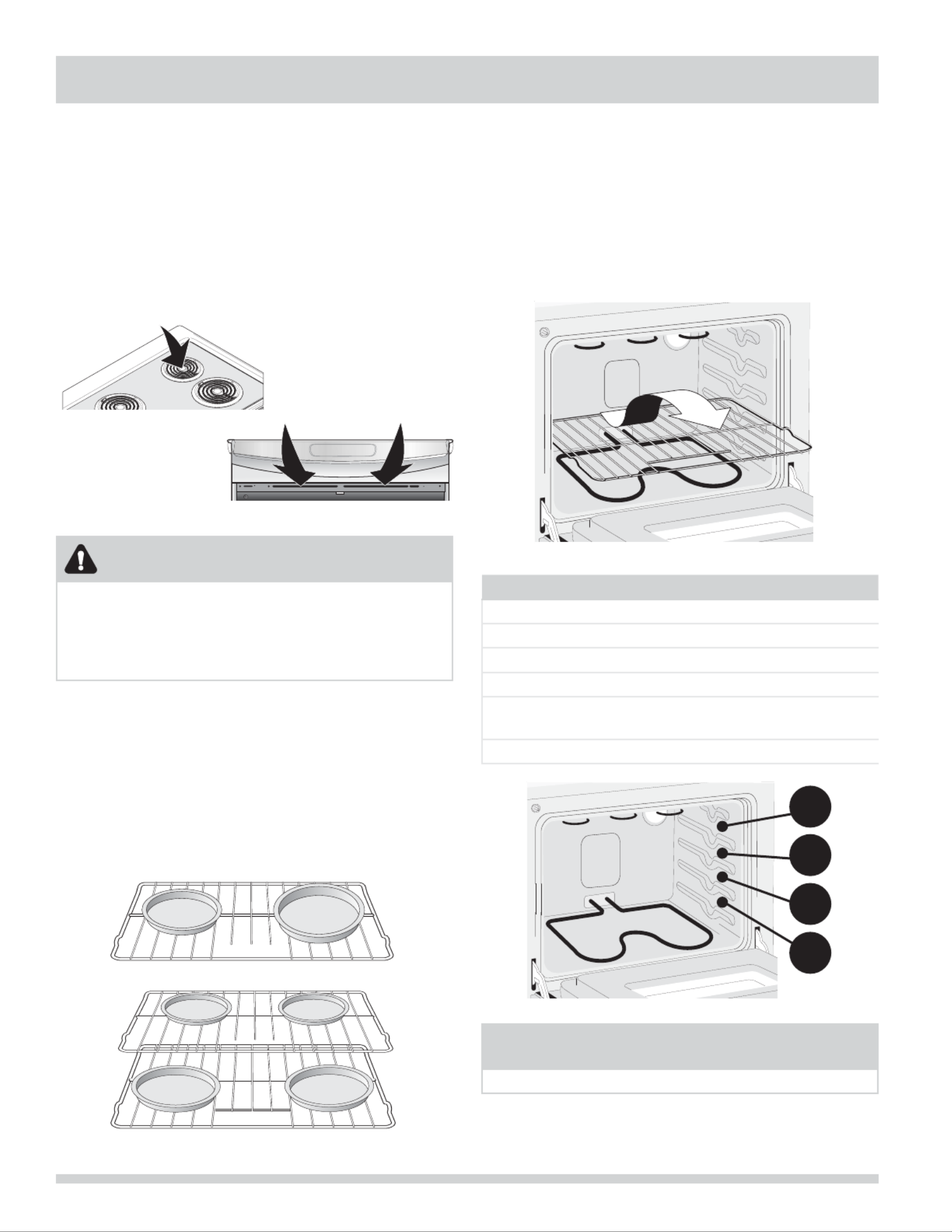

Air circulation in the oven
If using 1 rack, place in center of oven. If using multiple
racks, stagger cookware as shown.
For best air circulation and baking results allow 2-4"
(5-10cm) around the cookware for proper air circulation
and be sure pans and cookware do not touch each other,
the oven door, sides or back of the oven cavity. The hot
air must circulate around the pans and cookware in the
oven for even heat to reach around the food.
Arranging oven racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS
COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when using the oven.
To remove an oven rack, pull the rack forward until it
stops. Lift up front of rack and slide out.
To replace an oven rack, fi t the rack onto the guides
on the oven walls. Tilt the front of the rack upward and
slide the rack back into place.
Rack
positions
Recommended rack positions
Food
Position
Broiling meats, chicken or fi sh
4
Cookies, cakes, pies, biscuits & muffi ns
Using a single rack 2 or 3
Using two racks 2 and 4
Frozen pies, angel food cake, yeast, bread, 1 or
2 casseroles, small cuts of meat or poultry
1 or 2
Turkey, roast or ham 1
ÍNOTE
Always use caution when removing food from the oven.
Oven Vent Location
On model A, the oven is vented through the right rear
coil element (Figure 1) and on models B & C, the oven
vent is located and through the upper front trim
visible when the oven door is open (Figure 2).When the
oven is on, warm air is released through the vent. This
venting is necessary for proper air circulation in the oven
and good baking results. DO NOT block the vent. Doing
so may cause cooking failures, fi re or damage to the
appliance.
(Figure 2)
(Figure 1)
4
4
4
44
3
3
3
33
2
2
2
22
1
1
1
11
15
SETTING OVEN CONTROLS - MODEL A

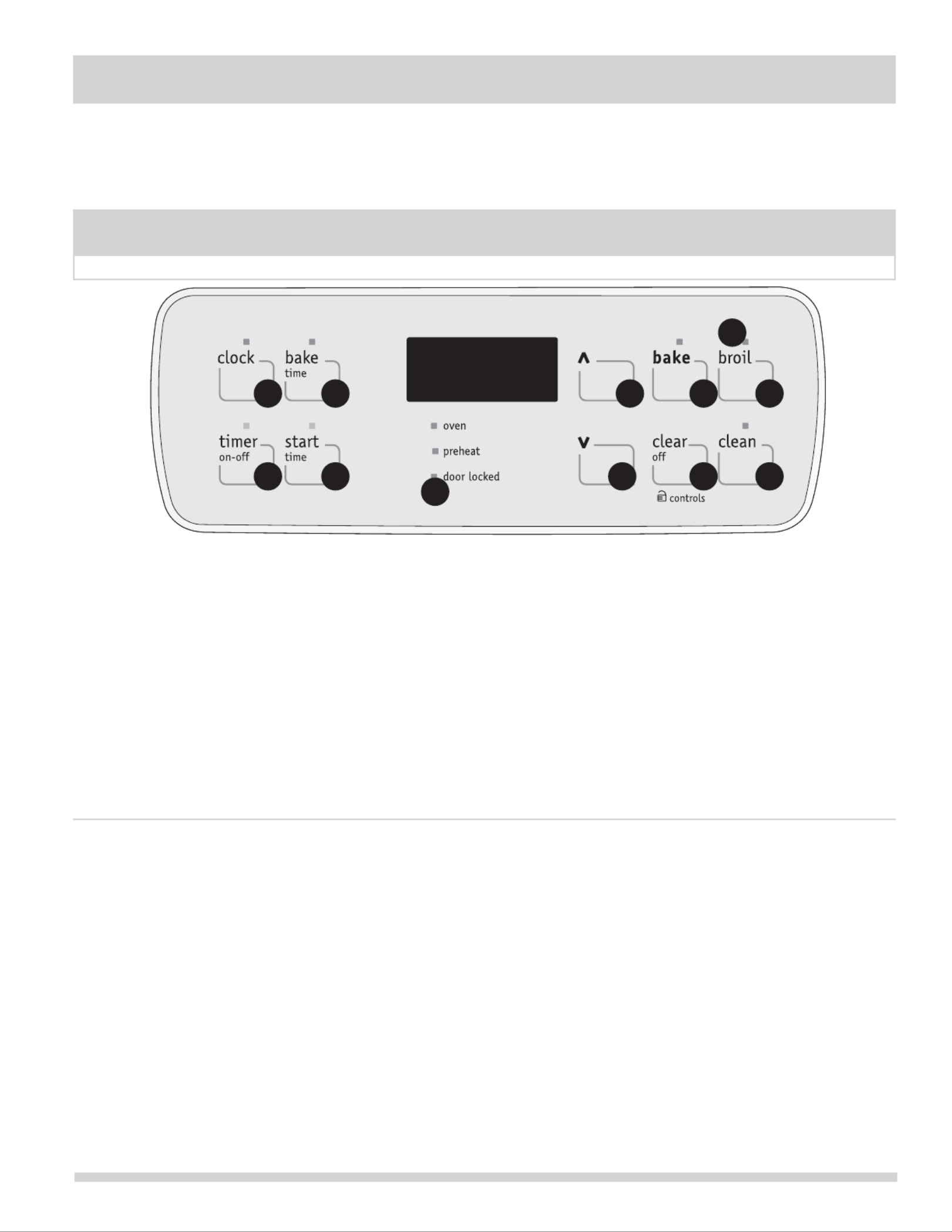

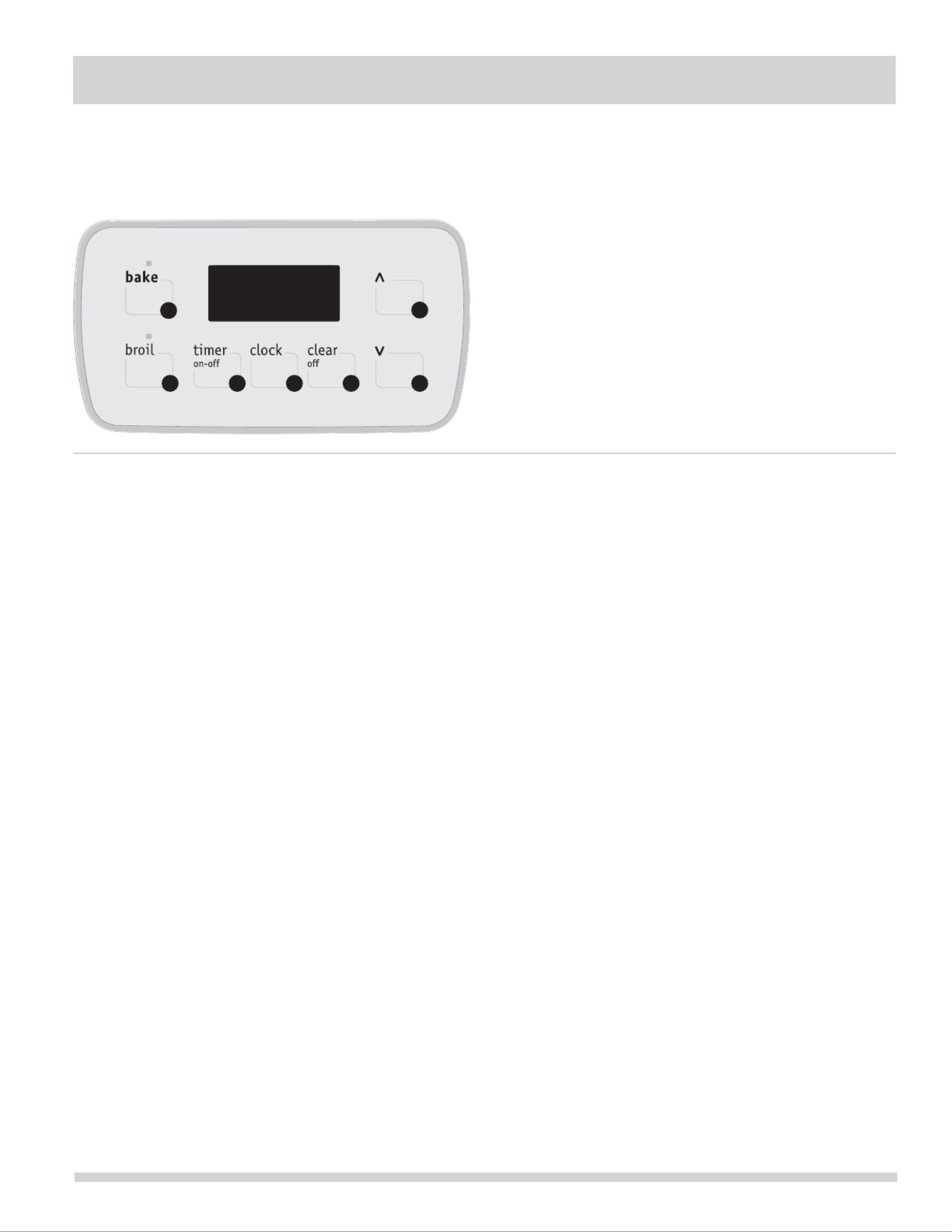

Control pad features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each
feature and function follow later in this Use & Care Guide.
1
2 3 4 5 6
7
1. Bake pad—Use to select the bake cooking feature.
2. Broil pad—Use to select the broil cooking feature.
3. Timer on-o pad—Use to set or cancel the Timer.
The Timer does not start or stop cooking.
4. Clock pad—Use to set the time of day.
5. Clear o pad—Use to cancel any oven feature
previously entered except the time of day and minute
timer.
6. Down arrow pad—Used along with the function pads
to select oven temperature, time of day and minute timer.
7. Up arrow pad—Used along with the function pads to
select oven temperature, time of day and minute timer.
To Set the Clock
When the appliance is fi rst plugged in, or when the
power supply to the range has been interrupted, the
display will fl ash "12:00".
1. Press CLOCK pad.
2. Within 4 seconds, press and hold the UP DOWN or
ARROW pad until the correct time of day appears in
the display.
To Change the Temperature Display Mode
The electronic oven control temperature display mode
was factory preset to display (Fahrenheit) °F oven
temperatures. Note: Oven cooking temperatures may be
set from 170°F to 500°F (76°C to 260°C).
To change the Temperature Display Mode to °C
(Celsius) or from °C to °F (do not use Bake or Broil
while changing the Temperature Display Mode):
1. Press & hold the BROIL pad for 7 seconds until F
or C appears in the display. : At this time the Note
display will show the current Temperature Display
Mode whether set for F or C .
2. Within 4 seconds, press the UP DOWN ARROW or
pad once to toggle between the °F (Fahrenheit) and
°C (Celsius).
3. To accept the change, wait 5 more seconds until the
oven control beeps once. To complete the change
skip step 4 below, OR;
4. If at any time during the process of changing the
Temperature Display Mode (F or C) you decide the
change is not desired, press the CLEAR OFF pad
before the oven control beeps once to cancel the
process.
5. The display will then return to the time of day with
any temperature display mode change you may have
requested.
To Set the Minute Timer
1. Press TIMER ON/OFF pad.
2. Press the UP ARROW pad to increase the time
in one minute increments. Press and hold the UP
ARROW pad to increase the time faster. The timer
can be set for any amount of time from 1 minute to
11 hours and 59 minutes.
pad Note: If you press the DOWN ARROW fi rst,
the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer count down in minutes
until one minute remains. Then the display will count
down in seconds.
4. When the set time has run out, the timer will sound a
3 seconds beep. 0:00 will appear in the display until
TIMER ON/OFF pad is pressed.
Note: While the minute timer is counting down, the
“:” will fl ash. The minute timer does not start or stop
cooking. It serves as an extra timer in the kitchen that
will beep when the set time has run out. The minute
timer can be used alone or during any of the other oven
functions. When the minute timer is in use with any other
function, the minute timer will be shown in the display. To
view other functions, press the pad for that function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press
and hold the or UP DOWN ARROW pad to increase or
decrease the time.
To Cancel the Minute Timer before the set time
has run out: TIMER ON/OFF Press .
16
To Set or Change the Temperature for
Baking
The oven can be programmed to bake at any
temperature from 170°F to 500°F (76°C to 260°C).
To Set the Controls for Baking:
1. Press BAKE pad. "— — —°" appears in the display.
2. Within 5 seconds, press the UP DOWN ARROW or
pad. The display will show "350°F." By pressing
and holding the or pad, the UP DOWN ARROW
temperature can then be adjusted in 5°F increments.
3. When the UP DOWN ARROW or pad is released,
the oven will begin heating to the selected
temperature. When the displayed temperature
reaches the desired baking temperature, the control
will beep once (1 time).
4. To cancel the baking function, press CLEAR OFF
pad.
To Change the Oven Temperature after Baking has
Started:
1. Press BAKE pad and make sure the bake
temperature is displayed.
2. Press the UP DOWN ARROW or pad to increase or
decrease the set temperature.
To Broil
1. Arrange oven rack while oven is still cool.
2. Press BROIL pad.
3. Press and hold the UP DOWN ARROW or pad until
the desired broil setting level appears in the display.
Press the UP ARROW pad for HI broil or the DOWN
ARROW pad for LO broil. Most foods can be broiled
at the HI broil setting. Select the LO broil setting to
avoid excess browning or drying of foods that should
be broiled to the well-done stage.
4. Place the insert on the broiler pan, then place the
food on the insert. DO NOT use the broiler pan
without the insert or cover the insert with aluminum
foil. The exposed grease could ignite.
5. Place the pan on the oven rack. Open the oven door
to the broil stop position when broiling.
6. Broil on one side until food is browned; turn and cook
on the second side. Note: Always pull the rack out to
the stop position before turning or removing food.
7. When broiling is fi nished, press CLEAR OFF pad.
SETTING OVEN CONTROLS - MODEL A
CAUTION
Should an oven fi re occur, close the oven door
and turn o the oven. If the fi re continues, use a
fi re extinguisher. DO NOT put water or fl our on
the fi re. Flour may be explosive.
Adjusting Your Oven Temperature
Your new oven has been factory calibrated and tested
to ensure an accurate baking temperature. For the fi rst
few uses, follow your recipe times and temperature
recommendations carefully. If you feel your oven is too
hot or too cool from your baking experience, the oven
temperature may be adjusted to your liking.
ÍNOTE
DO NOT adjust your oven temperature based on oven
thermometers, such as those found in grocery stores,
they may not be accurate.
To Adjust the Oven Temperature (do not use Bake
or Broil while adjusting the oven temperature):
Note: Your oven control was factory set in the
(Fahrenheit) °F Temperature Display Mode. To change for
(Celsius) °C, see page 15.
1. Press & hold the key pad and release after the BAKE
display shows the factory temperature setting of 00.
Note: If the oven temperature has been previously
adjusted from the factory setting, the current
temperature adjusted value will appear in the display
instead.
2. You may increase the oven temperature in 5°F (1°C)
increments with each press of the UP ARROW pad
to a maximum oven adjustment of +35°F (+18°C).
You may also adjust the oven temperature downward
in 5°F (1°C) increments with each press of the
DOWN ARROW pad (total range of -35°F to +35°F
(-18°C to +18°C).
3. If you do not want to keep the display adjustment,
press the CLEAR OFF pad before the oven control
beeps. This will cancel the temperature adjustment
procedure. To start this procedure over again begin
with step 1 above OR;
4. If you want to keep the adjustment, wait until the
oven control beeps once.
5. The oven temperature adjustment has be accepted
by the oven control and the display will return to the
time of day.
Failure Modes
All failure modes give a visual and audible alarm. When
display shows F10 (temperature runaway), F30-F31
(oven sensor circuit fault) or any other F error codes, the
electronic oven control has detected a fault condition.
Note that code and push the CLEAR OFF pad to clean
the display and stop the beeping. Reprogram the oven.
If fault recurs, push CLEAR OFF pad, disconnect the
appliance to prevent damage and contact an authorized
servicer.
17
ÍNOTE
The oven function will not work if the time of day clock is not set.
SETTING OVEN CONTROLS - MODELS B & C
The oven can be programmed to
Bake normally, Time Bake, Delayed Bake, Broil, Self-Clean
Note: Push buttons or pads may be shaped differently.
For a silent control panel
When choosing a function, a beep will be heard each
time a pad is pushed. If desired, the controls can be
programmed for silent operation. Push and hold START
TIME pad. After 7 seconds, the control will beep once.
This will block the controls from sounding when a pad
is pushed. To return the sound, push and hold START
TIME pad again for 7 seconds until 1 beep is heard.
1 2
3 4 5
6 7 9
1110 12
8
Control pad features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each
feature and function follow later in this Use & Care Guide.
1. Clock pad—Use to set the time of day.
2. Bake time pad—Use to enter the length of the
baking time.
3. Timer on-o pad—Use to set or cancel the Timer.
The Timer does not start or stop cooking.
4. Start time pad—Used to set the desired start time
for baking. Can be used with BAKE TIME to program
a delayed bake cycle.
5. Oven, preheat & door locked lights— The “oven”
light will glow each time the oven unit turns on
maintain the set oven temperature. The “Preheat”
light will glow when the oven is fi rst set to operate,
or if the desired temperature is reset higher than the
actual oven temperature. The “Door Locked” light will
fl ash until the door locks when the self-clean cycle is
in use. It glows constantly after the door locks.
6. Up arrow pad—Used along with the function pads to
select oven temperature, time of day and minute timer.
7. Bake pad—Use to select the bake cooking feature.
8. Feature indicator lights—These light to show
which feature is in use.
9. Broil pad—Use to select the broil cooking feature.
10. Down arrow pad—Used along with the function
pads to select oven temperature, time of day and
minute timer.
11. Clear off pad—Use to cancel any oven feature previously
entered except the time of day and minute timer.
12. Clean Pad—Used to select the self-cleaning cycle.
Temperature Conversion (Fahrenheit/Celsius)
The electronic oven control is set to operate in °F
(Fahrenheit) when shipped from the factory. The oven
can be programmed for any temperature from 170°F to
550°F (77°C to 287°C).
To change the temperature to °C (Celsius) or from °C
to °F (control should not be in a Bake or Clean mode):
1. Push BROIL pad. "- - - " appears in the display.
2. Push and hold the UP ARROW pad until "HI"
appears in the display.
3. Push and hold pad until °F or °C appears in BROIL
the display.
4. Push UP DOWN ARROW or pad to change °F to °C
or °C to °F.
5. To accept the change, wait 6 seconds.
18
SETTING OVEN CONTROLS - MODELS B & C
To Set the Clock
When the range is fi rst plugged in, or when the power
supply to the appliance has been interrupted, the display
will fl ash "12:00".
1. Push CLOCK pad.
2. Within 5 seconds, push and hold the UP DOWN or
ARROW pad until the correct time of day appears in
the display.
Note: The clock cannot be changed during any timed
bake or self-clean cycle.
To Set the Minute Timer
1. Push TIMER ON/OFF pad.
2. Push the UP ARROW pad to increase the time
in one minute increments. Push and hold the UP
ARROW pad to increase the time in 10 minute
increments. The timer can be set for any amount of
time from 1 minute to 11 hours and 59 minutes.
Note: DOWN ARROW If you push the pad fi rst, the
timer will advance to 11 hours and 59 minutes.
3. The display shows the timer count down in minutes
until one minute remains. The display will count
down in seconds.
4. When the set time has run out, the timer will beep
3 times. It will continue to beep 3 times every 60
seconds until the TIMER ON/OFF pad is pushed.
ÍNOTE
The oven function will not work if the time of day clock
is not set.
ÍNOTE
If a control pad is pressed while the Oven Door/Control
Lockout mode, “Loc” will appear in the display until
the control pad is released. But it does not disable the
clock, kitchen timer and the interior oven lights.
ÍNOTE
The minute timer does not start or stop cooking. It serves
as an extra timer in the kitchen that will beep when the set
time has run out. The minute timer can be used alone or
during any of the other oven functions. When the minute
timer is in use with any other mode, the minute timer will
be shown in the display. To view other functions, push
the function pad for that mode.
ÍNOTE
To turn the time of day display OFF or ON in the display
press and hold the CLOCK pad for 8 seconds (the control
will beep once) and then release. This feature does not
remove the set time of day from the memory of the
control. When the display is turned OFF the time of day
will reappear for a few seconds any time the CLOCK
pad is touched.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, push
and hold the or UP DOWN ARROW pad to increase or
decrease the time.
To Cancel the Minute Timer before the set time has
run out: TIMER ON/OFFPush pad.
To Set Control for Continuous Bake or 12
Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving
feature that will shut off the oven if the control is left on
for more than 11 hours and 59 minutes. The oven can
be programmed to override this feature for continuous
baking.
To set control for continuous baking:
1. Push and hold pad down for 5 TIMER ON/OFF
seconds until tone is heard, "— — hr" will appear in
display for continuous cooking. The current time of
day will return to the display.
2. To cancel the Continuous Bake Function, push
TIMER ON/OFF pad and hold for 5 seconds until
tone is heard. "12hr" will appear in display indicating
that the control has returned to the 12 Hour Energy
Saving feature.
To Set Control for Oven Lockout
The control can be programmed to lock the oven door
and inactivate the oven controls.
To Set Control for Oven Lockout feature:
1. Push the CLEAR OFF pad and hold for 3 seconds.
"Loc" will appear in display, the "Door Locked"
indicator light will fl ash and the motor driven door
lock will begin to close automatically. DO NOT open
oven door while the indicator light is fl ashing. Allow
about 15 seconds for the oven door to lock. Once
the oven door is locked, the current time of day will
appear in the display.
2. To cancel the lockout feature, push CLEAR OFF pad
and hold for 3 seconds. The control will unlock the
oven door and resume normal operation.
20
To Set the Bake Time Feature
The and BAKE TIME START TIME controls operate the
Timed Bake Feature. The automatic timer will turn the
oven on and o at the times you select in advance. The
oven can be programmed to start immediately and shut
off automatically or to begin baking at a later time with
an automatic shut o.
To Program the Oven to Begin Baking Immediately
and To Shut O Automatically:
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven and push the BAKE pad.
3. Within 5 seconds, push the UP or pad. DOWN ARROW
The display will show "350°F (177°C)." By holding the
UP or DOWN ARROW pad, the temperature can then
be adjusted in 5°F (1°C) increments.
4. Push the BAKE TIME pad. "0:00" will fl ash in the display.
5. Push the UP DOWN ARROW or pad until the
desired amount of baking time appears in the display.
To Program Oven for a Delayed Start Time and to
Shut-O Automatically:
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven and push the BAKE pad.
3. Within 5 seconds, push the UP or D pad. OWN ARROW
The display will show "350°F (177°C)." By holding the
UP or DOWN ARROW pad, the temperature can then
be adjusted in 5°F (1°C) increments.
4.
Push the BAKE TIME pad. "0:00" will fl ash in the display.
5. Push the UP DOWN ARROW or pad until the
desired amount of baking time appears.
6. Push the START TIME pad.
7. Push the UP DOWN ARROW or pad until the
desired start time appears in the display.
8. Once the controls are set, the control calculates when
baking will stop.
Once the Controls are Set:
1. The oven will come on and begin heating to the
selected baking temperature.
2. The oven temperature (or time of day) will show in
the display.
When the Set Bake Time Runs Out:
1. "END" will appear in the display window and the oven
will shut off automatically.
2. The control will beep 3 times every 60 seconds until
the CLEAR OFF pad is pushed.
To Change the Oven Temperature or Bake Time
after Baking has started:
1. Push the function pad you want to change.
2. Push the UP DOWN ARROW or pad to adjust the
setting.
SETTING OVEN CONTROLS - MODELS B & C
CAUTION
Use caution when using the automatic timer.
Use the automatic timer when cooking cured or
frozen meats and most fruits and vegetables.
Foods that can easily spoil such as milk, eggs,
fi sh, meat or poultry, should be chilled in the
refrigerator fi rst. Even when chilled, they should
not stand in the oven for more than 1 hour
before cooking begins, and should be removed
promptly when cooking is completed.
Recalibrating Your Oven Temperature
Recalibrating Your Oven Temperature
The temperature in the oven has been set at the factory.
When fi rst using the oven, be sure to follow recipe times
and temperatures. If you think the oven is too hot or too
cool, the temperature in the oven can be adjusted. Before
adjusting, test a recipe by using a temperature setting
that is higher or lower than recommended temperature.
The baking results should help you to decide how much
of an adjustment is needed.
To Adjust Oven Temperature:
1. Push the BAKE pad.
2. Set the temperature to 550°F (287°C) by pushing
and holding the pad.UP ARROW
3. Within 2 seconds, push and hold the pad until BAKE
the special 2 digit display appears. Release the BAKE
pad. The display now indicates the amount of de-
grees offset between the original factory temperature
setting and the current temperature setting. If the
oven control has the original factory calibration, the
display will read "00."
4. The temperature can now be adjusted up or down
35°F (17°C), in 5°F (1°C) steps by pushing and
holding the or UP DOWN ARROW pad. Adjust until
the desired amount of degrees offset appears in the
display. When lowering the oven temperature, a mi-
nus sign (-) will appear before the number to indicate
that the oven will be cooler by the displayed amount
of degrees.
5. When you have made the desired adjustment, push
the pad to go back to the time of day CLEAR OFF
display.
ÍNOTE
The adjustment made will not change the self-cleaning
temperature.
21
SETTING OVEN CONTROLS - MODELS B & C

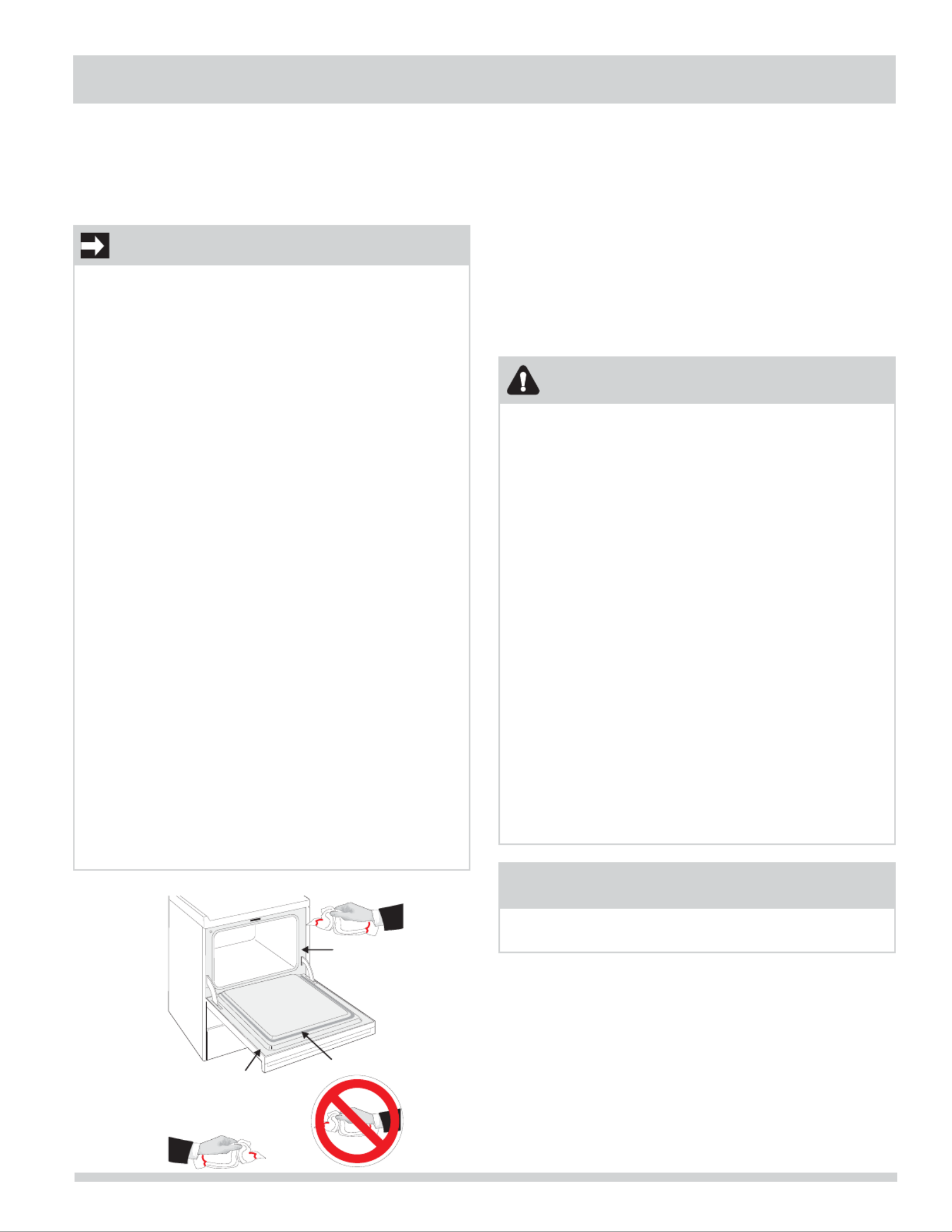

What to Expect during Cleaning
While the oven is in operation, the oven heats to temperatures
much higher than those used in normal cooking. Sounds
of metal expansion and contraction are normal. Odor is
also normal as the food soil is being removed. Smoke may
appear through the oven vent.
If heavy spillovers are not wiped up before cleaning, they
may fl ame and cause more smoke and odor than usual. This
is normal and safe and should not cause alarm. If available,
use an exhaust fan during the self-cleaning cycle.
Self-cleaning
A self-cleaning oven cleans itself with high temperatures
(well above normal cooking temperatures) which
eliminate soils completely or reduces them to a fi ne
powdered ash you can wipe away with a damp cloth.
DO HAND
CLEAN FRAME
DO NOT HAND
CLEAN OVEN
DOOR GASKET
DO HAND
CLEAN DOOR
ÍNOTE
See additional cleaning information for the oven door in
the section.General Care & Cleaning
CAUTION
To avoid possible burns use care when opening the
oven door after the Self-Cleaning cycle. Stand to the
side of the oven when opening the door to allow hot air
or steam to escape.
During the Self-Cleaning cycle, the outside of the range
can become very hot to the touch. leave DO NOT
small children unattended near the appliance.
The health of some birds is extremely sensitive to the
fumes given off during the Self-Cleaning cycle of any
range. Move birds to another well-ventilated room.
DO NOT line the oven walls, racks, bottom or any
other part of the range with aluminum foil. Doing
so will destroy heat distribution, produce poor baking
results and cause permanent damage to the oven
interior (aluminum foil will melt to the interior surface
of the oven).
DO NOT force the oven door open. This can damage
the automatic door locking system. Use caution when
opening the door after the Self-Cleaning cycle is
completed. The oven may still be VERY HOT.
IMPORTANT
Adhere to the following cleaning precautions:
• DO NOT use oven cleaners or oven protective
coatings in or around any part of the oven interior.
• DO NOT clean the oven door gasket. The woven
material of the oven door gasket is essential for a
good seal. Care should be taken not to rub, damage
or remove the gasket.
• DO NOT use any cleaning materials on the oven
door gasket. Doing so could cause damage.
• Remove the broiler pan and insert, all utensils
and ANY ALUMINUM FOIL. These items cannot
withstand high cleaning temperatures and will melt.
• Completely remove ALL OVEN RACKS and
ANY ACCESSORIES. If the oven racks are not
removed, they will lose their special coating
properties and will no longer slide in and out
of the oven cavity eortlessly.
• Remove any excessive spillovers in the oven
cavity before starting the Self-Cleaning cycle. To
clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fi re when
subjected to high temperatures. DO NOT allow food
spills with a high sugar or acid content (such as milk,
tomatoes, sauerkraut, fruit juices or pie fi lling) to
remain on the surface as they may leave a dull spot
even after cleaning.
• Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at
the front center of the oven bottom. These areas heat
suffi ciently to burn soil on. Clean with soap and water.
22
SETTING OVEN CONTROLS - MODELS B & C
CAUTION
Use care when opening the oven door after self-clean-
ing cycle. Stand to the side of the oven when opening
the door to allow hot air or steam to escape.
DO NOT force the oven door open. This can damage
the automatic door locking system. Use caution when
opening the door after the self-cleaning cycle is com-
pleted. The oven may still be VERY HOT.
Self-cleaning
To Start the Self-Clean Cycle
*We recommend a 2 hour self-clean cycle for light soils,
and a 3 hour cycle for average to heavy soils (to assure
satisfactory results).
To Set the Controls for a Self-Clean Cycle:
1. Be sure the clock shows the correct time of day.
2. Push the CLEAN pad. "- - -" appears in the display.
3. Push the UP ARROW pad until "3:00" appears in
the display for a 3 hour cycle, or push the DOWN
ARROW pad until "2:00" appears in the display for a
2 hour cycle.
4. As soon as the or pad is UP DOWN ARROW
released, "CLn" appears in the display.
5. As soon as the controls are set, the motor driven
lock will begin to close automatically and the "Door
Locked" indicator light will fl ash. DO NOT open the
door while the light is fl ashing (it takes about 15
seconds for the lock to close).
6. The "Door Locked" light will glow until the cleaning
cycle is completed or cancelled, and the oven
temperature has cooled.
When the Self-Clean Cycle is Completed:
1. The time of day will appear in the display window
and the "Door Locked" light will continue to glow.
2. Once the oven has cooled down for about 1 hour and
the "Door Locked" light has gone out, the oven door
can be opened.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a self-
cleaning cycle due to excessive smoke or fi re:
1. Push the CLEAR OFF pad.
2. Once the oven has cooled down for about 1 hour and
the "Door Locked" light has gone out, the oven door
can be opened.
3. Correct the condition which caused the smoking.
4. Restart the self-clean cycle once all conditions have
been corrected.
FAILURE MODES
All failure modes give a visual and audible alarm. When
display shows F10 (temperature runaway), F30 (oven
sensor circuit fault) or F90 (motor door lock fault), the
electronic oven control has detected a fault condition.
Note that code and push the pad to clean CLEAR OFF
the display and stop the beeping. Reprogram the oven.
If fault recurs, push CLEAR OFF pad, disconnect the
appliance to prevent damage and contact an authorized
servicer.
23

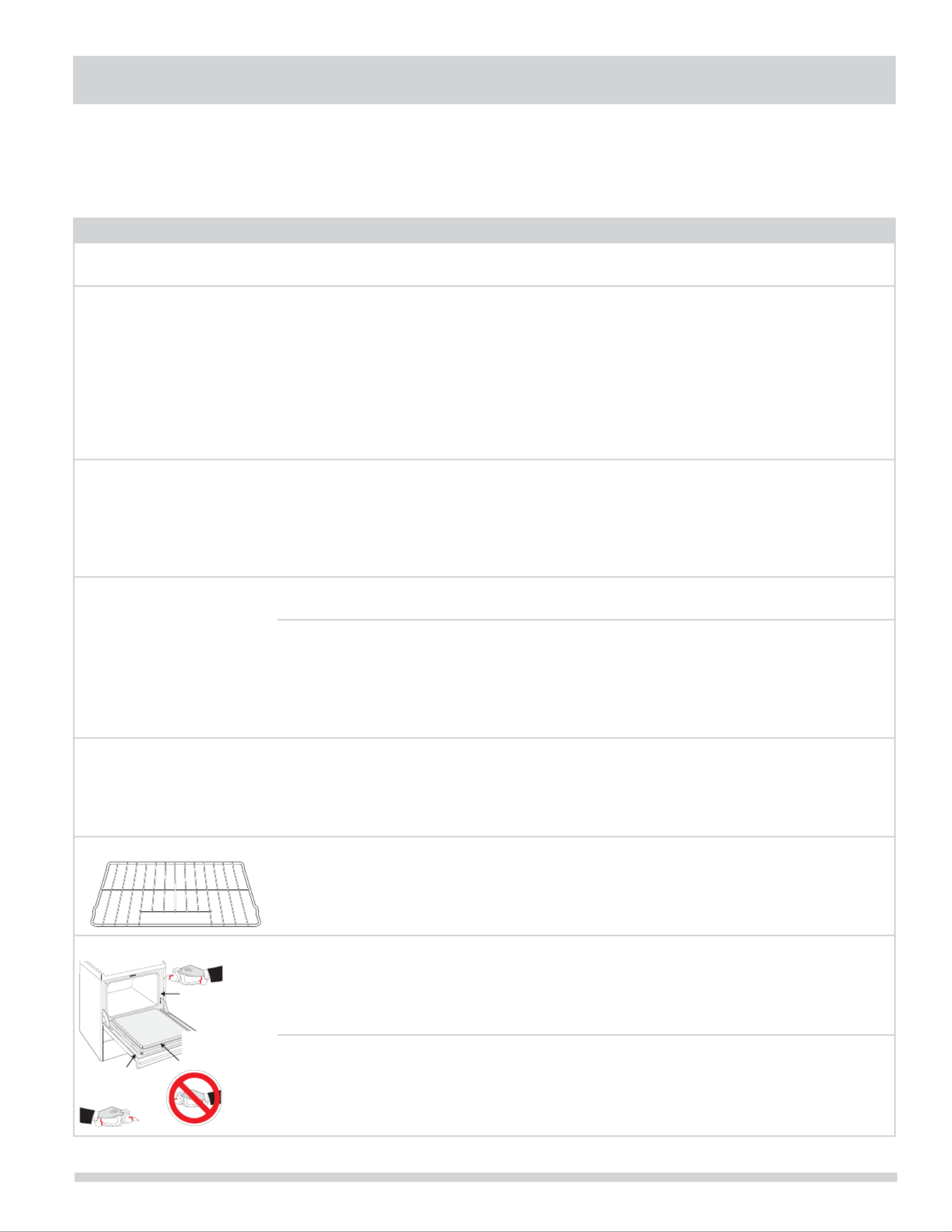

CARE & CLEANING (Cleaning Chart)
Cleaning various parts of your appliance
Before cleaning any part of the appliance, be sure all controls are turned off and the appliance is COOL. REMOVE
SPILLOVERS AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANING WILL REDUCE THE NUMBER OF
MAJOR CLEANING LATER.
Surfaces How to Clean
Aluminum (trim pieces) &
Vinyl
Use hot, soapy water and a cloth. Dry with a clean cloth.
Glass, Painted and Plastic
Body Parts, Control Knobs
& Decorative Trim Pieces
Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar
and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth.
Glass cleaners may be used if sprayed on a soft cloth fi rst. DO NOT spray liquids directly
on the control pad and display area. Do not use large amounts of water on the control
panel - excess water on the control area may cause damage to the appliance. Do not
use other liquid cleaners, abrasive cleaners, scouring pads, or paper towels - they will
damage the fi nish. To remove control knobs, turn to the OFF position; grasp fi rmly and
pull straight o the shaft. To replace knobs after cleaning, line up the fl at sides of both
the knob and the shaft; then push the knob into place.
Control Panels Before cleaning the control panel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight o the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to the
appliance. To replace knobs after cleaning, line up the fl at sides of both the knob and
the shaft; then push the knob into place.
Porcelain Enamel
Burner Grates, Cooktop
Surface, Below Cooktop,
Broiler Pan & Insert (some
models), Door Liner, Oven
Bottom & Burner Drip Pans
Clean burner grates, broiler pan and insert (some models) in the dishwasher and dry
upon removal. If soils are not removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
1:1 solution of clear water and ammonia. If necessary, cover diffi cult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp
cloth, then scrub with a soap-fi lled scouring pad. Rinse and wipe dry with a clean cloth.
Remove all cleaners or the porcelain may become damaged during future heating. DO
NOT use spray oven cleaners on the cooktop.
Stainless Steel (some models)
Oven Door & Drawer Front
Panel and Decorative Trim
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and
a cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not
use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish
stains may occur during heating that cannot be removed.
Oven Racks Remove racks. See "To remove and to replace an oven rack" under Oven vent(s) and
racks. Use a mild, abrasive cleaner, following manufacturer’s instructions. Rinse with
clean water and dry. After cleaning the racks, rub the sides of the racks with wax paper
or a cloth containing a small amount of baby oil or salad oil (this will make the racks
glide easier into the rack positions).
Oven Door
DO HAND
CLEAN FRAME
DO NOT HAND
CLEAN OVEN
DOOR GASKET
DO HAND
CLEAN DOOR
Use soap & water to thoroughly clean the top, sides and front of the oven door. Rinse
well. You may use a glass cleaner on the outside glass of the oven door. DO NOT
immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter
the door vents. DO NOT use oven cleaners, cleaning powders or any harsh abrasive
cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven
material, on Self-Cleaning models, which is essential for a good seal. Care should be
taken not to rub, damage or remove this gasket.
24

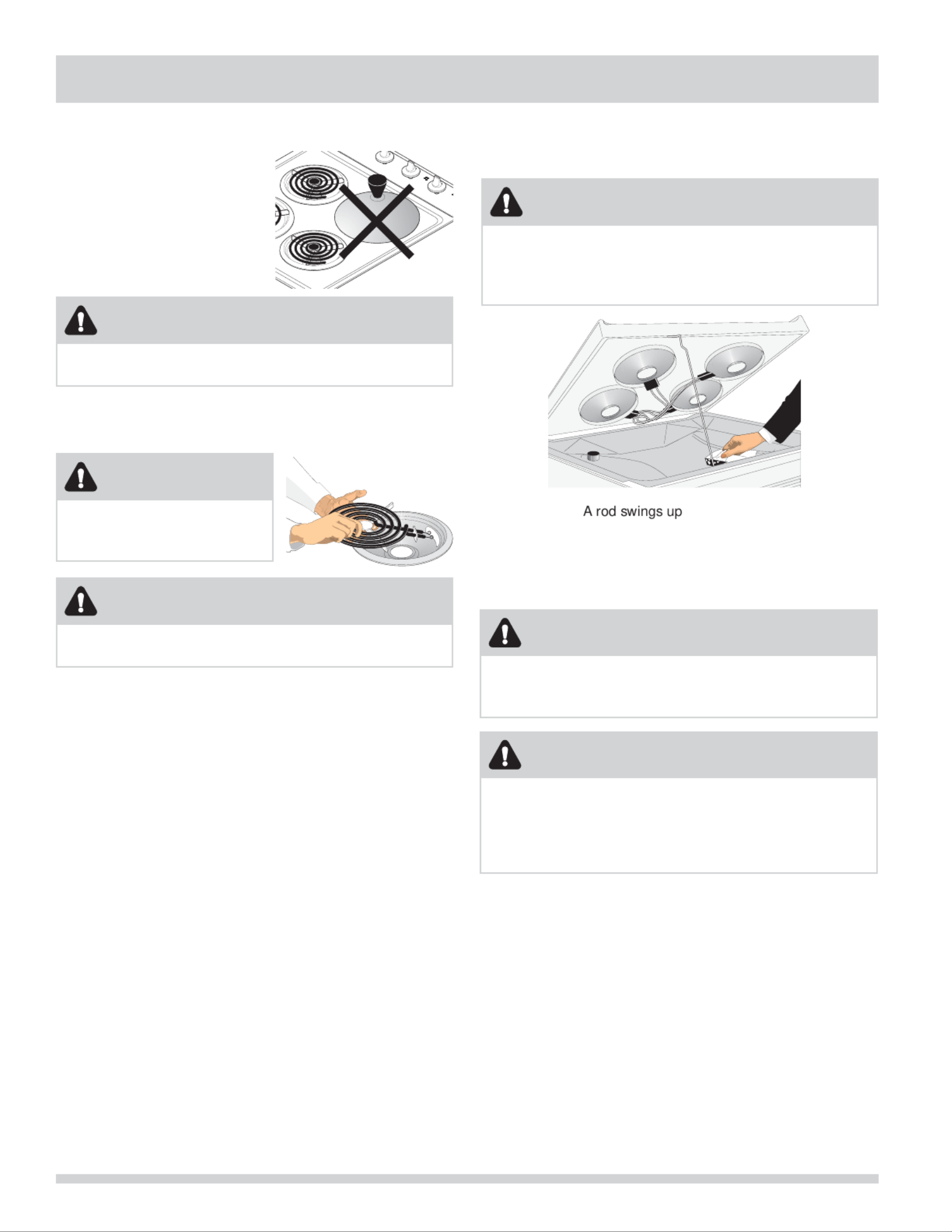

CARE & CLEANING
WARNING
Never leave covers on the coil elements as they could be
permanently damaged if turned on by accident.
WARNING
Do not use a cooktop cleaner on a hot cooktop.
The fumes can be hazardous to your health, and can
chemically damage the cooking surface.
CAUTION
Before cleaning the cooktop, be sure the controls are
turned to and the cooktop is COOL.OFF
CAUTION
When lowering the lift-up cooktop, grasp the sides with
fi ngertips only. Be careful not to pinch fi ngers. DO NOT
drop or bend the cooktop when raising or lowering. This
could damage the surface.
CAUTION
Before cleaning the surface cooktop, be sure the controls
are turned to OFF and the cooktop is cool.
DO NOT use commercial oven cleaners on the
exterior surfaces including cooktop and door frame.
Coil Elements Cooktop Cleaning
& Maintenance
Prior to cleaning the coil
elements make sure they are
cold and that control knobs
are set at OFF.
Never immerse the coil
elements in water.
To Remove and Replace Surface
Elements and Drip Bowls (some models)
To Remove
1. Lift up edge of surface element across from terminal
end just enough to clear the edge of the drip bowl.
2. Gently slide the surface element out of the terminal plug.
3. Lift the drip bowl up and out.
To Replace
1. Line up the opening of the drip bowl with the terminal plug.
2. Hold the surface element as level as possible and slide
the terminal end through the opening and into the
terminal plug.
3. Be sure the surface element is level to reduce the
hazard of pans sliding off the element.
To Raise the Top for Cleaning
1. Grasp the sides and lift from the front. Some models
may have a lift-up rod to support the top in its raised
position. Lift the top only high enough to allow the
support rod to fi t into place, then gently lower the
cooktop onto the raised rod.
2. Clean underneath using a clean cloth and hot, soapy
water.
3. Gently lower the cooktop into the frame. If your model
has a support rod, lower the support rod, then gently
lower the cooktop into the frame.
CAUTION
Be careful not to bend
terminal ends when replacing
elements after cleaning.
A rod swings up to support the
top for cleaning underneath.
Porcelain enamel cooktop cleaning
instructions (some models)
Correct and consistent cleaning is essential to maintaining
your porcelain enamel cooktop. If food spills and grease
spatters are not removed, they may burn onto the surface
of the cooktop and cause permanent discoloration.
Daily Cleaning
For normal soil:
1. Allow cooktop surface to cool.
2. Wipe off spills and spatters using a clean paper towel or
a clean cloth with warm, soapy water.
3. If needed, use a soapy steel wool pad or other mild
household cleaners.
4. Be sure to rinse off the cleaners or the porcelain may
become damaged during future heating.
Produkt Specifikationer
| Mærke: | Frigidaire |
| Kategori: | Komfur |
| Model: | FFES3025LB |
Har du brug for hjælp?
Hvis du har brug for hjælp til Frigidaire FFES3025LB stil et spørgsmål nedenfor, og andre brugere vil svare dig
Komfur Frigidaire Manualer
1 August 2025
1 August 2025
1 August 2025
1 August 2025
31 Juli 2025
31 Juli 2025
31 Juli 2025
31 Juli 2025
31 Juli 2025
31 Juli 2025
Komfur Manualer
- Webasto
- Melissa
- Candy
- Brandt
- Biltema
- Olympia Fires
- Rosieres
- AEG-Electrolux
- Eledi
- SilverCrest
- Ikea
- Salter
- Trotec
- Imarflex
- ElectriQ
Nyeste Komfur Manualer
18 August 2025
18 August 2025
18 August 2025
18 August 2025
18 August 2025
18 August 2025
18 August 2025
18 August 2025
18 August 2025
18 August 2025
