Side 1/12

User’s Manual

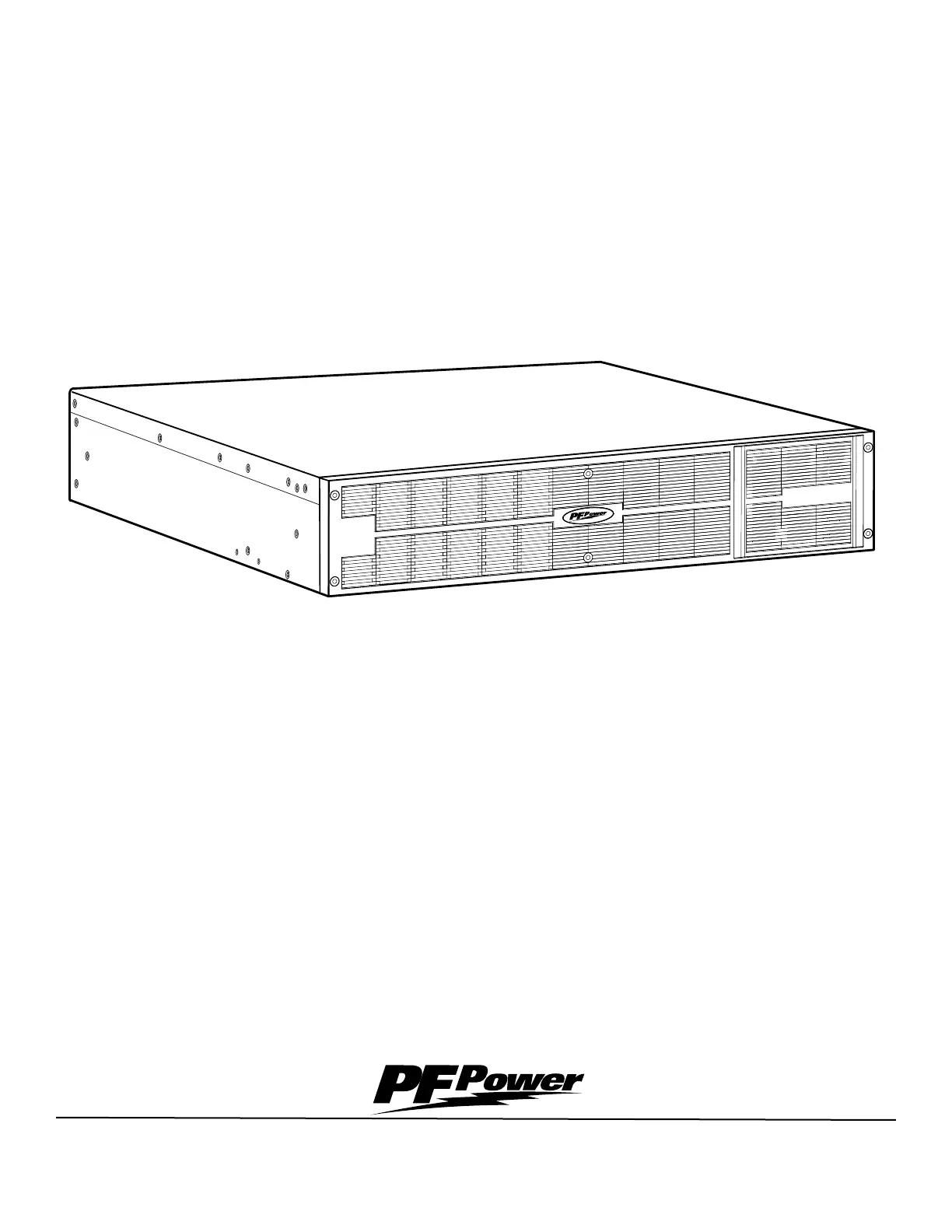

BATTERY PACK BATT1500-EXT

Panamax

Furman

Introduction

Overview:

The PFPower external battery pack (BATT1500-EXT) is designed for variety of Panamax and Furman UPS systems.

When combined with the UPS, the battery pack provides extended runtime with a 48V DC external connection.

Unpacking:

 •Twoadjustiblelengthrackmountingrailsandhardware

 •Twofrontmountingears

 •Oneuser’smanualbasicoperationguide

BATT1500-EXT

1690 Corporate Circle, Petaluma, CA 94954 www.panamax.com or www.furmansound.com

Phone: 707-283-5900 Fax: 707-283-5901

INS00857 REV. A ENGLISH

BANK 1 CRITICAL

LOAD

USB

IR1

IR OUT IR STAT US

IR2

15A PUSH

TO RESET

MAIN POWER

125 / 12A

COMMUNICATION CARD

EXTERNAL BATTERY

BANK 2 CRITICAL

LOAD

BANK 3

NON

CRITICAL

LOAD

BANK 4 NON

CRITICAL

LOAD

PUSH TO RESET, 15A

NON-CRITICAL LOAD

CRITICAL LOAD

OUTPUT:

48V ON

OFF

RED

BLACK

GREEN

Installation Guide

The UPS is supplied with rack mounting rails, mounting ears, and all the hardware.

Follow the below steps to complete the rack installation.

1. BATT1500-UPS must be installed directly underneath the UPS

2. Attach the mounting ears to each side of BATT1500-EXT

3. Attach the adjustable length rack mounting rails to the rack.

4. Slide the BATT1500-EXT into the rack on the rails

5. Use screws to secure the mounting ears to the rack

6. CAUTION! - Turn off the UPS that BATT1500-UPS will be connected to

7. CAUTION! - Switch the circuit breaker on BATT1500-UPS to the OFF position.

8. Connect the battery pack’s output cable assembly into the UPS’s input port

9. Ensure that the colors of the battery pack cable and UPS input port are

matched: red-red, black-black, green-green.

10. Switch the circuit breaker on BATT1500-EXT to the ON position

11. Turn on the UPS on.

12. In the UPS setup menu, conﬁgure the UPS to use an external battery pack. Refer to the UPS manual for details.

UPS

BATT1500-EXT

INSTALLING BATT1500-EXT INTO RACK

TURN UPS AND BATT1500-EXT OFF

CONNECT THE BATT1500-EXT TO THE UPS

TURN UPS AND BATT1500-EXT ON
