Side 1/14

DIN-00021-A ENGLISH 11-12

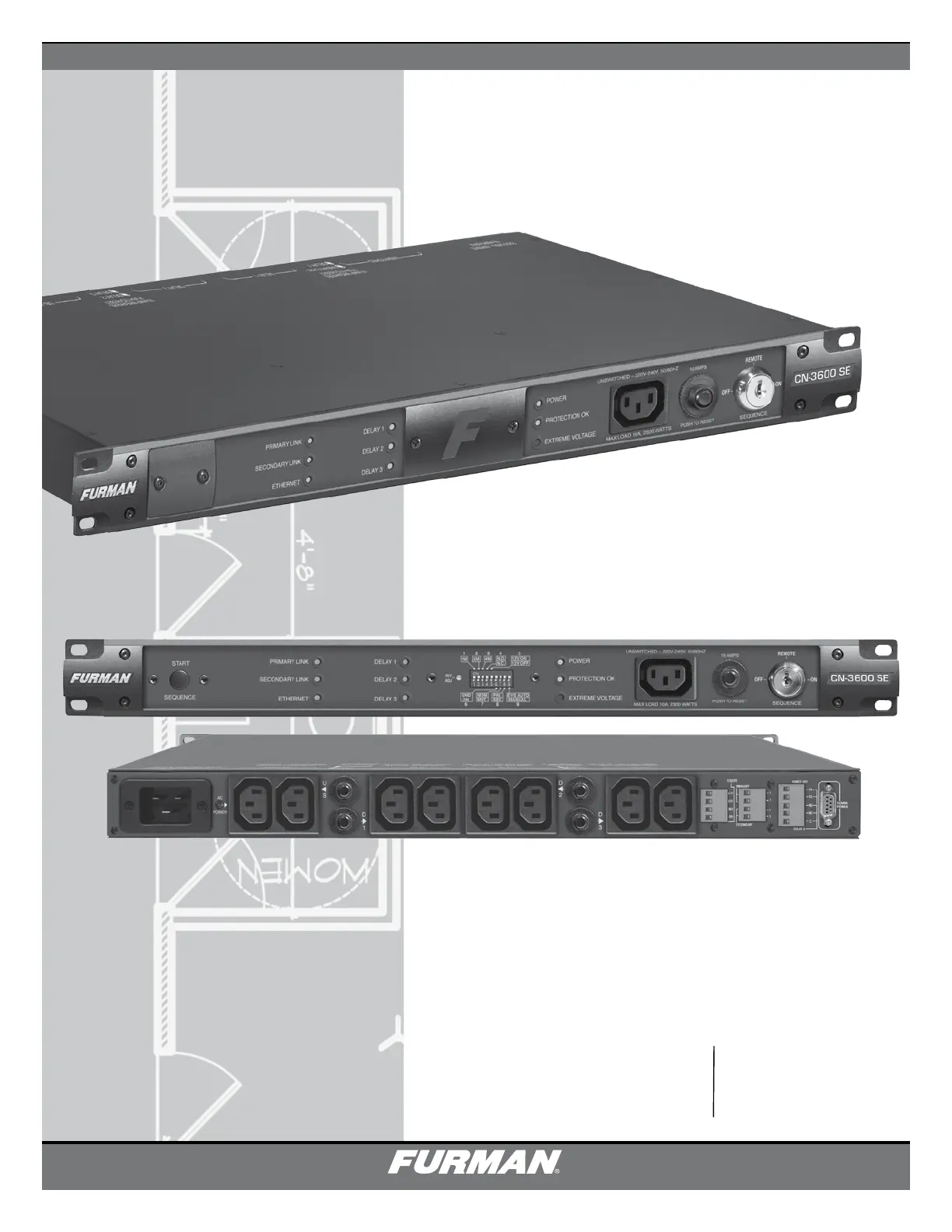

CN-3600SE

Instruction Manual

CN-3600SE

For additional information refer to the Quick Start

Guide, included with product packaging.

www.furmancontractor.com

16 A Maximum

For more information call:

Para más información llame al:

Pour plus de renseignements:

877-486-4738

CONTRACTOR SERIES SmartSequencer™

PRIMARY L INK

SECONDARY LINK

ETHERNET

DELAY 1

DELAY 2

DELAY 3

POWER

PROTECTION OK

EXTREME VOLTAGE

OFF

REMOT E

16 A MPS

PUSH TO RESET

UNSW ITC HED ~ 220V-240V, 50/60H z

MAX LOAD 10A , 2300 WATT S

SEQUENCE

AV equipment is most vulnerable and susceptible

to damage during those ﬁrst few milliseconds after

the power is turned on or off.

When audio ampliﬁers are powered, a large inrush

current occurs as the large capacitors in the power

supply charge. This inrush can be on the order of

several hundred amps for a number of AC cycles.

If more than one ampliﬁer is connected to a single

branch circuit, the inrush current is multiplied and

can cause the circuit breaker to trip, or the line volt-

age to sag. Additionally, if the ampliﬁer is powered

either before or concurrent with signal processing

equipment, the result can be a dreaded speaker

“pop”. This all-too familiar noise occurs as tran-

sients from the signal processing equipment ﬂow

uncontrolled to the inputs of the power ampliﬁer.

The ampliﬁer ampliﬁes this signal and passes the

transient “pop” along to the speakers. The result

can be catastrophic to both speaker and ampliﬁer.

Powering down A/V is equally as perilous. Unlike

other A/V equipment, the large capacitors found

in ampliﬁers will store their charge. This means

if signal processing devices and ampliﬁers are

switched off simultaneously, the ampliﬁers are still

operational as the signal processing equipment is

switched off. Just as with startup, the power down

phase can cause equipment to emit transients

which are ampliﬁed by the ampliﬁer, then propa-

gated to the speakers and “pop”!

AC Power sequencing addresses these problems

by powering up your equipment in stages. The

signal processing equipment is powered up ﬁrst

and allowed to stabilize, and then the ampliﬁers

are powered up. The ﬁrst stage signal processing

equipment may still emit transient noise upon pow-

er up, but because the ampliﬁers have yet to power

on, the transient signal passes without incident.

Power sequencing stages the activation of heavy

loads, which prevents nuisance breaker trips and

equipment damage due to line sags and brown-

outs. This means that inrush currents are offset

in time, rather than occurring simultaneously. This

can also be advantageous to upstream equipment

if the sequencer is supplementing other power

management such as a UPS or voltage regulator.

The Furman Contractor CN-3600SE provides three

delay stages. Each stage is independently fused

and protected. If three stages of power sequencing

are not enough for your application, you can chain

together multiple (up to 99) sequencers using Fur-

man’s exclusive SmartSequencing™ technology

for up to 297 independent stages! Please review

the reference materials for CN-3600SE thoroughly,

for a clear understanding of SmartSequencing

The box should contain the following items:

1) Contractor Series Quick Start Guide

2) Pair of Security Keys

3) Two removable Cover Shields and four screws

4) Three Phoenix –Type Connectors

Pair of Security Keys Two Removable Cover Shields and Four Screws 3 Phoenix Type Connectors

(2 four pin, 1 ﬁve pin)

At Furman Sound, we have spent the last 30 years

quietly obsessing about AC Power Quality and how

best to protect your professional equipment from

the noise and hazards of AC power. Over the years

we have developed a multitude of technologies

that have spared countless devices from damage

and earned the trust and respect of the Profes-

sional A/V industry. This manual will explain some

of the Furman technologies that have been incor-

porated into the design of the CN-3600SE. If you

are already a Furman customer you are probably

already familiar with our portfolio of protective

technologies. If this is your ﬁrst Furman Contractor

purchase, we appreciate your business. We have

spared no expense in making sure that your CN-

3600SE will perform admirably. Welcome Aboard!

Before You Begin Inspect Upon Receipt

Why choose Furman?

Why choose AC power sequencing?

CN-3600SE

Introduction

Congratulations and thank you for choosing the

Furman CN-3600SE. We assure you that your

sequencer will provide many years of trouble

free operation. The CN-3600SE is a 230VAC 16

Amp Contractor Grade Surge Protector and Power

Sequencer equipped with Furman’s exclusive

SmartSequencing™ technology. SmartSequenc-

ing™ deﬁnes a whole new level of power manage-

ment and control while streamlining installations

from start to ﬁnish.
