Side 1/8
2 PREPARE THE OPENING (FOR INDOOR USE ONLY)
See illustrations for all rough-in and spacing dimensions. The range may be placed with 0”
clearance (flush) at the back wall and side walls of the cabinet.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT — Save these
instructions for local inspector’s use.
• IMPORTANT — Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with Consumer.
• Note to Consumer – Keep these
instructions for future reference.
• Skill level – Installation of this appliance
requires basic mechanical skills and
advanced electrical skills.
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation
is not covered under Warranty.
Installation Instructions
Free-Standing and Front
Control Electric Ranges
MATERIALS YOU MAY NEED TOOLS YOU WILL NEED
(UL Listed 40 AMP)
4-Wire Cord 4’ long OR
3-Wire Cord 4’ long
Squeeze Connector
(For Conduit
Installations Only)
Drill with 1/8” Bit
Safety Glasses
Adjustable Wrench
Level
Tin Snips
Tape Measure
Pliers
1/4” Nut Driver
1 REMOVE PACKAGING MATERIALS: Failure to remove packaging
materials could result in damage to the appliance. Remove all packing parts from oven,
racks, heating elements and drawer. Also, remove protective film and labels on the outer
door, cooktop and control panel.
FOR YOUR SAFETY:
WARNING Before beginning
the installation, switch power off at
service panel and lock the service
disconnecting means to prevent power
from being switched on accidentally.
When the service disconnecting
means cannot be locked, securely
fasten a prominent warning device,
such as a tag, to the service panel.
If you did not receive an anti-tip bracket with your
purchase, call 1.800.626.8774 to receive one at no
cost. (In Canada, call 1.800.561.3344.) For installation
instructions of the bracket,
visit: www.GEAppliances.com.
(In Canada, www.GEAppliances.ca.)
Anti-Tip Bracket
Kit Included
21»2” (31»4” on
double ovens)
21»2” (31»4” on
double ovens)
(73»4” on
double
ovens)
61
»2”
25”
(23” on
double
ovens)
REAR CONTROL
FRONT CONTROL
NOTE: Use a 4’ power cord to prevent interference
with the storage drawer. Power cords 4
1»2’ to 6’ long
may have to be dressed to allow for proper drawer
closing.
MINIMUM DIMENSIONS BETWEEN COOKTOP,
WALLS AND ABOVE THE COOKTOP:
A. Make sure the wall covering, countertop, flooring
and cabinets around the range can withstand
the heat (up to 200°F) generated by the range.
B. Allow 30” minimum clearance between surface
units and bottom of unprotected wood or metal
cabinet, or allow a 24” minimum when bottom
of wood or metal cabinet is protected by no
less than 1/4” thick flame retardant millboard
covered with not less than No 28 MSG sheet
metal, (.015”), .015” thick stainless steel, .024”
aluminum or .020” copper.
Acceptable electrical
outlet area. Orient
electrical receptacle
so the length is
parallel to floor.
Use a flush mount
outlet for double
oven models.
C. This appliance has been approved for 0” spacing to adjacent surfaces above the cooktop.
However, a 6” minimum spacing to surfaces less than 15” above the cooktop and adjacent
cabinet is recommended to reduce exposure to steam, grease splatter and heat.
To reduce the risk of burns or fire when reaching over hot surface elements, cabinet storage
space above the cooktop should be avoided. If cabinet storage space is to be provided above
the cooktop, the risk can be reduced by installing a range hood that projects at least 5” beyond
the front of the cabinets. Cabinets installed above the cooktop must be no deeper than 16”.
4” (3”
on double
ovens)
30”
Unit will not mount flush
to counter when heights
are less than 36”.
A
NOTE C
B
A
C
Both
Sides
297»8”
36”
451
»8” (477»8” on
single oven)
297»8”
36
5»8”
47”
(36” to
cooktop
height)
475»8”
(451»8” on
double oven)
297»8”
(253»4” on
double oven)
NOTE:
Rear wall
to front
of door
glass.
NOTE:
Rear wall
to front
of door
glass.
251»2”
253
»4”
• A child or adult can tip the range and be killed.
• Install the anti-tip bracket to the wall or floor.
• Engage the range to the anti-tip bracket by sliding the
range back such that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns
to children or adults.
Tip-Over Hazard
WARNING
NOTE: If using a GFI breaker, the ground wire must be installed correctly to prevent breaker
from tripping. Refer to latest edition of the NEC, NFPA No. 70, available from the National Fire
Pr .
ELECTRICAL REQUIREMENTS
WARNING This appliance must be properly grounded.
WARNING All new constructions, mobile homes, recreational vehicles and installations
where local codes do not allow grounding through neutral, require a 4-conductor UL-listed range
cord.
WARNING To prevent fire or shock, do not use an extension cord with this appliance.
WARNING To prevent shock, remove house fuse or open circuit breaker before beginning
installation.
We recommend you have the electrical wiring and hookup of your range connected by a qualified
electrician. After installation, have the electrician show you how to disconnect power from the
range.
You must use a single-phase, 120/208 VAC or 120/240 VAC, 60 hertz electrical system. If you
connect to aluminum wiring, properly installed connectors approved for use with aluminum wiring
must be used.
Effective January 1, 1996, the National Electrical Code requires that new construction (not existing)
utilize a 4-conductor connection to an electric range. When installing an electric range in new
construction, mobile home, recreational vehicle, or an area where local codes prohibit grounding
through the neutral conductor, refer to the section on four-conductor branch circuit connections.
Check with your local utilities for electrical codes which apply in your area. Failure to wire your oven
according to governing codes could result in a hazardous condition. If there are no local codes,
your oven must be wired and fused to meet the National Electrical Code, NFPA No. 70 – latest
edition, available from the National Fire Protection Association.
This appliance must be supplied with the proper voltage and frequency, and connected to an
individual, properly grounded, 40 amp (minimum) branch circuit protected by a circuit breaker or
time-delay fuse.
Use only a 3-conductor or a 4-conductor UL-listed range cord. These cords may be provided with
ring terminals on wire and a strain relief device.
A range cord rated at 40 amps with 125/250 minimum volt range is required. A 50 amp range
FRUGLVQRWUHFRPPHQGHGEXWLIXVHGLWVKRXOGEHPDUNHGIRUXVHZLWKQRPLQDO»´GLDPHWHU
connection openings. Care should be taken to center the cable and strain relief within the knockout
hole to keep the edge from damaging the cable.
The rating plate is located on the oven frame or on the drawer frame.
NOTE: If using a GFI breaker, the ground wire must be installed correctly to prevent breaker from
tripping. Refer to latest edition of the NEC, NFPA No. 70, available from the National Fire Protection
Association.

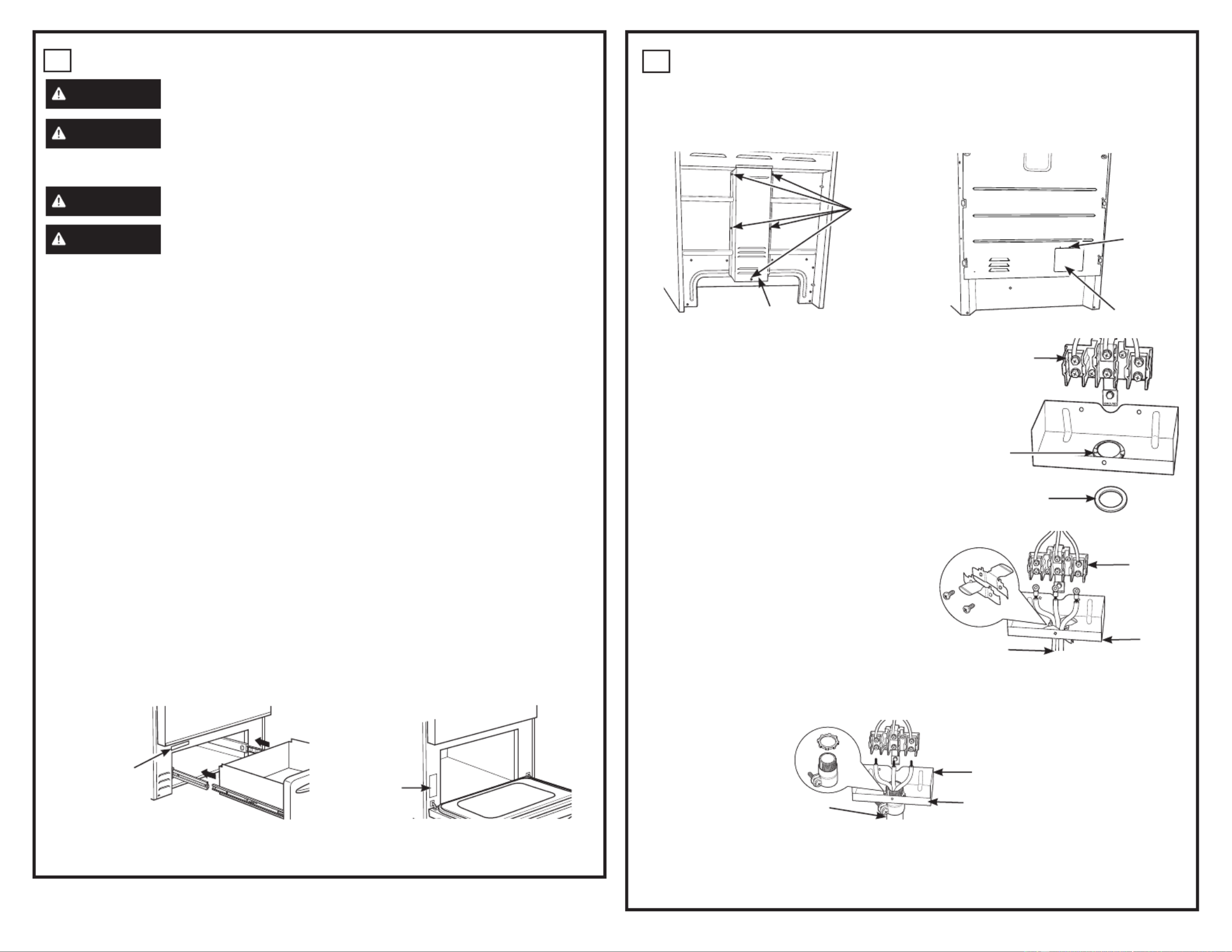

34 POWER CORD AND CONDUIT INSTALLATION
A. Remove wire cover (on the back of range) by removing screws using a 1/4” nut driver. You can
access the terminal block by either removing a terminal block cover (on some models) or the
wire cover. Do not discard these screws.
B. For power cord and 1” conduit only, remove the
knockout ring (13»8”) located on bracket directly below
the terminal block. To remove the knockout, use a
pair of pliers to bend the knockout ring away from the
bracket and twist until ring is removed.
C. For power cord installations only (see the next step if
using conduit), assemble the strain relief in the hole.
Insert the power cord through the strain relief and
tighten. Allow enough slack to easily attach the cord
terminals to the terminal block. If tabs are present
at the end of the winged strain relief, they can be
removed for better t.
NOTE: Do not install the power cord without
a strain relief. The strain relief bracket MUST
be installed before reinstalling the rear range
wiring cover.
D. For 3/4” conduit installations only, purchase a
squeeze connector matching the diameter of
your conduit and assemble it in the hole. Insert
the conduit through the squeeze connector and
tighten. Allow enough slack to easily attach the
wires to the terminal block. NOTE: Do not install the conduit without a squeeze connector.
The squeeze connector MUST be installed before reinstalling the rear range wire or terminal
block cover.
E. Replace wire cover on range back and replace the screws removed earlier. Make sure that
no wires are pinched between cover and range back. Replace the terminal block cover if it was
removed.
Wire cover
5 screws
to remove
wire cover
Back of range
Terminal block cover
Screw to
remove
terminal
block cover
Back of range
Knockout
ring in
bracket
Knockout ring
removed
Terminal block
(appearance
may vary)
Power cord
Strain relief
Terminal
block
Bracket
Squeeze
connector Terminal block
Conduit Bracket
PROCEED TO STEP 5 OR 6.
Rating plate
SINGLE OVEN
Rating plate
DOUBLE OVEN
