Installation
Instructions
• Before you begin—Read these instructions completely and carefully.
• IMPORTANT–Save these instructions for local inspector’s use.
• IMPORTANT–OBSERVE ALL GOVERNING CODES AND ORDINANCES.
• Note to Installer–Be sure to leave these instructions with the Consumer.
• Note to Consumer–Keep these instructions with your Owner’s Manual for future reference.
Built-In
Dishwasher
Installation of this dishwasher requires basic mechanical,
electrical and plumbing skills. Proper installation is the
responsibility of the installer. Product failure due to improper
installation is not covered under the GE Appliance Warranty.
See the Owner s Manual for warranty information.‘
The dishwasher MUST be installed to allow for future removal
from the enclosure if service is required.
MATERIALS YOU WILL NEED:
Materials required:
90° elbow
(3/8" NPT external thread on one end and opposite
end sized to fit water supply)
Thread seal tape
UL Listed wire nuts (3)
GPF65 Side-mount bracket kit for use with granite
countertops
For new installations only:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord, if applicable
Screw type hose clamps
Strain relief for electrical connection
Hand shut-off valve (recommended)
Water line 3/8" min. copper
Coupler for extending drain line, if applicable
Electrical Cable
or Power Cord
TOOLS YOU WILL NEED:
Tools required:
Phillips head and flat blade screwdrivers
Adjustable wrench (6")
Level
Carpenters square
Measuring tape
Safety glasses
Flashlight
Gloves
For new installations only:
Tubing cutter
Drill and appropriate bits
Hole saw set
CAUTION:
PARTS SUPPLIED FOR INSTALLATION:
Two Phillips head wood screws taped to dishwasher
Drain Hose
Hose Clamp
Hot Water Line
Wire Nuts
Thread Seal
Tape
Strain Relief
Drain Hose
Shut-Off
Valve
Coupler
Waste
Tee
Air
Gap
If you have questions, call 800.GE.CARES (800.432.2737)
or visit our website at: www.ge.com
If you received a damaged dishwasher,
you should immediately contact your
dealer or builder.
Hose Clamp Wood Screws
Screw Type Clamps
90° Elbow
GPF65 Side-Mount
Bracket Kit
Flashlight Hole
Saw Set
Safety Glasses
Measuring Tape Level
Adjustable
Wrench Drill
and Bits
Phillips Head
Screwdriver
Tubing
Cutter
Gloves
Flat Blade Screwdriver
Square

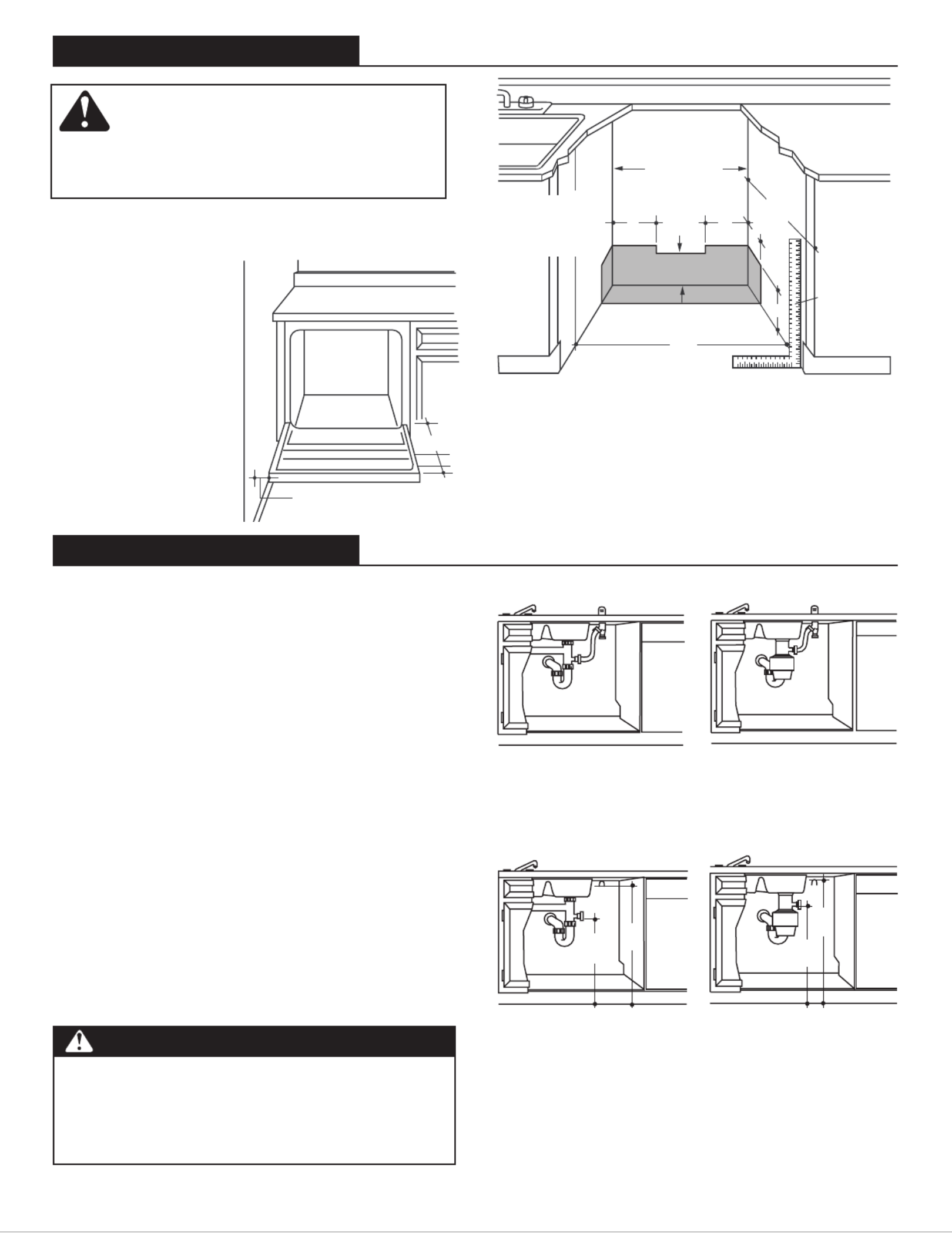

PREPARE DISHWASHER ENCLOSURE
• The rough cabinet opening must have a minimum width and
depth of 24", and approximately 34-1/2" high from floor to under-
side of the countertop.
Figure A
• The back wall should be
free of pipes or wires.
Figure A
• Adjacent cabinets should
be square and plumb to
ensure a good fit. Figure A
• For corner installation,
allow 2" min. clearance
between dishwasher and
adjacent cabinet or wall
or other appliances.
Figure B
2
Figure B
CAUTION
An air gap MUST BE USED if the drain hose is connected to
waste tee or disposer lower than 18" above the floor level.
Failure to provide the proper drain connection height with air
gap or 32" minimum, high drain loop will result in improper
draining of the dishwasher which may cause damage.
PREPARE DRAIN PLUMBING
DRAIN REQUIREMENTS
• Follow local codes and ordinances.
• Dishwasher drain hose must not exceed 10 feet in length for
proper drainage.
• Dishwasher must be connected to waste line with an air gap
(not supplied) or 32" minimum, high drain loop depending on
local codes and ordinances to prevent back flow into the
dishwasher.
• Air gap must be used if waste tee or disposer connection is
less than 18 inches above floor to prevent siphoning.
DRAIN PREPARATION
The type of drain installation depends on answers to the follow-
ing questions:
Do local codes or ordinances require an air gap?
Will waste tee or disposer connection be less than 18" above
floor?
Will installation have a drain loop less than 32" above floor?
If the answer to of the 3 questions above is ANY YES, Method 1
MUST be used. Otherwise either Method 1 or Method 2 may be
used. Figure C or Figure D.
METHOD 1 Air Gap with Waste Tee or Disposer–
Figure A
Install waste tee or disposer and air gap according to
manufacturer’s instructions.
CABINET PREPARATION
Drill 1-1/2" inch diameter hole in the cabinet wall within the
shaded area shown in Figure A for the drain hose. Make sure
there are no sharp edges. Drain hose will be passed through
this hole and connected to the drain in a later step.
Disposer Installation
METHOD 2–High Drain with Waste Tee or Disposer
Provide a method to attach drain hose to underside of
countertop. Attachment will be made in a later step.
Waste Tee Installation Figure C
Waste Tee Installation Disposer Installation
Figure D
25"
Countertop
Dishwasher
Clearance for Door
Opening 2" Minimum
24"
Min.
This Wall Area
must be Free of
Pipes or wires
Plumbing and Electric Service
Must Enter Inside This Area
34-1/2"±1/4"
Underside of
Countertop
to Floor
4"
24"
Min.
6"
5" 5"
4"
Cabinets Square
and Plumb
32"
Min.
18"
Min.
32"
Min.
18"
Min.
To reduce the risk of shock, fire, or injury to persons, the
installer must ensure that the dishwasher is completely
enclosed at the time of installation.
WARNING
• Make sure the floor is level inside the opening and even with
the finished floor of the kitchen.
• The dishwasher must be installed no more than 10 feet from sink
for proper drainage.
• This dishwasher must be fully enclosed on the top, sides and
back.
• The dishwasher must not support any part of the enclosure.
