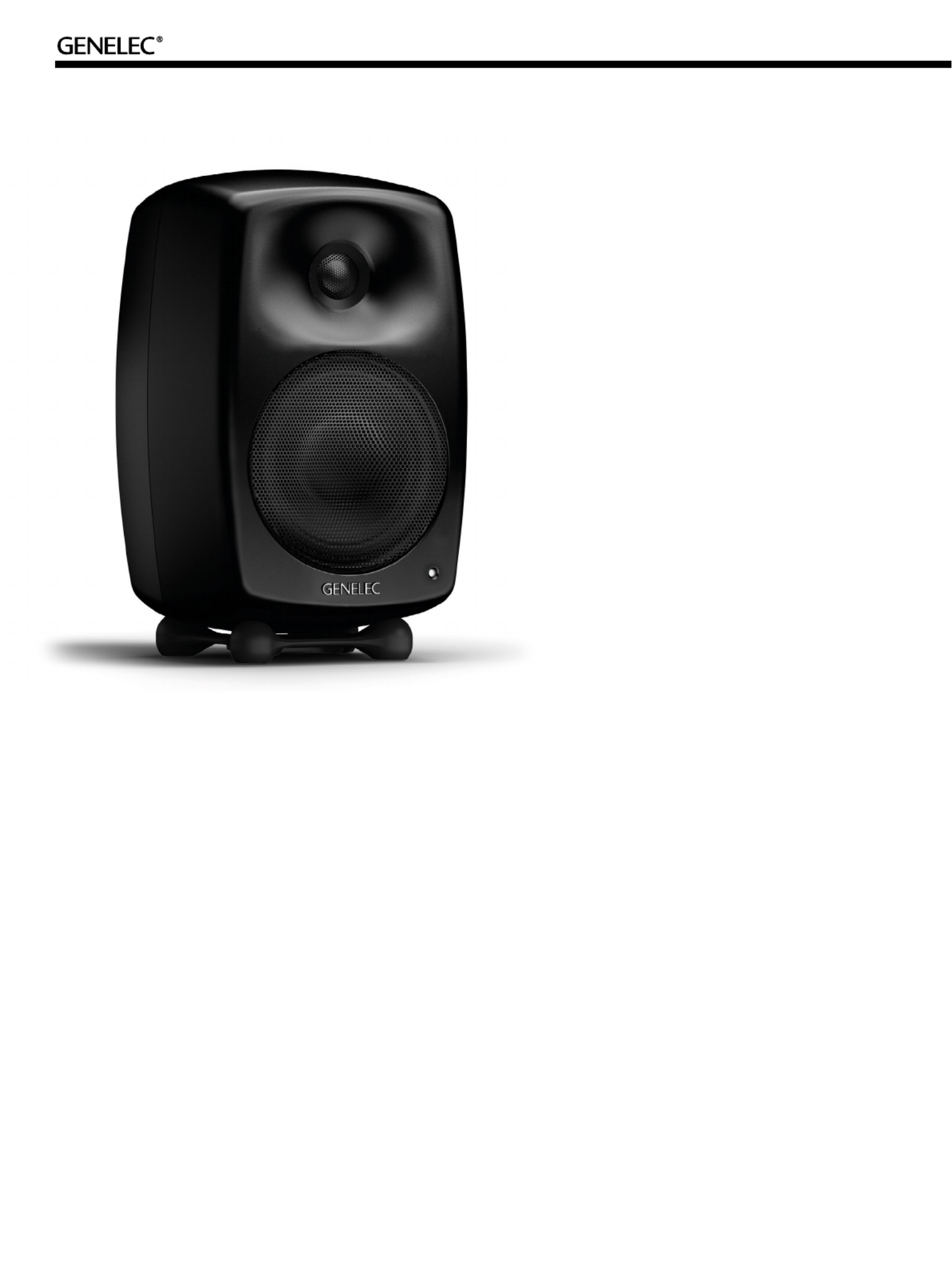

Side 1/16

Operating Manual

Käyttöohje

操作手册

G Three

G Four

G Five

General description

Genelec G Three, G Four and G Five are two

way active loudspeakers designed to produce

broad bandwidth sound with high output and

low coloration.

Positioning the loudspeaker

Each loudspeaker is supplied with a

built-in amplifier unit, mains cable and an

operating manual. After unpacking, place

the loudspeakers in their required listening

positions, pointing them to the center of the

listening area. If possible, place the listening

position along the middle axis of the room and

the loudspeakers at equal distance from the

side walls.

Connections

Before connecting up, ensure that the power

switches on the loudspeakers and the signal

source are set to OFF. The power switch is

located on the back panel of the loudspeaker.

Do not connect the loudspeaker to an

unearthed mains supply or using an unearthed

mains cable.

Audio input is via a 10 kOhm balanced

female XLR connector or unbalanced RCA

connector. Only line level audio signal from a

preamplier, computer sound card or similar

signal source can be connected, never a high

power signal from the speaker terminals of a

power amplier. It is possible to connect two

audio sources to the loudspeakers at the same

time using both connectors, as long as only

one source is used at a time.

Once the connections have been made, the

loudspeakers are ready to be switched on.

ISS Autostart function

Genelec G Three, G Four and G Five a have

a power switch on the back panel. Set this

switch to “OFF” when the loudspeakers are left

unused for several days or when connecting or

disconnecting any cables in the system.

When the switch is set to “ON”, the

signal sensing ISS Autostart function of the

loudspeakers powers them up when playback

begins. Automatic powering down of the

loudspeakers happens one hour after the

playback has ended and the loudspeakers

go to standby mode. The power consumption

in standby mode is less than 0.5 watts. The

loudspeaker will automatically and rapidly

start once an input signal is detected from the

source.

Model G Three has a switch that can be

used to activate or deactivate the ISS function.

Setting the playback level

The playback level of the loudspeakers has

two basic settings, normal and +10 dB on the

G Four and Five and normal and -10 dB on G

Three. The normal setting is factory default and

the +10 or -10 dB setting can be selected by

turning the corresponding switch on the back

panel to “ON”. This adjustment is used for

matching the loudspeaker to the signal source

so that it plays at a convenient volume.

Switching off the power

indicator LED

The power indicator LED can be switched off

by turning the “LED OFF” switch on the back

panel to “ON”.

Produkt Specifikationer

Mærke:	Genelec
Kategori:	Højttaler
Model:	G Four
Bredde:	237 mm
Dybde:	223 mm
Højde:	365 mm
Vægt:	8600 g
Produktfarve:	Hvid
Udgangseffekt (RMS):	- W
Anbefalet brug:	Universel
Frekvensområde:	45 - 21000 Hz
Impedens:	- ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	1.0 kanaler
Højttaler, placering:	Bordplade/bogreol
Diskanthøjttaler:	Ja
Sensitivitet:	105 dB
Diskant diameter:	0.75 "
Bashøjttaler:	Ja
Woofer diameter (britisk mål):	6.5 "
XLR indgang:	Ja
Audio RCA-indgange:	1
Egnet til udendørs brug:	Ingen
