BIOS Setup - 108 -
Parameter Description
Processor ODT impedance
Select the ODT impedance for all DBYTE IOs.
Options available: Auto, High Impedance, 480 ohm, 240 ohm, 160 ohm,
120 ohm, 96 ohm, 80 ohm, 68.6 ohm, 60 ohm, 53.3 ohm,48 ohm, 43.6 ohm,
40 ohm, 36.9 ohm, 34.3 ohm, 32 ohm, 30 ohm, 28.2 ohm, 26.7 ohm,
25.3 ohm. Default setting is Auto.
Dram DQ drive strengths
Select the Dram Pull-up and Pull-Down Output Driver Impedance for all DQ
and DMI IOs..
Options available: Auto, 48 ohm, 40 ohm, 34 ohm, Default setting is Auto.
BIOS Setup - 109 -

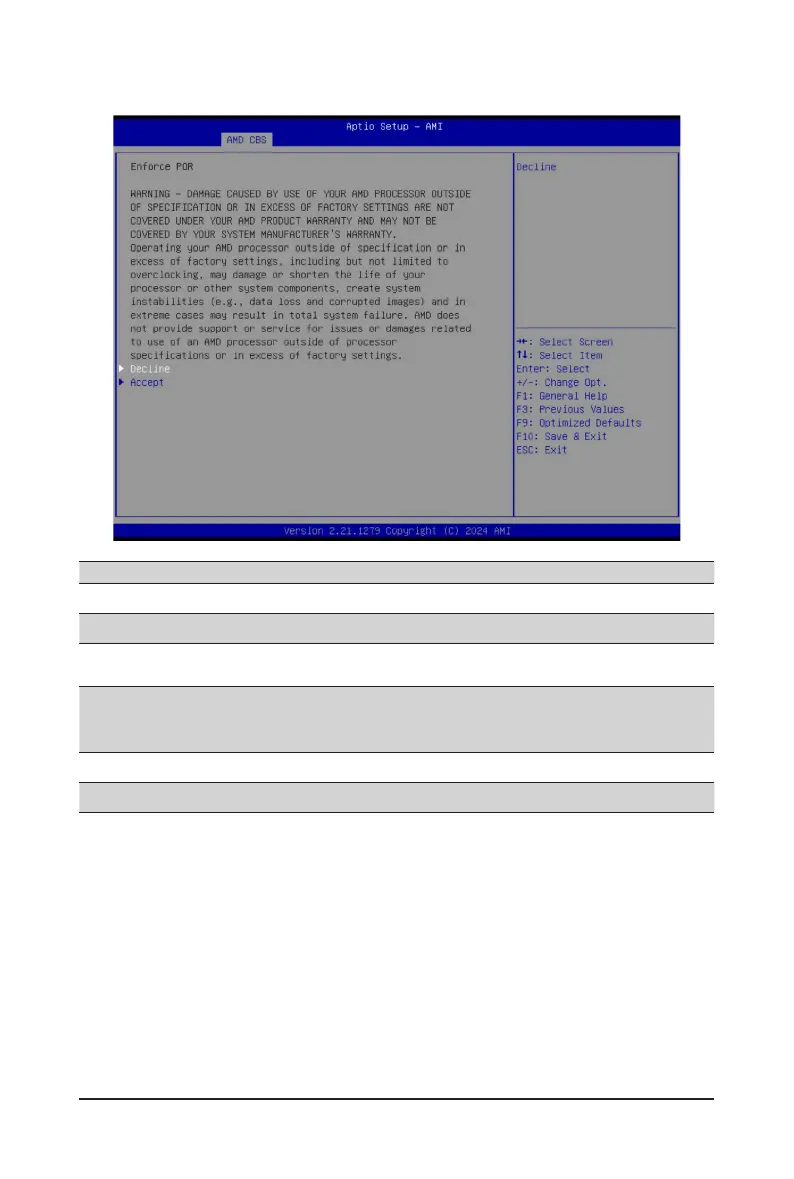

2-3-3-6 Enforce POR
(Note) Advanced items prompt when this item is dened.
Parameter Description
Enforce POR Decline/Accept to congure the advanced items.
Accept
Active Memory Timing
Settings
(Note)
Active memory Timing Settings.
Options available: Auto, Enabled. Default setting is Auto.
Memory Target Speed
Species the memory target speed in MT/s.
Options available: Auto, DDR3200, DDR3600, DDR4000, DDR4400,
DDR4800, DDR5200, DDR5600. Default setting is Auto.
SPD Timing Press [Enter] to congure advanced items.
Non-SPD Timing Press [Enter] to congure advanced items.
BIOS Setup - 110 -

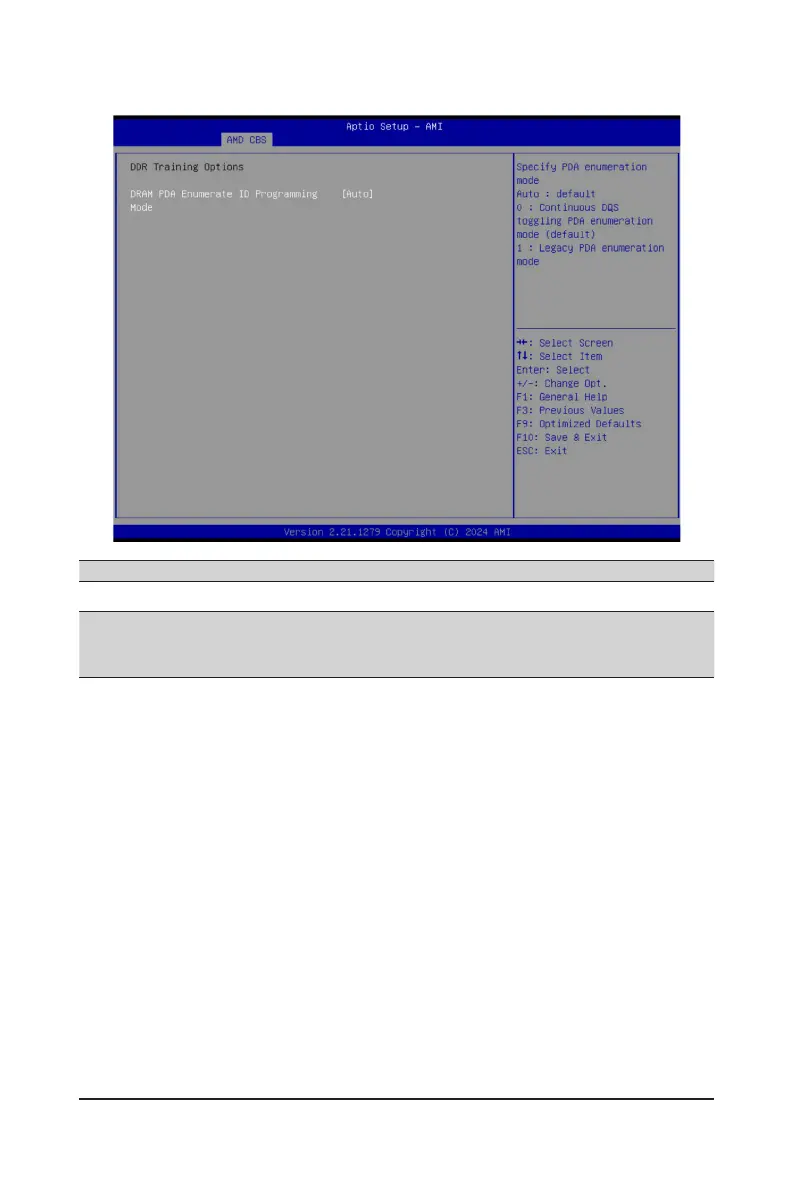

2-3-3-7 DDR Training Options
Parameter Description
DDR Training Options
DRAM PDA Enumerate ID
Programming Mode
Specify PDA enumeration mode.
Options available: Auto, Toggling PDA enumeration mode, Legacy PDA
enumeration mode. Default setting is Auto.
BIOS Setup - 111 -
Parameter Description
Security
TSME
Enable/Disable Transparent SME.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
AES Options available: AES-128, AES-256. Default setting is AES-256.
Data Scramble
Enable/Disable Data Scrambling.
Options available: Enabled, Disabled. Default setting is Enabled.
SME-MK Options available: Enabled, Disabled. Default setting is Disabled.

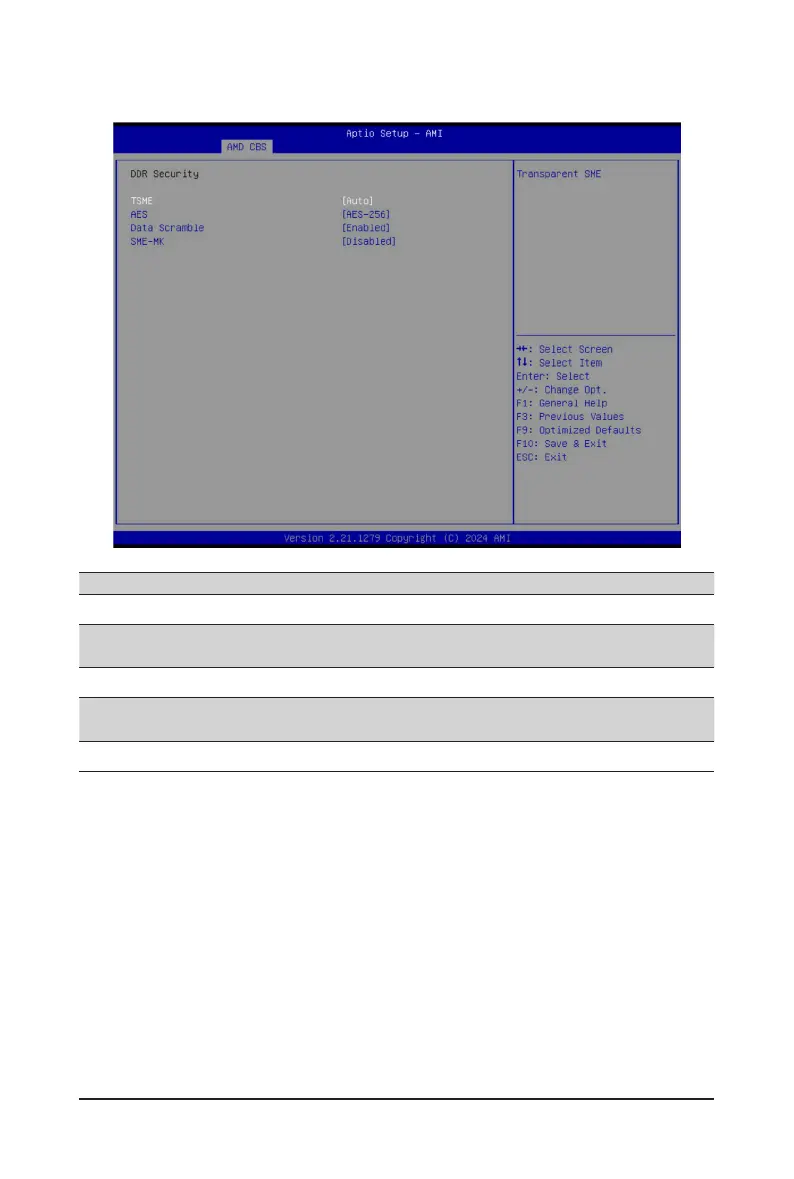

2-3-3-8 DDR Security
BIOS Setup - 112 -
2-3-3-9 DDR PMIC Conguration
Parameter Description
DDR PMIC Conguration
PMIC Error Reporting
Enables support for PMIC Error Reporting.
Options available: Auto, False, True. Default setting is Auto.
PMIC Operation Mode
Options available: Secure Mode, Programmable Mode.
Default setting is Programmable Mode.
PMIC Fault Recovery Options available: Always, Never, Once. Default setting is Always.
PMIC SWC VDDIO Default setting is 1100.
PMIC SWA/SWB VDD Core Default setting is 1100.
PMIC Stagger Delay Default setting is 5.
Max PMIC Power On Default setting is FF.
BIOS Setup
- 114 -
2-3-3-11 DDR PHY (CMN)
Parameter Description
DDR PHY (CMN)
Periodic Training
(Note)
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Periodic Training Interval Species the Periodic Training interval in millisecond.
(Note) Advanced items prompt when this item is dened.
BIOS Setup
- 115 -
2-3-4 NBIO Common Options
BIOS Setup
- 116 -
Parameter
Description
NBIO Common Options
IOMMU
Enable/Disable the IOMMU function.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
DMAr Support
Enable/Disable DMAr system protection during POST.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
DMA Protection
Enable/Disable DMA remap support in IVRS IVinfo Field.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
DRTM Virtual Device
Support
Enable/Disable DRTM ACPI virtual device.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
DRTM Memory
Reservation
Enable/Disable DRTM Memory reservation.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACS Enable
Enable/Disable ACS.
Options available: Enabled, Disabled, Auto. Default setting is Auto.
PCIe ARI Support
Enable/Disable Alternative Routing-ID Interpretation.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
PCIe ARI Enumeration
ARI Forwarding Enable for each downstream port.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
PCIe Ten Bit Tag Support
Enable/Disable PCIe ten bit tags for supported devices. (Auto=Disabled)
Options available: Disabled, Enabled, Auto. Default setting is Auto.
SMU Common Options Press [Enter] for conguration of advanced items.
NBIO RAS Common
Options
Press [Enter] for conguration of advanced items.
Enable AER Cap
Enable/Disable Advanced Error Reporting Capability.
Options available: Enable, Disabled, Auto. Default setting is Auto.
Early Link Speed
Congures Early Link Speed.
Options available: Auto, Gen1, Gen2. Default setting is Auto.
Hot Plug Handling mode
Controls the Hot Plug Handling mode.
Options available: OS First, Firmware First/EDR if OS supports, Firmware
First but allow OS First, System Firmware Intermediary, Auto. Default setting
is Auto.
Hot Plug Allow FF in
Synchronous
Allows rmware rst hot plug handling mode to operate in mode A and mode
B synchronous mappings.
Options available: Disabled, Enabled. Default setting is Disabled.
Presence Detect Select
mode
Controls the Presence Detect Select mode.
Options available: OR, AND, In-Band Only, Out-of -Band Only, Auto. Default
setting is Auto.
BIOS Setup
- 117 -
Parameter
Description
Data Link Feature Cap
Enable/Disable the data link feature capability.
Options available: Enabled, Disabled, Auto. Default setting is Auto.
CV test
Enable/Disable the running PCIE CV tool support.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
SEV-SNP Support
Enable/Disable the SEV-SNP support.
Options available: Disable, Enable. Default setting is Disable.
Allow Compliance
When enabled, allows the PCIe RP to enter Polling.Compliance state.
Options available: Auto, Disable, Enable. Default setting is Auto.
SRIS Options available: Auto, Disable, Enable. Default setting is Auto.
Multi Upstream Auto
Speed Change
Denes the setting of this feature for all PCIe devices.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
Multi Auto Speed Change
On Last Rate
Options available: Disable, Enable, Auto. Default setting is Auto.
PCIE Link Speed
Capability
Options available: Maximum speed, Gen1, Gen2, Gen3, Gen4, Gen5, Auto.
Default setting is Auto.
RTM Margining Support Options available: Disable, Enable, Auto. Default setting is Auto.
EQ Bypass To Highest
Rate
Options available: Disable, Enable, Auto. Default setting is Auto.
Non-PCIe Compliant
Support
Options available: Disable, Enable, Auto. Default setting is Auto.
PCIE Idle Power Setting
Modify PCIE Power Savings Features that can impact lightly loaded latency.
Options available: Optimize for Latency, Optimize for Perf/Power.
Default setting is Optimize for Latency.
nBif Common Options Press [Enter] for conguration of advanced items.
Link EQ Preset Options Press [Enter] for conguration of advanced items.
Enable 2 SPC (Gen4)
Enable this setting to use 2 symbols per clock for devices at Gen4 speed.
Options available: Auto, Enabled. Default setting is Auto.
BIOS Setup
- 118 -
2-3-4-1 SMU Common Options
Parameter
Description
SMU Common Options
Power Policy Quick
Setting
Options available: Standard, Best Performance, Energy Efcient.
Default setting is Standard.
TDP Control
Options available: Manual, Auto. Default setting is Auto.
PPT Control
Options available: Manual, Auto. Default setting is Auto.
Determinism Control
Selects use the fused Determinism or set customized Determinism.
Options available: Manual, Auto. Default setting is Auto.
xGMI Link Width Control Options available: Manual, Auto. Default setting is Auto.
APBDIS Options available: 0, 1, Auto. Default setting is Auto.
DfPstate Range Support Options available: Disable, Enable, Auto. Default setting is Auto.
Power Prole Selection
Options available: High Performance Mode, Efciency Mode, Maximum IO
Performance Mode, Balanced Memory Performance Mode.
Default setting is High Performance Mode.
BoostFmaxEn Options available: Manual, Auto. Default setting is Auto.
DF PState Frequency
Optimizer
Options available: Auto, Enabled, Disabled. Default setting is Auto.
DF Cstates Options available: Disabled, Enabled, Auto. Default setting is Auto.
BIOS Setup
- 119 -
Parameter
Description
CPPC
Enable/Disable the CPPC feature.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
HSMP Support
Enable/Disable the HSMP support.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
SVI3 SVC Speed Control Options available: Auto, Manual. Default setting is Auto.
3D V-Cache Options available: Auto, Disable, 1 stack. Default setting is Auto.
Diagnostic Mode Options available: Disabled, Enabled, Auto. Default setting is Auto.
PCIE Speed PMM
Control
Options available: Dynamic link speed determined by Power Management
functionality, Static Target Link Speed (GEN4), Static Target Link Speed (GEN5),
Auto. Default setting is Auto.
BIOS Setup
- 120 -
2-3-4-2 NBIO RAS Common Options
Parameter
Description
NBIO RAS Common Options
NBIO RAS Control Options available: Disabled, MCA, Auto. Default setting is Auto.
Egress Poison Severity High
Congures the Egress Poison High Severity. Each bit set to 1 enables
High severity on the associated IOHC egress port. A bit of 0 indicates
LOW severity.
Egress Poison Severity Low
Congures the Egress Poison Low Severity. Each bit set to 1 enables High
severity on the associated IOHC egress port. A bit of 0 indicates LOW
severity.
NBIO SyncFlood Generation
The value may be used to mask SyncFlood caused by NBIO RAS options.
Options available: Enabled, Disabled, Auto. Default setting is Auto.
NBIO SyncFlood Reporting
The value may be used to enable SyncFlood reporting to APML.
Options available: Enabled, Disabled, Auto. Default setting is Auto.
Egress Poison Mask High
Enables mask for masking of errors logged in EGRESS_POISON_
STATUS. For each bit set to 1, errors are masked. For each bit set to 0,
errors trigger response actions.
Egress Poison Mask Low
Enables mask for masking of errors logged in EGRESS_POISON_
STATUS. For each bit set to 1, errors are masked. For each bit set to 0,
errors trigger response actions.
BIOS Setup
- 121 -
Parameter
Description
Uncorrected Converted to
Poison Enable Mask High
Enables mask for masking of uncorrectable parity errors on internal
arrays.
Uncorrected Converted to
Poison Enable Mask Low
Enables mask for masking of uncorrectable parity errors on internal
arrays.
System Hub Watchdog Timer
Species the timer interval of the SYSHUB Watchdog timer in
milliseconds.
PCIe Aer Reporting
Mechanism
Selects the method of reporting AER errors from PCI Express.
Options available: Firmware First, Firmware First but allow OS First, OS
First, Auto. Default setting is Auto.
Edpc Control Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACS RAS Request Value
Options available: Direct Request Access Enabled, Request Blocking
Enabled, Request Redirect Enabled, Auto. Default setting is Auto.
NBIO Poison Consumption Options available: Auto, Enabled, Disabled. Default setting is Auto.
Sync Flood on PCIe Fatal
Error
Options available: Auto, True, False. Default setting is Auto.
BIOS Setup
- 122 -

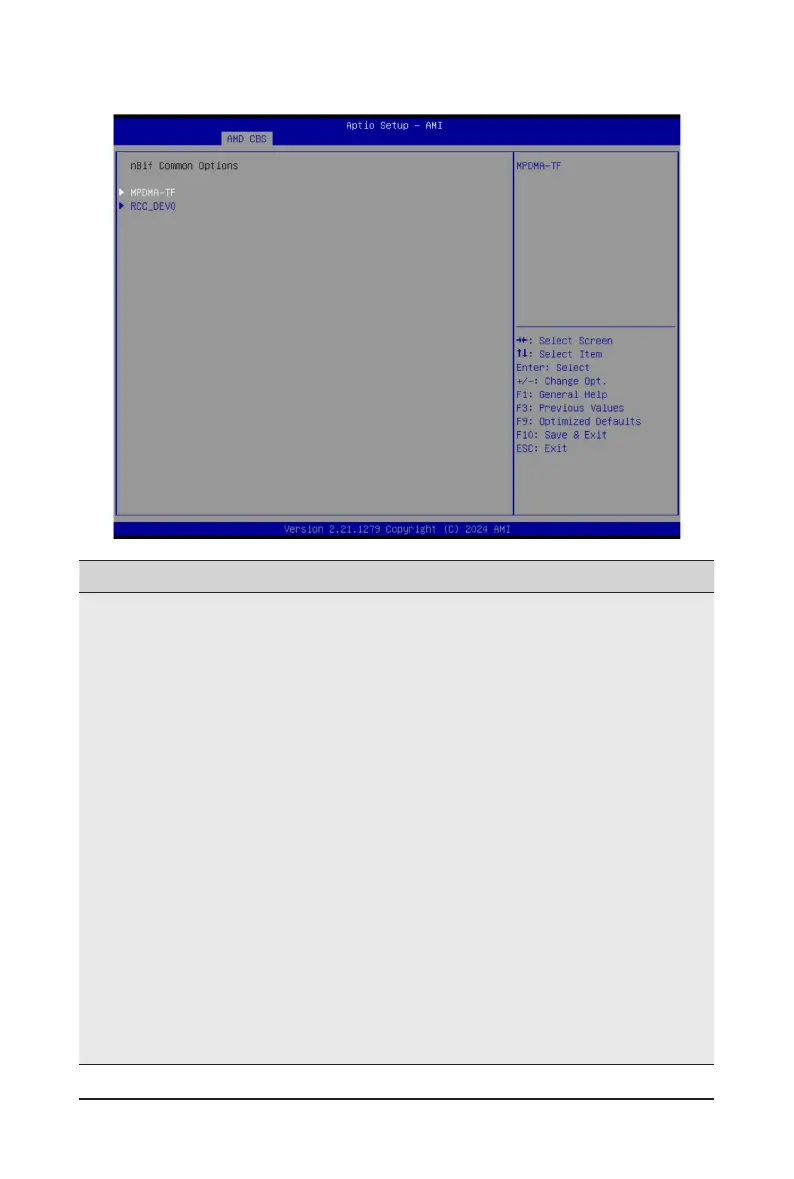

2-3-4-3 nBif Common Options
Parameter
Description
MPDMA-TF
SRIOV
– Options available: Auto, Disable, Enable. Default setting is Auto.
ARI
– Options available: Auto/Default, Disable, Enable. Default setting is
Auto/Default.
AER
– Options available: Auto, Disable, Enable. Default setting is Auto.
ACS
– Options available: Auto, Disable, Enable. Default setting is Auto.
ATS
– Options available: Auto, Disable, Enable. Default setting is Auto.
PASID
– Options available: Auto, Disable, Enable. Default setting is Auto.
RTR
– Options available: Auto, Disable, Enable. Default setting is Auto.
PAGE_REQ
– Options available: Auto, Disable, Enable. Default setting is Auto.
PWR
– Options available: Auto, Disable, Enable. Default setting is Auto.
ATC_ENABLE
– Options available: Auto, Disable, Enable. Default setting is Auto.
BIOS Setup
- 123 -
Parameter
Description
RCC_DEV0
ACS Rcc_Dev0
– Options available: Auto, Disable, Enable. Default setting is Auto.
AER Rcc_Dev0
– Options available: Auto, Disable, Enable. Default setting is Auto.
DlfEnableStrap1
– Options available: Auto, Disable, Enable. Default setting is Auto.
Phy16GTStrap1
– Options available: Auto, Disable, Enable. Default setting is Auto.
MarginEnStrap1
– Options available: Auto, Disable, Enable. Default setting is Auto.
SourceValStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
TranslationalBlockingStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
P2pReq ACS Control
– Options available: Auto, Disable, Enable. Default setting is Auto.
P2pCompStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
UpstreamFwdStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
P2PEgressStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
DirectTranslatedStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
SsidEnStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
PriEnPageReq
– Options available: Auto, Disable, Enable. Default setting is Auto.
PriResetPageReq
– Options available: Auto, Disable, Enable. Default setting is Auto.
SourceVal ACS cntl
– Options available: Auto, Disable, Enable. Default setting is Auto.
TranslationalBlocking ACS Control
– Options available: Auto, Disable, Enable. Default setting is Auto.
P2pComp ACS Control
– Options available: Auto, Disable, Enable. Default setting is Auto.
UpstreamFwd ACS Control
– Options available: Auto, Disable, Enable. Default setting is Auto.
P2PEgress ACS Control
– Options available: Auto, Disable, Enable. Default setting is Auto.
P2pReqStrap5
– Options available: Auto, Disable, Enable. Default setting is Auto.
E2E_PREFIX
– Options available: Auto, Disable, Enable. Default setting is Auto.
BIOS Setup
- 124 -
Parameter
Description
RCC_DEV0
(continued)
EXTENDED_FMT
– Options available: Auto, Disable, Enable. Default setting is Auto.
BIOS Setup
- 125 -
2-3-4-4 Link EQ Preset Options
Parameter
Description
GEN3/4/5
Press [Enter] to congure advanced items.
Preset Search Mask Conguration
– Options available: Custom, Auto. Default setting is Auto.
BIOS Setup
- 126 -

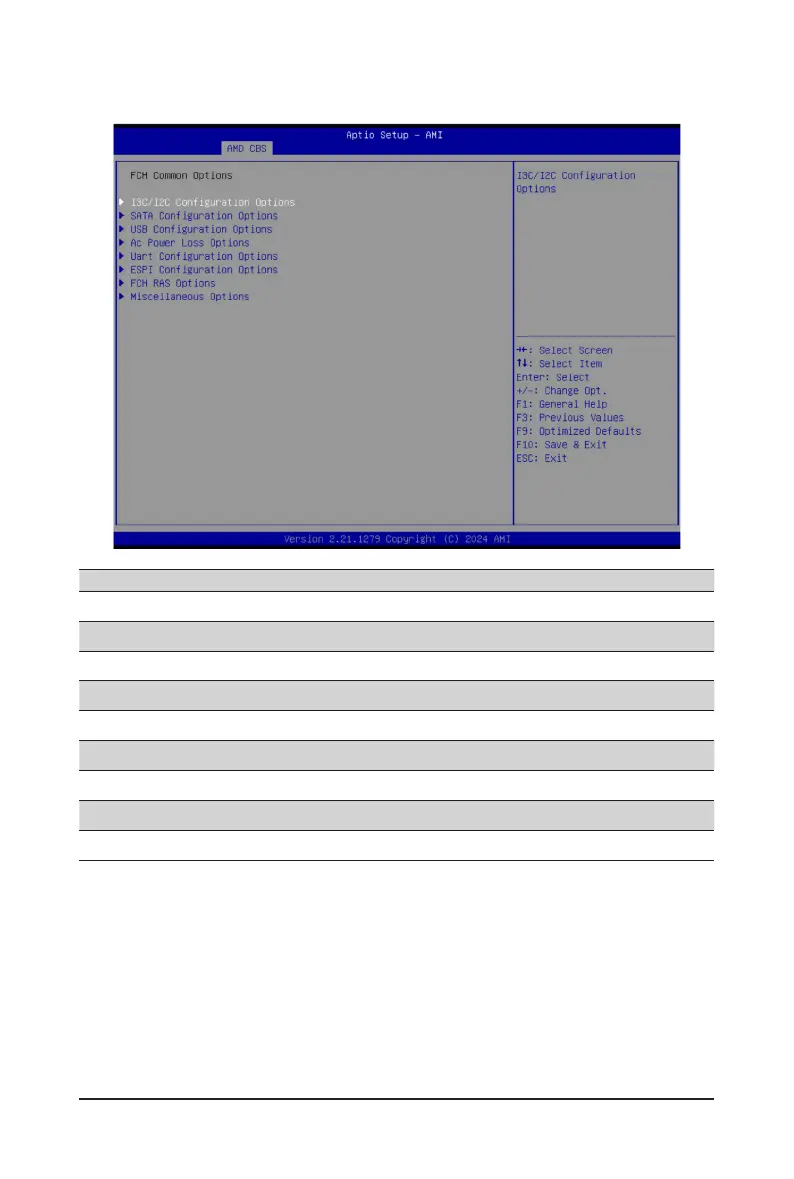

2-3-5 FCH Common Options
Parameter Description
FCH Common Options
I3C/I2C Conguration Options Press [Enter] for conguration of advanced items.
SATA Conguration Options Press [Enter] for conguration of advanced items.
USB Conguration Options Press [Enter] for conguration of advanced items.
AC Power Loss Options Press [Enter] for conguration of advanced items.
Uart Conguration Options Press [Enter] for conguration of advanced items.
ESPI Conguration Options Press [Enter] for conguration of advanced items.
FCH RAS Options Press [Enter] for conguration of advanced items.
Miscellaneous Options Press [Enter] for conguration of advanced items.
BIOS Setup
- 127 -

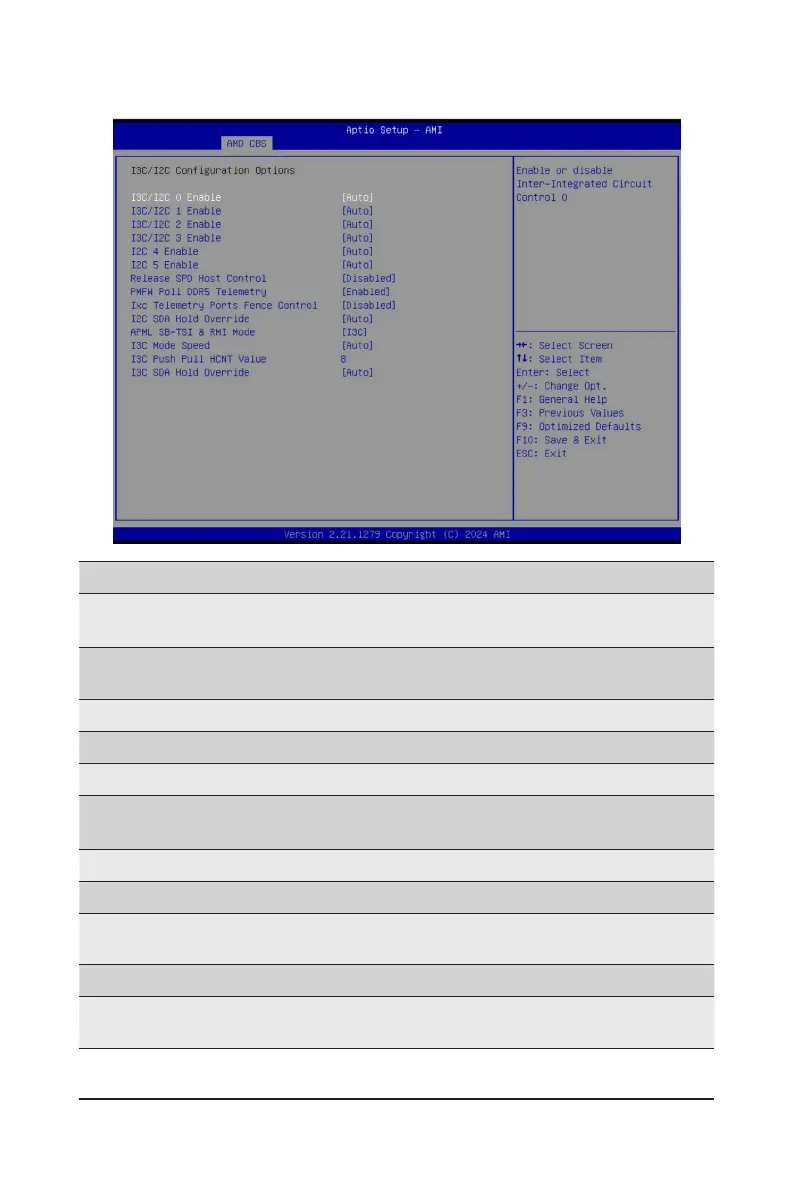

2-3-5-1 I3C/I2C Conguration Options
Parameter
Description
I3C/I2C Conguration
Options
I3C/I2C 0/1/2/3 Enable
Options available: Both Disabled, I3C Enabled, I2C Enabled, Auto.
Default setting is Auto.
I2C 4/5 Enable
Options available: Disabled, Enabled, Auto. Default setting is Auto.
Release SPD Host Control
Options available: Disabled, Enabled. Default setting is Disabled.
PMFW Poll DDR5 Telemetry
Options available: Disabled, Enabled. Default setting is Enabled.
Ixc Telemetry Ports Fence
Control
Options available: Disabled, Enabled. Default setting is Disabled.
I2C SDA Hold Override
Options available: Disabled, Enabled, Auto. Default setting is Auto.
APML SB-TSI $ RMI Mode
Options available: I3C, I2C. Default setting is I3C.
I3C Mode Speed
Options available: SDR2(6MHz), SDR0(12.5MHz), Auto. Default setting is
Auto.
I3C Push Pull HCNT Value
SCL push-pull High count for I3C transfers targeted to I3C devices.
I3C SDA Hold Override
Override I3C SDA Hold value.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
BIOS Setup
- 128 -
2-3-5-2 SATA Conguration Options
Parameter
Description
SATA Conguration Options
SATA Enable
Enable/Disable OnChip SATA controller.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA RAS Support
Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Staggered Spin-up
Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Disabled AHCI Prefetch
Function
Options available: Disabled, Enabled, Auto. Default setting is Auto.
Aggressive SATA Device
Sleep P0/P1
Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Controller options
Press [Enter] for conguration of advanced items.
SATA Controller Enable
SATA Controller eSATA
SATA Controller DevSlp
SATA Controller SGPIO
BIOS Setup
- 129 -
2-3-5-3 USB Conguration Options
Parameter
Description
USB Conguration Options
XHCI Controller0/1 enable
Enable/Disable USB controller.
Options available: Enabled, Disabled, Auto. Default setting is Auto.
USB ecc SMI Enable
Options available: Enable, Off, Auto. Default setting is Auto.
MCM USB enable
Press [Enter] for conguration of advanced items.
XHCI2/ XHCI3 enable (Socket1)
– Options available: Enabled, Disabled, Auto. Default setting is Auto.
BIOS Setup
- 130 -
2-3-5-4 AC Power Loss Options
Parameter
Description
AC Power Loss Options
AC Loss Control
Selects the AC Loss Control Method.
Options available: Power Off, Power On, Last State.
Default setting is Last State.
BIOS Setup
- 131 -
2-3-5-5 Uart Conguration Options
Parameter
Description
Uart Conguration Options
Uart 0/1/2/3 Enable
Options available: Disabled, Enabled, Auto. Default setting is Auto.
BIOS Setup
- 132 -

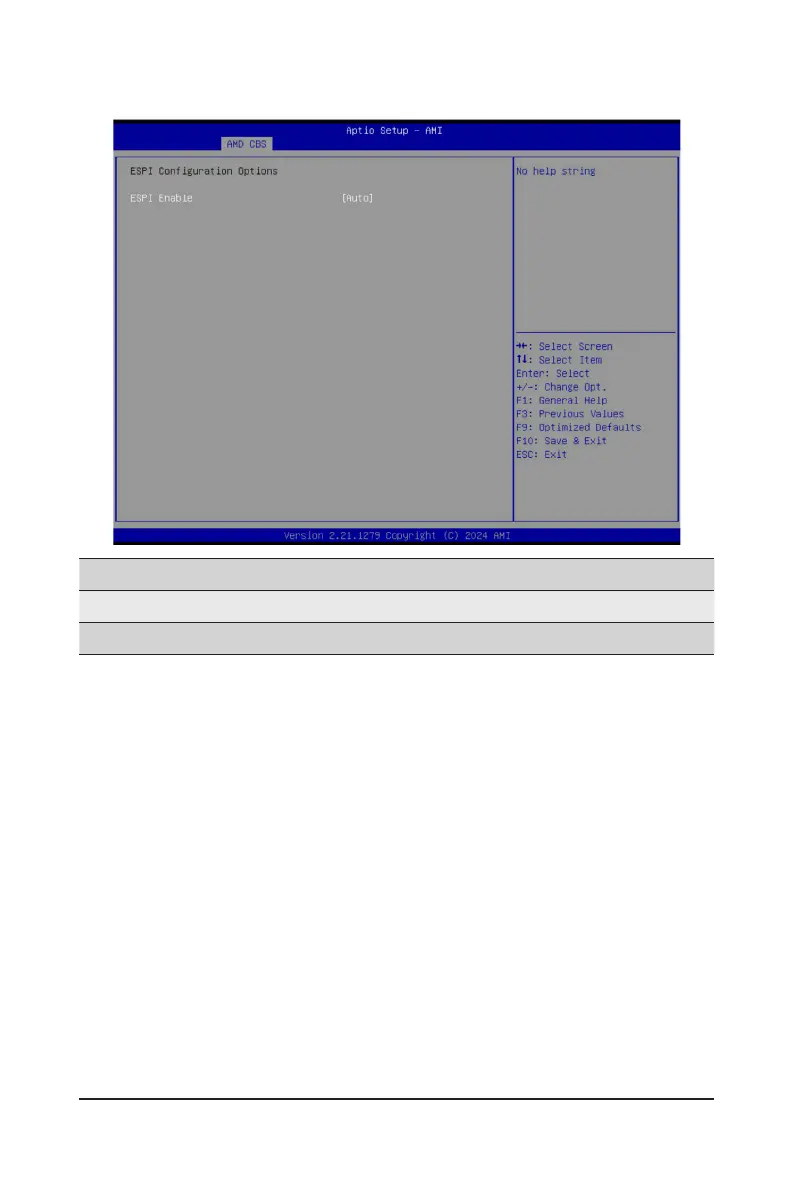

2-3-5-6 ESPI Conguration Options
Parameter
Description
ESPI Conguration Options
ESPI Enable
Options available: Disabled, Enabled, Auto. Default setting is Auto.
BIOS Setup
- 133 -
2-3-5-7 FCH RAS Options
Parameter
Description
FCH RAS Options
ALink RAS Support
Enable/Disable the ALink RAS Support.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
Reset after sync ood
Enables AB to forward downstream sync-ood message to system
controller.
Options available: Enable, Disable, Auto. Default setting is Auto.
BIOS Setup
- 134 -

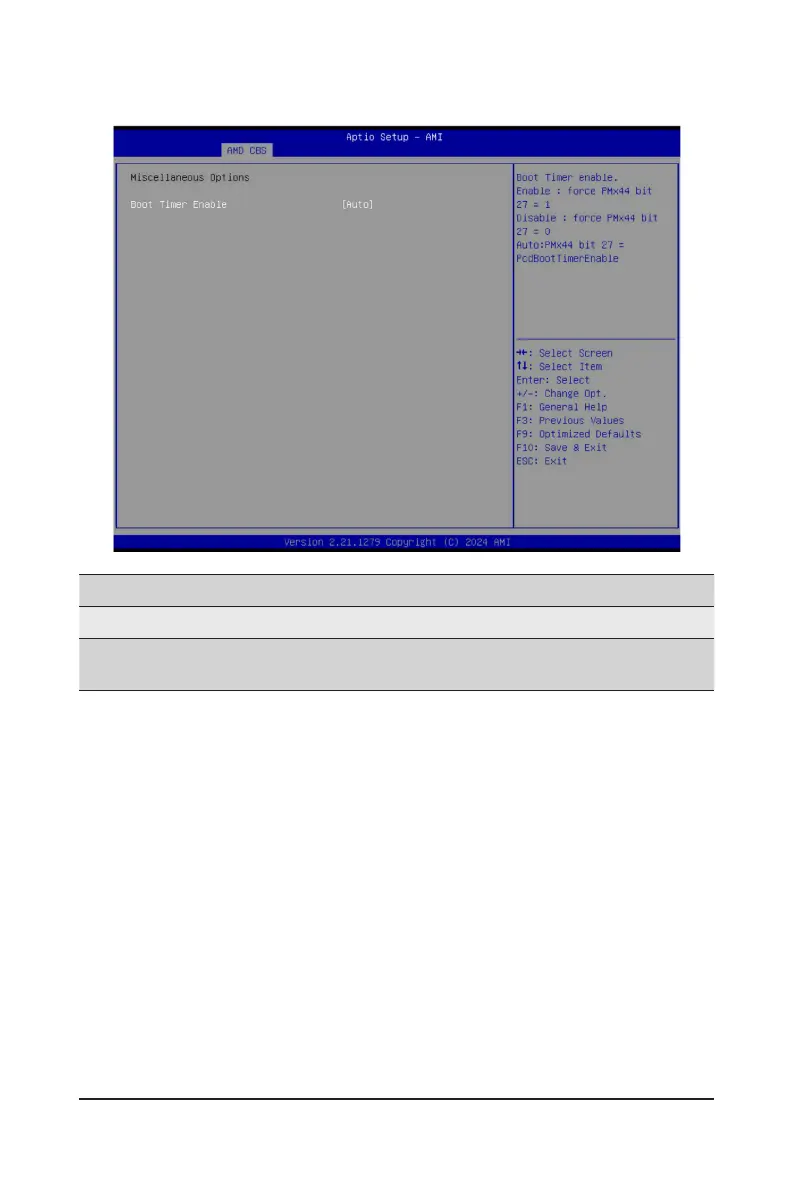

2-3-5-8 Miscellaneous Options
Parameter
Description
Miscellaneous Options
Boot Timer Enable
Enable/Disable Boot Timer.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
BIOS Setup
- 135 -
2-3-6 SOC Miscellaneous Control
Parameter
Description
SOC Miscellaneous Control
ABL Console Out Control
(Note)
Enable/Disable the ConsoleOut function for ABL.
Options available: Disable, Enable, Auto. Default setting is Auto.
ABL Console Out Serial Port
Options available: eSPI, SOC UART0, SOC UART1, Auto. Default setting
is Auto.
ABL Console Out Serial Port
IO
Options available: 0x3F8, 0x2F8, 0x3E8, 0x2E8, Auto. Default setting is
Auto.
ABL Basic Console Out
Control
Enable/Disable the Basic ConsoleOut function for ABL.
Options available: Disable, Enable, Auto. Default setting is Auto.
ABL PMU message Control
To Control the total number of PMU debug messages.
Options available: Auto, Detailed debug message, Coarse debug
message, Stage completion, Assertion messages, Firmware completion
message only. Default setting is Auto.
ABL Memory Population
message Control
Options available: Warning message, Fatal error. Default setting is
Warning message.
PSP error injection support Options available: False, True. Default setting is False.
(Note) Advanced items are congurable when this item is dened.
BIOS Setup
- 136 -
Firmware Anti-rollback (FAR)
Press [Enter] for conguration of advanced items.
FAR enforcement state
– Default setting is Enabled.
SPL value in the CPU Fuse
SPL value in the SPL table
FAR Switch
– Options available: Disabled, Enabled, Auto. Default setting is Auto.
BIOS Setup
- 137 -
2-3-7 CXL Common Options
Parameter
Description
CXL Common Options
CXL Control Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL SPM Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL Encryption Options available: Enabled, Disabled. Default setting is Disabled.
CXL DVSEC Lock Options available: Auto, Enabled, Disabled. Default setting is Auto.
Temp Gen5 Advertisement Options available: Disabled, Enabled, Auto. Default setting is Auto.
Sync Header Bypass Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL RAS
Press [Enter] for conguration of advanced items.
CXL Protocol Error Reporting
– Options available: Disabled, SameAsPcieAer,
ForceAerFwFirstIfCxlPresent. Default setting is SameAsPcieAer.
CXL Component Error Reporting
– Options available: OS First, FW-First. Default setting is FW-First.
BIOS Setup
- 138 -

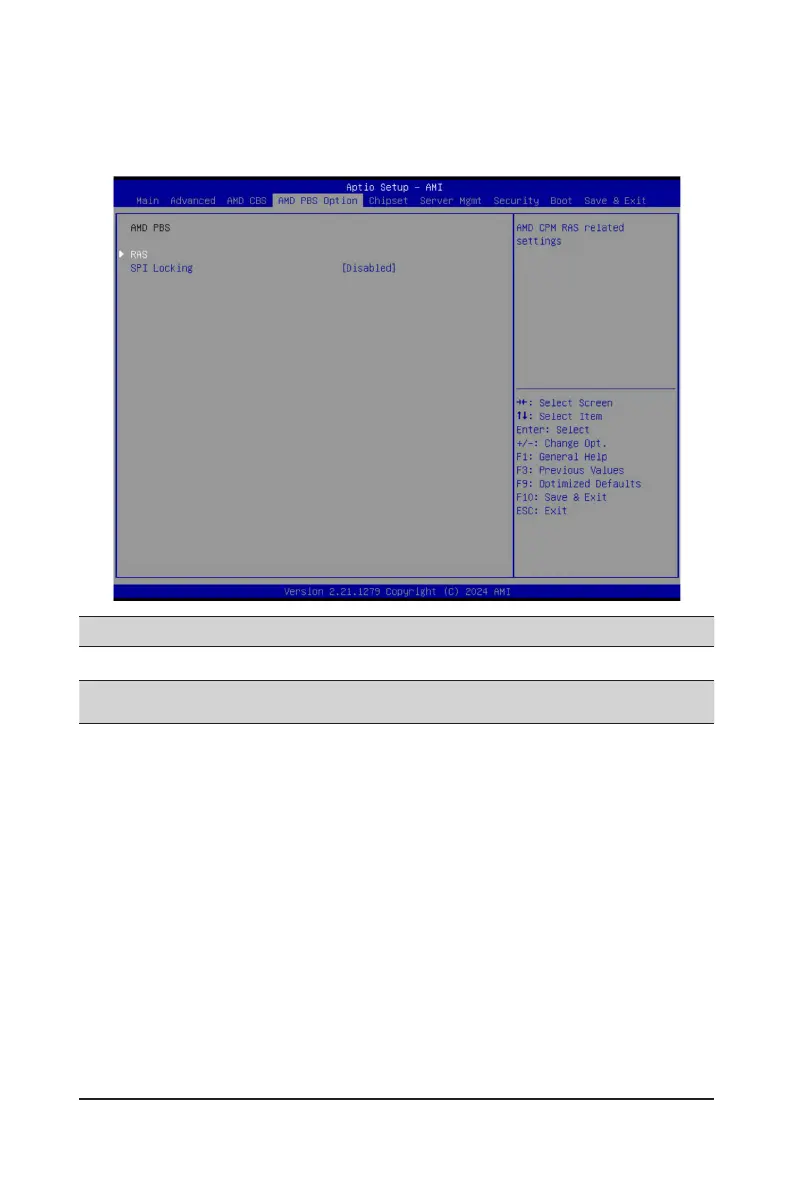

2-4 AMD PBS Menu
AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a
submenu item, then press [Enter] to access the related submenu screen.
Parameter Description
RAS Press [Enter] for conguration of advanced items.
SPI Locking
Enable/Disable SPI Locking for protect ROM part.
Options available: Disabled, Enabled. Default setting is Disabled.
BIOS Setup
- 140 -
Parameter
Description
PCIe Root Port UnCorr Err
Mask Reg
Initialize the PCIe AER Uncorrected Error Mask register of Root Port.
PCIe Root Port UnCorr Err
Sev Reg
Initialize the PCIe AER Uncorrected Error Severity register of Root Port.
PCIe Device Corr Err Mask
Reg
Initialize the PCIe AER Corrected Error Mask register of PCIe device.
PCIe Device UnCorr Err
Mask Reg
Initialize the PCIe AER Uncorrected Error Mask register of PCIe device.
PCIe Device UnCorr Err Sev
Reg
Initialize the PCIe AER Uncorrected Error Severity register of PCIe
device.
DRAM Hard Post Package
Repair
This feature allows spare DRAM rows to replace malfunctioning rows via
an in-eld repair mechanism.
Options available: Disabled, Enabled. Default setting is Disabled.
HEST DMC Structure
Support
HEST DMC (Deferred Machine Check) Structure Support.
Options available: Disabled, Enabled. Default setting is Disabled.
CXL Error Report Support
Enable/Disable CXL Error Reporting.
Options available: Disabled, Enabled. Default setting is Disabled.
BIOS Setup
- 141 -

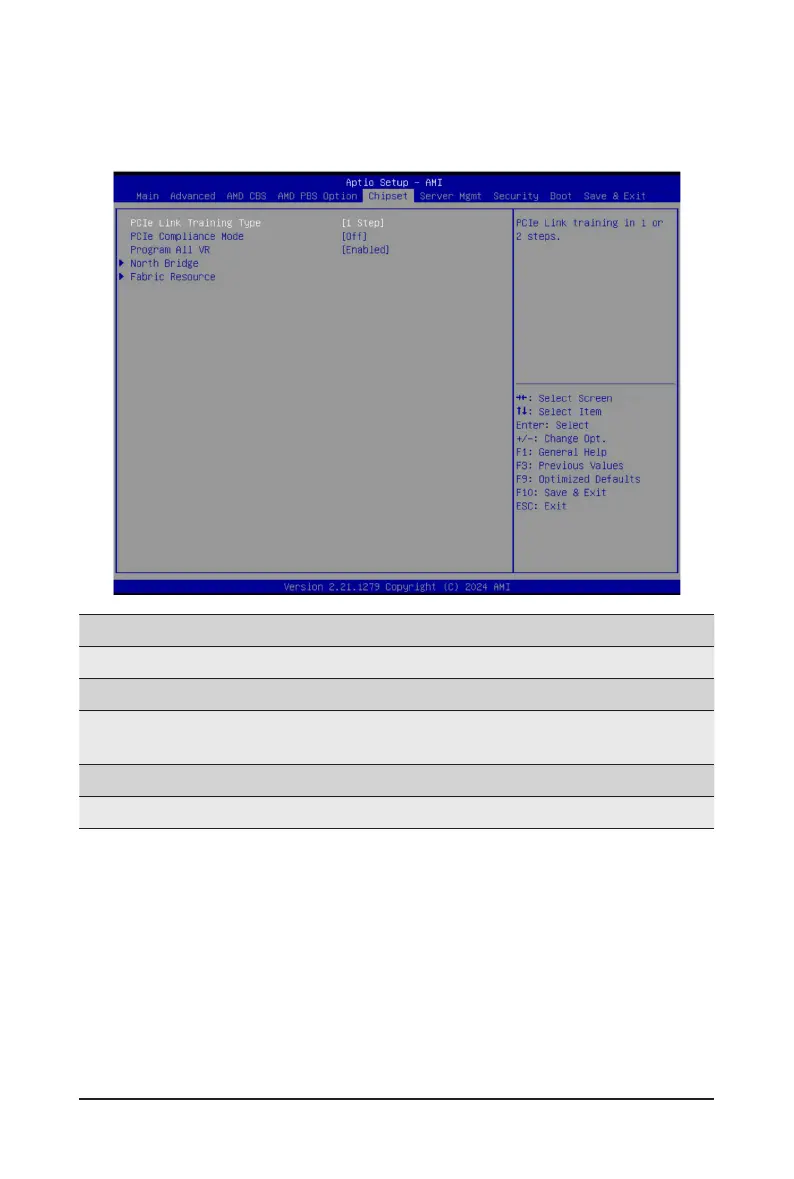

2-5 Chipset Setup Menu
Chipset Setup menu displays submenu options for conguring the function of the North Bridge.
Select a submenu item, then press <Enter> to access the related submenu screen.
Parameter
Description
PCIe Link Training Type Options available: 1 Step, 2 Step. Default setting is 1 Step.
PCIe Compliance Mode Options available: Off, On. Default setting is Off.
Program All VR
Enable/Disable program all VR on MB.
Options available: Disabled, Enabled. Default setting is Enabled.
North Bridge Press [Enter] for conguration of advanced items.
Fabric Resource Press [Enter] for conguration of advanced items.
BIOS Setup
- 142 -

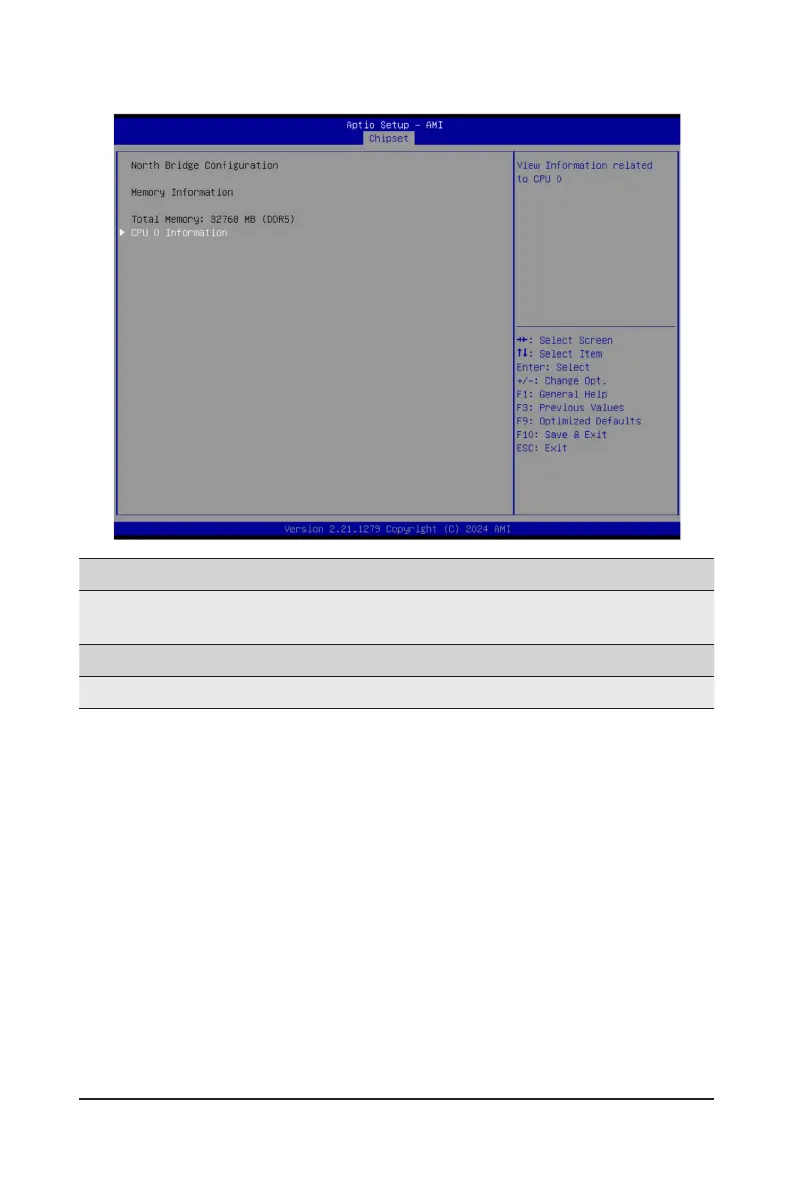

2-5-1 North Bridge
Parameter
Description
North Bridge Conguration
Memory Information
Total Memory Displays the total memory information.
CPU 0 Information Press [Enter] to view information related to CPU 0.
BIOS Setup
- 143 -

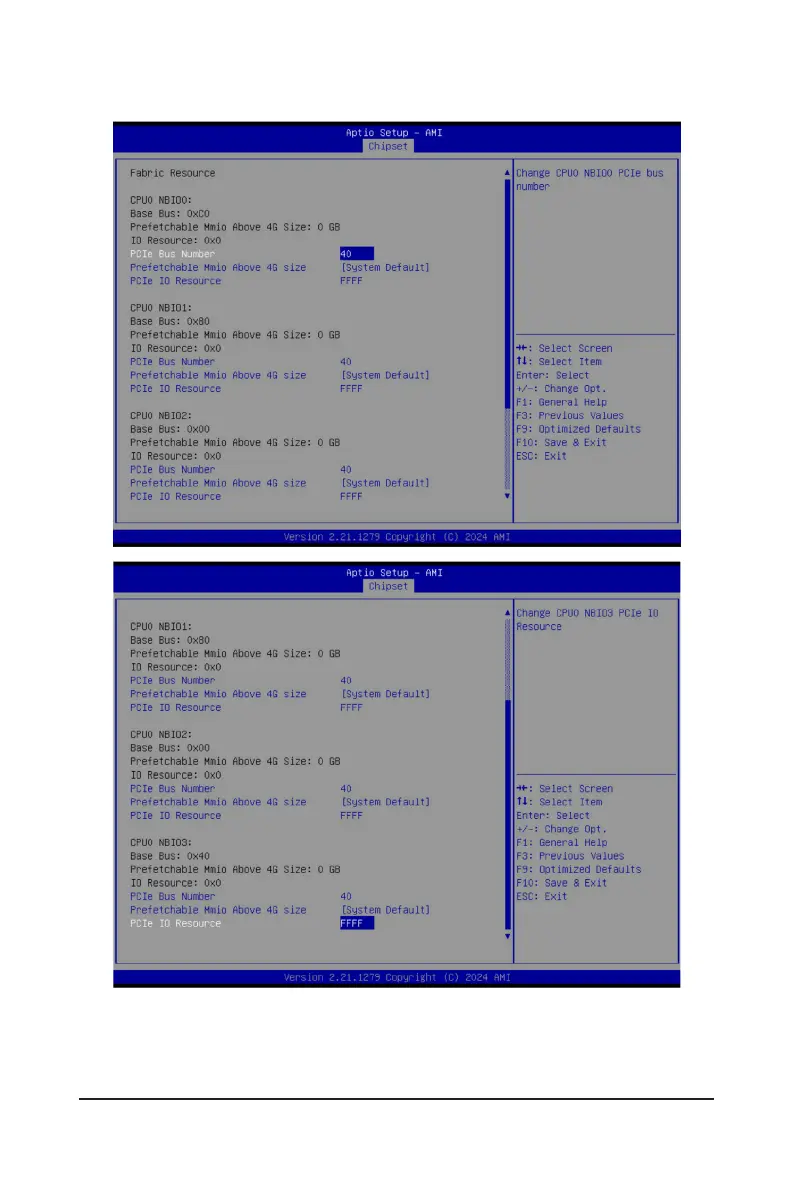

2-5-2 Fabric Resource
BIOS Setup
- 144 -
Parameter
Description
Fabric Resource
CPU 0 NBIO_# PCIe Bus
Number
Change CPU 0 NBIO_# PCIe Bus Number.
Prefetchable Mmio Above 4G
size
Change CPU 0/1 NBIO_# Prefetchable MMIO Above 4G Size.
Options available: System Default, 0, 1G, 2G, 4G, 8G, 16G, 32G, 64G,
128G, 256G, 512G, 1T, 2T, 4T, 8T. Default setting is System Default.
PCIe IO Resource Change CPU 0 NBIO_# PCIe IO Resource.
BIOS Setup
- 145 -
2-6 Server Management Menu
Parameter
Description
FRB-2 Timer
Enable/Disable FRB-2 timer (POST timer).
Default setting is Enabled.
FRB-2 Timer
timeout
Congures the FRB2 Timer timeout.
Options available: 3 minutes, 4 minutes, 5 minutes, 6 minutes. Default setting is 6
minutes.
FRB-2 Timer Policy
Congures the FRB2 Timer policy.
Options available: Do Nothing, Reset, Power Down, Power Cycle.
Default setting is Do Nothing.
OS Watchdog
Timer
Enable/Disable OS Watchdog Timer function.
Options available: Enabled, Disabled. Default setting is Disabled.
OS Wtd Timer
Timeout
(Note)
Congures OS Watchdog Timer.
Options available: 5 minutes, 10 minutes, 15 minutes, 20 minutes.
Default setting is 10 minutes.
OS Wtd Timer
Policy
(Note)
Congure OS Watchdog Timer Policy.
Options available: Do Nothing, Reset, Power Down, Power Cycle.
Default setting is Reset.
Wait BMC Ready
Post wait BMC ready and reboot system.
Options available: Disabled, 2 minutes, 4 minutes, 6 minutes. Default setting is 2
minutes.
(Note) This item is congurable when OS Watchdog Timer is set to Enabled.
BIOS Setup
- 146 -
Parameter
Description
System Event Log
Press [Enter] to congure advanced items.
View FRU
Information
Press [Enter] to view the FRU information.
BMC network
conguration
Press [Enter] to congure advanced items.
IPv6 BMC Network
Conguration
Press [Enter] to congure advanced items.
BIOS Setup
- 147 -

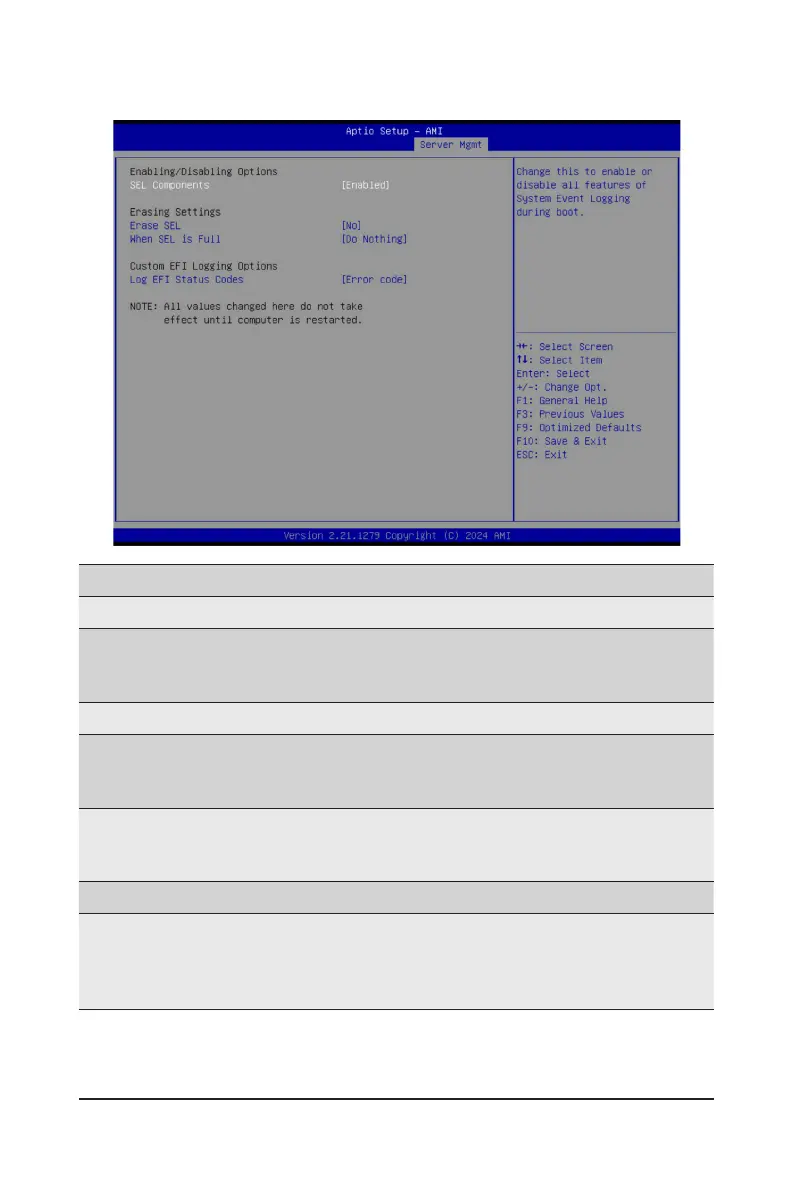

2-6-1 System Event Log
Parameter
Description
Enabling / Disabling Options
SEL Components
Change this item to enable or disable all features of System Event
Logging during boot.
Options available: Disabled, Enabled. Default setting is Enabled.
Erasing Settings
Erase SEL
Choose options for erasing SEL.
Options available: No/Yes, On next reset/Yes, On every reset. Default
setting is No.
When SEL is Full
Choose options for reactions to a full SEL.
Options available: Do Nothing, Erase Immediately. Default setting is Do
Nothing.
Custom EFI Logging Options
Log EFI Status Codes
Enable/Disable the logging of EFI Status Codes (if not already converted
to legacy).
Options available: Disabled, Both, Error code, Progress code. Default
setting is Error code.
BIOS Setup
- 148 -

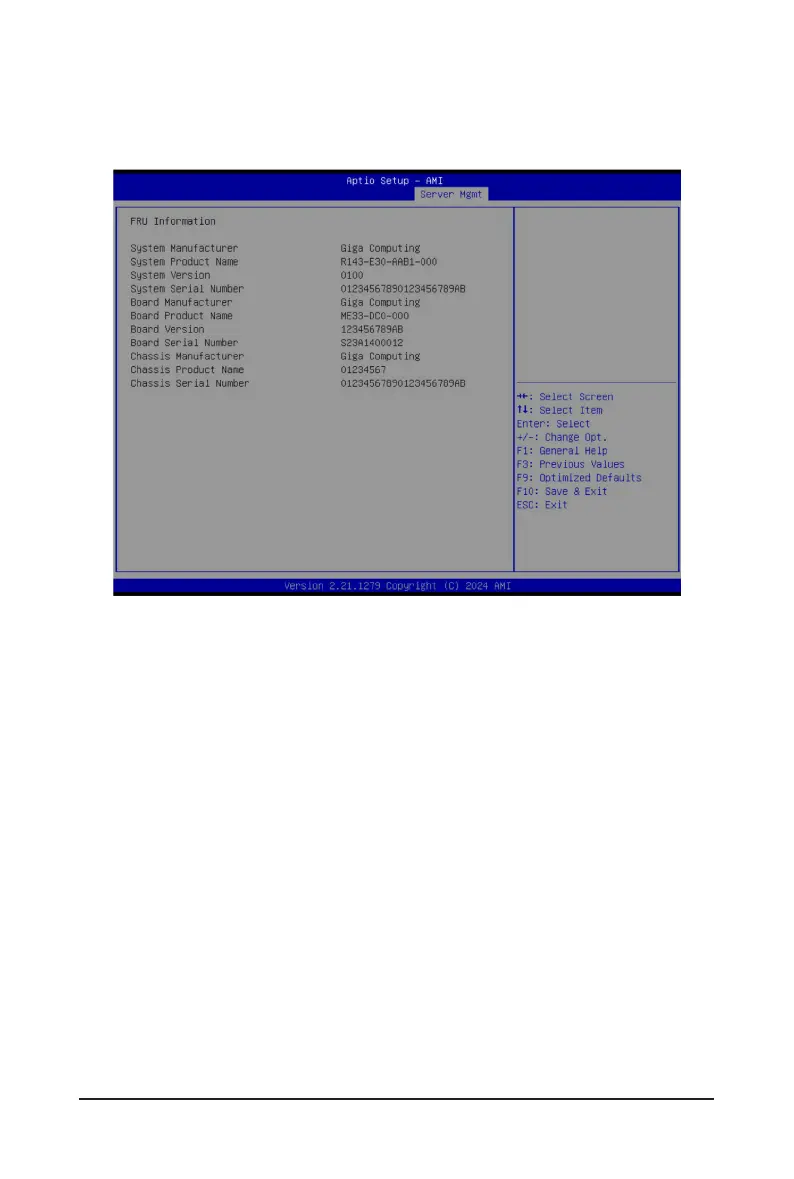

2-6-2 View FRU Information
The FRU page is a simple display page for basic system ID information, as well as System product
information. Items on this window are non-congurable.
(Note) The model name will vary depends on the product you purchased
BIOS Setup
- 149 -
2-6-3 BMC Network Conguration
Parameter
Description
BMC network conguration
Lan Channel 1
Conguration Address source
Selects to congure LAN channel parameters statically or dynamically
(DHCP). Do nothing option will not modify any BMC network parameters
during BIOS phase.
Options available: Unspecied, Static, DynamicBmcDhcp. Default setting
is DynamicBmcDhcp.
Station IP address
Displays IP Address information.
Subnet mask
Displays Subnet Mask information.
Please note that the IP address must be in three digitals, for example,
192.168.000.001.
Router IP address
Displays the Router IP Address information.
Station MAC address
Displays the MAC Address information.
VLAN Support
Set BMC to enable/disable VLAN support.
Options available: Enabled, Disabled. Default setting is Disabled.
Real-time synchronize BMC
network parameter values
Press [Enter] will set Address source(Static/DHCP) to BMC and then get
Station IP address, Subnet mask and Router IP address from BMC.
BIOS Setup
- 150 -
2-6-4 IPv6 BMC Network Conguration
Parameter
Description
IPv6 BMC network conguration
IPv6 BMC Lan Channel 1
IPv6 BMC Lan Option
Enable/Disable IPv6 BMC LAN channel function. When this item is
disabled, the system will not modify any BMC network during BIOS
phase.
Options available: Unspecied, Disable, Enable. Default setting is
Enable.
IPv6 BMC Lan IP Address
Source
Selects to congure LAN channel parameters statically or dynamically (by
BIOS or BMC).
Options available: Unspecied, Static, Dynamic-Obtained by BMC
running DHCP. Default setting is Dynamic-Obtained by BMC running
DHCP.
IPv6 BMC Lan IP Address/
Prex Length
Check if the IPv6 BMC LAN IP address matches those displayed on the
screen.
BIOS Setup
- 152 -
2-7-1 Secure Boot
The Secure Boot feature is applicable if supported by your Operating System. If your Operating System is not
supporting Secure Boot, the system will hang when starting the Operating System.
(Note) Advanced items prompt when this item is set to Custom.
Parameter
Description
System Mode
Displays if the system is in User mode or Setup mode.
Secure Boot
Enable/ Disable the Secure Boot function.
Options available: Enabled, Disabled. Default setting is Disabled.
Secure Boot Mode
(Note)
Secure Boot requires all the applications that are running during the booting
process to be pre-signed with valid digital certicates. This way, the system
knows all les being loaded before the Operating System loads to the login
screen have not been tampered with.
When set to Standard, it will automatically load the Secure Boot keys form
the BIOS databases.
When set to Custom, you can customize the Secure Boot settings and
manually load its keys from the BIOS database.
Options available: Standard, Custom. Default setting is Standard.
Restore Factory Keys
Forces the system to user mode and installs factory default Secure Boot
key database.
Reset To Setup Mode
Press [Enter] to reset the system mode to Setup mode.
Enter Audit Mode
Press [Enter] to set the system mode to audit mode.
BIOS Setup
- 154 -

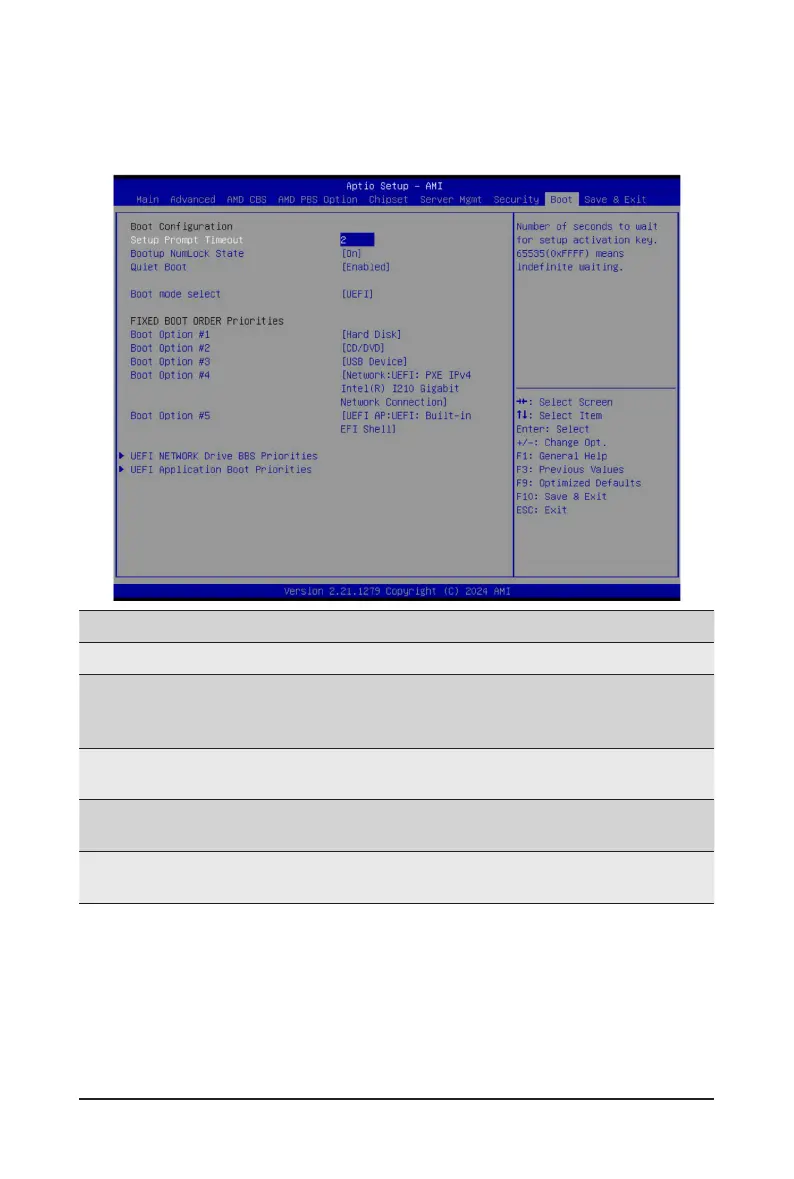

2-8 Boot Menu
The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error
message if the legacy drive(s) specied is not bootable.
Parameter
Description
Boot Conguration
Setup Prompt Timeout
Number of seconds to wait for setup activation key. 65535 (0xFFFF)
means indenite waiting.
Press the numeric keys to input the desired values.
Bootup NumLock State
Enable/Disable the Bootup NumLock function.
Options available: On, Off. Default setting is On.
Quiet Boot
Enable/Disable showing the logo during POST.
Options available: Enabled, Disabled. Default setting is Enabled.
Boot mode select
Selects the boot mode.
Options available: LEGACY, UEFI. Default setting is UEFI.
BIOS Setup
- 155 -
Parameter
Description
FIXED BOOT ORDER Priorities
Boot Option #1 / #2 / #3 / #4 / #5
Press [Enter] to congure the boot priority.
By default, the server searches for boot devices in the following
sequence:
1. Hard drive.
2. CD-COM/DVD drive.
3. USB device.
4. Network.
5. UEFI.
UEFI Hard Disk Drive BBS
Priorities
Press [Enter] to congure the boot priority.
UEFI Application Boot Priorities
Press [Enter] to congure the boot priority.
BIOS Setup
- 156 -

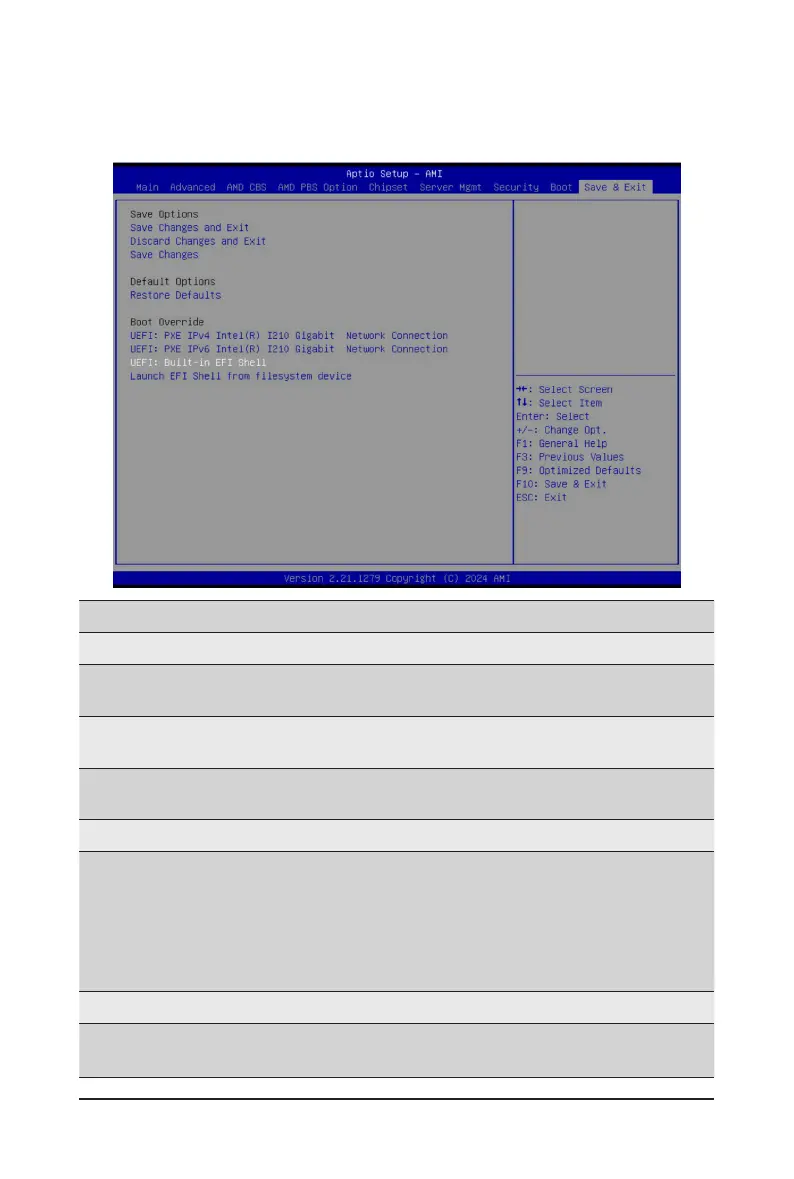

2-9 Save & Exit Menu
The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit
options then press <Enter>.
Parameter
Description
Save Options
Save Changes and Exit
Saves changes made and closes the BIOS setup.
Options available: Yes, No.
Discard Changes and Exit
Discards changes made and exits the BIOS setup.
Options available: Yes, No.
Save Changes
Saves changes done so far to any of the setup options.
Options available: Yes, No.
Default Options
Restore Defaults
Loads the default settings for all BIOS setup parameters. Setup Defaults
are quite demanding in terms of resources consumption. If you are using
low-speed memory chips or other kinds of low-performance components
and you choose to load these settings, the system might not function
properly.
Options available: Yes, No.
Boot Override
Press [Enter] to congure the device as the boot-up drive.
Launch EFI Shell from
lesystem device
Attempts to Launch EFI Shell application (Shell.e) from one of the
available le system devices.
BIOS Setup
- 158 -
2-11 BIOS POST Beep code (AMI standard)
2-11-1 PEI Beep Codes
# of Beeps Description
1
Memory not Installed.
1
Memory was installed twice (InstallPeiMemory routine in PEI Core called
twice)
2
Recovery started
3 DXEIPL was not found
3 DXE Core Firmware Volume was not found
4 Recovery failed
4
S3 Resume failed
7
Reset PPI is not available
2-11-2 DXE Beep Codes
# of Beeps Description
1 Invalid password
4 Some of the Architectural Protocols are not available
5 No Console Output Devices are found
5 No Console Input Devices are found
6 Flash update is failed
7 Reset protocol is not available
8 Platform PCI resource requirements cannot be met
Produkt Specifikationer
| Mærke: | Gigabyte |
| Kategori: | Server |
| Model: | R243-E30 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Gigabyte R243-E30 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Server Gigabyte Manualer
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
3 August 2025
Server Manualer
- Matrox
- AVerMedia
- Hikvision
- TRENDnet
- OWC
- Areca
- Intel
- FLIR
- SIIG
- Airlive
- Hanwha
- TAIDEN
- Veritas
- Acer
- Asus
Nyeste Server Manualer
22 August 2025
22 August 2025
21 August 2025
21 August 2025
20 August 2025
20 August 2025
20 August 2025
20 August 2025
17 August 2025
17 August 2025
