Side 1/36
INSTRUCTIONS FOR USE
Induction hob
We thank you for your trust and the purchase of our appliance.
This detailed instruction manual is supplied to make the use of this product easier. The
instructions should allow you to learn about your new appliance as quickly as possible.
Make sure you have received an undamaged appliance. If you do find transport damage,
please contact the seller from which you purchased the appliance, or the regional
warehouse from which it was supplied. The telephone number can be found on the
invoice or on the delivery note.
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning general danger–
1. Safety precautions
IMPORTANT SAFETY PRECAUTIONS CAREFULLY READ–
THE INSTRUCTIONS AND SAVE THEM FOR FUTURE
REFERENCE.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
WARNING: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
Do not use steam cleaners or high-pressure cleaners to clean
the appliance, as this may result in an electric shock.
The appliance is not intended to be controlled by external timers
or separate remote controll system.
Appliance must be connected to fixed wiring which has
incorporated means of disconnection. Fixed wiring must be
made in accordance with the wiring rules.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or. similarly qualified persons
in order to avoid a hazard (only for appliances supplied with
connection cord).
3
WARNING: If the surface is cracked, switch off the appliance
to avoid the possibility of electric shock. Switch off all cooking
zones using their respective controls and remove the fuse or
trip the main circuit breaker so that the appliance is fully isolated
from the power mains.
WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire
with water, but switch off the appliance and then cover flame
e.g. with a lid or a fire proof blanket.
WARNING: Danger of fire: do not store items on the cooking
surfaces.
CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
CAUTION: This appliance is for cooking purposes only. It must
not be used for other purposes, for example room heating.
WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of
the appliance in the instructions for use as suitable or hob
guards incorporated in the appliance. The use of inappropriate
guards can cause accidents.
Metalic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
4
After use, switch off the hob element by its control and do not
rely on the pan detector.
The appliance may only be connected to the power mains by
an authorized service technician or expert. Tampering with the
appliance or nonprofessional repair thereof may result in risk
of severe injury or damage to the product.
2. Other important safety warnings
The appliance is intended for household use. Do not use it for any other purpose, such as room heating,
drying of pets or other animals, paper, fabrics, herbs etc. As this may lead to injury or fire hazard.
The appliance may only be connected to the power mains by an authorized service technician or
expert. Tampering with the appliance or nonprofessional repair thereof may result in risk of severe
injury or damage to the product.
If another electrical appliance is connected to an AC power socket near the appliance, make sure the
power cord does not come in to contact with hot cooking zones.
If the power cord is damaged, it should be replaced by the manufacturer or an authorised service
technician, in order to avoid hazard.
Using the glass ceramic hob as a storage area may result in scratches or other damage to it. Never
heat food in aluminium foil or in plastic containers on the cooking hob. Such foil or containers may
melt which can result in a fire or damage to the cooking hob.
Do not store temperature-sensitive items underneath the appliance, such as cleaners or detergents,
spray cans etc.
Eventual mismatches in colour shades between different appliances or components within a single
design line may occur due to various factors, such as different angles under which the appliances are
observed, different coloured backgrounds, materials, and room illumination.
2.1 Before connecting the appliance
WARNING!
Carefully read the instructions for use before connecting the appliance. Repair or any
warranty claim resulting from incorrect connection or use of the appliance shall not be
covered by the warranty.
5
3. Induction hob installation
Installation dimensions
JIHGFEDCBA
560-
562
min.50min.600
490-
492
min.405054min.1052059560 cm
760-
762
min.50min.600
490-
492
min.405054min.1052079580 cm
INFORMATION!
Installation and connection of the appliance to the power mains may only be carried out by a
qualified technician.
Installation procedure
•Suitably protect the edges of the cut aperture.
•Connect the induction cooking hob to the mains power supply (see instructions for the connection
of the induction cooking hob to mains power supply).
•Place the induction hob into the cut aperture.
•Veneer or other finish of the piece of kitchen furniture into which the hob is to be built in should
be treated with heat resistant glue (100 °C); otherwise, the worktop finish may be discolored or
deformed.
•Use of solid wood corner trims on worktops behind the induction cooking hob is only allowed if
the clearance between the trim and the hob is no smaller than indicated on the installation plans.
INFORMATION!
The worktop has to be completely level.
6
INFORMATION!
The appliance already has a pre-installed gasket.

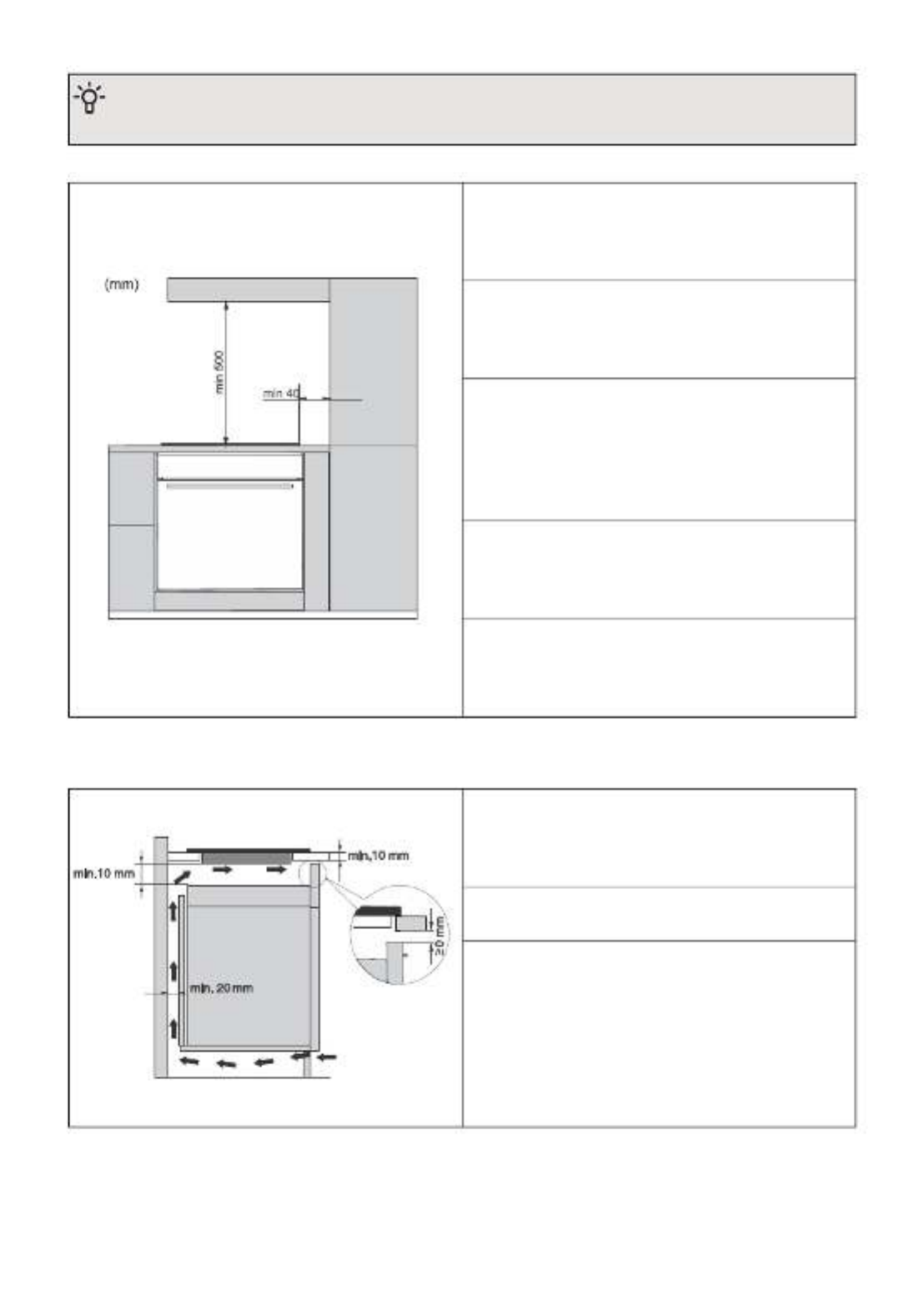

•The induction hob is suitable for installation
into a worktop above a kitchen cabinet with
a minimum width of 600 mm.
•Any kitchen cabinetry suspended above the
induction hob should be high enough not to
disturb the work process.
•The vertical distance between the induction
hob and the kitchen hood must be at least
the distance specified in the instructions for
installation of the kitchen hood and no less
than 500 mm.
•The distance between the edge of the induc-
tion hob and the adjacent kitchen cabinet
should be no less than 40 mm.
•Minimum clearance between the induction
hob and the rear wall is indicated in the install-
ation diagram.
Lower cabinet
•There must be an opening with a height of
no less than 140 mm along the entire width
of the cabinet in the cabinet rear wall.
•Adequate ventilation should be allowed.
•If there is a drawer under the kitchen cabinet,
do not store aluminium foil, flammable sub-
stances or liquids (such as sprays) in this
drawer. Keep such substances away from
the cooking hob. Danger of explosion! It
should also not be used to store small ob-
jects and paper, as they may be sucked in.
7

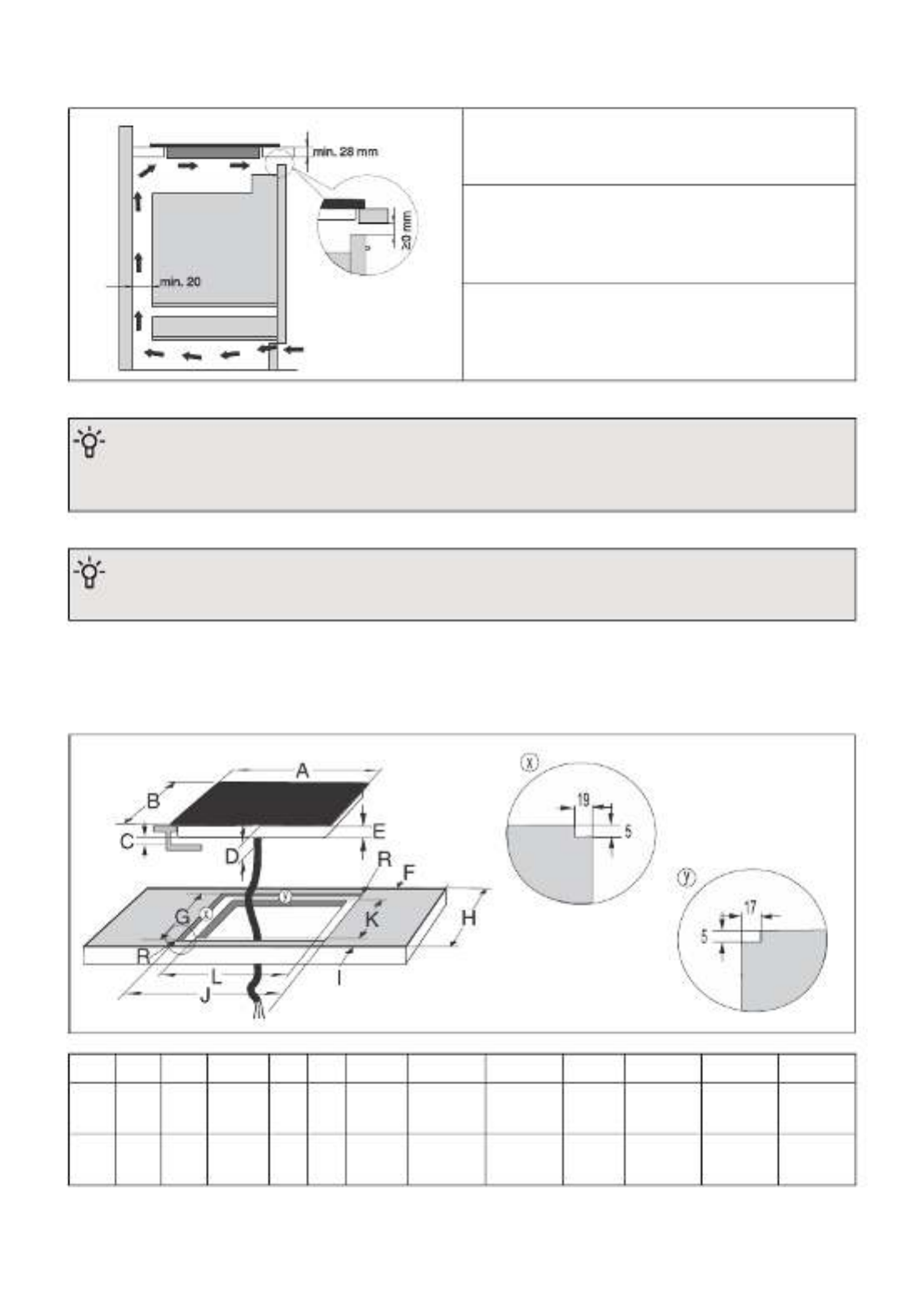

Lower cabinet with an oven
•Installing an oven under the induction hob is
possible for oven models with a cooling fan.
•Before installing the oven, the kitchen cabinet
rear wall has to be removed in the area of the
opening for installation.
•If other appliances are installed under the in-
duction cooking hob we cannot guarantee
their correct operation.
INFORMATION!
Normal operation of the induction cooking hob electronic components requires sufficient air
circulation.
INFORMATION!
The recommended height of the front ventilation slot is 4 mm.
3.1 Flush-mount installation into the worktop
Installation dimensions
LKJIHGFEDCBA
560-
562
490-
492
599-
600
min.50min.600
524-
525
min.405054min.10520595
60
cm
760-
762
490-
492
799-
800
min.50min.600
524-
525
min.405054min.10520795
80
cm
8
Appliances without faceted edges or decorative frames, are suitable for flush mounting.
CUT-OUTGLASS
Installation procedure
•The appliance may only be installed into a temperature- and water-resistant countertop, such as
a countertop made of natural stone (marble, granite) or solid wood (the edges along the cut-out
have to be sealed).
•When installing into a countertop made of ceramics, wood, or glass, a wooden sub-frame should
be used. The frame is not supplied with the appliance. The appliance may only be installed into
a countertop made of other materials after you have consulted the countertop manufacturer and
obtained his express approval.
•Internal dimension of the basic unit should be at least equal to the internal cut-out for the appliance.
This will allow simple removal of the appliance from the countertop.
1. First, feed the power cord through the cut-out.
2. Place the appliance over the centre of the cut-
out.
3. Connect the appliance to the power mains.
4. Test appliance operation.
5. Seal the slot between the appliance and the
countertop using a silicone sealant. The silicone
sealant used to seal the appliance has to be
temperature-resistant (to at least 160 °C).
6. Smooth out the silicone sealant using a suit-
able tool. Do not switch on the appliance until
the silicone sealant has dried completely.
1. Silicone sealant
2. Sealing tape
9

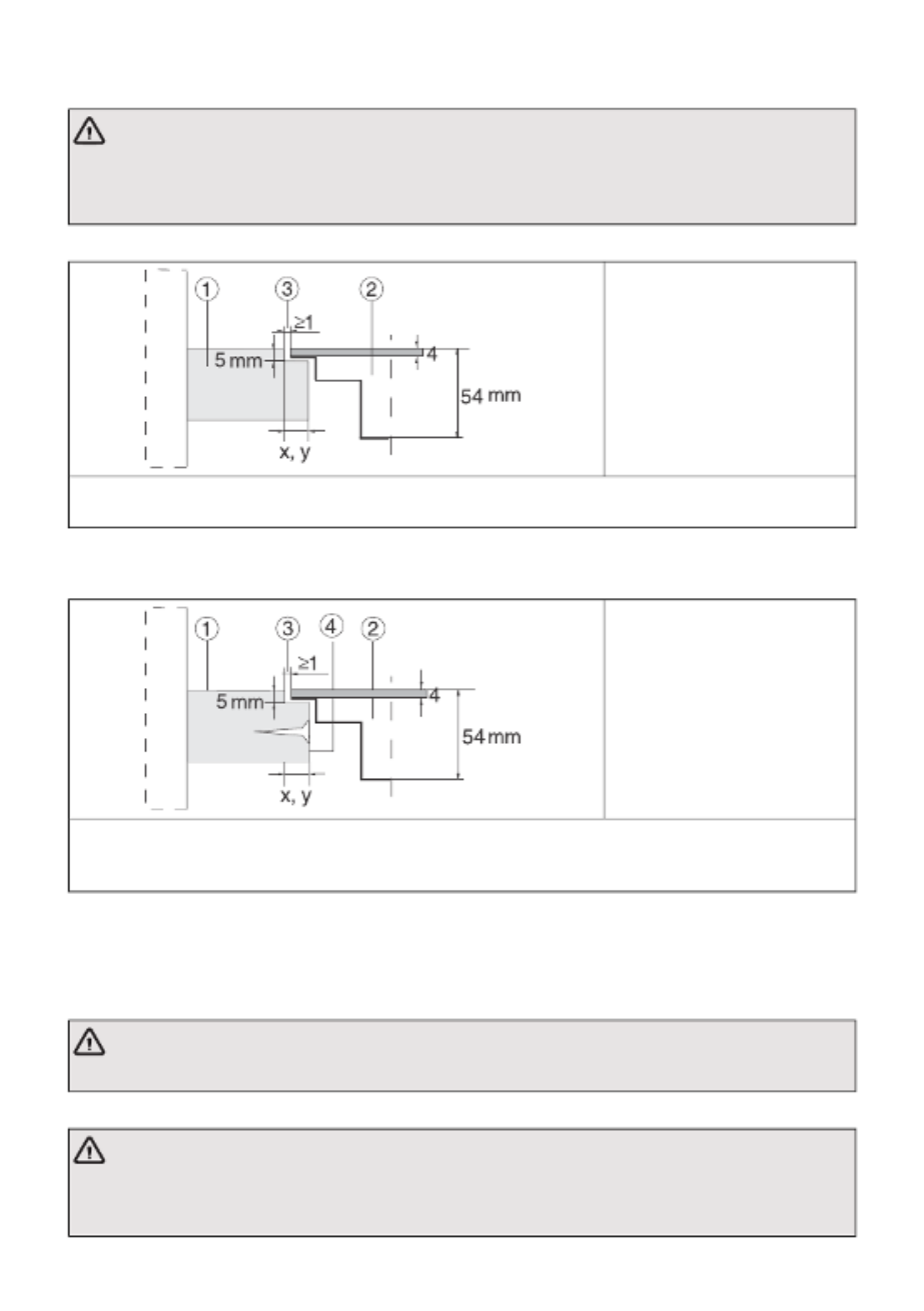

Stone countertop
WARNING!
Pay particular attention to built-in dimensions with (natural) stone countertops. When choosing
the silicone sealant, observe the countertop material and consult the countertop manufacturer.
Use of inappropriate silicone sealants can result in permanent discolouration of some parts.
1. Countertop
2. Appliance
3. Slot
Given the margin of error (tolerance) for the glass ceramic plate of the appliance, and the cut out
in the countertop, the slot is adjustable (min.2 mm).
Ceramic, wooden, or glass countertop
1. Countertop
2. Appliance
3. Slot
4. Wooden frame, thickness
16 mm.
Given the margin of error (tolerance) for the induction hob and the cut-out in the countertop, the
slot is adjustable (min. 2 mm).
Install the wooden frame 5 mm below the upper edge of the countertop (see Figure).
Removing the built-in appliance
Disconnect the induction hob from the power mains. Use a suitable tool to remove the silicone gasket
from the perimeter. Remove the induction hobby pressing from the lower side upwards.
WARNING!
Do not attempt to remove the appliance from the upper side of countertop!
WARNING!
The service department shall only be responsible for repair and servicing of the induction hob.
Consult your specialized kitchen equipment dealer regarding the re-installation of the flush-
mount induction hob.
10
WARNING!
If the oven is installed under a flush-mounted cooking hob, then the worktop thickness should
be at least 40 mm.
11

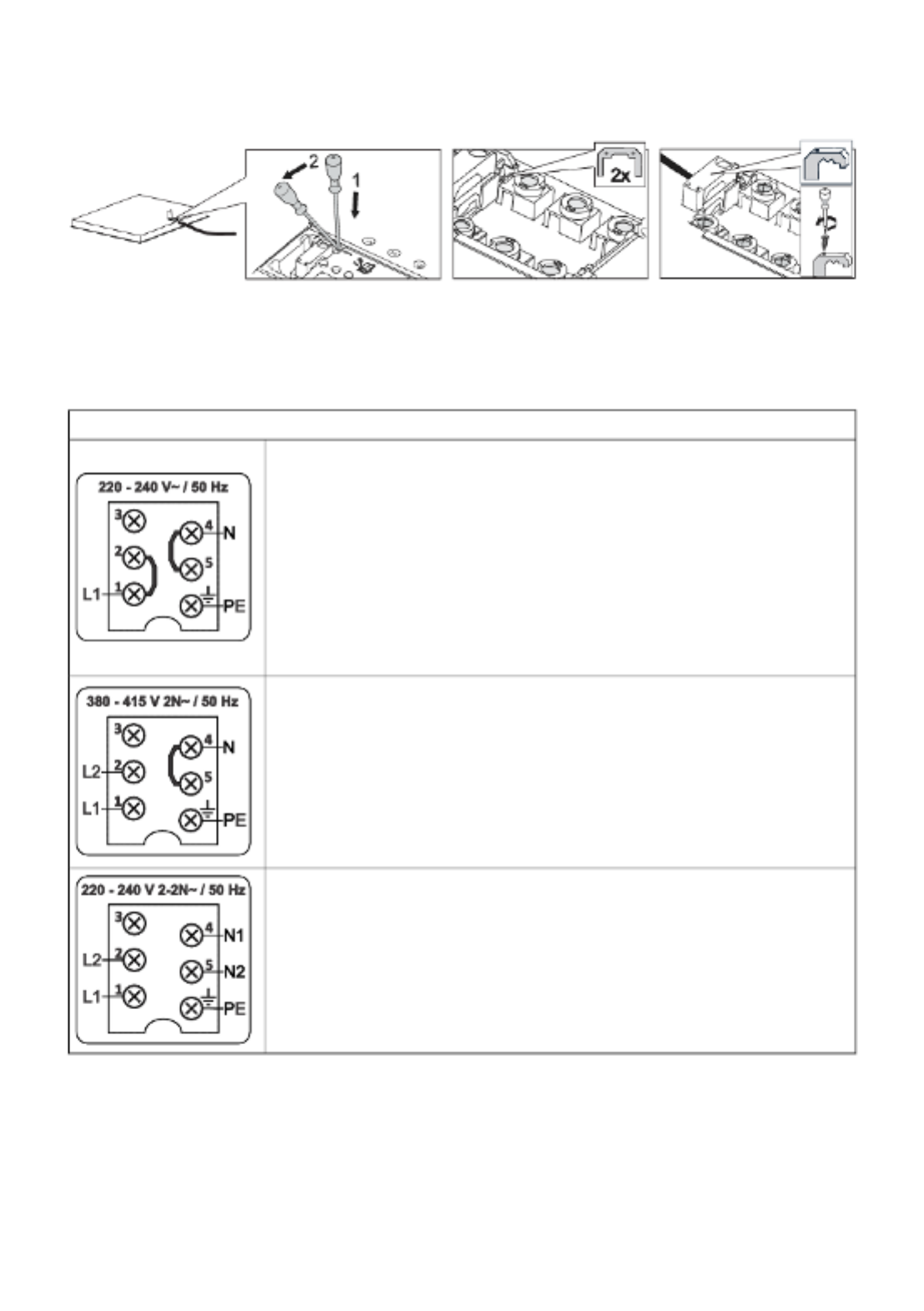

4. Connecting the induction hob to the power
mains
•Power mains protection must conform to the relevant regulations.
•Before connecting the appliance, make sure the voltage specified on the rating plate conforms to
the voltage of the power mains.
•There should be a switching device in the electrical installation that can disconnect all poles of
the appliance from the power mains, with a minimum clearance of 3 mm between the contacts
when open. Suitable devices include fuses, protective switches etc.
•The connection should be adjusted to the current and fuses.
•After installation, the parts carrying electrical current and insulated parts shall be protected against
contact.
WARNING!
The appliance may only be connected by an authorised expert. False connection can
destroy parts of the appliance. In such case, there is no right to warranty! Disconnect
the appliance from the power mains before any repair or maintenance operation.

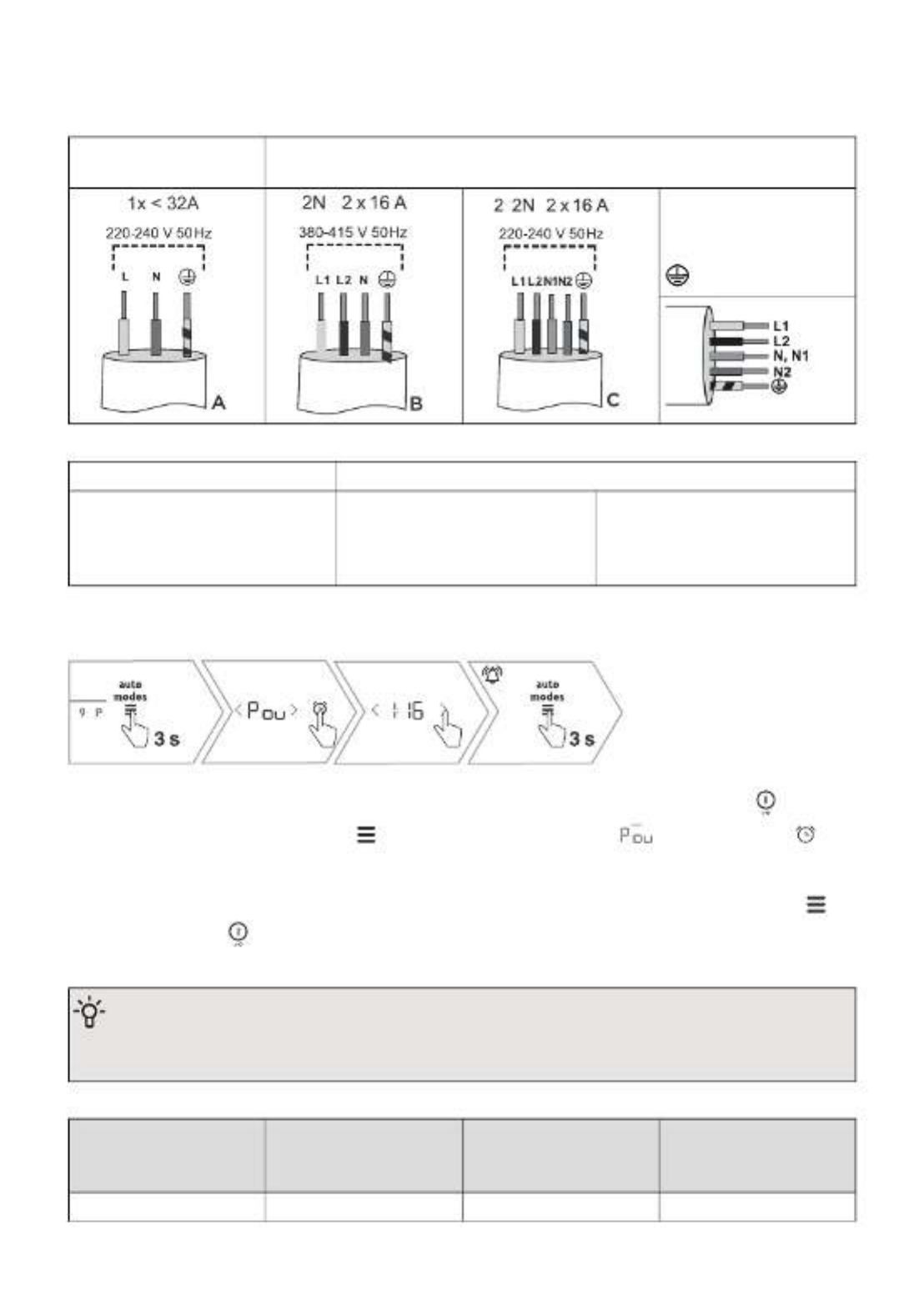

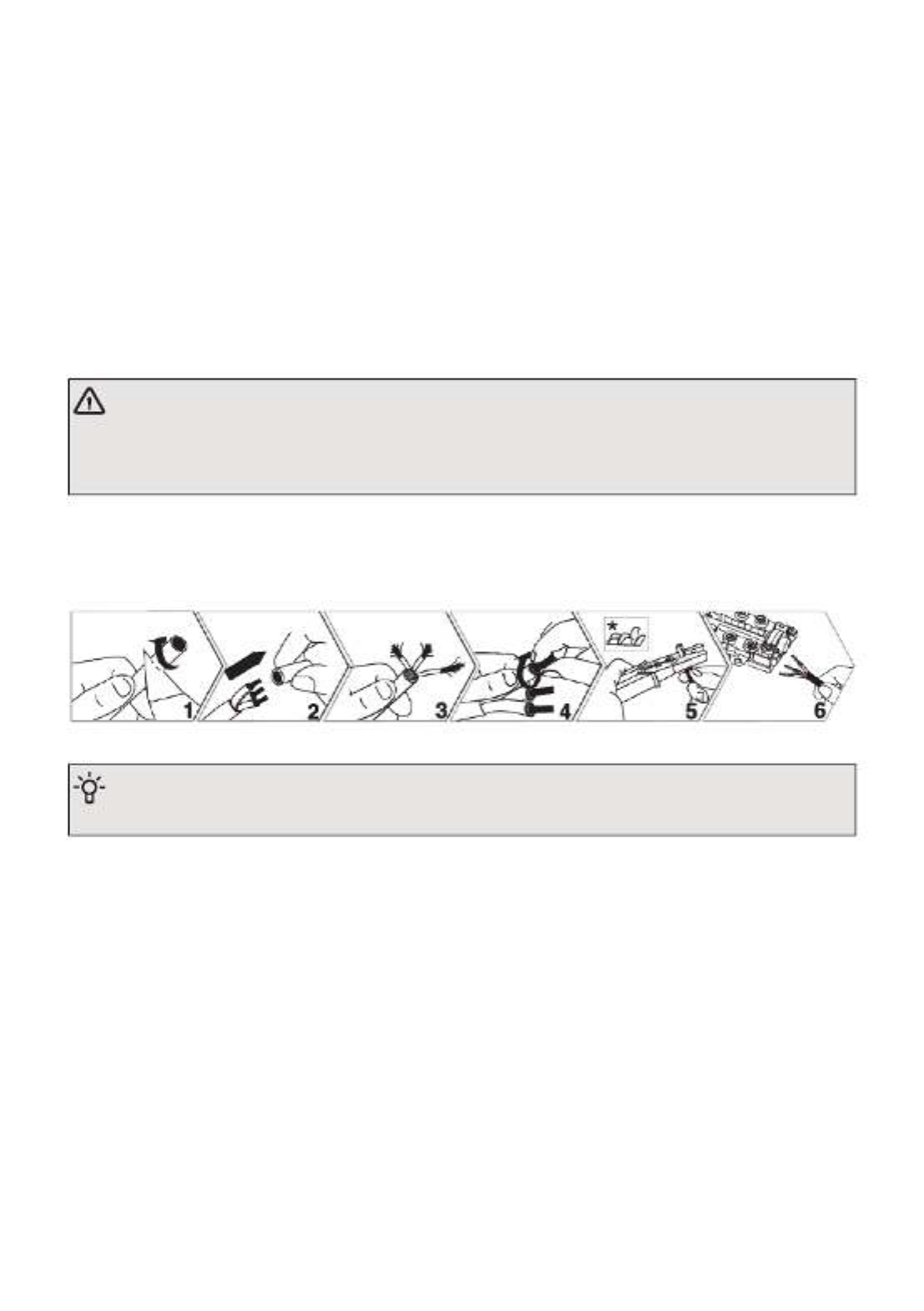

4.1 Power cord
(appliance without a power cord)
* Ferrules are not supplied.
INFORMATION!
We recommend using electric wire ferrules (end terminals).
•The following may be used for connection:
•PVC insulated connection cables type H05 VV-F or H05V2V2-F with yellow-and-green protective
conductor, or other equivalent or superior cables.
•Exterior cable diameter should be at least 8.00 mm.
•Run the power cord through a cord strain relief (clamp) that protects the cable from being pulled
out.
12
4.2 Connecting the appliance
1. Open the cover of the connection terminal box.
2. Connect the wires according to your type of appliance. The jumpers are provided on the connection
terminal.
3. Run the power cord through a cord strain relief (clamp) that protects the cable from being pulled
out.
Connection diagram
Single phase connection (up to 32 A)
•Single-phase connection (1 1N, 220-240 V~/50 Hz):
- Voltage between line and neutral conductor is 220 240 V~. Install–
a jumper between terminals 1 and 2, and between terminals 4 and
5.
- The circuit should be fitted with a fuse of up to 32 A. Power cord
core cross-sectional area should be at least 4 mm².
- If fuse is lower than 32 A, max currnet can be reduce in user set-
tings (see chapter Maximum power setting - "Power management").
2-phase connection (16A)
• –2 phases, 1 neutral conductor (2 1N, 380 415 V~ /50 Hz):
- Voltage between the line and neutral conductor is 220 240 V~.;–
voltage between lines is 380 415 V~. Install a jumper between the–
terminals 4 and 5. The circuit should be fitted with at least two
fuses of at least 16 A each. Power cord core cross-sectional area
should be at least 1.5 mm².
2-phase connection with two neutral conductors (16A)
• –2 phases, 2 neutral conductors (2 2N, 220 240 V 2 2N ~ /50 Hz):
- Voltage between phases and neutral conductor is 220-240 V~.
- The circuit should be fitted with at least two fuses of at least 16 A
each. Power cord core cross-sectional area should be at least
1.5 mm².
Connecting the power cord to the power mains
(appliance with a power cord)
•The cooking hob has to be hard-wired directly to the power mains.
•Devices for disconnecting from the power mains have to comply with the relevant regulations.
•Do not extend the power cord and do not lead it over sharp edges.
13
•If the appliance is installed above an oven, make sure the power cord is never in contact with the
oven's hot parts.
Two-phase connection
Single-phase connec-
tion
L, L1 = brown
L2 = black
N, N1 = grey
= yellow and green
Two-phase connectionSingle-phase connection
If your electric mains have 2 line
conductors and 2 neutral con-
ductors, connect the appliance
as shown in Diagram C.
If your electric mains have 2 line
conductors and 1 neutral con-
ductor, connect the appliance
as shown in Diagram B.
If your electric mains have 1
phase and 1 neutral conductor,
connect the appliance as shown
in Figure A.
Maximum power setting - "Power management"
After connecting the appliance to the mains, turn on the appliance by pressing the key and then
press the following key for 3 seconds . The following menu will open . By pressing the key,
you enter the additional menu, where you can use the < or > keys to choose between the maximum
power of the appliance. The first number represents the number of connection phases, and the second
and third numbers represent the current value per phase. To save the settings, press and hold for
3 seconds or press if you do not want to save the settings. Two minutes after connecting the
appliance to the mains, the power settings cannot be changed anymore.
INFORMATION!
If the cooking zone power settings exceed the maximum allowed power, the user interface
automatically lowers the power to the maximum allowed power.

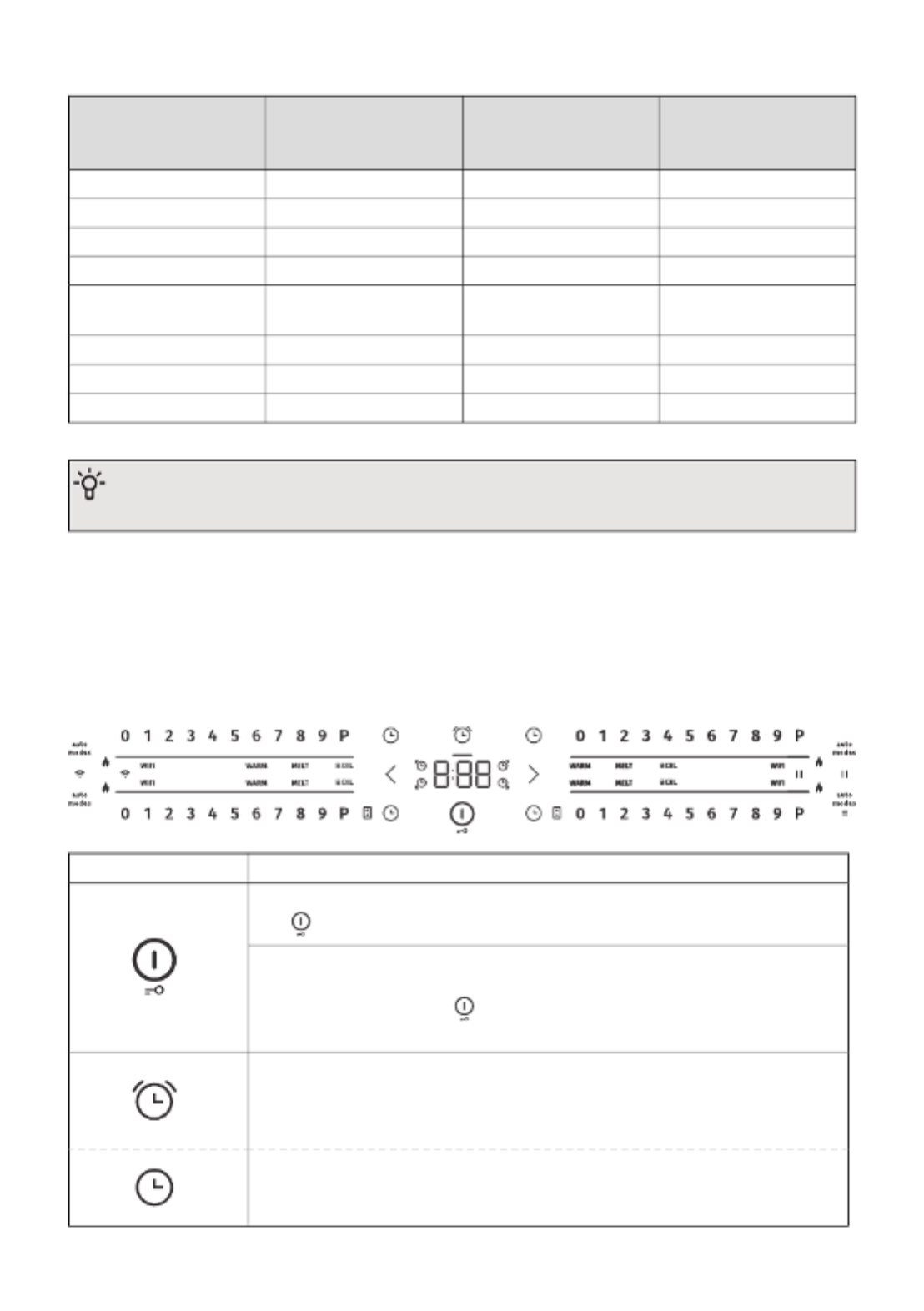

Number and cross-
section of power
cable wires
Total power [W]Current [A]Number of phases
3 x 4.0 mm2
7360321
14
Table continued from last page
Number and cross-
section of power
cable wires
Total power [W]Current [A]Number of phases
3 x 4.0 mm2
3680161
3 x 4.0 mm2
2990131
3 x 4.0 mm2
2760121
3 x 4.0 mm2
2300101
4 x 1.5 mm2or 5 x 1.5
mm 2(only for NL)
7360162
4 x 1.5 mm2
5980132
4 x 1.5 mm2
5520122
4 x 1.5 mm2
4600102
INFORMATION!
The maximum allowed power depends on the model.
5. Operating the cooking hob
5.1 Control unit
(depending on the model)
The appliance can have 3 or 4 sliders.
DescriptionKey/display
Switching the hob on/off
The key can be used to turn the appliance on or off.
Lock/child lock
The appliance can be locked and unlocked to prevent it from being switched
on unintentionally. Press and hold it for 3 seconds. The appliance is
now locked.
Time functions
•countdown timer for the entire cooking hob; does not power off the
cooking zone.
•shut-off timer for respective cooking zones; when the time expires, the
cooking zone is powered off.
15
Table continued from last page
DescriptionKey/display
Increase time settings
•Touch the key to increase the timer or program timer settings by 1
minute.
•Long press to quickly increase the timer or program timer settings to
the desired value.
Decrease time settings
•Touch the key to decrease the timer or program timer settings by 1
minute.
•Long press to quickly decrease the timer or program timer settings to
the desired value.
User settings
Touch the key for 3 seconds to turn on the user settings, where you can
adjust the volume, brightness, automatic pan detection, child lock, alarm
duration, pair the external hood or restore the user settings to the factory
settings.
Extra functions
Touch the key to activate additional hob settings: reheating, defrosting and
boiling.
Connection setup (Wi-Fi) (depending on the model)
When the user interface is on and the cooking zones are off, hold down the
key and release it when you want to enter the menu displayed on the timer.
Pause
With this function, you can pause the operation of the entire hob for up to
10 minutes. In the meantime, you can safely clean the hob without losing
your settings. Press the key to turn on or off the cooking pause and turn it
on again.
Reheating/keeping warm
The function enable automatic heating of water-based food without stirring
or additional heat maintenance of ready-made food.
Defrosting
Used for slow defrosting of frozen food or melting chocolate and butter.
Boiling/cooking with water
With this function, you can quickly heat the water to boiling point.
Bridge (depending on the model)
Combine the cooking zones by pressing this key.
Timer related to the cooking zone
The symbol lights up when you select the corresponding timer connected
to the cooking zone.
Timer related to the entire hob
The symbol lights up when you select the countdown timer for the entire
cooking hob.
Timer settings display
Display the time settings.
16
Table continued from last page
DescriptionKey/display
Slider
Touch or slide the slider to set the cooking power or switch off the cooking
zone.
Cooking zone illumination
When the function is switched on, the cooking area is partially illumin-
ated. When a value is selected, it is fully illuminated.
Hot zone indicator
The cooking hob has an indicator light for each of the cooking zones, indic-
ating that the cooking zone is still hot after switching off. Even if you switch
off the hob, this indicator light will be on as long as the cooking zone is hot!
Do not touch the cooking zone while this indicator light is on.
acoustic signalswipelong pressshort press
optional stepwaiting/implementationintermediate stepinitial step

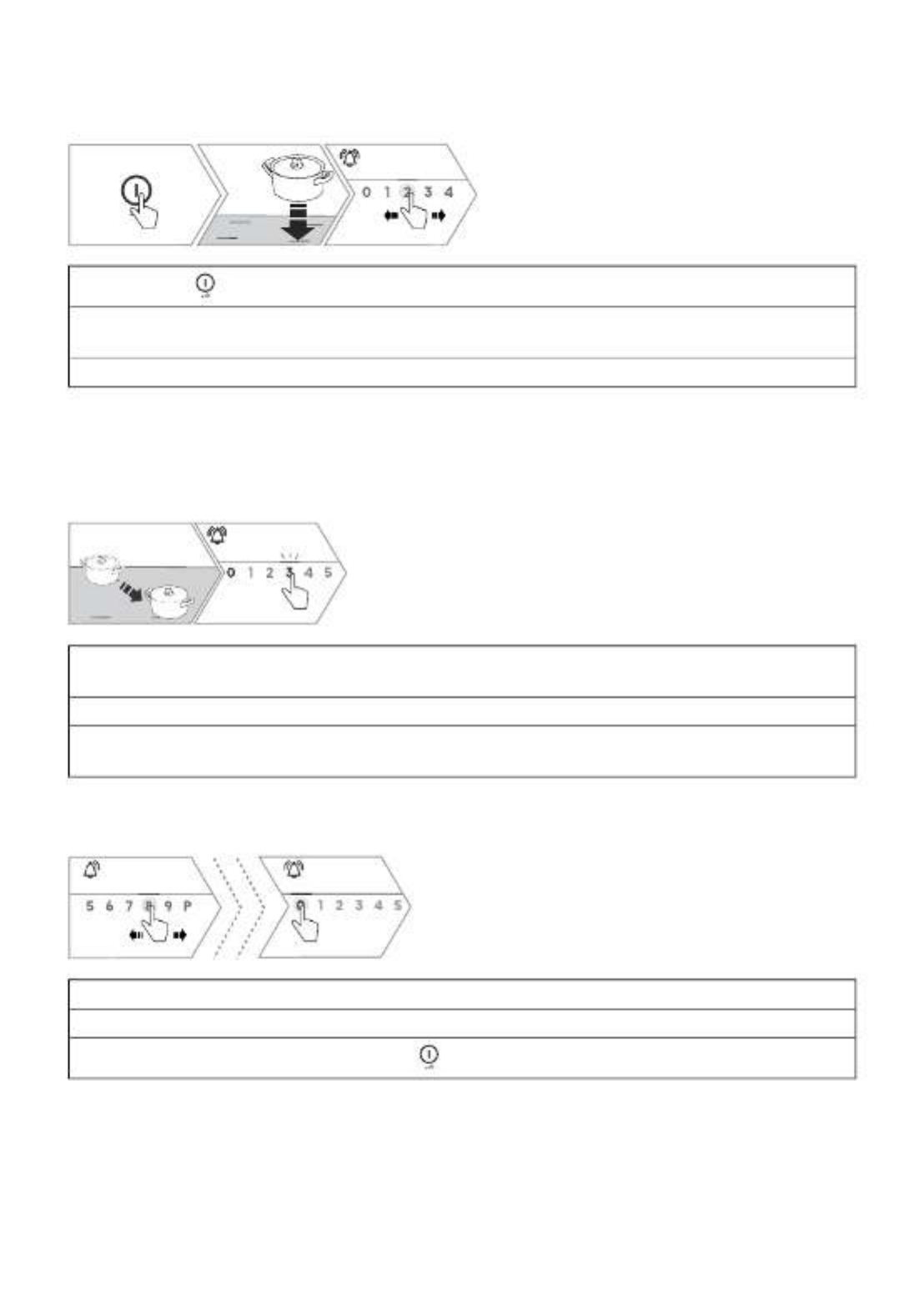

5.2 Switching the hob on/off
1. By pressing you switch on the cooking hob.
2. The slider bar indicating the cooking zones is half-illuminated.
3. Place the cookware onto the selected cooking zone, and the corresponding slider bar will light
up fully.
4. Set the cooking power by touching or swiping the slider. A short beep will be emitted.
5. Switch off the hob by pressing or by touching 0 on the slider.
INFORMATION!
If no cooking zone is switched on in 20 seconds, the induction hob will power off.
17
5.3 Automatic pan detection
The hob has a preset automatic detection of the presence of cookware on the cooking zone.
1. By pressing you switch on the cooking hob.
2. Place the cookware onto the selected cooking zone, and the hob will automatically detect the
presence of cookware. The corresponding slider bar will light up fully.
3. Set any cooking level.
5.4 Pan movement detection
The hob automatically detects the presence of cookware on the cooking zone if the function is enabled.
All power settings and time settings are transferred.
1. Transfer the cookware from one active cooking zone to another free cooking zone. The preset
power level and the preset timer will start flashing on the new cooking zone.
2. Within 3 seconds, confirm the transfer of settings by pressing one of the levels on the slider.
3. If the transfer of settings is not confirmed after the time has elapsed or when pressing level 0 on
a new cooking zone, the settings are not transferred.
5.5 Switching the cooking zone on/off
1. Touch or swipe the selected slider to select the desired power level.
2. A short beep sounds, the selected power is fully illuminated.
3. Switch off the cooking zone by touching or by touching 0 on the slider.
18
5.6 High heating setting - "Power boost"
For quick cooking, the high heating setting can be additionally activated on the cooking zones. Thus,
with the additional power of the cooking zones, you can quickly heat up even larger quantities of
water. The additional operating power is activated, before it automatically decreases to level 9. If the
hob is not too hot, it can be reactivated after switching off automatically.
1. Place the cookware onto the selected cooking zone.
2. Set the level with increased power.
3. To switch off the "Power boost" function, reduce the cooking zone power.
5.7 Automatic heating
By activating the function, the selected cooking zone will be heated for a while with high power, before
it automatically switches to the set level. To turn on the function, select the power level and hold it for
3 seconds.
87654321Power grade
1951204302601801207040Heating time
During the operation of the automatic function, it will deactivate if the power level is decreased. If the
power level is increased during the operation of the automatic function, the new set timer will include
the time that has already elapsed at the previous selected level. If the elapsed time is longer than the
time you want to reset, the automatic program will automatically end.
5.8 Bridged cooking zone - "Bridge"
(depending on the model)
The cooking zones on the left or right side of the cooktop can be combined into one large connected
zone. You can place an oval baking dish or grill plate on this zone.
NOTE!
The pan must be large enough to cover the centres of the upper and lower cooking zones.
•The maximum size of the baking tray is 40 x 25 cm.
•For an even heat distribution, we recommend a baking tray with a thicker bottom.
•The baking tray gets very hot during cooking, so take care to protect against burns.
•When placing the baking tray on the hob, be careful not to cover the control module with it.
19
1. The cooking zones to be combined must be switched off.
2. Press for 1 second to activate the function. A short beep will sound.
3. The symbol on the selected cooking zone flashes for 1 second.
4. Set the cooking level on the lower or upper slider.
5. Deactivate the function by pressing or by touching 0 on the slider. A short beep will be emitted.
5.9 Pause - "Stop&Go"
With this function, you can pause the operation of the entire hob during cooking.
1. By pressing for 1 second you activate the function. A short beep sounds, the pause key
flashes, and all set alerts are temporarily stopped. The countdown timer, which is connected to the
entire cooking hob, continues to run.
2. All buttons are inactive except and .
3. By pressing for 1 second within 10 minutes you deactivate the function. The hob continues
to operate with the same settings as before the function was activated.
INFORMATION!
If no key is pressed within 10 minutes, the hob will switch off automatically.
INFORMATION!
If the global timer is activated, it remains active after expiration in the Stop&Go mode and can
be confirmed with any button.
20
5.10 Memory function - "Recall function"
In case of switching off the user interface, the function allows you to restore the cooking zone setting
when switching on again.
1. Restart the user interface within 9 seconds of switching off the hob.
2. After power-up, the indicator flashes for 7 seconds.
3. Within 7 seconds of switching on the appliance, activate the key, to restore the settings set
before switching off the hob. When the settings are restored, an acoustic signal will be emitted.
4. If the key is not activated within a time interval of 7 seconds, or any other key is activated
immediately after power on, the settings cannot be reversed.
5.11 Pan detection indicator
The appliance automatically detects a missing pan on an active cooking zone. In case of a missing
pan, the entire slider with the set power will flash. During this time, the corresponding timers are
temporarily paused on the cooking zone where no pans are present.
INFORMATION!
If you do not put the cookware back on the cooking zone within 2 minutes, an acoustic signal
will be emitted and the cooking zone will be switched off.
5.12 Hot cooking zone indicator
The hob is equipped with a hot cooking zone indicator.
The cooking zone heats up via residual heat emitted by the cookware. When you remove the cookware
from the cooktop or turn off the cooking zone, the indicator light illuminates; during this time, you
can use this heat to keep food warm or melt dishes.
INFORMATION!
When goes out, the cooking zone can still be hot!
WARNING!
Be careful, there is a risk of burns!
21
5.13 Time functions
The appliance allows you to set a countdown timer that is connected to the entire cooking hob or to
set the programme hours that are connected to each cooking zone.
Countdown timer for the entire cooking hob
The countdown timer can only be set with the user interface on. When the countdown timer is
set, it will continue to count down the time even after the hob is switched off or during the active
Stop&Go function.
INFORMATION!
After the time has elapsed, the countdown timer can also be confirmed when the hob is
switched off or paused. Press any key to confirm.
Programme timer
After the set programme timer expires, the cooking zone that was connected to the timer will be
switched off and an acoustic signal will be emitted. You can confirm the acoustic signal by pressing
any key. The programme timer can only be set when the cooking zone is active.
Time function settings
1. By pressing / you turn on the time settings. The display starts flashing and shows
the corresponding icon of the selected time function.
2. By pressing and you set the desired time in the range between 1 minute and 9 hours and
59 minutes.
3. The time function can be confirmed manually by pressing / or automatically after 7 seconds
from the last change of the desired time.
4. After the timer has been successfully confirmed, an acoustic signal will be emitted and the cor-
responding icon for the timer function will be fully illuminated.
5. During the last minute of countdown, remaining time will be displayed in seconds.
INFORMATION!
When using two or more time functions, the associated timer icon currently displayed on the
screen is fully illuminated. Other icons of the set time functions will be half-illuminated, indicating
that the functions are set but currently not shown on the display. To display the selected set
time function, click on the corresponding key.
22
Changing the time function
1. Make sure that the time function to be adjusted is shown on the display. If it is not, do so by
pressing the key belonging to the time function.
2. Press again the key / , so that the timer display, together with the associated time function
icon, will start flashing.
3. Change the time function arbitrarily by pressing and .
4. The time function can be confirmed manually by pressing / or automatically after 7 seconds
from the last change of the desired time.
Switching off the time function
The time function can be terminated by simultaneously pressing and when it is shown on the
display or if the time function to be interrupted is set to 0:00 and then confirmed (see changing the
time function).
5.14 User settings
On the appliance, you can set: volume, brightness, automatic pan detection, child lock, alarm duration,
external hood connection (depending on the model), factory reset.
1.Enter the parameter setting menu by touching for 3 seconds .
2. The display shows and after 2 seconds it displays .
3. Use and to navigate the menu between the possible settings.
4. The available settings of the selected parameter are displayed with a half-illuminated line above
the values that can be set. The currently set value is fully illuminated.
5. Exit the user settings by pressing for 3 seconds the key (the settings will be saved) or
the key (the settings will not be saved).
INFORMATION!
Entering the user settings is disabled if the active timer is connected to the entire cooking hob.
DescriptionKey/display
Setting the power limit
After connecting the appliance to the mains, activate the following key .
After 2 minutes, the power setting is no longer possible.
Volume adjustment
Use the slider to set the desired volume level from 0 to 3.
23
Produkt Specifikationer
| Mærke: | Gorenje |
| Kategori: | Komfur |
| Model: | GI6442BSC |
Har du brug for hjælp?
Hvis du har brug for hjælp til Gorenje GI6442BSC stil et spørgsmål nedenfor, og andre brugere vil svare dig
Komfur Gorenje Manualer
9 September 2025
3 September 2025
2 September 2025
2 September 2025
3 August 2025
2 August 2025
2 August 2025
2 August 2025
2 August 2025
2 August 2025
Komfur Manualer
- Kucht
- Mayer
- Sandstrøm
- Prem-i-air
- Cecilware
- Acros
- Modena
- Euro Appliances
- Eurochef
- Nabo
- Artel
- JennAir
- Equator
- V-Zug
- Dacor
Nyeste Komfur Manualer
18 September 2025
18 September 2025
18 September 2025
18 September 2025
18 September 2025
18 September 2025
18 September 2025
18 September 2025
18 September 2025
18 September 2025
