Growatt MID 17-40KTL3-X Manual

Growatt Ikke kategoriseret MID 17-40KTL3-X

Læs gratis den danske manual til Growatt MID 17-40KTL3-X (2 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 57 personer og har en gennemsnitlig bedømmelse på 4.9 stjerner ud af 29 anmeldelser. Har du et spørgsmål om Growatt MID 17-40KTL3-X, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

11.

22.

(1)Front panel (2)Touch button (3)LCD screen (4)LED indicator ( )5 Mounting bracket

( )6 Heat sink ( )7 DC switch ( )8 PV terminal ( ) ( )9 RS485 port 10 USB port

( ) ( )11 Vent valve 12 AC terminal

1. , .This document is for quick installation guidance only please refer to User Manual for more details

2. .Growatt shall not be liable for any damage resulting from unproper installation

Note：

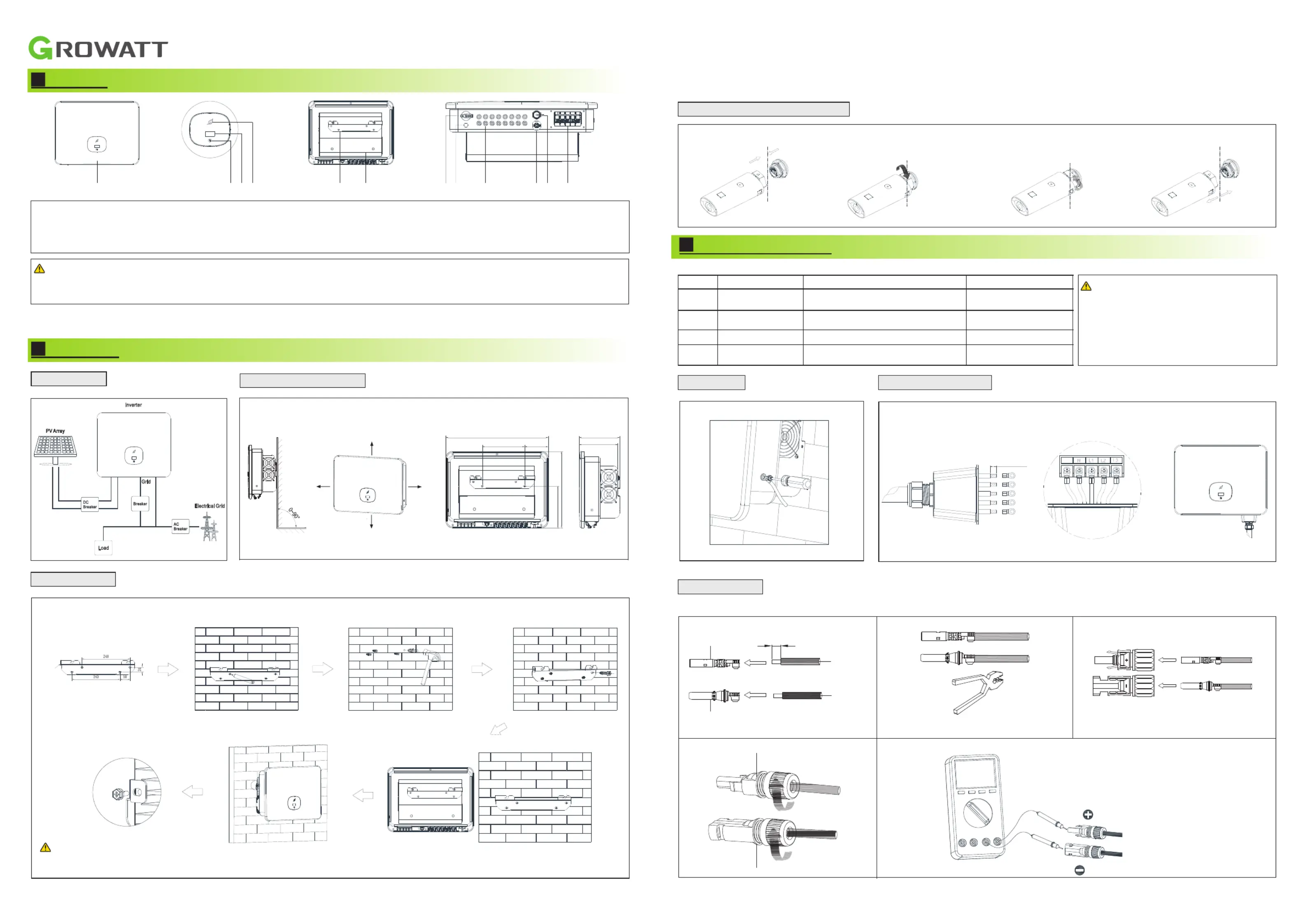

MID 17-40KTL3-X Quick Guide

Note：

1.When drilling holes in the wall, avoid water and electricity pipes, otherwise it may cause danger.

Overview

Installation

System overview 2.1 Installation requirements

2.2 Wall mounting

2 3. Communication module installation

Inver ter side

Inver ter side Inver ter side

Inver ter side

▲Up

UninstallInstall

33.

Electrical connection

Please prepare the cable before connecting as follows.

Cable name

PV input wire

Type

four or five polychromatic

multi-core copper wires

PV wire such as PV1 F （ - )

RS485

Recommend model

16mm² - 20mm²

4mm - 6mm² ²

No.

Communicatio

wire

AC output wire

grounding wire

Protective Single multi-core

yellow-green wire 1.Please make sure all switches are in “OFF”

position before wiring. For personal safety,

please do not operate with electricity.

2.If the diameter of the cable does not match

the terminal, or the cable is aluminum wire,

please contact our after-sales personnel.

Note :

3 1. Grounding

Connect to the inverter

side.

It is reco mmended to u se 16-2 0mm²

cable.

Install the AC side water

proof cover.

3 2 .AC output connection

inverter side

10-12 mm

3 3. DC connection

3.3.1 PV input terminal installation

230

218

579

240 133

433

237

≥500mm

≥300mm

≥500mm

Note d:Waterproof must be blocked

with fireproof mud to prevent water.

Keep th e

brack et

insta lled

horizontall y.

8 10mm-

123

4mm - 6mm² ²

Positive meta l terminal

Negat ive metal terminal

Please make sure the cabl e can not be

pulled out after pressing.

Pull the PV cable m ake sure there

is no loo se or shak ing.

Make sure the cable polarity is

correct and voltage is less than

1100V.

1 5 6 7 811 121092 3 4

GR UM 211 A 02- - - -

PV+

PV-

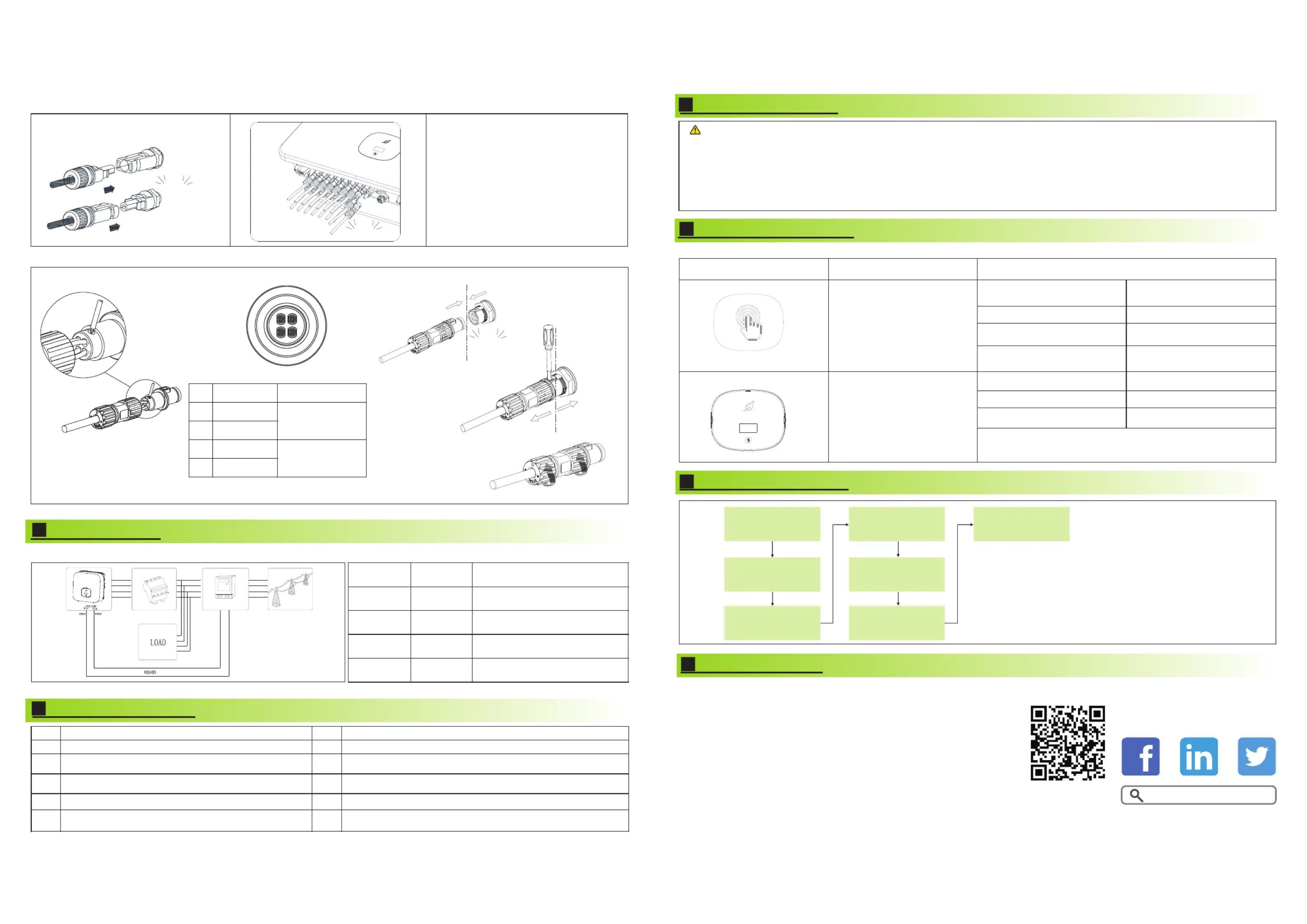

3.3.2 Plug in PV terminal

Note:

1.Before installing the PV terminal, please

double-check that the PV input voltage and

current do not exceed the MPPT limits.

2.When installing the PV terminal, pay

attention to the difference between the

positive and negative poles and the one-to-

one correspondence between the terminals

and the machine.

3.There is a "click" sound when the terminal

is connected,please gently pulling the PV

wire to make sure there is no loose or

pulling off.

3.3.3 Communication cable installation

Click

Download

Manual Growatt New Energy

55.

Post-installation check

No.

Acceptance criteria

No.

Acceptance criteria

The inverter is installed correctly, firmly and reliably.

The RS485 communication cable is installed correctly and firmly.

The ground wire connected well and the connection is firm

and reliable.

The cable tie port is trimmed well without leaving sharp

corners,meets the requirements of the user.

All switches are in the OFF state.

All exposed terminals are well protected and there are no vacant

ports.

All wiring is correct and securely connected.

Pay attention to clean up all construction residues.

The wiring of the cable is reasonable, meets the

requirements, and there is no phenomenon of broken skin.

Connecting Meter

44.

The following table describes how we can connect EASTRON meter (TPM-E)to inverter:

Meter Pin NO. Description Meter Connection

1/2/3/4

5/6/7/8

L1/L2/L3/N-in

L1/L2/L3/

N-out

RS485A

RS485B

Grid L1/L2/L3/N

AC connector & Load L1/L2/L3/N

SYS COM Pin 7 RS485A2

SYS COM Pin 8 RS485B2

B A

Customer can read more information by push button.

Mark

Describe

Explain

Touch mark

Single touch

Switch the display interface or the

current number plus 1

Double touch

Enter the setting state or confirm

Triple touch

Return to the previous display

interface

Long press for 5s

The current data returns to the

default value

Inverter status indicator

Red

Fault

Green

Normal operation

Red light flashing

Warning

It can display the basic information of inverter through LCD display

screen (PV/AC voltage,PV power,AC current,total power,generating

capacity, etc.).

77.

.. Status of PV grid inverter

99.

Service and contact

Note:

66.

Power on and off steps

88.

Export limitation setting

Exporlimit

OFF ON

Password

123

Set parameter

General

Advanced

Meter

ExportLimit Rate

XXX.X%

Set OK

If the local grid company requires to limit the

output power from your inverter systems,we

introduce the concept of Export Limit Rate.The

ratio of your system output power divided by

the rated power of the inverter is called Export

Limited Rate.For example,if the local grid

companyonly accepts 4kW from your 5kW

system,then the Export Limit Rate of 5kW

inverter should be 80%.

Inverter side

1 2

No.

Description

Remarks

RS485A1

RS485

communication

signal

RS485B1

RS485A2

Anti-backflow

metter

RS485 signal

RS485B2

Click

Before turning the inverter on please make sure the PV input voltage and current are within the MPPT limits , .

Follow the steps below to turn the inverter on :

1 Switch on the build in DC isolator at the bottom of the inverter. - .

2 Switch on the PV Array and DC isolator next to your inverter if you can not find this switch skip this step. , , .

3 Switch on the Solar AC isolator if the inverter is more than 3 meters away from your switchboard. .

4 Switch on the solar supply main switch in the switch board. .

To shut down your system follow this guide in reverse order , .

Shenzhen Growatt New Energy CO.,LTD

4-13/F,Building A,Sino-German(Europe) Industrial Park,

Hangcheng Ave, Bao'an District, Shenzhen, China

+86 0755 2747 1942

www.ginverter.com

E service@ginverter.com
