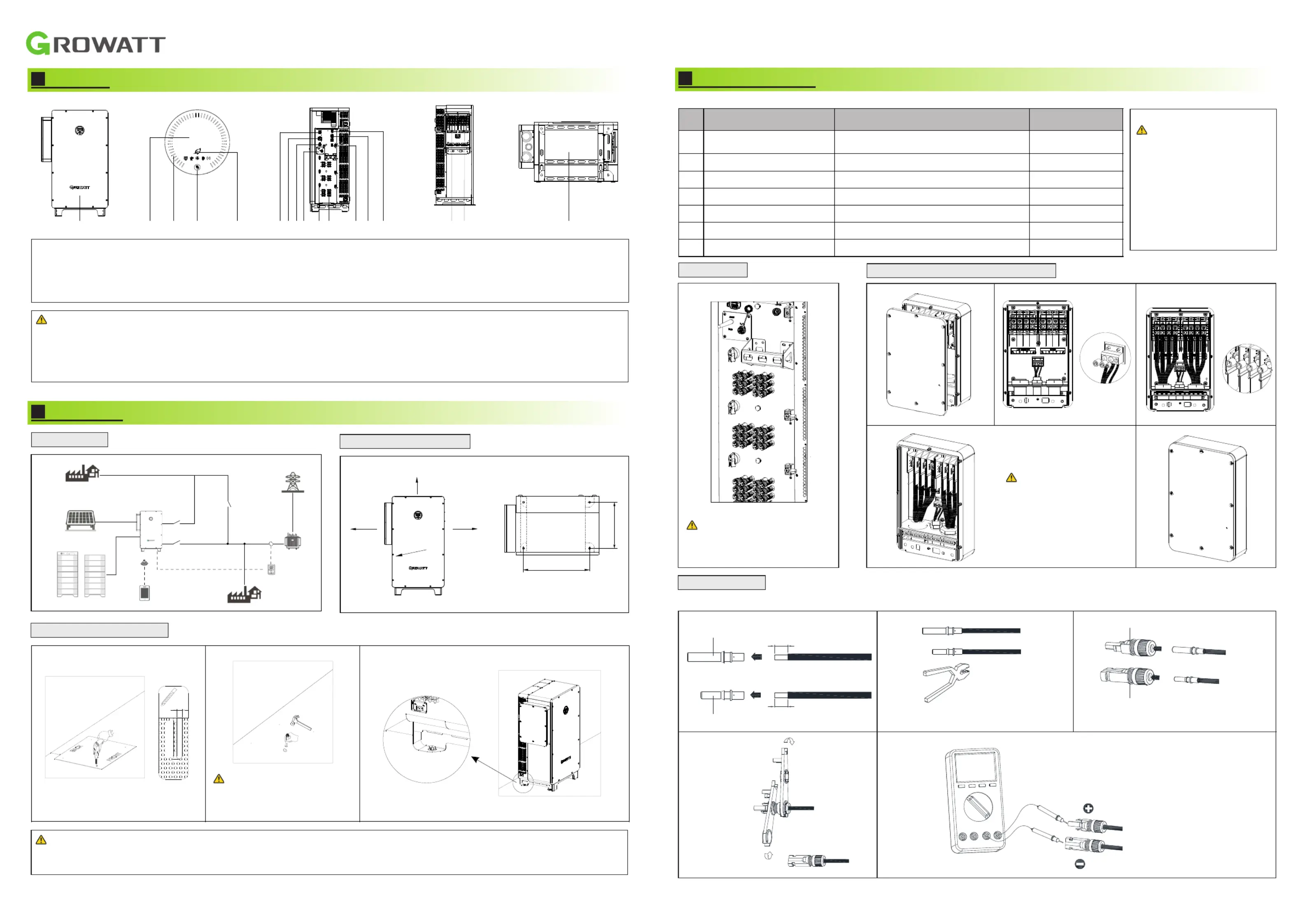

Side 1/2

1.The content of this document is continually reviewed and amended, where necessary. Growatt reserves the right to make changes to the

material at any time and without notice. Unless otherwise agreed, this document is for quick installation guidance only. All information and

suggestions in this document do not constitute a warranty of any kind, express or implied. Growatt reserves all rights for final explanation.

2.This document is for quick installation guidance only. For details, please refer to the User Manual.

3.Machine damage caused by failure to follow the instructions is not covered under any warranty.

1.When determining the installation position of the inverter, please consider the position of the batteries and the distribution panel.

2.For export limitation, you are advised to connect an energy meter and current transformers to the inverter.

When drilling holes, avoid the

water pipes and power cables

buried under the ground.

Please prepare the cables listed below before electrical connections.

3.3.1 Assembling the PV connectors

1.Make sure all switches are

OFF before connecting the

cables. For personal safety, do

not operate when power-on.

2.If the diameter of the cable

does not match the terminal, or

the cable is aluminum wire,

please contact our after-sales

personnel.

8 10 mm-

8-10 mm

Positive metal contact

Negative metal contact

Ensure that the cable cannot be pulled out from the

terminal after crimping.

Pull the PV cables back to check that they are connected

securely.

Ensure secure connection

by tightening the locking

nut.

Positive metal connector

Negative metal connector

Make sure the cable polarity is correct.

Battery BOX

Quick Installation Manual

WIT 50-100K-HU-US Quick Guide

≥1000mm

≥1

0mm

399.5mm

574.5mm

When drilling holes, avoid the

water pipes and power cables

buried under the ground.

After cables are connected,

apply fireproof mud to the

waterproof silicone mat

inside the AC junction box.

Lock the cover of the AC

junction box after the

fireproof mud is applied.

11.

Overview

( ) ( )13 Battery terminal 14 BMS power supply port

( )15 GRID terminal

( )16 LOAD terminal

(1)Front panel

(2)OLED display screen

(3)Battery status indicator

(4)Push button

(9)Communication port

( )5 System indicator

( )6 BMS communication port

( )7 Parallel communication port

( )8 Monitor communication port

( )10 DC switch

( ) ( )11 PV terminal 12 Network communication port

Notes:

22.

Installation

System overview

2.1 Installation requirements

2.2 Floor-mounted installation

33.

Connecting cables

3.1 Grounding

3.2 GRID and LOAD side cable connection

Notes:

3.3 DC connection

No.

Cable

Type

Recommended

specifications

Grounding cable

A multiple-core copper cable (yellow and

green)

50mm

Grid cable

A multi-core copper cable

2 2

120mm -300mm

Load cable

A multi-core copper cable

2 2

70mm -150mm

PV input cable

Photovoltaic cable

2 2

4mm -6mm

Battery power supply cable

A single-core copper cable (red and black)

50mm

BMS power supply cable

A multi-core copper cable

2 2

0.5mm -2.5mm

Other communication cable

RS485

Notes:

Φ12mm

(0.47'')

70mm(2.76'')

.1m

0.1m

100.0

Output Power

( )17 Base

Primary

Load

Secondary Load

Bypass

Breaker

Grid

Breaker

Grid

Load

Breaker

Meter

Phone

BAT

PCS
