Haws 7361-7461 Manual

Haws Ikke kategoriseret 7361-7461

Læs gratis den danske manual til Haws 7361-7461 (1 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 8 personer og har en gennemsnitlig bedømmelse på 4.5 stjerner ud af 4.5 anmeldelser. Har du et spørgsmål om Haws 7361-7461, eller vil du spørge andre brugere om produktet?

Side 1/1

Ø 10mm

3X

Ø 8"

Ø 3/8"

Ø229mm

Ø 9"

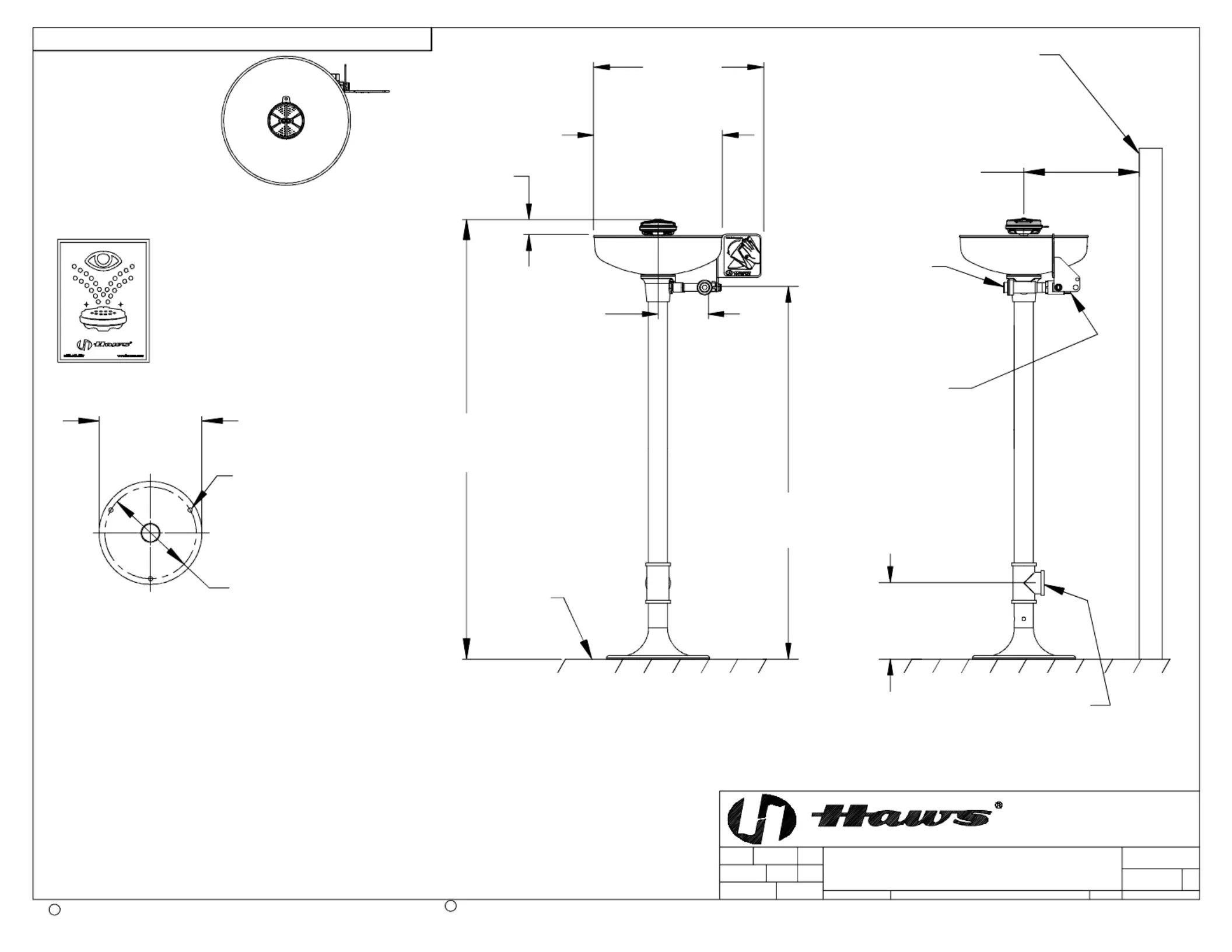

MOUNTING DETAIL

Ø 203mm

B.C.

TOP VIEW

OBSTRUCTION

L-STRAINER

1/2" IPS

SUPPLY

*6-3/4"

171mm

1-1/4" IPS

WASTE

*32-3/8"

822mm

4-1/8"

105mm

1-1/4"

32mm

381mm

Ø 11-1/4"

Ø 286mm

15"

*38"

965mm

6" MIN.

152mm

USER STANDS AND 15.3 CM (6 IN.) MINIMUM FROM WALL OR NEAREST OBSTRUCTION.

83.8 CM (33IN.) AND NO GREATER THAN 114.3 CM (45 IN.) FROM SURFACE ON WHICH

- EYEWASH OR EYE/FACE WASH SHALL BE POSITIONED WITH NOZZLES NOT LESS THAN

- UNIT SHALL BE INSTALLED IN ACCORDANCE WITH MANUFACTURER'S INSTRUCTIONS

1. TO COMPLY WITH ANSI Z358.1-2009 FOR EMERGENCY EYEWASH AND EYE/FACE WASH:

AND ACCEPTABLE PLUMBING PRACTICES.

NOTES:

± 1/2" [12.7mm]

2. *THESE DIMENSIONS MAY VARY

FLOOR

LINE

APPROVED:

DRAWN:

PART NUMBER

DRAWING NO.

SCALE: SHEET OF

REV

DRAWING TYPE: SIZE: A

BY:ECN NO.

DATE:

DATE:

ECN:

REVISED PER

CHK'D.:

Haws Corporation - All Rights Reserved.

HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.

C

R

MODEL(S)

1455 KLEPPE LANE

SPARKS, NEVADA 89431

(775) 359-4712 FAX (755) 359-7424

E-MAIL: HAWS@HAWSCO.COM

WEBSITE: WWW.HAWSCO.COM

THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS

MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.

CH

02/91

09208A00 14

0002080056.D

7361-7461

1:10

1 1

HM

INSTALLATION

4910

2014

SIGN IS TO BE POSITIONED SUCH

THAT IT IS VISIBLE WITHIN THE

AREA SERVED BY THE EYEWASH
