Haws 8355WCW Manual

Haws Ikke kategoriseret 8355WCW

Læs gratis den danske manual til Haws 8355WCW (1 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 4 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 2.5 anmeldelser. Har du et spørgsmål om Haws 8355WCW, eller vil du spørge andre brugere om produktet?

Download PDF
Side 1/1

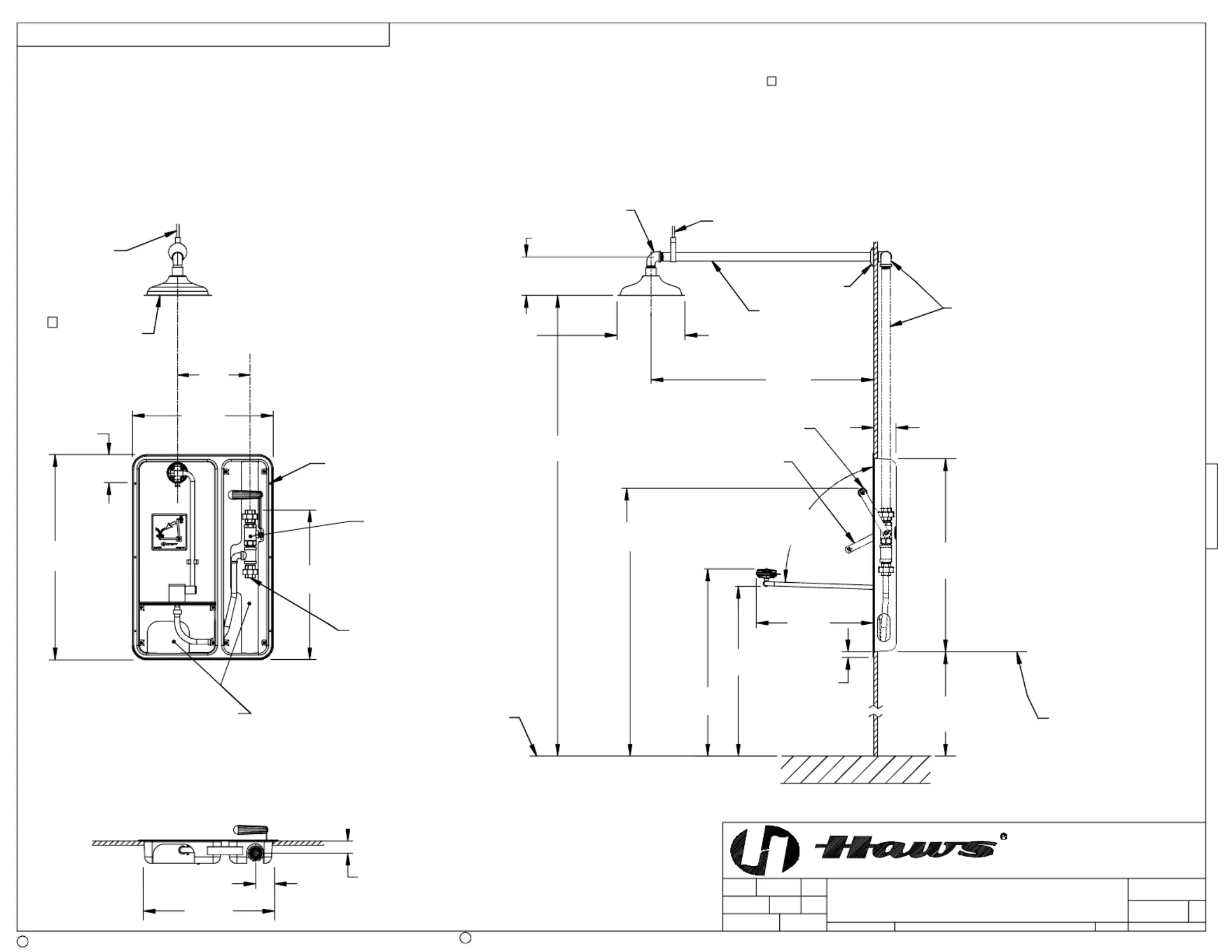

32"
813mm
1" IPS
FEMALE
SUPPLY
INLET
REMOVABLE
ACCESS PANELS
(NOT SHOWN)
STAY OPEN
BALL VALVE
WITH INLET
AND OUTLET
UNION
22"
559mm
(34-1/2")
(876mm)
(46")
(1168mm)
1"
25mm
FLANGE
ALL AROUND
PULL DOWN
TO OPEN
EYE/FACE WASH
18-7/16"
468mm
22-1/8"
562mm
TO FINISHED FLOOR
(BOTTOM OF
ROUGH IN)
30-1/4"
768mm
SHOWER
"PANIC BAR"
IN THE OFF POSITION
82"-96"
2083mm-2438mm
ACTIVATION
POSITION
6X
Ø3/16"
4.8mm
MOUNTING
HOLE
3-1/2"
89 mm
FLOOR LINE
WASTE CONNECTION MUST ADHERE TO LOCAL HEALTH AND PLUMBING CODES.
WHEN INSTALLING THIS UNIT, LOCAL, STATE OR FEDERAL CODES SHOULD BE ADHERED TO.
FLOW RATE FOR EYE/FACE WASH IS 3.7 GPM AND EXCEEDS ANSI STANDARD Z358.1.
DIMENSIONS MAY VARY BY ± 1/2" [12.7mm].
*
4.
NOTES:
1.
3.
4X
4-1/2"
114mm
20-1/8"
511mm
2-5/8"
67mm
1-7/8"
48mm
23-5/16"
592mm
ø 10-1/2"
267mm
FLANGE
HANGER BRACKET
(NOT SUPPLIED)
(5-3/4") (146mm)
1" S.S. ELBOW
(SUPPLIED)
1 X 36" S.S. NIPPLE
(SUPPLIED)
ESCUTCHEON
(SUPPLIED)
1" IPS AND FITTINGS
(NOT SUPPLIED)
36"
914mm
*
MOUNTING HARDWARE NOT SUPPLIED.5.
DWG. NO.
APPROVED:
DRAWN:
PART NUMBER:
DRAWING NO.:
SCALE: SHEET OF
REV.
DRAWING TYPE:
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
SIZE:
BY:ECN NO.
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
1455 KLEPPE LANE
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
MODEL(S)
15913A00
I. ROBERTS
7/13/10
15913A00 4
0002080142.D
8355WCW
1/18
1
1
A
4290
HM
INSTALLATION
4734
2012
(31-5/8")
(803mm)
STAINLESS STEEL
SHOWER HEAD
WITH 20 GPM FLOW CONTROL
2
HANGER BRACKET
(NOT SUPPLIED)
11"
SIMULTANEOUS USE BY THE SAME USER PER ANSI Z358.1.
SHOWER HEAD MUST BE POSITIONED IN-LINE WITH EYE/FACEWASH TO ALLOW FOR2
