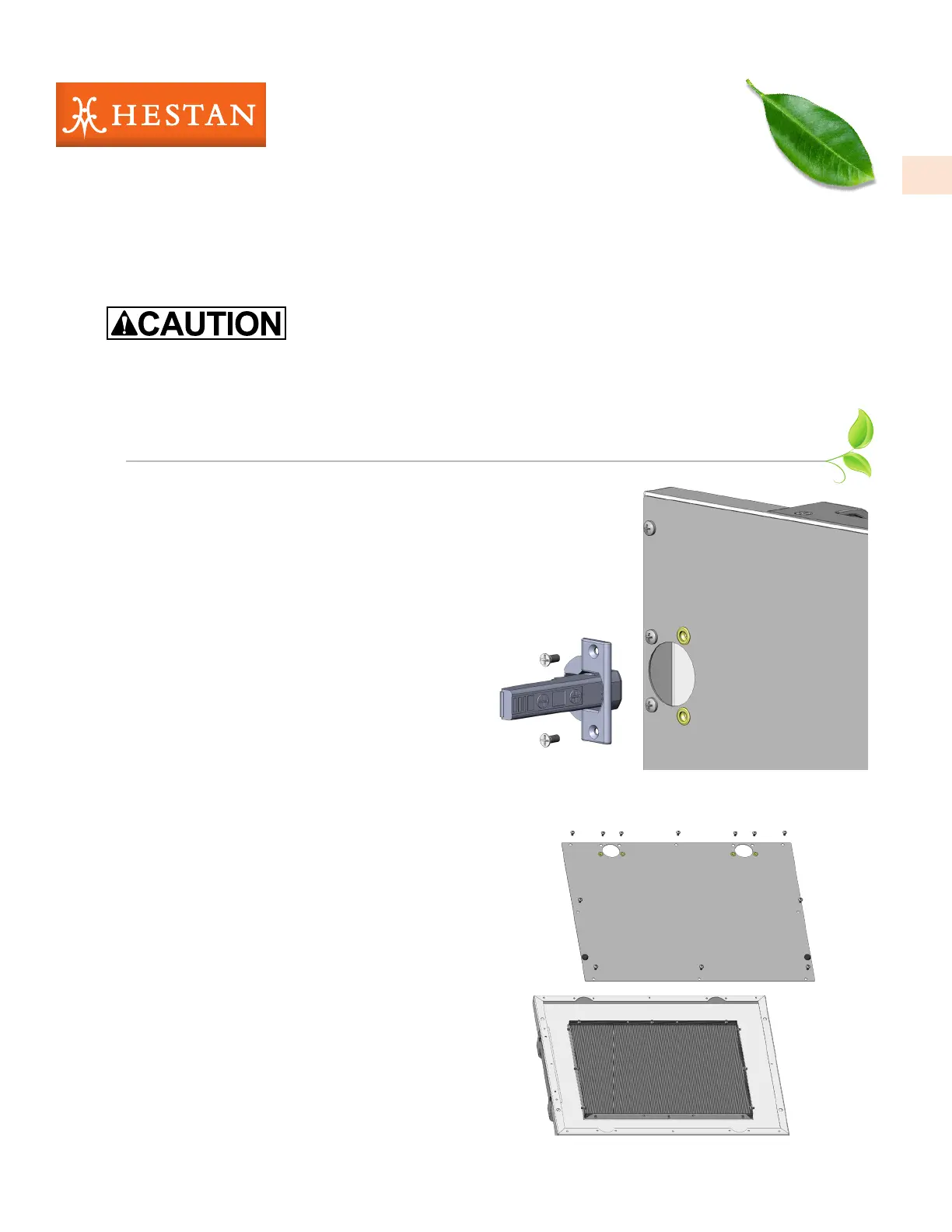

Side 1/6

COLORED PANEL

REPLACEMENT

CABINETRY - AGCP SERIES

IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN

THE INSTRUCTIONS HEREIN SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN.

IF CABINET OR DRAWER IS NEAR AN APPLIANCE, IT MUST BE COMPLETELY COOL AND THE GAS

SOURCE MUST BE SHUT OFF. THE POWER MUST BE DISCONNECTED.

Some parts inside your cabinet or drawer have sharp edges. Care must be

taken when handling the various components to avoid personal injury. Wear

gloves when handling.

TOOLS REQUIRED:

Flat and Phillips screwdrivers

PART REPLACEMENT - TYPICAL DOOR (VARIOUS PRODUCTS)

1. Unclip door hinge from frame. Consult the

Installation Manual 009798 or 009799 which came

with your cabinet product. If door was part of a

Grill Cart, consult the manual which came with

the cart.

Remove the hinges from the back face of the door

as shown in Fig. 1.

FIG. 1

2. Lay the door on a flat surface with a blanket or

towel to protect the door finish. Remove the door

liner by removing all screws as shown in Fig. 2.

FIG. 2

PART REPLACEMENT - TYPICAL DOOR (CONTINUED)

PART REPLACEMENT - LIFT-OFF DOOR (AGLP)

3. Remove the textured panel insert by

removing all the internal screws as

shown in Fig. 3.

4. Re-assembly is the reverse process. It

is recommended to install all screws

by hand, and NOT use a drill-driver or

screw gun. It is very easy to strip the

threaded holes.

Re-attach and adjust doors to frame

as per Installation Manual 009798 or

009799 which came with your cabinet

product.

If the door was part of a Grill Cart,

consult the manual which came with

the cart.

FIG. 3

1. For the AGLP cabinet, remove the door by pulling straight up until the door comes off the pins

(shown here in red). Panel replacement is the same as step 2-4 in the previous section.

DOOR

PINS
