OUTDOOR CABINETS

Installation Instructions

AGAD / AGSD / AGSDR / AGSR / AGDR

IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN

INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER

Some parts have sharp edges. Care must be taken when handling the various components to avoid

personal injury. Wear gloves when handling.

TOOLS REQUIRED:

Work gloves

Safety glasses

Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed

Phillips screwdriver

Flat-blade screwdriver

Level

Tape measure

Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper

and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT

discard any packing material (box, pallet, straps) until the unit has been inspected.

Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of

your cabinets. You may leave any exterior protective film on until after installation is complete.

ACCESS

DOOR

FRAME

PRY UP HERE TO

REMOVE DAMPER

DOOR

MOUNTING

BASE

STRUCTURE

(DOOR JAMB)

DAMPER

ACCESS

DOOR

FRAME DOOR

MOUNTING

BASE

STRUCTURE

(DOOR JAMB)

PINCH HERE

TO UN-CLIP

HINGE

CABINET DOOR INSTALLATION (AGAD, AGSD, AGDR, AGSDR)

1. Your new Hestan cabinets come with doors pre-installed in their frames. It will be necessary to detach

them before installing the frame in your island structure. As shown below, remove the dampers, then

pinch the back of the hinge to un-clip it from the mounting base. The door may now be removed.

2. Consult the table at the end of this instruction manual to determine the appropriate cutout dimensions

for the Hestan Outdoor cabinet product you are installing. The cutouts should be square at all corners

for proper fitment of the cabinet. The installer will have to build up any internal structural elements or

supports in the island in order to secure the cabinet in place. Stainless steel hardware (not included) is

highly recommended.

3. Slide the frame into the opening and check for proper alignment. Secure the frame to the structural

members of your island using the various available mounting holes in the frame.

4. To re-install the door, follow the instructions shown below.

ACCESS

DOOR

FRAME

ATTACH AT THIS

NOTCH FIRST

DOOR

STRUCTURE

(DOOR JAMB)

MOUNTING

BASE

PUSH HINGE

UNTIL REAR

CLIP ENGAGES

ACCESS

DOOR

FRAME

ATTACH DAMPER

AT THIS NOTCH

DOOR

STRUCTURE

(DOOR JAMB)

MOUNTING

BASE

PUSH HERE

UNTIL REAR

ENGAGES

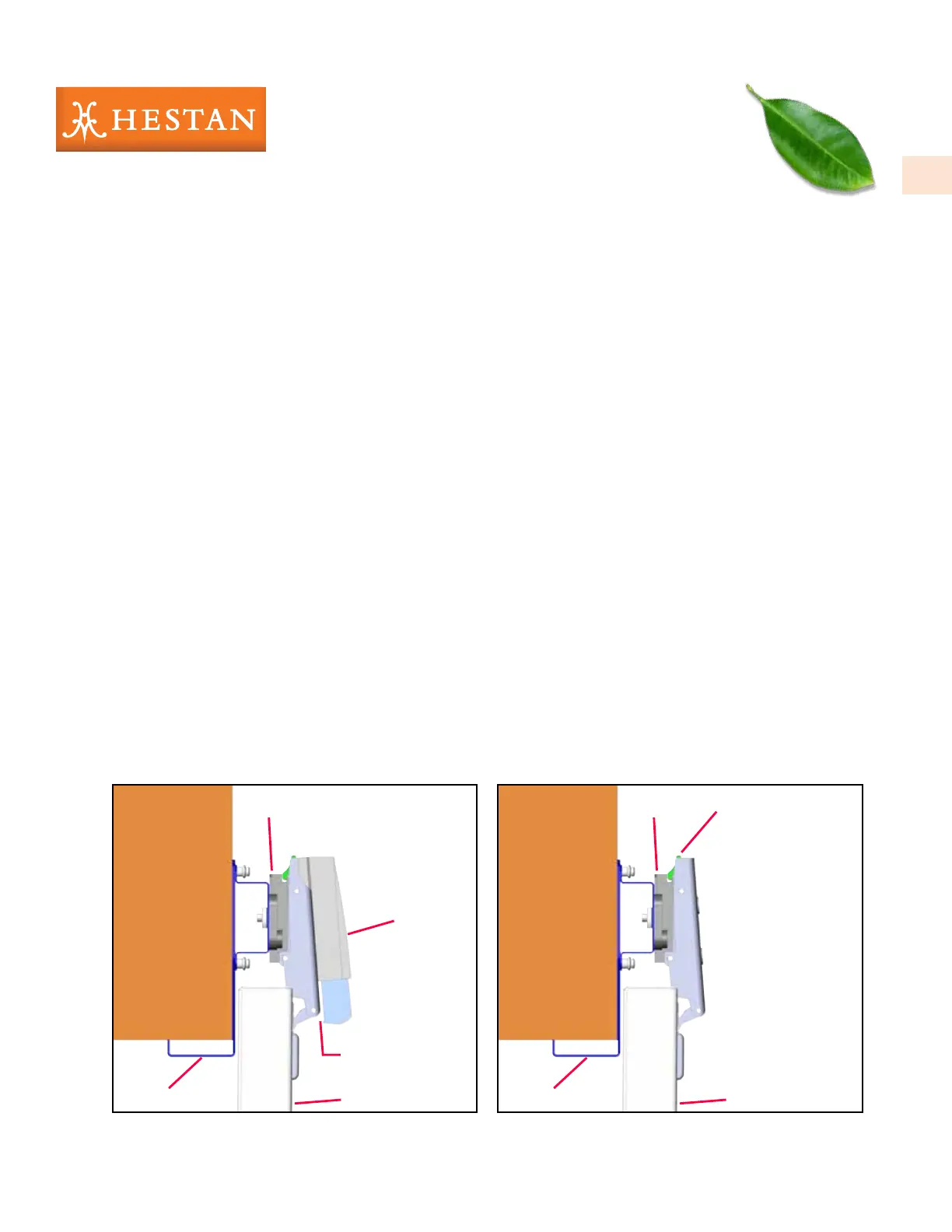

CABINET DOOR INSTALLATION

(continued)
