Environment

Compliance with EU Directive RoHS*1

Power saving mode engaged during standby

Long Life mode

No use of mercury lamp

RoHS is the acronym of "Directive 2011/65/EU of the

European Parliament and of the Council of 8 June

2011 on the restriction of the use of certain hazardous

substances in electrical and electronic equipment.

*Projected images are simulations.

Hitachi 3LCD Ultra Short Throw

laser projector delivers a large and

vivid image with the unit placed

closer to the screen.

Model name

Display system

Display

device

Lens

Light source

Screen size

Light output (Brightness)

Contrast ratio (full white / full black)

Speaker

Displayable

scanning frequency

Display

resolution

Terminals

Operating temperature

Power requirements

Power consumption

Standby mode power consumption

Standard outside dimensions

(W × H × D)

Weight

Accessories

Optional

parts

Network

LP-AW4001 LP-AW3001 LP-AX3001

3LCD

0.59” ”, aspect ratio 16 : 10 0.63 , aspect ratio 4 : 3

1,024,000 pixels 786,432 pixcels

(1,280 horizontal × 800 vertical)

(1,024 horizontal × 768 vertical)

Digital zoom (1.35× )

Powered

Laser diode

60 ~ 130 inch

4,200 lm

3,300 lm

3,500 lm

500,000 : 1

16 W × 1 mono

15 ~ 106 kHz

50 ~ 120 Hz

VGA, SVGA, XGA, WXGA, SXGA, WXGA+, WXGA++, WSXGA+, UXGA, Full HD, Mac 16"

NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N, PAL(60 Hz), 480i@60, 480p@60,

576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

HDMI connector × 2 (HDMI IN 1 supports MHL input.)

Mini D-sub 15-pin connector × 1

RCA connector × 1

3.5mm stereo mini connector × 2, RCA connector L/R × 1

3.5mm stereo mini connector × 1

D-sub 9-pin connector × 1

RJ-45 connector × 1

USB type A × 2 (PC-LESS presentation or Wireless adapter (option))

USB type B × 1 (USB Display and USB mouse control)

0 °C0 - 4

(The brightness of light source may be reduced automatically over 35 °C.)

AC 100 - 120 V (50/60 Hz), 3.7 A AC 100 - 120 V (50/60 Hz), 3.0 A

AC 220 - 240 V (50/60 Hz), 1.9 A AC 220 - 240V (50/60 Hz), 1.5 A

AC 100 - 120 V : 360 W AC 100 - 120 V : 290 W

AC 220 - 240 V : 350 W AC 220 - 240 V : 280 W

Less than 0.5 W

512 mm × 155 mm × 424 mm (20.1” × 6.1” × 16.7 ) (Including protrusions)”

506 mm × 139 mm × 424 mm (19.9” × 5.5” × 16.7” ) (Excluding protrusions)

Approx. 7.6 kg (16.8 lbs.) Approx. 7.4 kg (16.3 lbs.)

Remote control with batteries, Power cord, Computer cable, Adapter cover,

User's manual, Security label

UX43251

HAS-WM06 (Wall mount, supported image size: 70~110 inch)

HAS-9110 (Bracket for xing mount)

HAS-304H (Long adapter for xing mount)

USB-WL-5G

Wired : 100BASE-TX/10BASE-T, Wireless (option) : IEEE 802.11a/b/g/n/ac

Computer

Video

Horizontal

Vertical

Size of eective display area

Number of pixels

Zoom

Focus

HDMI IN

COMPUTER IN 1

COMPUTER IN 2 /

MONITOR OUT

VIDEO IN

AUDIO IN

AUDIO OUT

CONTROL IN (RS-232C)

LAN

USB-A

USB-B

Filter set

Mounting accessories

USB wireless adapter

Ultra Short Throw Laser Projector

*1: When PICTURE MODE is set to DYNAMIC, and LIGHT OUTPUT is set to NORMAL 100 %. *2: 0 - 4 at altitude from 0 m to 0 °C

1,600 m. 0 - 3 C at altitude from 1,600 m to 3,048 m. *3: SAVING mode disables the functions of MONITOR OUT, AUDIO OUT, 5 °

speaker sound, network communication, RS-232C control except POWER ON command, etc. in standby. *4: The availability of

the USB-WL-5G varies depending on the country and the region.

NM-E511 102018

October 2018

Hitachi America, Ltd., Digital Media Division 2420 Fenton Street, Suite 200 Chula Vista, CA 91914, U.S.A. and Canada Tel: +1-800-448-2244 www.hitachi-america.us/digitalmedia

Hitachi Home Electronics Asia (S) Pte. Ltd. 438A Alexandra Road #01-01/02/03, Alexandra Technopark, 119967, Singapore Tel: +65-6536-2520 www.hitachiconsumer.com.sg

Hitachi Sales (Malaysia) Sdn. Bhd. Lot 12, Jalan Kemajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan, Malaysia Tel: +60-3-8911-2670 www.hitachiconsumer.com.my

Hitachi Sales (Thailand), Ltd. 333, 333/1-8 Moo 13, Bangna-Trad Road km 7, Bangkaew, Bangplee, Samutprakarn 10540, Thailand Tel: +66-2335-5455 www.hitachi-th.com

Hitachi (Hong Kong), Ltd. 18th Floor, Ever Gain Centre, 28 On Muk Street, Shatin, N.T., Hong Kong Tel: +852-2113-8883 www.hitachi-hk.com.hk

Hitachi Sales Corp. of Taiwan 2nd Floor, No.65, Nanking East Road, Section 3, Taipei 104, Taiwan Tel: +886-2-2516-0500 www.hsct.com.tw

Hitachi Australia Pty Ltd. Suite 801, Level 8, 123 Epping Road, North Ryde NSW 2113, Australia Tel: +61-2-9888-4100 www.hitachi.com.au

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire, SL6 8YA, UK Tel: +44-844-481-0297 www.hitachidigitalmedia.com

http://www.hitachi.co.jp/proj/

Development and Manufacture : Maxell, Ltd.

Design and specifications are subject to change without notice.

· The projected images and comparison photos in this catalog are simulations.

· LCD panels, polarizers and other optical components

and cooling fans may need replacement after prolonged usage. For more details, please consult a Hitachi sales representative.

· Do

not use in places where there is a lot of water, dampness, steam, dust, soot or tobacco smoke. This may result in fire or malfunction.

· Optical components (light source, LCD panel, polarizing plate, PBS [polarizer beam splitter]) have limited service lives. They must be

repaired or replaced if they are used for a long period of time.

· During use and immediately after use, do not touch anywhere near

the vents as these parts are extremely hot.

· Optical components other than the light source: If the projector is used for six hours or

more per day, they may need to be replaced in less than a year.

· LCD panel: If the projector is used continuously for six hours or

more, its replacement cycle may be shortened.

· Crestron® and Crestron RoomView

® are registered trademarks of Crestron

Electronics, Inc. in the United States and other countries.

· DICOM is the registered trademark of the National Electrical

Manufacturers Association for its standards publications relating to digital communications of medical information.

· MHL, the MHL

logo, and Mobile High-Definition Link are trademarks or registered trademarks of MHL, LLC in the United States and other countries.

· HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing

Administrator, Inc. in the United States and other countries.

· All other trademarks are the properties of their respective owners.

On a horizontal surface Suspended from the ceiling

ac2

c1 b1

ac2

c1 b1

type

(inch)

m m inch m inch m inch m inch

60 1.5 0.079 3.1 0.413 16.3 0.237 9.3 1.044 41.1

70 1.8 0.149 5.9 0.483 19.0 0.261 10.3 1.203 47.4

80 2.0 0.219 8.6 0.553 21.8 0.285 11.2 1.362 53.6

90 2.3 0.289 11.4 0.623 24.5 0.309 12.2 1.521 59.9

100 2.5 0.359 14.1 0.693 27.3 0.334 13.1 1.680 66.1

110 2.8 0.428 16.9 0.763 30.0 0.358 14.1 1.839 72.4

120 3.0 0.498 19.6 0.833 32.8 0.382 15.0 1.997 78.6

130 3.3 0.568 22.4 0.903 35.5 0.406 16.0 2.156 84.9

Projection distance

b1 b2 c1 c2

Screen height

(1,280 × 800) (±8%)

Screen size(diagonal)

*The gures above are not drawn to scale.

LP-AW4001, LP-AW3001

type

(inch)

m m inch m inch m inch m inch

60 1.5 0.052 2.1 0.387 15.2 0.228 9.0 1.143 45.0

70 1.8 0.118 4.7 0.453 17.8 0.251 9.9 1.318 51.9

80 2.0 0.184 7.3 0.519 20.4 0.274 10.8 1.493 58.8

90 2.3 0.250 9.9 0.585 23.0 0.297 11.7 1.669 65.7

100 2.5 0.316 12.5 0.651 25.6 0.320 12.6 1.844 72.6

110 2.8 0.382 15.1 0.717 28.2 0.343 13.5 2.019 79.5

120 3.0 0.448 17.7 0.783 30.8 0.366 14.4 2.194 86.4

130 3.3 0.514 20.2 0.849 33.4 0.388 15.3 2.370 93.3

Projection distance

b1 b2 c1 c2

Screen height

(1,024 × 768) (±8%)

Screen size(diagonal)

LP-AX3001

424 mm (16.7”)

506 mm (19.9”)

139 mm

(5.5”)

Specications Dimensions

Projection Distance

Terminals

LP-AW4001

LP-AW3001

LP-AX3001

CONTROL

COMPUTER IN 2 /

MONITOR OUT

COMPUTER IN 1

AUDIO IN3(L,R)

HDMI IN 2 / MHL

LAN

USB-A

USB-BHDMI IN 1

VIDEO IN AUDIO IN 2

AUDIO IN 1

AUDIO OUT

4,200 lmWXGA

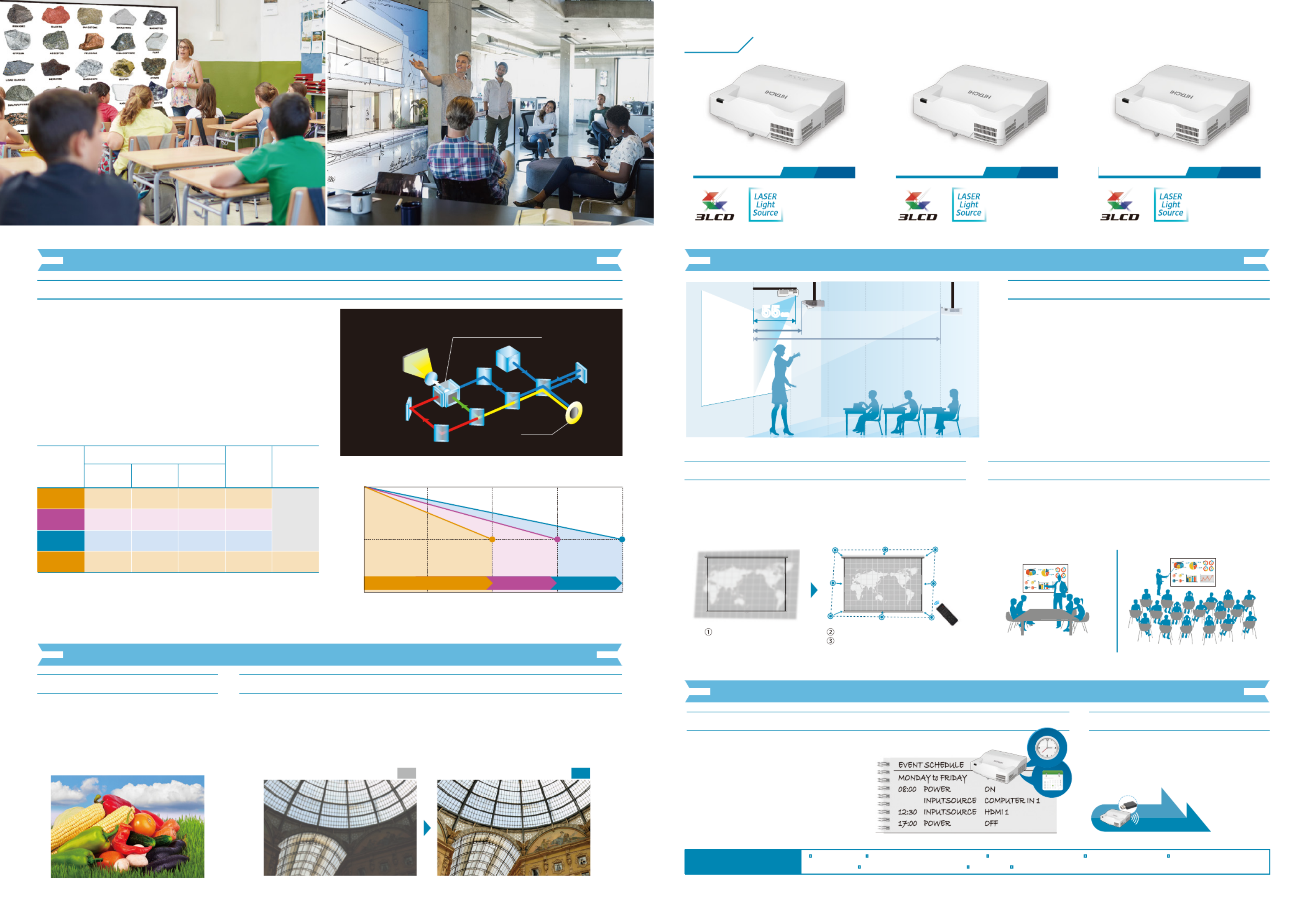

High Reliability and Stability Installability

High Image Quality

Projector installation

These projectors feature Ultra Short Throw, for LP-AW4001

and LP-AW3001 projecting a 2.0m (80 inch) image from

only 55cm (21.8 inches)*6 onto a wall or screen. The Ultra

Short Throw greatly reduces glare from the projector’ s light

source, making it easier for a teacher or presenter to see

the audience. The audience also has a clearer view because

the shadows of the teacher’s or presenter’s hands and body

are minimized. The result is a better classroom or meeting

room experience for everyone.

Reduced Glare and Shadows

Convenient Functions

You can schedule routine and special

projector events, including power on, power

o, input selection and other settings.

Easy Schedule Setting

Other Functions

Provides a stable wireless network

environment by supporting wireless dual

band (2.4 GHz / 5 GHz).

Wireless Dual Band Support (0ption)

Equipped with powered focus and Perfect Fit with which the

position of four corners and four sides of a projected image can

be adjusted. With the remote controller at hand, you can adjust

focus and the position of an image.

Powered Focus and Perfect Fit

The projector can project a 60 to 130 inch image in a distance of

41 to 90 cm for LP-AW4001/LP-AW3001 (39 to 85 cm for LP-AX3001)*7

depending on your needs and setup.

*7 Distance from screen to center of projection window.

Large Image Size Up To 130 inches

Focus adjustment

Size and position adjustments

(Perfect Fit)

Small Classroom or Meeting Large Classroom or Seminar

60 to 90 inch screen size 90 to 130 inch screen size

· · Quick Start DICOM® Simulation Mode*8 · 16W Internal Speaker · MHL connectivity Smart Device Control & ·

Monitoring · · · Moderator Control Mode PIN lock Key lock

LINE UP

LP-AW4001 3,300 lmWXGA

LP-AW3001 3,500 lmXGA

LP-AX3001

2.0 m (80”)

screen

55cm

LP-AW4001

LP-AW3001

CP-WX4022WN

CP-BW301WN

2.5 m

69 cm

This gure is not drawn to scale.

* This function requires a coin battery for the internal clock

or connecting to an SNTP server on network.

* When STANDBY MODE is set to NETWORK (WOL) or

SAVING, this function (ex. POWER ON) at standby mode

will not be operated.

*8 This projector is not a medical device and is not compliant to the DICOM standard, and neither the projector nor this function should be used for medical diagnosis.

* Dual Band may

be restricted in

some countries

and regions.

*6 The projector LP-AX3001 projects an 80 inch image from 52 cm (20.4 inches).

*2 These are reference values and may vary depending on products.

*3 The values are an estimate and may vary depending on the use environment or use

condition.

*4 Reference values when used in an ambient temperature of 23 °C

. The noise level

varies by the projector model, installation environment, and use condition.

ACCENTUALIZER makes pictures look more real by enhancing shade, sharpness, and

gloss to make pictures clearer. The HDCR function corrects blurred images caused by

room lighting or outside light sources, and creates an eect similar to increasing contrast

resulting in clear images even in bright rooms.

ACCENTUALIZER and HDCR

The color reproduction range is wide

compared to lamp light projectors*5 and

projects brilliantly colored images.

Wide Range of Color Reproduction

Hitachi's laser light source projectors have 20,000 hours*1 of light

source life. Use for 40,000 hours*1 can be achieved in LONG LIFE

2 mode. Also, users may select their desired operation mode.

Furthermore, in addition to the light source, the phosphor l is whee

also dust resistant, suppressing brightness level reduction by

preventing dust from coming into contact with the optical parts.

Users can enjoy using the projector for long periods of time while

maintaining its brightness.

Long Life 20,000 hour Laser Light Source

0 40,000

hours

20,000 30,00010,000

Brightness (normarized)

100

40,000 hours

NORMAL

WHISPER LONG LIFE 1

20,000 hours

Blue Laser

(Light source)

LCD(Red, Green, Blue)

Screen

Projection lens

Phosphor

wheel

LIGHT

OUTPUT LP-AW4001 LP-AW3001 LP-AX3001

Brightness*2

Light

source life*3Noise*4

LONG LIFE 2

30,000 hours

NORMAL 4,200 lm 3,300 lm 3,500 lm

20,000 hours

LONG LIFE 1 3,150 lm 2,470 lm 2,620 lm

30,000 hours

34 dB

LONG LIFE 2 2,100 lm 1,650 lm 1,750 lm

40,000 hours

WHISPER 2,100 lm 1,650 lm 1,750 lm

20,000 hours

28 dB

Brightness Deterioration Comparison between Light Output Modes

This is for illustrative purposes only.

*5 Comparison with Hitachi 3,700-lumen lamp light

source LCD projectors.

Bright room HDCR HDCRBright room

OFF ON

* The projected images and comparison photos are simulations.* The projected image is simulations.

*1 For laser light source. The value is an estimate and may vary depending on the use

environment or use condition.

2.4 GHz

5 GHz

* Local availability may be limited.

*Projected images are simulations.

Produkt Specifikationer

Mærke:	Hitachi
Kategori:	videoprojektorer
Model:	LP-AW4001
Vekselstrømsindgangsspænding:	100-240 V
Vekselstrømsindgangsfrekvens:	50-60 Hz
Bredde:	512 mm
Dybde:	424 mm
Højde:	155 mm
Vægt:	7600 g
Brugervejledning:	Ja
Produktfarve:	Hvid
Produkttype:	Ultrakort projektor med kort projiceringsafstand
Naturligt aspektforhold:	16:10
Understøttede videotilstande:	480i, 525i, 576i, 576p, 625i
Indbyggede højttaler(e):	Ja
Format til analogt signal:	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Udgangseffekt (RMS):	16 W
Antal HDMI-porte:	2
HDCP:	Ja
Mobile High-Definition Link (MHL):	Ja
Ethernet LAN-porte (RJ-45):	1
Antal USB 2.0-porte:	2
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Strømforbrug (standby):	0.5 W
Strømforbrug (typisk):	350 W
Markedspositionering:	Ultra kort kast
Kabler inkluderet:	Vekselstrøm
Batterier inkluderet:	Ja
Understøttede grafikopløsninger:	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
Indgang til pc'en (D-Sub):	Ja
Understøttede billedformater:	4:3, 14:9, 16:10, 16:9
Støjniveau:	34 dB
Fjernbetjening inkluderet:	Ja
Strømkilde:	Vekselstrøm
Placering:	Desktop, Ceiling
Full HD:	Ingen
HDMI- stiktype:	Fuld størrelse
Fokus:	Automatisk
Kontrastforhold (typisk):	500000:1
Horisontal scanningsområde:	15 - 106 kHz
Antal VGA-porte (D-sub):	3
Zoom kapacitet:	Ja
Brændviddeområde:	- mm
Projektor lysstyrke:	4200 ANSI lumens
Projektionsteknologi:	3LCD
Projektor indbygget opløsning:	WXGA (1280x800)
Skærmstørrelse kompatibilitet:	60 - 130 "
Projiceringsafstand:	0.488 - 0.978 m
Trapezkorrektion, vertikal:	-5 - 5 °
Vertikalt scanningsområde:	50 - 120 Hz
Blændeområde (F-F):	1.6 - 1.6
Levetid for lyskilde:	20000 t
Levetid for lyskilde (økonomisk tilstand):	50000 t
Lyskilde type:	Laser
Seriel grænsefladetype:	RS-232C
Trapezkorrektion, horisontal:	-5 - 5 °
Zoomforhold:	1.35:1
Støjniveau (økonomisk tilstand):	28 dB
Antal USB 2.0 Type-B porte:	1
Farvetilstande for video:	Cinema, Dynamic, Whiteboard
Forudindstillede funktioner:	Cinema, Custom, Dynamic, Whiteboard
