User Guide

THANK YOU FOR PURCHASING A PRODUCTHOTPOINT .

To receive more comprehensive assistance, register the

appliance on www.hotpoint.eu/register

Before using the appliance carefully read the Health and Safety guide.

Before using the machine, it is imperative that the transport bolts are removed. For more

detailed instructions on how to remove them, see the Installation Guide.

CONTROL PANEL

WASH CYCLE TABLE

PRODUCT DESCRIPTION

1. Top

2. Detergent dispenser drawer

3. Control panel

4. Handle

5. Porthole door

6. Drain pump (behind the plinth)

7. Plinth (removable)

8. Adjustable feet (2)

1. ON/OFF button

2. DRY ONLY button and indicator light

3. KEY LOCK button and indicator light

4. EXTRA TOUCH button

5. EXTRA TOUCH indicator lights

6. START/PAUSE button and indicator light

7. DELAY button and indicator light

8. buttonDRYING LEVEL

9. SPIN button

10. TEMPERATURE button

11. WASH CYCLE SELECTOR KNOB

DETERGENT DISPENSER DRAWER

Compartment *:

Do not insert detergent in this compartment.

Compartment 1: Washing detergent (powder

or liquid)

If liquid detergent is used, the removable plastic

partition (supplied) should be used for proper A

dosage.

If powder detergent is used, place the partition

into slot .B

Compartment 2: Additives (fabric softeners, etc.)

The fabric softener must not exceed the “MAX” level.

! Use powder detergent for white cotton garments, for pre-washing, and

for washing at temperatures over 60°C.

! Follow the instructions given on the detergent packaging.

DISPLAY

678

910

For all testing institutes:

2) Long cotton cycle: set programme COTTON at temperature 40°C.

3) Long synthetics cycle: set cycle at a temperature of 40°C.SYNTHETICS

* By selecting the cycle and excluding the spin cycle, the washer-dryer will drain only.

** The duration of the wash cycles can be checked on the display.

*** After programme end and spinning with maximum selectable spin speed, in default

programme setting.

**** The display will show the suggested spin speed as default value.

The cycle duration indicated on the display or instruction manual is an estimate based on

standard conditions. The actual duration may vary in relation to several factors, such as the

temperature and pressure of the incoming water, ambient temperature, amount of detergent,

load quantity and type, load balancing and any additional options selected. The values given

for programmes other than the Eco 40-60 programme are indicative only.

1) Eco 40 -60 (Wash) - Test wash cycle in compliance with EU Ecodesign regulation

2019/2014. The most ecient programme in terms of energy and water consumption for

washing normally soiled cotton laundry.

Note: spin speed values shown on the display can slightly diers from the values stated in the table.

4) Eco 40-60 (Wash & Dry)-

Test

wash and

drying cycle in compliance with EU Ecodesign

regulation

2019/2014

. To access “wash and dry” cycle select “Eco 40-60” wash programme

and set “Drying Level” to

“

”.

The most ecient programme in terms of energy and water

consumption for washing and drying normally soiled cotton laundry. At the end of cycle the

garments can be immediately stored to the cupboard.

Maximum washing load 11 kg. Maximum drying load 7 kg.

Power input in o mode 0.5 W / in left-on mode 8 W Detergents and

Additives Recommended

detergent

Residual

dampness %

(***)

Energy

consumption

kWh

Total water lt

Laundry

temperature °C

Wash cycle Temperature Max.

spin

speed

(rpm)

Max.

load for

washing

(kg)

Duration

(h : m)

Drying

Max.

load for

drying

(kg)

Wash Fabric

softener

Powder

Liquid

Setting Range 1 2

Wash & Dry Mixed 30 °C - 30 °C 1200 3.5 ** 3.5   –– – – –

Wash & Dry XL Bed & Bath 60 °C - 60 °C 1600 7.0 ** 7.0   –– – – –

Cotton (2) 40 °C - 60 °C 1600 11.0 3:55 7.0     49 1.14 107 45

Synthetics (3) 40 °C - 60 °C 1200 5.5 2:55 5.5     35 0.83 80 43

Wool 40 °C - 40 °C 800 2.5 ** 2.5   –– – – –

Delicates 30 °C - 30 °C 600 ( ) 1.0 ****** 1.0   –– – – –

Anti Allergy 60°C 1600 5.5 **40 °C - 60 °C 5.5     – – – –

Anti Stain 40 °C - 40 °C 1600 11.0 ** 7.0   –– – – –

Steam Refresh – – – 2.0 ** – – – – – – – – – –

Spin & Drain *– – 1600 11.0 ** 7.0 – – – – – – – –

Rinse & Spin – – 1600 11.0 ** 7.0 – – – – – – –

Wash 20°C 20 °C - 20 °C 1600 11.0 1:50 – –   –54,5 0.20 95 22

Eco 40-60 (1)

(Wash) 40 °C 40°C

1551 11.0 4:00 

7.0

    44 0.97 65 30

1551 5.5 3:00      44 0.85 64 28

1551 3 2:40      44 0.49 44 22

Intense 60-90°C 60 °C - 90 °C 1600 11.0 2:40 7.0     54 1.90 100 55

Rapid Wash 30 °C - 30 °C 1200 ( ) 5.5 0:30 – –****   –71 0.21 50 27

Wash & Dry XS Rapid 30 °C 1600 1.0 **30 °C 1.0   –– – – –

  Required dosage Optional dosage

Eco 40-60 (4)

(Wash & Dry) 40 °C 40 °C 1551 7.0 9:50 7.0     0 5.10 75 33

1551 3.5 6:00 3.5     0 2.70 53 33

WASH CYCLES

Follow the instructions on the symbols of the garment’s wash

care label. The value indicated in the symbol is the maximum

recommended temperature for washing the garment.

Wash & Dry Mixed

Use this cycle to wash and dry mixed garments (cotton and synthetics) in

less than 4 hours. This cycle may be used to wash and dry loads of up to half

of the machine drying capacity; we recommend the use of liquid detergent.

Wash & Dry XL Bed & Bath

This cycle is suitable for washing and drying without interruption cotton

bulky items, like bed linens and towels, with the possibility to fully load

the machine; we recommend using liquid detergent.

Cotton

Suitable for washing towels, underwear, table cloths, etc. made of

resistant linen and cotton that are moderately to heavily soiled.

Synthetics

Specic for synthetic items (e.g. polyester, polyacrylic, viscose, etc.). If the

dirt is dicult to remove, the temperature can be increased up to 60° and

powder detergent can be used too.

Wool - Woolmark Apparel Care - Green:

the wool wash cycle of this machine has been approved

by The Woolmark Company for the washing of wool

garments labelled as “hand wash” provided that the

products are washed according to the instructions on the

garment label and those issued by the manufacturer of

this washer-dryer. (M1135)

Delicates

For washing very delicate garments. For best results, turn the garments

inside out and use liquid detergent. If a time-based drying option is

added, a particularly delicate drying cycle is performed at the end of the

wash cycle, thanks to light handling and appropriate temperature control

of the water jet. The recommended durations are:

1 kg of synthetic garments --> 150 min

1 kg of synthetic and cotton garments --> 180 min

1 kg of cotton garments --> 180 min

The degree of dryness depends on the load and fabric composition.

Anti Allergy

Suitable for removing major allergens such as pollen, mites and cat or

dog hair.

Anti Stain

This program ensures stain removal at low temperatures, preserving

fabrics and colours. It is suitable to heavily-soiled garments with resistant

colours. When running the program, do not mix garments of dierent

colours. We recommend the use of powder detergent.

Steam Refresh

The garments will be damp once the cycle is completed, so we recommend

hanging them to dry (2 kg, roughly 3 items). This programme refreshes

garments by removing bad odours and relaxing the bres and it is meant

for dry, unsoiled items. Insert dry items only (that are not dirty) and select

programme “Steam Refresh”. The “Steam Refresh” programme makes

ironing easier.

! Do not add softeners or detergents.

! Not recommended for wool or silk garment

Spin & Drain

Spins the load then empties the water. For resilient garments. If you

exclude the spin cycle, the machine will drain only.

Rinse & Spin

Rinses and then spins. For resilient garments.

Wash 20°C

For washing lightly soiled cotton garments, at a temperature of 20 °C.

Eco 40-60

For washing normally soiled cotton garments declared to be washable at 40 °C

or 60 °C, together in the same cycle. This is the standard cotton programme

and the most ecient in terms of water and energy consumption.

! The cycle runs only at 40°C as per regulation.

Intense 60-90°C

For heavily soiled whites and resistant colours.

Rapid Wash

For washing lightly soiled garments in a short time. Not suitable for wool,

silk and garments to be washed by hand.

Wash & Dry XS Rapid

This cycle is to wash and dry without interruption small garments or

T-shirts in dierent fabrics and colours up to 1kg in 45’. To achieve

optimum results, use liquid detergent.

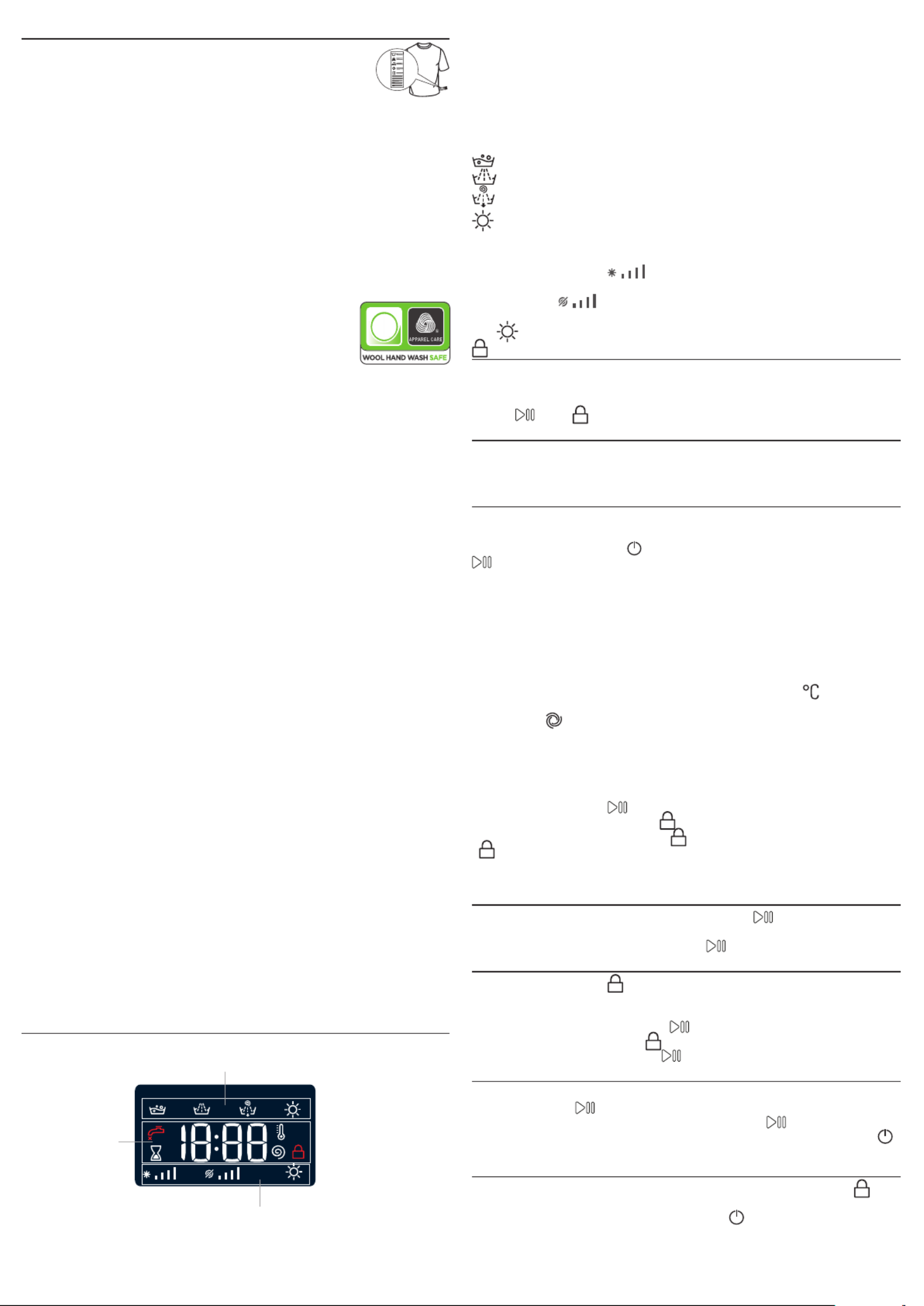

DISPLAY

The display is useful when programming the washer-dryer and provides

plenty of information.

Section A displays the duration of the various available wash cycles and,

once the cycle starts, the time remaining to the latter’s end (the display will

show the maximum duration of the selected cycle which may decrease

after a few minutes, as the actual duration varies in relation to the laundry

load and the chosen settings); if the Delay option was set, the display will

show the time remaining to the start of the selected wash cycle.

Moreover, pressing the relative button allows for visualising the maximum

values for the temperature, spin speed or type of drying relative to the

selected programme or the most recently selected ones, if compatible

with the selected programme.

The “washing phases” relative to the selected cycle and the “washing

phase” of the running cycle appear in section :B

Main Wash

Rinse

Spin/Drain

Drying

Section displays – starting from the left – the icons corresponding to C

“temperature”, “spin” and “drying”.

The “temperature” bars indicate the maximum temperature level

that can be selected for the chosen cycle.

The “spin” bars indicate the maximum spin speed that can be

selected for the chosen cycle.

The symbol lights up while the drying settings are being adjusted.

LOCKED DOOR INDICATOR

When lit, the symbol indicates that the door is locked. To prevent any

damage, wait until the symbol turns o before attempting to open the door.

To open the door while a cycle is in progress, press the START/PAUSE

button ; if the symbol is o, the door can be opened.

FIRSTTIME USE

Once the appliance has been installed, and before it is used for the rst

time, run a wash cycle with detergent and no laundry, by setting the

“Auto-Clean” cycle.

DAILY USE

Prepare the laundry by following the suggestions appearing under the

“TIPS AND SUGGESTIONS” section.

- Press the ON/OFF button ; the indicator light relative to START/PAUSE

will ash slowly.

- Open the door. Load the laundry while making sure not to exceed the

maximum load quantity indicated in the wash cycle table.

- Pull out the detergent dispenser drawer and pour the detergent into the

relevant compartments, as described in the “DETERGENT DISPENSER

DRAWER” section.

- Close the door.

- The machine automatically displays the maximum temperature and spin

speed values for the selected cycle, or the most recently used settings if

they are compatible with the selected cycle. Pressing the button

gradually reduces the temperature down to the cold wash “OFF” setting.

Pressing the button gradually reduces the spin speed until it is

completely excluded (“OFF” setting). Pressing the buttons further restores

the maximum allowed values for the selected cycle.

- Select the desired wash cycle.

- Select the desired options.

STARTING CYCLE

Press the START/PAUSE button.

The machine will lock the door ( symbol on) and the drum will start to

rotate; the door will be unlocked ( symbol o) and then locked again

( symbol on) as preparation phase of each washing cycle. The

“Clicking” noise is part of the door locking mechanism. Water will enter

the drum and start the washing phase once the door is locked.

PAUSING A CYCLE

To pause the wash cycle, press the START/PAUSE button again; the

indicator light will ash. To start the wash cycle from the point at which it

was interrupted, press the START/PAUSE button again.

OPENING THE DOOR, IF NECESSARY

Once a cycle starts, the symbol turns on to signal that the door cannot

be opened. While a wash cycle is running, the door remains locked. To

open the door while a cycle is under way, for example, to add or remove

garments, press the START/PAUSE button to pause the cycle; the

indicator light will ash. If the symbol is not lit, the door may be

opened. Press the START/PAUSE button again to continue the cycle.

CHANGING A RUNNING WASH CYCLE

To change a wash cycle while it is in progress, pause the washer-dryer using

the START/PAUSE button (the relative indicator light will ash), then

select the desired cycle and press the START/PAUSE button again.

! To cancel a cycle that has already begun, press and hold the ON/OFF

button. The cycle will be stopped and the machine will switch o.

AT THE END OF THE WASH CYCLE

This will be indicated by the word “END” on the display; when the

symbol switches o, the door may be opened. Open the door and switch

o the machine. If you do not press ON/OFF button, the washing

machine will switch o automatically after about a 10 minutes. Close the

water tap and unload the washing machine. Leave the door ajar to allow

the drum to dry.

Produkt Specifikationer

Mærke:	Hotpoint
Kategori:	Vaskemaskine
Model:	NDB 11724 W UK
Vekselstrømsindgangsspænding:	220-240 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	595 mm
Dybde:	605 mm
Højde:	850 mm
Vægt:	73400 g
Produktfarve:	Hvid
Kontroltype:	Buttons, Rotary, Touch
Indbygget skærm:	Ja
Skærmtype:	LCD
Strøm:	13 A
Ledningslængde:	1.2 m
Strømforbrug (standby):	0.5 W
Strømforbrug (slukket):	0.5 W
Placering af apparat:	Fritstående
Dørhængsel:	Venstre
Inverter-teknologi:	Ja
Tilsluttet belastning:	1850 W
Ilægningstype:	Front-læsning
Maksimal centrifugeringshastighed:	1600 rpm
Støjniveau (centrifugering):	80 dB
Støjniveau (vask):	- dB
Forsinket start-timer:	Ja
Vaskeprogrammer:	Cotton, Cottons 40°C, Cottons 60°C, Delicate/silk, Down wear/duvet, Hygiene air refresh, Hygiene/anti-allergy, Rinse & spin, Spin/drain, Steam, Synthetics, Wool
Justerbare fødder:	Ja
Energiforbrug ved vask:	0.701 kWh
Understøttede scanningstilstande:	1045 mm
Tromle volumen:	71 L
Dør farve:	Hvid
Spin-tørre klasse:	A
Energieffektivitetsskala:	A til G
Indikator for resterende tid:	Ja
Vandpåfyldning:	Kold
Støjemissionsklasse:	C
Tørreprogrammer:	Cotton, Delicate/silk, Down wear/duvet, Hygiene/anti-allergy, Hygienic freshen-up, Steam, Synthetics, Wool
Tørreevne:	7 kg
Vaske kapacitet:	11 kg
Støjniveau (tørring):	- dB
Cyklustid vask og tørring:	590 min.
Vandforbrug pr. vask:	54 L
Energiforbrug pr. vask og tørring:	0.414 kWh
Vandforbrug pr. vask og tørring:	66 L
Anti-krølle funktion:	Ingen
Tilføj tøj (pause) -funktion:	Ja
Energieffektivitetsklasse (vask):	C
Energieffektivitetsklasse (vask og tørring):	E
Energiforbrug pr. 100 cyklusser (vask):	70 kWh
Energiforbrug pr. 100 cyklusser (vask og tørring):	414 kWh
Cyklustid vask:	240 min.
Tænd/sluk-knap:	Ja
Dybde med lukket låge:	639 mm
