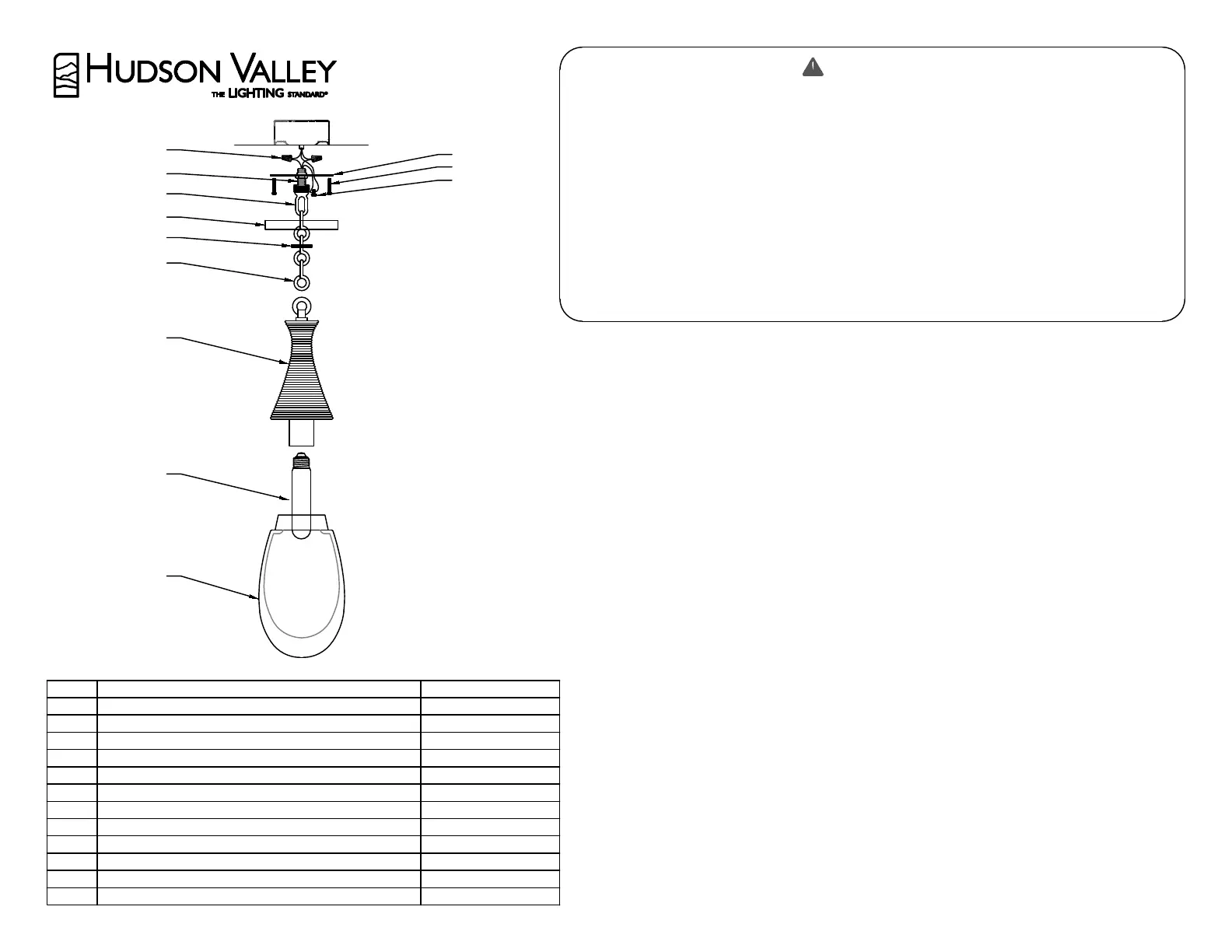

FIXTURE INSTALLATION

1. Attach the CROSSBAR (1) onto the junction box using the MOUNTING SCREWS (2). This fixture is designed to

be mounted on standard round or octagon junction box. The junction box must be securely mounted to the

structure of the building.

2. Open the end link on the CHAIN (8) and attach to the loop on the FIXTURE ASSEMBLY (10). Hang the

FIXTURE ASSEMBLY (10) on the CHAIN (9) at your desired height, and remove excess CHAIN.

3. Feed the wire through the CHAIN (9) , SCREW COLLAR (8), CANOPY (7), SCREW COLLAR LOOP (6),

NIPPLE (5), and CROSSBAR (1), and screw the NIPPLE (5) onto the CROSSBAR (1).

4. Open the top link on the CHAIN (9), and Hang the FIXTURE ASSEMBLY (10) to the SCREW COLLAR LOOP

(6).

5. Cut off excess wire, and strip the insulation off the end of the leads.

6. Attach the Ground wire (Green) to the ground inside the junction box (Generally green or bar copper wire) or

the GROUND SCREW (3) on the MOUNTING PLATE (1). NEVER CONNECT GROUND WIRE TO "HOT"

WIRE! FAILURE TO FOLLOW THIS COULD RESULT IN SERIOUS INJURY OR DEATH!

7. Connect the white fixture lead to the neutral (Generally white) wire in the outlet box. Fasten the wires together

with an approved fastener (WIRE NUT) (4). Starting 1" below the fastener, tightly wrap the connection with

electrical tape so that the connections seals the end of the fastener. MAKE SURE THERE ARE NO EXPOSED

WIRE OF STRANDS THAT COULD CAUSE A DANGEROUS SHORT CIRCUIT!

8. Connect the black fixture leads to the hot (Generally black) wire in the junction box. Fasten the joined wires

same as previous step. NEVER REVERSE HOT AND NEUTRAL WIRES. FAILURE TO FOLLOW THIS

COULD RESULT IN SERIOUS INJURY OR DEATH!

6. Screw the BULB (11) up into the SOCKET of the fixture.THE3936 FIXTURE IS RATED FOR 60 WATT LAMP.

THE3938 FIXTURE IS RATED FOR 75 WATT LAMP. DO NOT EXCEED THE RECOMMENDED WATTAGE!

7. Screw the GLASS (12) up into the FIXTURE ASSEMBLY (10).

8. Restore power to the outlet at the breaker or fuse box.

SOUTHOLD

3936, 3938

INSTALLATION INSTRUCTIONS

www.hvlgroup.com

Questions? We're here to help!

WARNING/CAUTION

· DISCONNECT POWER BEFORE RE-LAMPING OR WIRING THE FIXTURE. READ ALL INSTRUCTIONS

COMPLETELY BEFORE STARTING INSTALLATION.

· TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. THE INSTALLATION AND

MAINTENANCE OF THIS UNIT SHOULD BE COMPLETED BY A LICENSED ELECTRICIAN OR CERTIFIED

FACTORY TRAINED TECHNICIAN.

· CALIFORNIA PROP 65: THIS LIGHTING FIXTURE CONTAINS CHEMICALS KNOWN TO THE STATE OF

CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER REPRODUCTIVE HARM. WASH HANDS

AFTER USE.

· REMOVE THE FIXTURE, PARTS AND PARTS BAG(S) FROM THE CARTON. BEFORE DISCARDING THE

CARTON, DOUBLE CHECK TO MAKE CERTAIN THAT ALL PARTS ARE FOUND. INSPECT THE FIXTURE PRIOR

TO INSTALLATION FOR ANY DAMAGE TO THE FIXTURE.

· DIMMING: THE FIXTURE CAN BE CONTROLLED BY A WALL DIMMING DEVICE. ONLY USE

TRIAC/ELECTRONIC DIMMER. MAKE SURE THE CARTON IS MARKED FOR USE WITH LED COMPACT

FLUORESCENT-INCANDESCENT LIGHT SOURCE ONLY. THESE CAN BE PROVIDED BY YOUR LOCAL

ELECTRICAL DISTRIBUTOR, HOME CENTER, OR HARDWARE STORE.

· PLEASE CLEAN WITH A SOFT, DRY CLOTH ONLY! DO NOT USE CLEANSERS

ITEM DESCRIPTION PART NUMBER

MOUNTING PLATE

HDW-003936

MOUNTING SCREW HDW-003936

GROUND SCREW HDW-003936

WIRE NUT HDW-003936

1/4 NIPPLE HDW-003936

SCREW COLLAR LOOP

HDW-003936

CANOPY CPY-003936

SCREW COLLAR HDW-003936

9 CHAIN

CHN-003931

FIXTURE ASSEMBLY FAS-003936, 3938

BULB

NOT INCLUDED

12 GLASS

GLS-003931, 3938
