Introduction
Introduction
Introduction
IntroductionIntroduction
Product description
Product description
Product description
Product descriptionProduct description
We have a policy of continuous product development
and therefore reserve the right to modify the design and
appearance of the products without prior notice.
Note:
Note:
Note:
Note: Note: This manual cover both gasoline operated and
battery operated power units.
Intended use
Intended use
Intended use
Intended useIntended use
WARNING:
WARNING:
WARNING:
WARNING: WARNING: This attachment may only be
used together with the intended product, see
the accessory chapter in the Operator’s
Manual of the product.
WARNING:
WARNING:
WARNING:
WARNING: WARNING: Never use HA110 with a battery
operated power unit.
Only use HA110 with a gasoline operated power unit.
Use HA850 with either a gasoline operated power unit or
a battery operated power unit.
The product is only designed for cutting branches and
twigs.

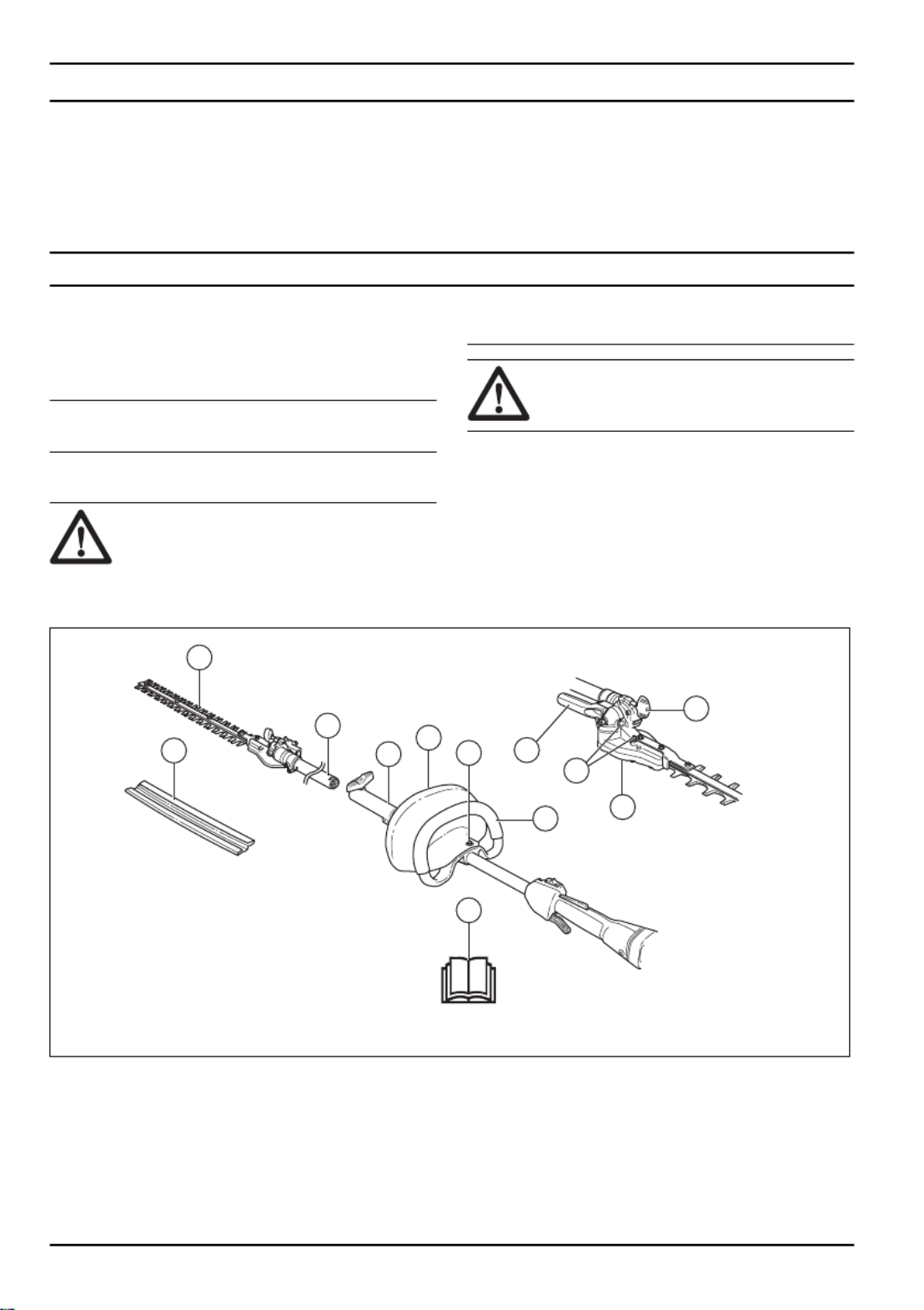

Attachment overview for HA110 (for gasoline products only)
Attachment overview for HA110 (for gasoline products only)
Attachment overview for HA110 (for gasoline products only)
Attachment overview for HA110 (for gasoline products only)Attachment overview for HA110 (for gasoline products only)
1. Cutter
2. Grease nipple and plug for filling lubricant
3. Bevel gear
4. Front handle
5. Hand guard mounting screw
6. Angle adjustment knob
7. Hand guard (only on gasoline operated power units)
8. Operator′s manual
9. Transport guard
10. Shaft coupling
11. Shaft (110 mm for HA110 and only on gasoline
operated power units)
12. Angle adjustment handle (HA850)
