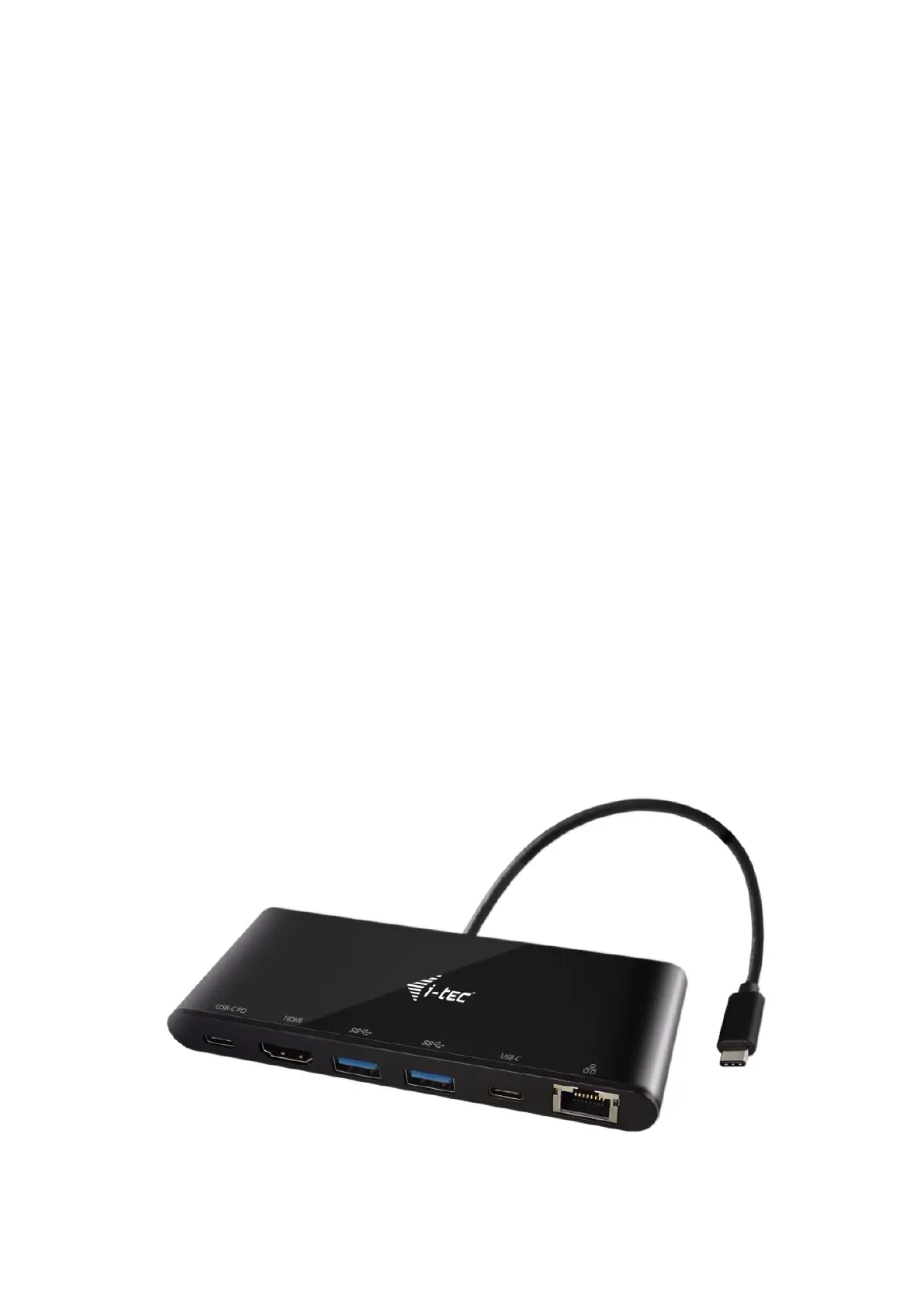

i-tec USB-C 3.1 Travel Docking Station

+ Power Delivery

(GB) User's manual

(DE) Gebrauchsanweisung

(CZ) Manuál

(PL) Instrukcja

(SK) Manuál

(LT) Vadovas

ENGLISH

INTRODUCTION

Thank you for purchasing the i-tec USB-C Travel Docking Station that will allow you to connect

your favourite devices via single USB-C connector to a notebook, a tablet, a PC or a smartphone

with a USB-C port. It offers 1x HDMI port, 2x USB-A 3.0 port, 1x Ethernet GLAN RJ-45 port, 1x

USB-C port and 1x USB-C Power Delivery port. Thanks to its compact dimensions, low weight and

application without a power adaptor it is also convenient for travelling.

Please, read the entire user manual carefully before you start using the adapter.

TERMINOLOGY

 Interface / port / connector / input / slot – a place where two devices are physically

connected.

 Chipset – a semiconductor device in a notebook, tablet, PC, controlling the function of a

port.

 USB-C / USB Type-C – is a new symmetric connector and standard, introduced by USB-IF

in their specification USB 3.1. Windows 10 (Microsoft), Mac OS X (Apple) and Chrome OS

and Android (Google) have introduced native support for this connector. It allows faster

charging, energizing, double-function (a host but also a guest), support for alternative

modes (DisplayPort, MHL, Thunderbolt) and error messaging using Billboard equipment.

 Alternative modes (Alt modes) – special modes for USB-C connector, which can be

supported. Currently the most popular ones include DisplayPort / DockPort, MHL,

Thunderbolt. Devices with this feature of the connector and the cable allow transmission

of images and at the same time preserve other functions of a connector (for data

transfers and charging).

 DisplayPort /DockPort Alt mode – this mode allows transmission of images over USB-C

connector and a cable.

 USB Power Delivery (USB PD) – optional property of the USB Type-C connector. A

connector with this support can charge and be charged at the same time and it supports

loads from 10W to 100W (depending on profiles 1-5). In Windows 10 USB PD cannot be

applied to older USB A, B and micro B ports.

 USB 3.1 / 3.0 / 2.0 – a standard for USB interface / port for connection of various USB

devices. Various USB devices can be connected to the docking station or adapter using the

USB interface type A. USB type B is used for connecting the docking station or adapter to

notebook, tablet, PC.

 HDMI – a standard for digital graphical interface / port for connection of monitors and

other graphical display devices.

 Audio – designation for audio input (microphone) or output (earphones / loudspeakers)

devices.

PACKAGE CONTENTS

 i-tec USB-C Travel Docking Station with cable (15 cm)

 Quick Start

SPECIFICATION

 1x USB-C 3.1 (Gen. 1) port, transfer rate up to 5 Gbps

 2x USB-A 3.0 port, transfer rate up to 5 Gbps

 1x USB-C Power Delivery with profile 4 (max. 60 W)

 1x Ethernet GLAN RJ-45 port, 10/100/1000 Mbps

 Graphic interface: 1x HDMI, max. 1920x1080 / 60Hz

Produkt Specifikationer

Mærke:	I-Tec
Kategori:	Andet computertilbehør
Model:	C31MINIDOCKPD
Bredde:	56 mm
Dybde:	133 mm
Højde:	15 mm
Vægt:	83 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Pakkevægt:	201 g
Pakkedybde:	130 mm
Pakkebredde:	175 mm
Pakkehøjde:	20 mm
Antal HDMI-porte:	1
Ethernet LAN-porte (RJ-45):	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Ethernet LAN:	Ja
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Husmateriale:	Plast
Hurtig start guide:	Ja
Forbindelsesteknologi:	Ledningsført
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Strømkilde type:	USB
Indbygget kortlæser:	Ingen
Mac kompabilitet:	Ja
Mikrofonindgang:	Ingen
Understøttede Windows-operativsystemer:	Ja
Understøttede Mac-operativsystemer:	Ja
Værtsgrænseflade:	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte:	1
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-T
Maksimal digital opløsning:	1920 x 1080 pixel
Antal understøttede skærme:	1
