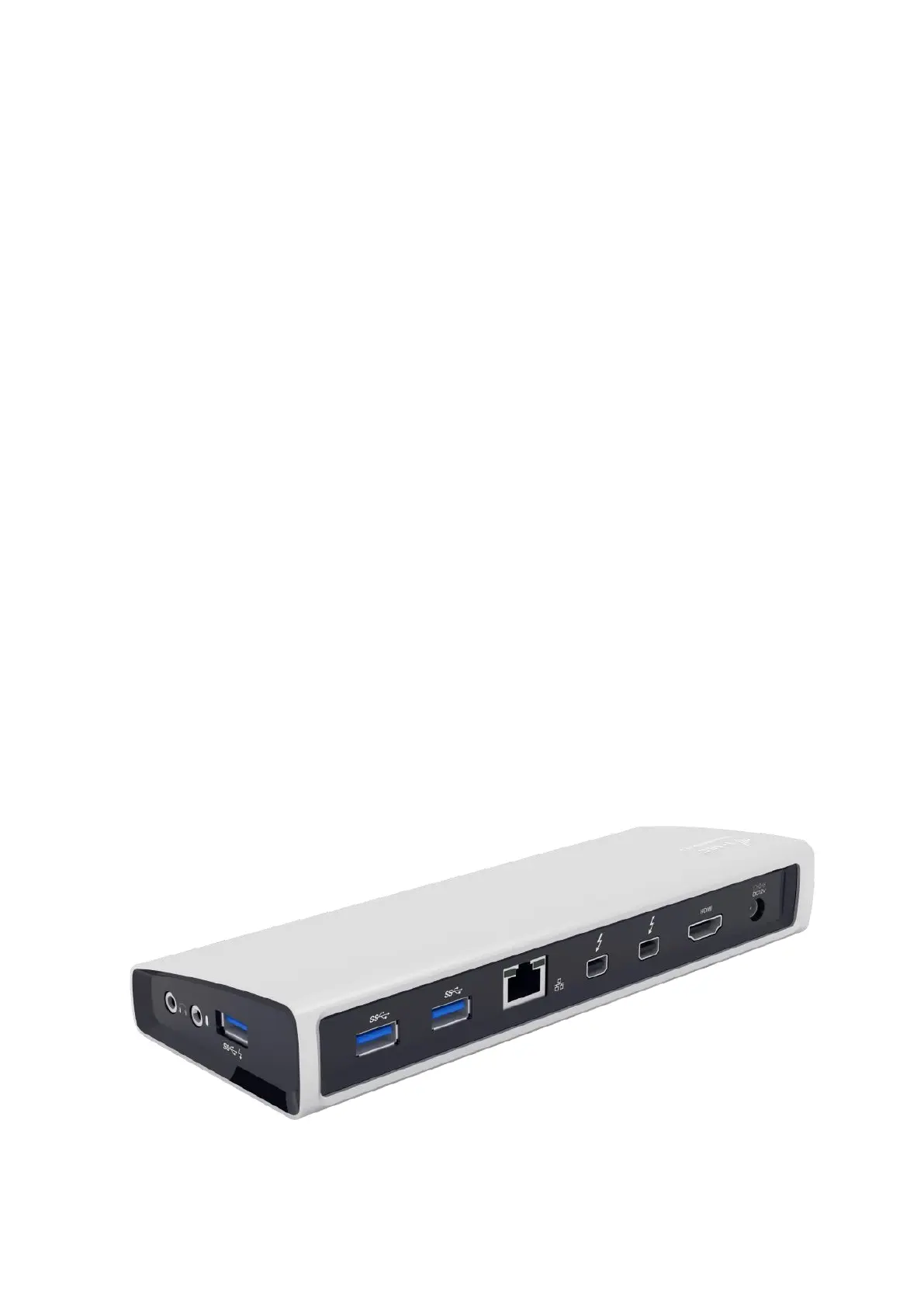

i-tec THUNDERBOLT™ 2

DOCKING STATION

(GB) User Manual

(DE) Gebrauchsanweisung

(FR) Guide d’instruction et mode d’emploi

(CZ) Manuál

(PL) Instrukcja

(SK) Manuál

ENGLISH

INTRODUCTION

Thank you for purchasing the i-tec THUNDERBOLT™ 2 docking station. The docking station will allow you

easy and extremely powerful connection of all accessories to your Mac / PC. It offers two Thunderbolt™

ports with the transmission speed of 20 Gbps. One will be used for connecting your Mac and the other one

can be used for connection of other Thunderbolt™ devices such as external drives or monitors.

Using the 4K HDMI interface you can connect any monitor with a resolution up to 4096x2160 pixels. Then

you have three USB 3.0 ports that can be used for connection of your USB devices as well as for charging of

phones, tablets, or other mobile devices.

Then you have a Gigabit Ethernet port for fast internet connection. A separated microphone input and

earphone output will allow conference calls as well as wonderful experience from movies or games.

Please, read the entire user manual carefully before you begin installation and start using the docking

station.

TERMINOLOGY

 Interface / port / connector / input / slot – a place where two devices are physically connected.

 Chipset – a semiconductor device in a Mac / PC controlling the function of a port.

 Thunderbolt™ 2 / Thunderbolt™ – a standard for fast hardware interface that allows connection of

devices (peripherals - monitors, external HDD, HUBs,...) to a computer over an expansion bus. A

single Thunderbolt™ port allows connection of HUBs or serial connection of up to six Thunderbolt™

devices. Thunderbolt™ 2 is backwards compatible with Thunderbolt™.

 USB 3.0 / 2.0 – a standard for USB interface / port for connection of various USB devices. Various

USB devices can be connected to the docking station using the USB interface type A.

 HDMI – a standard for digital graphical interface / port for connection of monitors and other

graphical display devices.

 Display port (DP) – a standard for digital graphical interface / port with a higher resolution used for

connection of monitors and other graphical display devices.

 LAN (Local Area Network) – Ethernet is currently the most commonly used LAN and in the docking

station it can reach a theoretical transmission speed up to 1 Gbit/s – designated GLAN / RJ-45.

 Audio – designation for audio input (microphone) or output (earphones / loudspeakers) devices.

SPECIFICATION

 2x Thunderbolt™ 2 (20 Gbps, bidirectional input / output), backwards compatible with

Thunderbolt™ - you will use one port for connecting your Mac and the other one can be used for

connection of other Thunderbolt™ devices.

 1x HDMI 1.4b output (resolution up to 4096 x 2160 pixels, HDCP compatible)

 1x RJ-45 10/100/1000BASE-T Gigabit Ethernet network adapter

 3x USB 3.0 (5 Gb/s, 1.5A, of which 1x USB charging as per the BC 1.2 specification)

 1x 3.5 mm earphone stereo output

 1x 3.5 mm microphone mono input

 1x input for charging (DC 12V / 5A)

SYSTEM REQUIREMENTS:

Mac computer: OS X 10.9 or higher with a Thunderbolt™ interface and the most recent firmware and

software.

PACKAGE CONTENTS:

 i-tec THUNDERBOLT™ 2 docking station

 Thunderbolt™ cable (100 cm)

 Power adapter - input: AC 100-240V, 2A 50/60Hz (130 cm cable); output: DC 12V/5A

 CD with user manuals

 Quick Start

Produkt Specifikationer

Mærke:	I-Tec
Kategori:	Andet computertilbehør
Model:	THUNDERDOCK2UK
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	195 mm
Dybde:	77 mm
Højde:	28 mm
Vægt:	316 g
Produktfarve:	Black, White
Pakkevægt:	1050 g
Pakkedybde:	127 mm
Pakkebredde:	307 mm
Pakkehøjde:	83 mm
Antal HDMI-porte:	1
Ethernet LAN-porte (RJ-45):	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	3
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Hurtig start guide:	Ja
Kabler inkluderet:	Thunderbolt
Forbindelsesteknologi:	Ledningsført
Netværksstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
DC-in-stik:	Ja
LED-indikatorer:	Ja
Strømkilde type:	Vekselstrøm
Udgangsspænding:	12 V
Udgangsstrøm:	5 A
Indbygget kortlæser:	Ingen
Antal Thunderbolt 2-porte:	2
Mikrofonindgang:	Ja
Understøttede Windows-operativsystemer:	Ja
Understøttede Mac-operativsystemer:	Ja
Værtsgrænseflade:	Thunderbolt 2
Tilslutning af hovedtelefoner:	3,5 mm
HDMI-version:	1.4b
Strømstiktype:	Type G
Kobber ethernet kabelteknologi:	10BASE-T, 100BASE-TX, 1000BASE-T
Maksimal digital opløsning:	4096 x 2160 pixel
Dataoverførselshastighed:	20 Gbit/sek.
Funktion for opladning:	Ja
