IBM Systems and Technology

Data Sheet

System x®

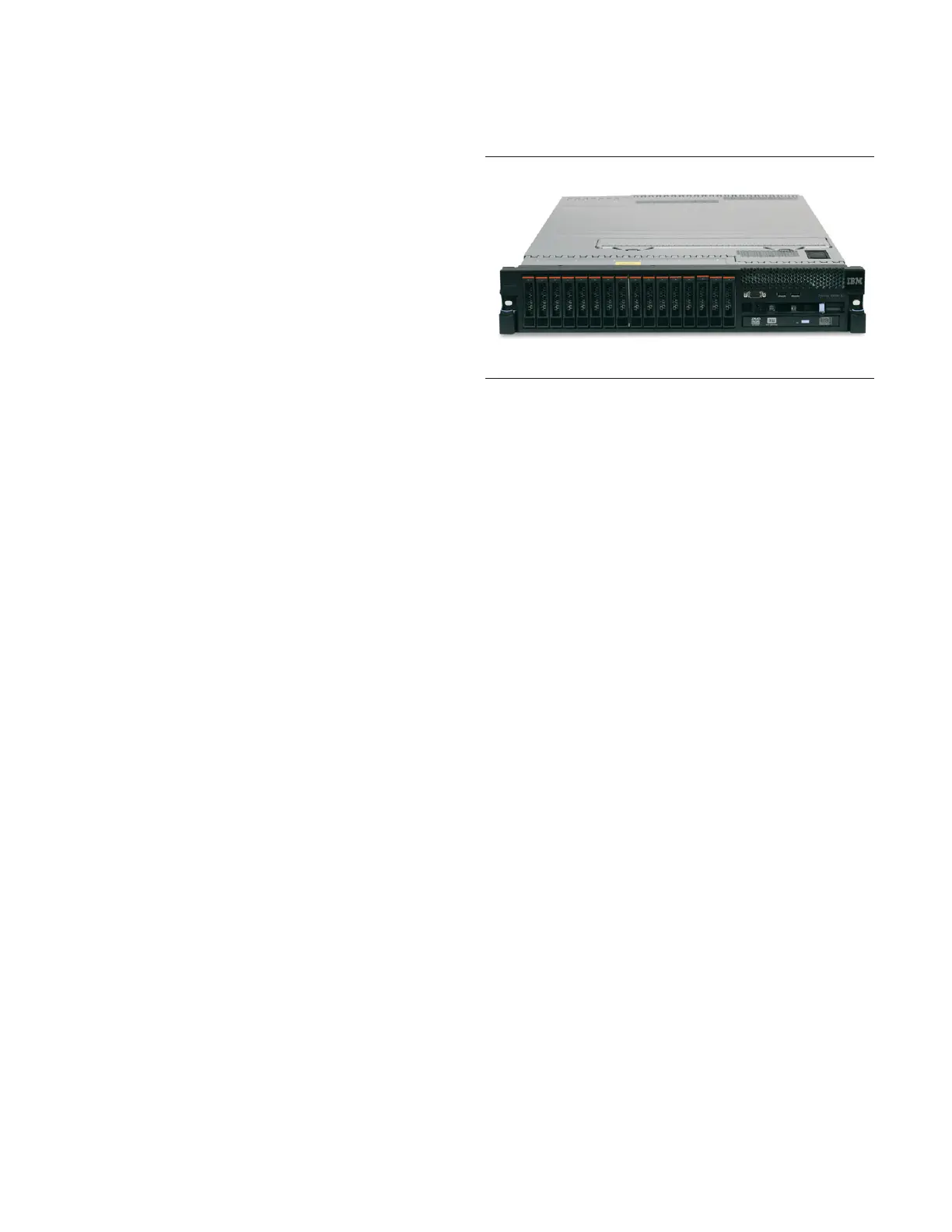

IBM System x3690 X5

Ground-breaking two-socket server delivers

outstanding performance, memory and storage

Highlights:

●

Achieve four-socket performance at a

two-socket investment

●

Grow to meet changing workload

demands with unmatched memory

expansion

●

Own and operate your systems with

less complexity and cost

●

Get peace of mind with enterprise-class

reliability and availability

EXA performance, two-socket value

When it comes to business productivity, more is always better—

especially if you can achieve it without using more money, space or

energy. Innovative and cost-efficient, the IBM® System x3690 X5

delivers four-socket performance, memory capacity and reliability fea-

tures in a breakthrough two-socket system that incorporates Intel®

Xeon® processors and ﬁfth-generation IBM X-Architecture® (eX5)

technology. By purchasing a system with two fewer sockets, you can

cut your licensing costs in half while using less energy for a lower total

cost of ownership. And you won’t have to trade performance for a

denser form factor. The x3690 X5 offers leadership performance,

including the ability to handle 12 percent more database transactions

per minute than industry-standard two-socket servers.

The x3690 X5 also offers simple-to-deploy, preconﬁgured systems

that are optimized speciﬁcally for database workloads or virtualized

environments. x3690 X5 Database Optimized Systems offer the

right balance of processing power, memory and high-IOPS,

high-capacity storage technology for your database workloads.

x3690 X5 Virtualization Optimized Systems with embedded VMware

vSphere 4.1 come standard with MAX5 for unmatched memory capac-

ity in a two-socket system, allowing you to increase the size and quan-

tity of your virtual machines.

IBM Systems and Technology

Data Sheet

System x®

Unparalleled ﬂexibility

The x3690 X5 features greater ﬂexibility to help you meet

changing workload demands as your business grows. With

MAX5, double the memory capacity of your two-socket sys-

tem to 64 DIMM slots. Increase utilization and optimize your

investments by ﬁtting 100 percent more virtual machines per

system at half the cost per virtual machine with MAX5 mem-

ory expansion.1 An easy upgrade path and customizable

growth options offer freedom of choice—for example, you

can add more memory without having to purchase unneeded

processing.

Simpliﬁed systems and power

management

Comprehensive systems and power management capabilities

make the x3690 X5 easy to own and even easier to operate.

Advanced light path diagnostics offer proactive problem

solving and faster time to repair, and remote access capabili-

ties enable you to manage, monitor and troubleshoot from

virtually anywhere. IBM Systems Director provides easy-to-

use tools that can simplify management of both physical

and virtual resources. Equally important, an energy-smart

design helps increase performance while reducing power

consumption—get as much as 45 percent more performance

per watt in transactional database processing.

And

IBM Systems Director Active Energy Manager™ can help

you better monitor and measure power consumption to

reduce wattage and costs.

Peace of mind

The x3690 X5 offers a level of reliability typically found only

in four-socket systems. IBM OnForever™ reliability features

like hot-swap, redundant power and cooling, Predictive

Failure Analysis and QPI fail-down help you avoid interrup-

tions and maximize uptime of your mission-critical work-

loads. In addition, features such as Memory ProteXion,

Chipkill error correction, memory scrubbing, and memory

mirroring can help prevent data loss for maximum

memory integrity.

Select conﬁgurations of the x3690 X5 are part of the

IBM Express Advantage® Portfolio designed to meet the

needs of midsized businesses. Easy to manage, Express®

models and conﬁgurations vary by country.

The x3690 X5 delivers a level of reliability typically found only in

four-socket systems.

Produkt Specifikationer

Mærke:	Ibm
Kategori:	Server
Model:	eServer System x3690 X5
Bredde:	440 mm
Dybde:	712.1 mm
Højde:	172.8 mm
Vægt:	49900 g
Formfaktor:	2U
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	4
Ethernet LAN:	Ja
Processorkerner:	4
Intern hukommelse:	8 GB
Intel® Wireless Display (Intel® WiDi):	Ingen
Processorfrekvens:	1.87 GHz
Processorserie:	Intel® Xeon® 7000 Sequence
Processor boost frekvens:	1.87 GHz
Processortråde:	8
Processor-cache:	18 MB
Processor cache type:	L3
Intern hukommelsestype:	DDR3-SDRAM
Hukommelsesur hastighed:	1066 MHz
Maksimal intern hukommelse:	512 GB
Samlet lagringskapacitet:	0 GB
Intel® Hyper Threading Teknologi (Intel® HT Technology):	Ja
Intel® Turbo Boost Teknologi:	Ingen
Hukommelsesstik:	64x DIMM
Processorproducent:	Intel
Processormodel:	E7520
Optisk drevtype:	Ingen
Enhanced Intel SpeedStep Teknologi:	Ja
Udfør deaktivering af bit:	Ja
Intel® VT-x with Extended Page Tables (EPT):	Ja
Indlejret tilgængelige muligheder:	Ingen
Intel® 64:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Ingen
Intel® Virtualization Technology (VT-x):	Ja
Netværk klar:	Ja
Grafikadapter:	G200eV
Antal serielle porte:	1
Understøttede dataoverførselshastigheder:	1000Mbps, 100Mbps, 10MBps
Antal installerede processorer:	1
Bus type:	QPI
Kabinettype:	Stativ (2U)
Intel® Flex Memory Access:	Ingen
Intel® Trusted Execution Teknologi:	Ingen
Intel® Enhanced Halt State:	Ingen
Intel® klar video teknologi:	Ingen
Konfliktfri processor:	Ingen
HDD-størrelse:	- "
Processor sokkel:	LGA 1567 (Socket LS)
Processor litografi:	45 nm
Thermal Design Power (TDP):	95 W
Fejlkorrigerende kode understøttet af processor:	Ingen
Processor front side bus:	- MHz
Systembus-hastighed:	4.8 GT/s
Processor driftstilstande:	64-bit
Processor kodenavn:	Nehalem EX
FSB Paritet:	Ingen
Intel® InTru™ 3D Teknologi:	Ingen
Intel® Clear Video HD Teknologi (Intel® CVT HD):	Ingen
Intel® Insider™:	Ingen
Intel® My WiFi Teknologi (Intel® MWT):	Ingen
Intel® Anti-Theft Teknologi (Intel® AT):	Ingen
Intel® Quick Sync Video Teknologi:	Ingen
Intel® AES Nye Instruktioner (Intel® AES-NI):	Ingen
Intel® Demand Based Switching:	Ingen
Termiske overvågningsteknologier:	Ingen
Intel® Dual Display Capable Teknologi:	Ingen
Intel® FDI Teknologi:	Ingen
Intel® Rapid Storage Teknologi:	Ingen
Intel® Fast Memory Access:	Ingen
Intel® Clear Video Teknologi til MID (Intel® CVT for MID):	Ingen
Processor ARK ID:	46490
Understøtter RAID:	Ja
Maksimal lagerkapacitet:	8 TB
Redundant strømforsyning:	Ingen
Hukommelsestype for grafikadapter:	GDDR2
Maksimal grafikadapterhukommelse:	16 MB
Billedtypekort:	<div><img src="https://ark.intel.com/inc/images/diagrams/diagram-17.gif" title="Block Diagram" /><img src="https://ark.intel.com/inc/images/diagrams/diagram-16.gif" title="Block Diagram" /><img src="https://ark.intel.com/inc/images/diagrams/diagram-19.gif" title="Block Diagram" /></div>
Tcase:	70 °C
Maksimalt antal SMP-processorer:	2
Sikkerhedsfunktioner:	Power-on password\nRemote-control password
Disk array controller:	ServeRAID
Skærmkort opløsning:	1600 x 1200
Video adapter, bus:	PCIe
