Leadership enterprise server with significantly lower cost of ownership in a highly available and

expandable, rack-dense, 2U dual-socket server

Please see the Legal Information section for important notices and information.

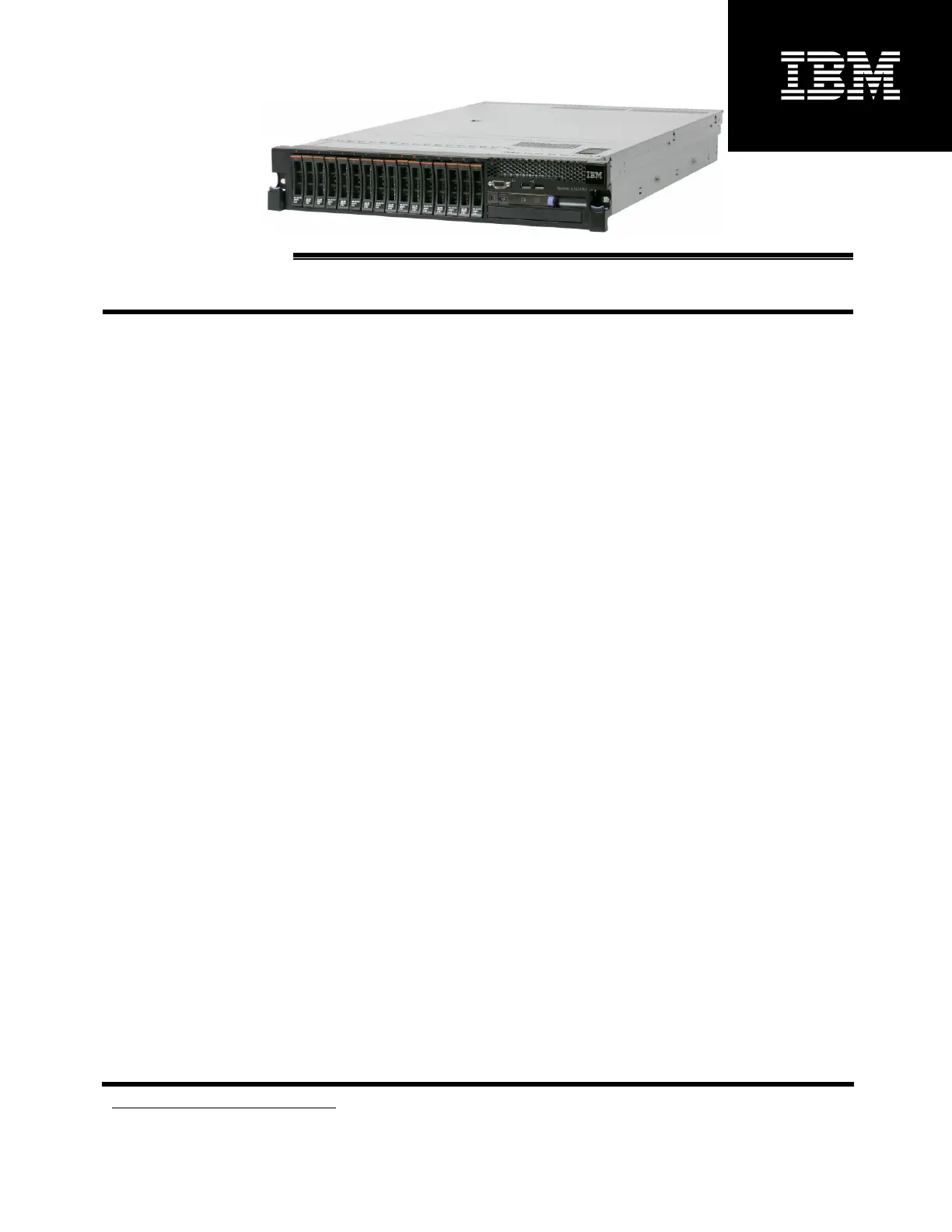

Product Guide

February 2011

IBM System x3650 M3

Product Overview

CONTENTS

Product Overview

Selling Features

Key Features

Key Options 1

x3650 M3 Images 1

x3650 M3 Specifications 1

The Bottom Line 1

Server Comparison 2

For More Information 2

Legal Information 2

Business-critical 2U server packed with innovation

Suggested Uses: All sectors requiring highly available, energy-efficient, rack-optimized solution

for physical and virtual intensive commercial environments like eBusiness/eCommerce,

collaboration, virtualization, database, and enterprise resource planning applications.

Your challenge is to do more with less—serve more Web pages, handle more secure connections,

support more e-mail users. You need to reduce the costs of doing business and improve the

service you deliver to your customers while lowering your overall risk. The dual-socket IBM

System x3650 M3 can reduce your costs with its new energy-smart design. It can improve service

with reduced operational complexity and increased management functionality. It will lower your IT

risk with the resiliency that comes from no single point of failure. And like all IBM servers, the

x3650 M3 offers you the trust that comes from the IBM global reach, service and support.

The x3650 M3 is a game-changing rack server that uses significantly less power than previous

generations, with unified systems management tools, leadership reliability, availability,

serviceability features and broad system flexibility, housed in a compact 2U mechanical package.

The x3650 M3 features Intel

Xeon

5600 series 6-core and 4-core processors, with up to 12MB

of shared L3 cache, to provide you with the computing power you need to match your business

needs and growth. The new line of Intel processors delivers unprecedented intelligent

performance with features like adaptive performance for applications and environments, Turbo

Boost Technology and Hyper-Threading Technology, and integrated power gates and automated

power management.

The x3650 M3 supports up to 18 DIMMs / 192GB of RDIMM 1333MHz DDR3 memory (or up to 12

DIMMs / 48GB of UDIMM memory) and provides Chipkill

™

ECC (Error Checking and Correcting)

protection—for high performance and reliability. For even higher levels of availability, the x3650

M3 also offers memory mirroring. Up to 4 integrated high-speed Gigabit Ethernet controllers

are available (offering TOE (TCP Offload Engine) support on Microsoft

Windows

), as are four

high-performance adapter slots (PCIe x8). The x3650 M3 offers an optional embedded

hypervisor to manage your virtual workloads.

The System x3650 M3 supports up to 16 high-performance hot-swap HDDs with an internal

storage capacity of 16TB

(2.5-inch hot-swap Serial-Attached SCSI (SAS) or Serial-Attached

ATA (SATA) drives). Alternatively, up to 16 solid-state drives (SSDs) are also available to keep

power low, improve resiliency, and offer up to 800GB of storage. To address your backup needs,

up to eight HDDs or SSDs and one internal tape drive or removable disk cartridge drive can be

used. The server includes a choice of several IBM ServeRAID

storage controllers that provide

broad levels of hardware-based RAID solutions. The ultra-dense 2U form factor allows

businesses to increase their computing power and spread their workload without outgrowing their

current data center. Up to 21 of these 2U servers can be installed in a single 42U rack, for a total

of up to 42 processors and 252 processor cores, offering tremendous deployment flexibility.

Standard in the x3650 M3 is the Integrated Management Module (IMM) that enables the user to

manage and control the server easily—both locally and remotely. In conjunction with the IMM, the

x3650 M3 comes with a Bosch BMP085 altitude sensor (altimeter) that governs fan rotation

based on altitude, to help lower your energy consumption. The IMM offers a high level of

manageability that is designed to keep costs down and the system up—even when network usage

increases. IBM’s innovative pop-out/drop-down light path diagnostics panel enables quick

servicing of the system if a problem develops. These advanced features help maximize network

availability by increasing uptime, as do hot-swap solid-state drives; hot-swap/redundant SAS or

SATA HDDs, redundant ultra-efficient power supplies and fan modules; Active Memory

™

;

integrated RAID; temperature-controlled fans with Calibrated Vectored Cooling

™

; IPMI 2.0

support, including highly secure remote power control and Serial over LAN; as well as text-

console redirect over LAN.

Available 2Q/2011.

Leadership enterprise server with significantly lower cost of ownership in a highly available and

expandable, rack-dense, 2U dual-socket server

Please see the Legal Information section for important notices and information.

Another improvement with the new generation of X-Architecture is the replacement of old BIOS

with a new generation United Extensible Firmware Interface (UEFI). UEFI provides a more

intuitive user interface and understandable event logs and better management.

With the inclusion of unique IBM service and support features such as the IMM, light path

diagnostics, IBM Systems Director, IBM Systems Director Active Energy Manager

™

, IBM

ServerGuide

™

and

support for the optional Virtual Media Key for remote presence capability, the

x3650 M3 is designed for superior uptime.

The x3650 M3 passed the NEBS 1/ETSI equivalent compliance for both AC and DC power

supplies and compliance with 80 PLUS

and ENERGY STAR

standards (model dependent). For

more information about IBM’s ENERGY STAR compliance, visit

http://ibm.com/systems/greendc/green_technology/energy_star/index.html.

If you need highly manageable, dual-socket/multi-core computing power in a rack-dense package,

the x3650 M3 is the ideal system.

Selling Features

Price/Performance

The x3650 M3 offers numerous features to boost performance and reduce costs:

• Up to two 6-core or 4-core Xeon 5600 series processors and up to 12MB of cache per

processor, offer superior performance capable of tackling the toughest jobs. 64-bit extensions

provide the flexibility to run 32-bit and 64-bit applications concurrently. Xeon 5600 series

processors offer up to 54% better performance than the previous-generation 5500 series

processors (depending on workload).

• Low-voltage processors draw less energy and produce less waste heat than high-voltage

processors, thus helping to reduce data center energy costs. Selected 4-core Xeon 5600

series processors use only 40W (available via CTO) and selected 6-core processors consume

only 60W. This is less than half the wattage consumed by 130W processors.

• Eighteen DIMMs of registered 1333MHz DDR3 ECC memory with Chipkill

protection

(optional) provide speed, high availability, and a memory capacity of up 192GB.

• x3650 M3 servers using the L5640, E5645, E5649 and 1333MHz X56xx processors support 2

DIMMs per channel (2DPC) at 1333MHz (running at 1.5V).

• Optional 50GB solid-state drives (SSDs) use only 2W of power per drive, vs. 9-10W for 2.5-

inch HDDs. This is as much as 80% less power than a 2.5 inch HDD would use (with a

corresponding reduction in heat output).

• An altimeter works in conjunction with the IMM to govern fan rotation based on the readings

which it delivers to save money under normal conditions because the fans do not have to

spin at high speed.

• Four high-speed x8 (“by 8”) PCIe Gen 2 adapter slots offer investment protection by

supporting high-performance adapters, such as 10Gb Ethernet, Fibre Channel and InfiniBand

cards, none of which will run in older 33MHz and 66MHz conventional PCI slots.

• The integrated ServeRAID-BR10il v2 controller (model-specific) provides RAID-0/1/1E and

full-duplex (bidirectional 3Gbps) data transfers for SAS/SATA/SSD drives without consuming

a valuable adapter slot. Other server models include the 6Gbps ServeRAID-M1015 (RAID-

0/1/10, optional 5/50 with Self-Encrypting Disk, or SED) or the 6Gbps ServeRAID-M5014

controller, which provide RAID-0/1/10/5/50 with 256MB cache and optionally 6/60 with SED

.and optional battery backup, or the 6Gbps ServeRAID-M5015 controller, which provides

RAID-0/1/10/5/50 with 512MB of battery-backed cache (except CTO models) and optionally

6/60 with SED..

• Up to 16 2.5-inch hot-swap SAS/SATA hard disk drives offer high-performance with high

availability. SSDs offer even higher availability, with extremely high IOPS rates.

• The integrated dual-port Gigabit Ethernet controller with IPMI 2.0 provide high-speed network

communications. Two more NICs can be added to the planar with an additional dual-port Gb

Ethernet daughtercard. The TCP Offload Engine (TOE) feature offers higher performance for

TCP/IP traffic, with less overhead on the system processor.

• A high degree of device integration—including hot swap SAS/SATA HDDs or SSD drives,

multiple hardware-based ServeRAID options, Gigabit Ethernet ports, systems management

and video controllers—lowers costs and frees up valuable adapter slots.

• Energy-efficient components, including DDR3 memory, low-voltage transistors and voltage

regulator modules, and power supplies that are up to 90% efficient (model-specific), help keep

your energy bills down.

All models require Chipkill-enabled DIMMs (provided standard) for Chipkill protection.
