THANK YOU

for purchasing a JBL

GTO17T automotive

tweeter. We’ve organized this manual to make

your installation as simple and trouble-free

as possible. Please read it thoroughly before

proceeding. Remember to keep your sales

receipt and this manual in a safe place so

both are available for future reference.

GRAND

TOURING

SERIES

GTO17T

tweeter

owner’s

manual

INSTALLATION WARNINGS AND TIPS

ABOUT THESE

INSTRUCTIONS

Installation of automotive stereo

components can require extensive

experience with a variety of mechanical

and electrical procedures. Although these

instructions explain how to install JBL

GTO17T tweeters in a general sense, they

do not show the exact installation methods

for your particular vehicle. If you feel you

do not have the experience, do not attempt

the installation yourself – instead, ask your

authorized JBL car audio dealer about

professional installation options.

LOUD MUSIC AND HEARING

Playing loud music in an automobile can

permanently damage your hearing, as well

as hinder your ability to hear trafﬁc. The

maximum volume levels achievable with

JBL speakers, combined with high power

ampliﬁcation, may exceed safe levels for

extended listening. We recommend using

low volume levels when driving. JBL

accepts no liability for hearing loss, bodily

injury or property damage as a result of use

or misuse of this product.

ABOUT THE FILTER

Passive ﬁlter design involves precise

circuit design and component selection.

Moreover, a well-designed ﬁlter circuit

provides an intended electrical response,

when combined with the electrical proper-

ties of the speaker, to provide a particular

acoustic response. Each enclosed ﬁlter has

been optimized to provide a ﬂat response

when used with a JBL GTO17T tweeter.

Do not use another brand or type of

passive crossover, or connect more than

one tweeter to a crossover. Doing so may

damage the tweeter.

INSTALLATION TIPS

• Always wear protective eyewear when

using any tools.

• Turn off all audio components and other

electrical devices before you start.

Disconnect the negative (–) lead from

your vehicle’s battery.

• Keep speakers in their package until

ﬁnal installation. When moving a speaker,

always rest it with the cone or dome

facing up. Never use force to install

any speaker.

• Check clearances on both sides of a

planned mounting surface before drilling

any holes or installing any screws.

Remember that the screws can extend

behind the surface.

• At the installation sites, locate and make a

note of all fuel lines, hydraulic brake lines,

vacuum lines and electrical wiring. Use

extreme caution when cutting or drilling

in and around these areas.

• Before drilling or cutting holes, use a

utility knife to remove unwanted fabric

or vinyl to keep material from snagging

in a drill bit or saw.

• For door installations, check the

clearance with the windows throughout

the range of the window’s travel, and

verify that a mounted speaker will not

interfere with the window crank or

power-window mechanism.

• If mounting speakers elsewhere, check

for clearance around rear-deck torsion

bars, glove box or other structural

elements.

• Do not mount speakers where they will

get wet.

ABOUT PLACEMENT

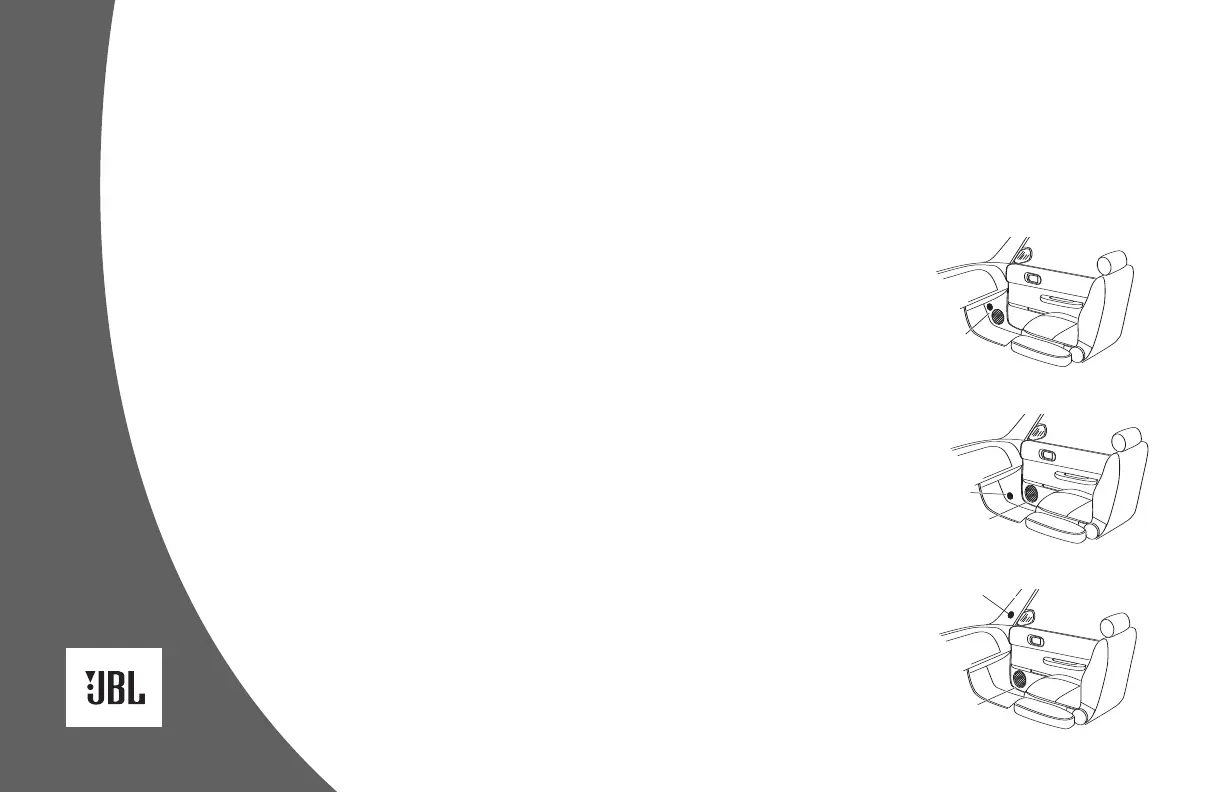

Figures 1 through 3 show possible speaker

placements, with Figure 1 being more

desirable. We recommend using the kick

panel for mounting to obtain the best

staging and imaging in most vehicles.

Figure 1. Mounting the woofer and

tweeter in the kick panel.

Figure 2. Mounting the woofer in the door

and the tweeter in the kick panel.

Figure 3. Mounting the woofer in the door

and the tweeter in the A-pillar.

SPEAKER PLACEMENT

TWEETER

and

WOOFER

on kick panel

TWEETER

in A-pillar

WOOFER

in factory

door location

TWEETER

on kick panel

WOOFER

in factory

door location
