Side 1/4
THANK YOU FOR
CHOOSING JBL
For more than 60 years, JBL has
been involved in every aspect of
music and film recording and
reproduction, from live perform-
ances to monitoring the recordings
you play in your home, car or
office.
We’re confident that the JBL
speaker and back box you have
chosen will provide every note of
enjoyment that you expect – and
that when you think about pur-
chasing additional audio equip-
ment for your home, car or office,
you will once again choose JBL.
Please take a moment to register
your product on our Web site at
www.jbl.com. It enables us to keep
you posted on our latest advance-
ments, and helps us to better
understand our customers and
build products that meet their
needs and expectations.
JBL Consumer Products
INCLUDED
SS88IWSBB
(1) SS88IWSBB back box
(shown installed between
16" on-center wall studs)
(4) L-brackets
(8) #10 32 x 1" screws
(L-brackets to back box)
(8) #10 split washers
(L-brackets to back box)
(8) #10 flat washers
(L-brackets to back box)
(8) #8 x 3/4" wood screws
(L-brackets to wall studs)
(2) wood centering bars
(4) #10 32 x 1-1/2" flat-head screws
(centering bars to back box)
NOTE: The back box is shipped with the
two centering bars attached to it using
the four flat-head screws.
SPEAKER
PLACEMENT
It is best to establish the locations
for the speakers in advance, to
avoid having to correct errors
after installation has already
begun. Refer to these guidelines,
and also see the owner’s guide for
the SS88IWS subwoofer for more
information.
It is generally recommended that
you install your SS88IWS in-wall
subwoofer along the same wall
as the front loudspeakers. The
SS88IWS subwoofer is not video-
shielded and should not be placed
near a video display. Installing the
SS88IWS near a corner will tend
to maximize low-frequency output.
Be cautious when installing in a
corner, to avoid a “boomy” sound.
Also take into consideration any
unusual features of the room, such
as an alcove, which may tend to
create a localized node that may
affect bass response in that area
of the room.
It is generally recommended that
the speaker be installed so that the
bottom of the speaker is approxi-
mately 12" from the floor. Note that
installing the speaker within the
SS88IWSBB back box as shown in
the illustration to the left will
achieve the recommended height.
This is to help with the low-fre-
quency loading (bass reinforce-
ment). This also helps hide the
speaker in a less visible place.
Remember that these are just
guidelines. Since every listening
room is different, JBL strongly rec-
ommends experimenting with the
positioning of your subwoofer prior
to cutting the wall to obtain the
most pleasing results in your room.
One technique that can help you
find the ideal subwoofer location
is to temporarily borrow a stand-
alone subwoofer and place it near
the main listening location. Then
move around the room and deter-
mine where you hear the most
pleasing bass performance. This
would then be the ideal location
for the subwoofer.

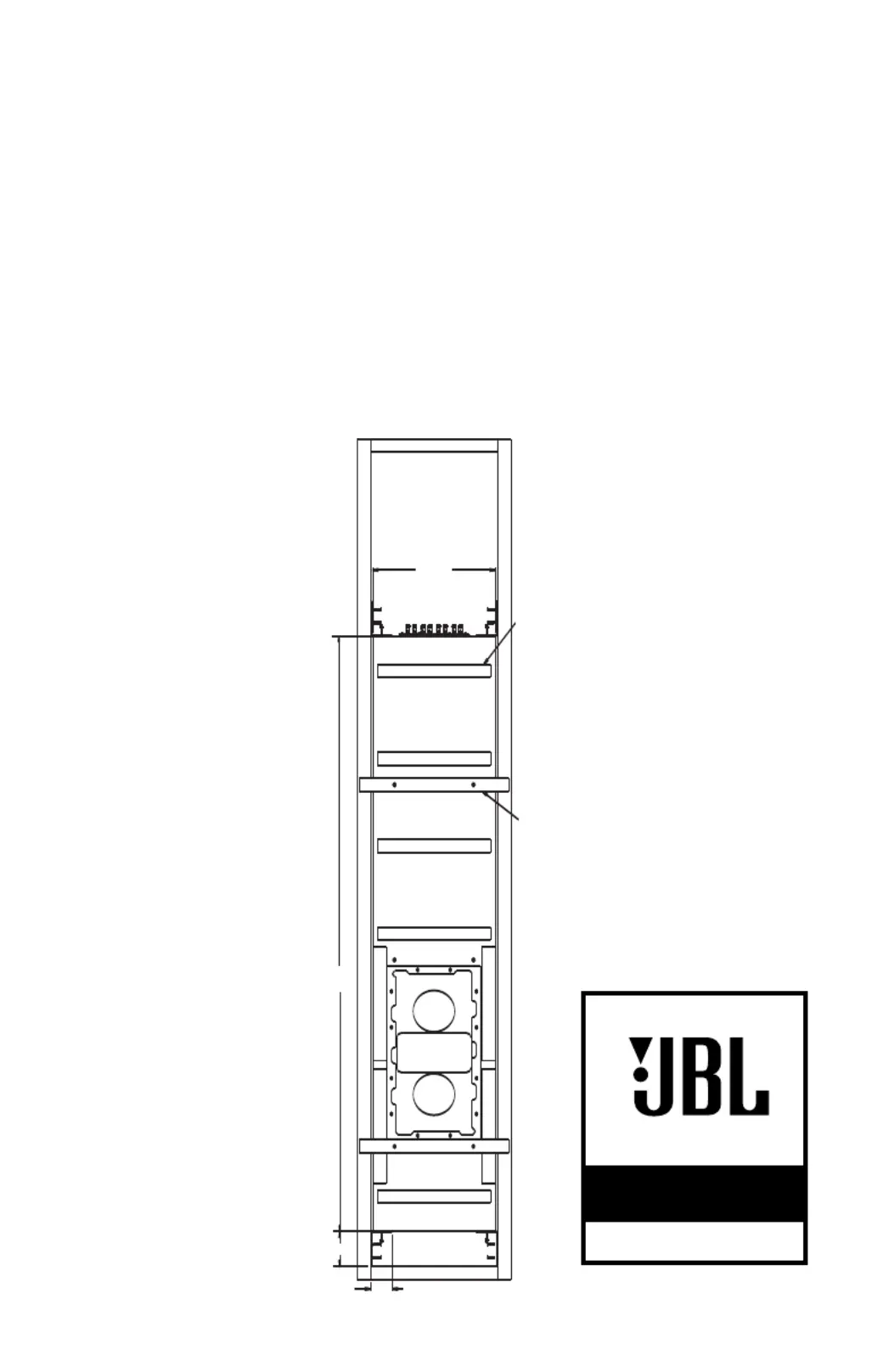

SS88IWSBB
PERFORMANCE ™
SPECIALIST
OWNER’S GUIDE
®
DAMPING
PADS
CENTERING
BARS
68.00
CABINET
4.00
2.49
14.00
CABINET
SPEAKER
CONNECTIONS
Connection Tips
Refer to page 4 of the SS88IWS sub-
woofer owner’s guide for general
information on speaker-wire con-
nections. This manual includes con-
nection guidelines that are specific
to the SS88IWSBB back box.
To use the push-type terminals on
the connections panel supplied with
the SS88IWSBB back box enclosure,
depress the colored cap until the
pass-through hole in the binding
post is revealed. While holding the
cap down, insert the bare end of
the wire, or a banana plug, into the
pass-through hole. Release the cap
and tug gently on the wire to ensure
that it is secure.
Since the SS88IWS is a passive
loudspeaker, only speaker-level con-
nections are available. Depending
on whether you are using a dedi-
cated subwoofer
amplifier or your
main receiver/
amplifier to power the
SS88IWS, select one of the two con-
nection methods that follow.
Connection Method #1
Use this method when you are
using the SS88IWS with your main
receiver/amplifier. Connect the main
left and right speaker-level outputs
on your receiver/amplifier to the
Input 1 (for left channel) and Input 2
(for right channel) connectors on the
SS88IWS connection panel. Connect
the Output 1 terminals to the corre-
s ponding terminals on your front left
speaker, and the Output 2 terminals
to the corresponding terminals on
y our front right speaker.
NOTE: When using Connection
Method #1 with only one SS88IWS,
the shorting straps must be
removed.
If you are using two SS88IWS sub-
woofers, connect the left speaker out-
puts on your receiver/
amplifier to
Input 1 on one subwoofer’s connec-
tions panel, and the right speaker
outputs on your receiver/amplifier to
Input 1 on the second subwoofer’s
connections panel. Then connect
Output 1 from the left-
channel sub-
woofer to the inputs
on your main
left speaker, and Output 1 from the
right-channel subwoofer to the
inputs on your main right speaker.
When using the SS88IWS in this
mono mode, you should not remove
the shorting straps.
Connection Method #2
Use this method when you are
using the SS88IWS with a dedicated
s ubwoofer amplifier. Connect your
main receiver/
processor’s line-level
subwoofer
output to the line-level
input on your subwoofer amplifier.
Connect the speaker terminals on
your subwoofer amplifier to either
Input 1 or Input 2. If your amplifier
has stereo outputs, you may con-
nect one channel to each of Inputs 1
and 2. However, you must remove
the shorting straps when using
s tereo mode. Alternatively, you may
connect each channel to a separate
SS88IWS. When using only one
input on an individual SS88IWS, you
should leave the shorting straps in
place.
Using the SS88IWSBB Back Box
Whichever connection method you
choose to install the SS88IWSBB
back box, you will need to connect
all of the eight wires coming out of
the bottom of the back box to the
appropriate terminals on the loud-
speaker. The wires are color-coded
as follows:
INPUT 1 (–): Yellow with black
stripe
INPUT 1 (+): Solid yellow
INPUT 2 (–): White with black
stripe
INPUT 2 (+): Solid white
OUTPUT 1 (–): Orange with
black stripe
OUTPUT 1 (+): Solid orange
OUTPUT 2 (–): Green with black
stripe
OUTPUT 2 (+): Solid green
YEL/BLK YEL WHT/BLK WHT ORG/BLK ORG GRE/BLK GRE
INPUT 1 INPU 2T OUTPUT 1 OUTPUT 2
– + – + – + – +
– + – +
Rece r/Amplifier Speaker Outputsive
Left Right
– +
F onr t ft SpeakerLe
– +
F onr t Right Speaker
Connections ane ofP l
SS88IWSBB Back Box
Connection Method #1, Using One SS88IWS
With Bac B Remove Sho ng Straps)k ox ( rti
– + – +
Rece r/Amplifier Speaker Outputsive
Left Right
– +
F onr t ft SpeakerLe
– +
F onr t Right Speaker
YEL/BLK Y EL WHT/BLK WHT O BLKRG/ ORG GRE/BLK GRE
INPUT 1 INPU 2T O UTPUT 1 OUTPUT 2
– + – + – + – +
YEL/BLK YEL WHT/BLK WHT O BLKRG/ ORG GRE/BLK GRE
INPUT 1 INPU 2T O UTPUT 1 OUTPUT 2
– + – + – + – +
Conne ons Panel ofcti
Left SS88IWSBB Back Box
Conne ons Panel ofcti
Righ SS88IWSBB ack Boxt B
Connection Method #1, Using Tw SS88IWS Loudspeakers o
With Bac Boxes (Use Sho ng Straps)k rti
– +
Amplifier
Rece r/Processorive
Speaker-Level
Outputs
Subwoofer or
Main Amp
Out
Line-Level
Inputs
– +
Left Left
Right Right
Left
Right
YEL/BLK YEL WHT/BLK WHT O BLKRG/ ORG GRE/BLK GRE
INPUT 1 INPU 2T OUTPUT 1 OUTPUT 2
– + – + – + – +
YEL/BLK YEL WHT/BLK WHT O BLKRG/ ORG G RE/BLK GRE
INPUT 1 INPU 2T OUTPUT 1 OUTPUT 2
– + – + – + – +
Left SS88IWSBB Back Box
Righ SS88IWSBB Back t Box
Connection Method #2, Using Tw SS88IWS Loudspeakers o
With Bac Boxes (Use Sho ng Straps)k rti
