ProHD-4601 HDMI to SDI converter

USER MANUAL

1. Characteristics

Portable HDMI to 3G/HD/SD-SDI converter◆

1 HDMI input, 1 analog audio (3.5mm) input and 2 SDI output◆

Embed HDMI audio to SDI output◆

Embed analog audio to SDI output◆

HDCP 1.1 supported◆

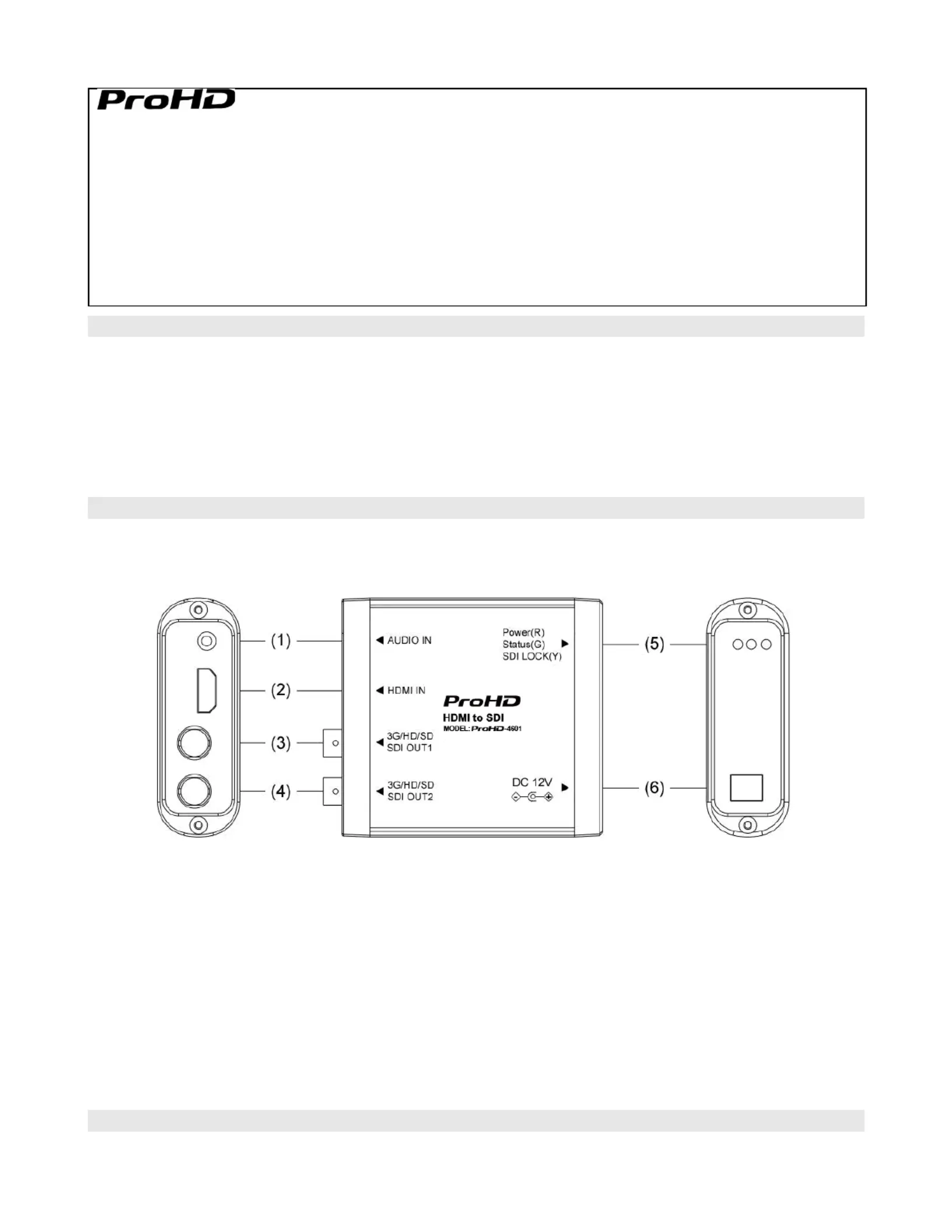

2. Product View

Left side view Front view Right side view

⑴AUDIO IN: Analog audio input (3.5mm)

⑵HDMI input

⑶SDI OUT1: 3G/HD/SD-SDI output (BNC)

⑷SDI OUT2: 3G/HD/SD-SDI output (BNC)

⑸LED status indicator

⑹DC 12V: 5.5mm pole DC input

3. Indicators and Switchers

Power (Red): Power indicator⑴

Status (Green): Status indictor, lights on when there’s HDMI input recognized⑵

SDI LOCK (Yellow): SDI indicator, lights on when there’s SDI output⑶

4. Specifications

Input HDMI(1.3)×1, Analog audio (3.5mm)×1

Output 3G/HD/SD-SDI×2

Video Format

HDMI 480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SDI

SMPTE 425M-1080p (60 / 59.94 / 50)

SMPTE-274M 1080p (30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

SMPTE-296M 720p (60 / 59.94 / 50)

ITU-R BT.656 576i (50)

SMPTE-125M 480i (59.94)

Audio Format 48KHz sync

Power ≤3W

Working Voltage DC 6-18V

Working Environment Temperature: 0 -+70 , Humidity:10%-90%℃ ℃

Dimension 140×75×30 mm

Net weight 138.5g

5. Maintenance

1. Please do not disassemble the product by yourself.

2. Keep the product away from rain or moisture.

3. Please use the provided power adapter and if you use third party power adapter, please make sure the

voltage range, supplied power, and polarity of power lead are fit.

This model is manufactured, warranted and supported by , SWIT Electronics Co., Ltd. / SWIT Electronics USA, LLC

and distributed in North America by JVC Professional Video Products.

To obtain service or for further information, please contact:

SWIT Electronics USA, LLC.

Address: 4300 Stevens Creek Blvd., Suite 230, San Jose, CA 95129

Toll free: 1 866 986-SWIT (7948) • Tel: 408 260-8258·Fax: 408 228-8438

Email: • Website: www.swit.usinfo@swit.us
