CX-DAB1

DAB antenna unit

INSTALLATION MANUAL

Antenne DAB

MANUEL D'INSTALLATION

Bluetooth-Antennengerät

INSTALLATIONSHANDBUCH

DAB-antenne

INSTALLATIEHANDLEIDING

Unità antenna DAB

MANUALE PER L’INSTALLAZIONE

Unidad de antena DAB

MANUAL DE INSTALACIÓN

Unidade de antena DAB

MANUAL DE INSTALAÇÃO

B64-4972-20_02_CX-DAB1_W.indb 1 2017/07/21 15:34

English

■

It may not be possible to install on some

type of vehicle.

■

Check the cable routing of the film antenna

A and amplifier B before pasting.

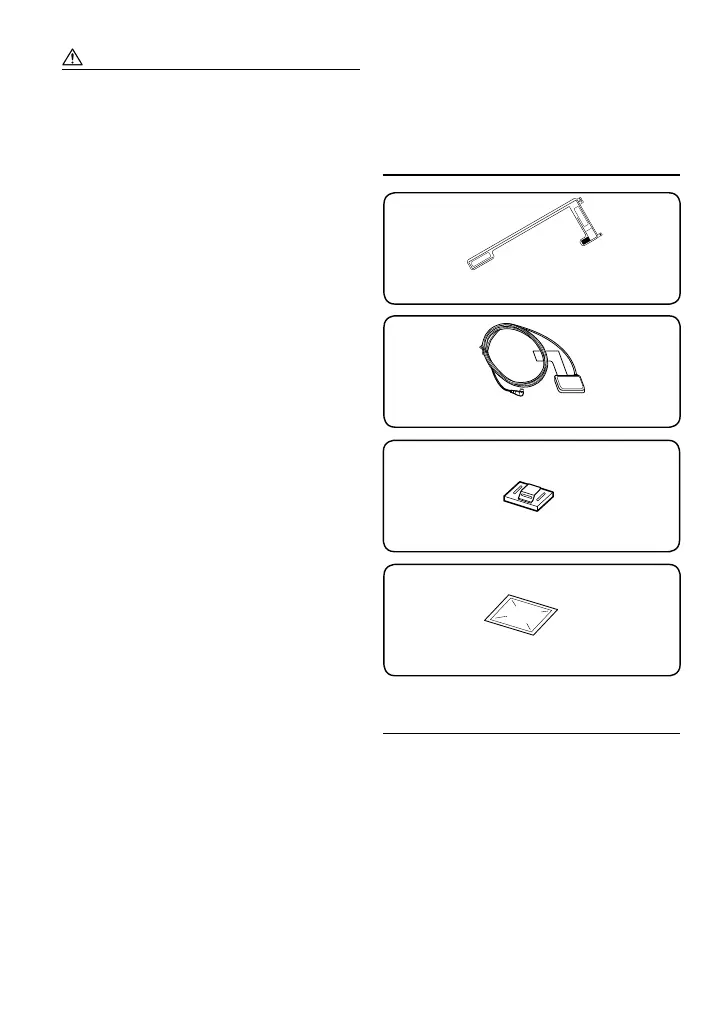

Part list

D .................................................Cleaner (×1)

C ................................... Cord clamper (×3)

B .............. DAB antenna amplifier (×1)

A ..........................DAB antenna film (×1)

Specifications

Frequency Range: 170 – 240MHz,

1452 – 1492MHz

Impedance: 50Ω

Operating voltage: 9

– 16V

Current Consumption: 70mA (Max)

Connector Type: SMB

Cable Length: 3.5m

• Specifications subject to change without

notice.

CAUTION

■

Disconnect the battery’s negative terminal

and make all electrical connections before

installing the unit.

■

Mounting and wiring this product requires

skills and experience. For safety’s sake, leave

this work to professionals. If you experience

problems during installation, consult your

Kenwood dealer.

■

This film antenna is exclusively for use inside

the vehicle.

■

Do not install at the following locations:

– Where it may block driver’s view

– Where it may obstruct operation of safety

devices such as air bags

– On movable glass surface such as rear

hatch

■

Signal strength will decrease at the following

locations:

– On IR reflecting glass or where covered

with mirror type glass film

– Where it overlaps with genuine radio

antenna (pattern)

– Where it overlaps with window heating

wires

– At side of vehicle (e.g. door, front quarter

window)

– On rear window

– When glass that blocks radio signals (e.g.

IR reflecting glass, thermal insulation glass)

is used

– Reception may decrease due to noise

when windshield wiper, air conditioner, or

motor is turned on.

– Reception may decrease depending on

the direction of the broadcast station with

respect to the vehicle (antenna).

■

Be sure to check the installation location

of film antenna A before installing. Film

antenna cannot be re-pasted.

■

Thoroughly wipe oil and dirt from the

pasting surface with the included cleaner D.

■

Do not bend or damage the film antenna A.

■

Warm the pasting surface by turning on the

heater for example, before applying.

   
