MONITOR WITH DVD RECEIVER

KVT-526DVD

KVT-556DVD

INSTALLATION MANUAL

2 | KVT-526DVD/KVT-556DVD

Installation Procedure/Accessories

1. To prevent short circuits, remove the key from the

ignition and disconnect the - terminal of the

battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the wire of the wiring harness.

4. Take Connector B on the wiring harness and

connect it to the speaker connector in your vehicle.

5. Take Connector A on the wiring harness and

connect it to the external power connector on your

vehicle.

6. Connect the wiring harness connector to the unit.

7. Install the unit in your car.

8. Reconnect the - terminal of the battery.

9. Press the reset button.

2WARNING

• If you connect the ignition wire (red) and the battery wire

(yellow) to the car chassis (ground), you may cause a short

circuit, that in turn may start a fire. Always connect those

wires to the power source running through the fuse box.

2CAUTION

• Install this unit in the console of your vehicle.

Do not touch the metal part of this unit during and shortly

after the use of the unit. Metal part such as the heat sink

and enclosure become hot.

• Mounting and wiring this product requires skills and

experience. For safety’s sake, leave the mounting and wiring

work to professionals.

• Make sure to ground the unit to a negative 12V DC power

supply.

• Do not install the unit in a spot exposed to direct sunlight

or excessive heat or humidity. Also avoid places with too

much dust or the possibility of water splashing.

• Do not use your own screws. Use only the screws provided.

If you use the wrong screws, you could damage the unit.

• If the power is not turned ON (“PROTECT” is displayed),

the speaker wire may have a short-circuit or touched the

chassis of the vehicle and the protection function may

have been activated. Therefore, the speaker wire should be

checked.

• Make sure that all wire connections are securely made by

inserting jacks until they lock completely.

• If your vehicle’s ignition does not have an ACC position, or

if the ignition wire is connected to a power source with

constant voltage such as a battery wire, the power will not

be linked with the ignition (i.e., it will not turn on and off

along with the ignition). If you want to link the unit’s power

with the ignition, connect the ignition wire to a power

source that can be turned on and off with the ignition key.

• Use a commercially available conversion connector if the

connector does not fit in the vehicle connector.

• Insulate unconnected wires with vinyl tape or other similar

material. To prevent a short circuit, do not remove the caps

on the ends of the unconnected wires or the terminals.

• If the console has a lid, make sure to install the unit so that

the faceplate will not hit the lid when closing and opening.

• If the fuse blows, first make sure the wires aren’t touching

to cause a short circuit, then replace the old fuse with one

with the same rating.

• Connect the speaker wires correctly to the terminals to

which they correspond. The unit may be damaged or fail to

work if you share the wires or ground them to any metal -

part in the car.

• After the unit is installed, check whether the brake lamps,

blinkers, wipers, etc. on the car are working properly.

• Mount the unit so that the mounting angle is 30° or less.

• This unit has the cooling fan (page 5) to decrease the

internal temperature. Do not mount the unit in a place

where the cooling fan of the unit are blocked. Blocking

these openings will inhibit the cooling of the internal

temperature and result in malfunction.

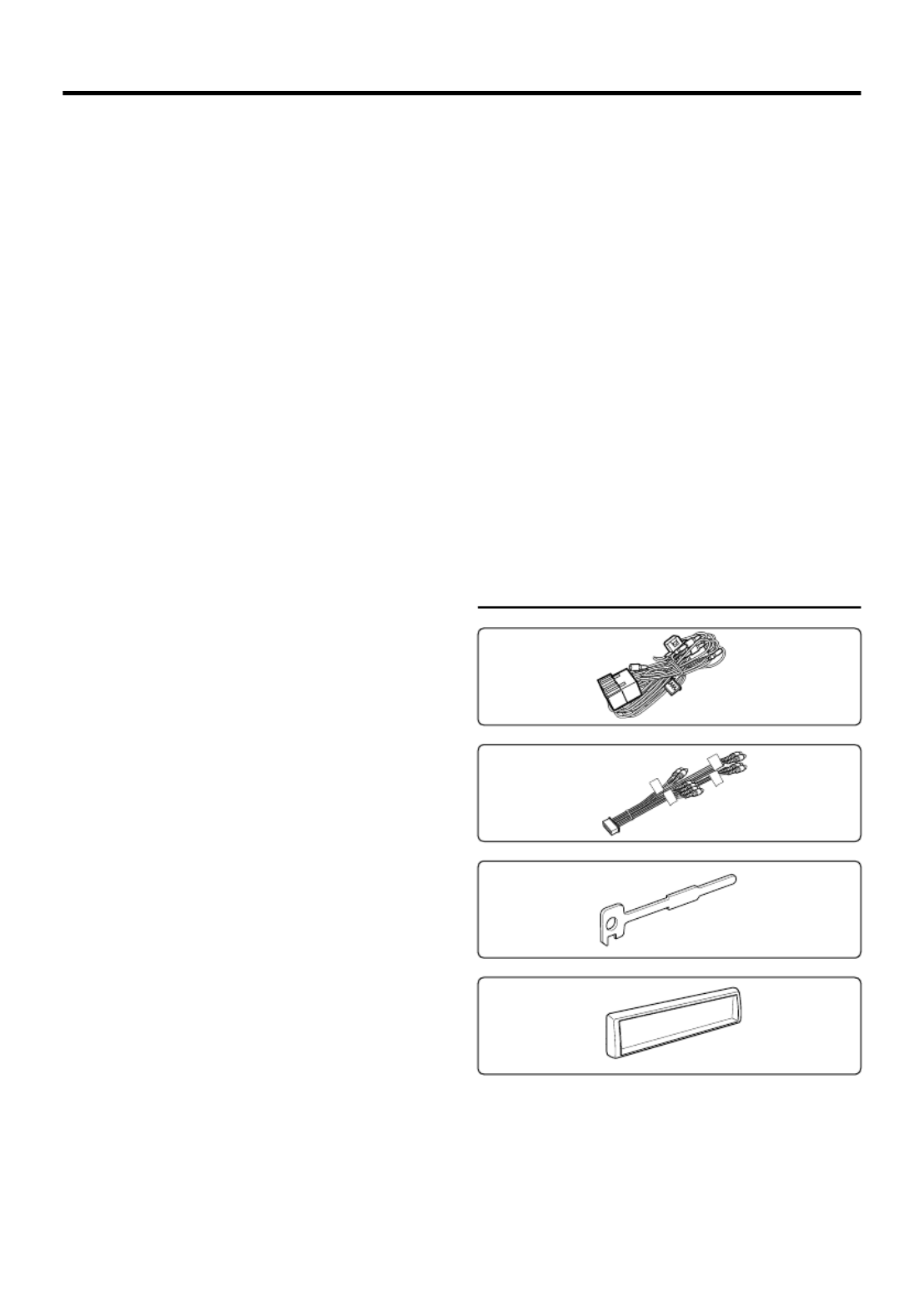

Accessories

..........1

..........2

..........1

Produkt Specifikationer

Mærke:	Kenwood
Kategori:	Bilradio
Model:	KVT-526DVD
Vægt:	2300 g
Produktfarve:	Sort
Skærm diagonal:	7 "
USB-port:	Ja
Opbevaringstemperatur (T-T):	-20 - 85 °C
Driftstemperatur (T-T):	-10 - 60 °C
Dimensioner (BxDxH):	182 x 53 x 160 mm
Understøttede billedformater:	JPG
USB version:	2.0
Antal USB-porte:	1
Kompatible produkter:	Apple iPod nano 2G/3G/4G, iPod Classic, iPod Touch, iPhone
