WARNING

To avoid fire, shock and serious personal injury, follow these instructions:

1. Carefully read and retain this Instruction Manual for future reference.

2. To avoid possible electrical shock, be sure the electricity is turned off at

the main panel by removing the fuse or opening the circuit breaker.

3. This control switch is designed for use with "DC Motor Ceiling Fans"

ONLY. DO NOT use with any other type of electrical appliance.

4. All wiring must conform to national and local electrical codes. If you feel

you do not have enough electrical knowledge, have a licensed electrician

install the control.

5. The amperage for your fan should not exceed 1A. The total wattage for

the lights 300W.

INSTALLATION AND OPERATING

INSTRUCTIONS

1. Disconnect the power and remove the existing wall plate and switch. (Fig. 1)

2. Make each of the wire connections illustrated in Figure 3. Secure each

with the wire nuts provided.

Black wire going to the fan (motor) to the Black wire from the Switch.

In the Ceiling Outlet Box, connect the White (neutral) wire coming from

the Fan to the White (neutral) wire from the Household Supply.

Connect the Black (AC IN L) from the switch to the Black wire going to

the Household Supply.

3. If your ceiling outlet box has a ground wire (green or bare copper) connect

it to the ground wire from the ceiling fan and/or the ceiling mounting

bracket.

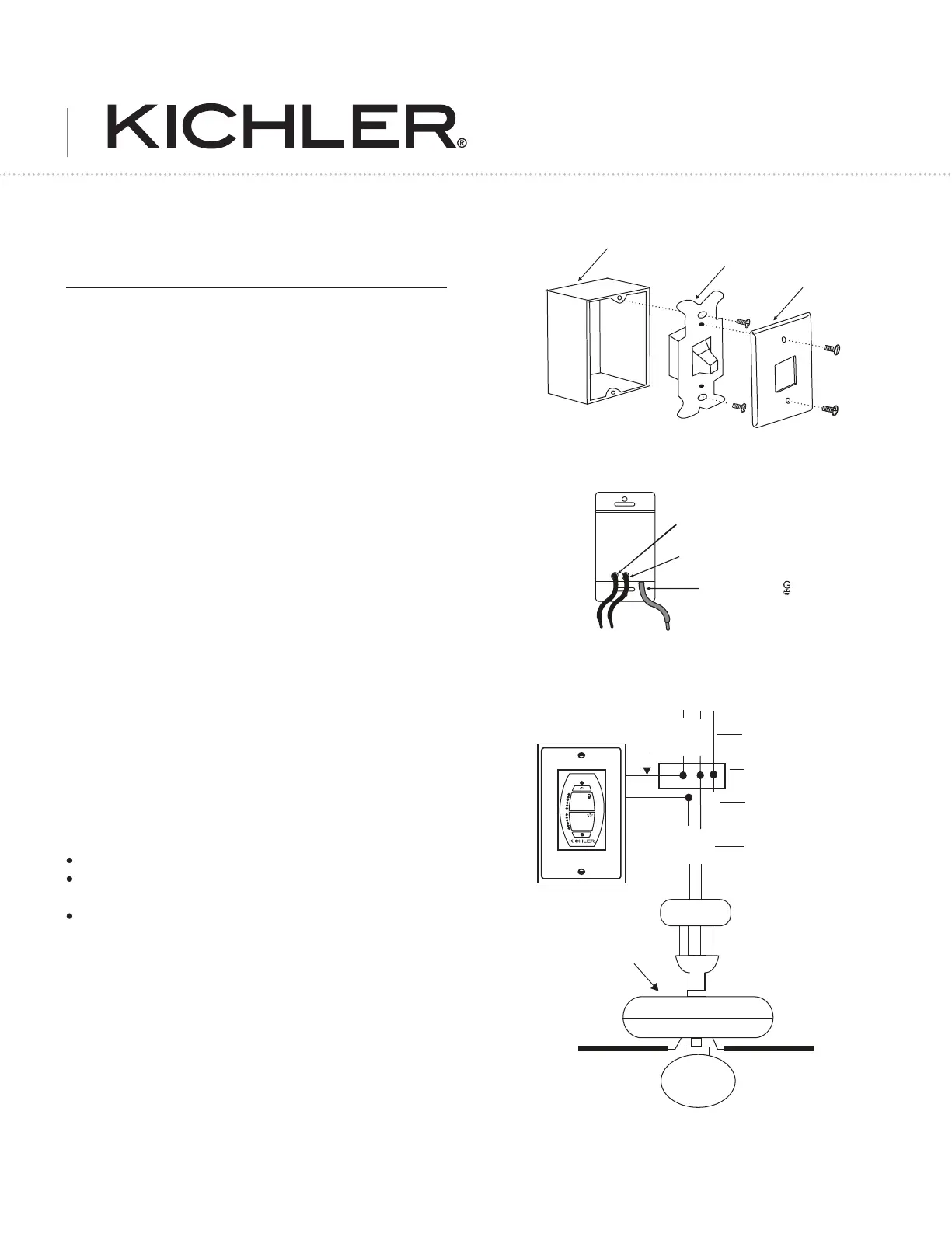

Fig. 1

Fig. 3

DC MOTOR WALL CONTROL

MODEL: 370036 and 370100

INSTALLATION INSTRUCTIONS

Wall plate

Switch

Outlet box

Fig. 2

Black (AC IN L)

to hot household

Black (to motor)

speed control lead

Green ground ( ) lead

SUPPLY CIRCUIT

BLACK

Ground Conductor

Outlet Box

Green Ground Lead

Ground to Downrod

GREEN

WHITE

Fan

RECEIVER
